Manitowoc #CNF0201A-161L, Nugget Ice Maker & Dispenser, 315 lb./day, 10 lb. Bin, R404A refrigerant, 500 psig, 115 Volt, 1PH, 2022

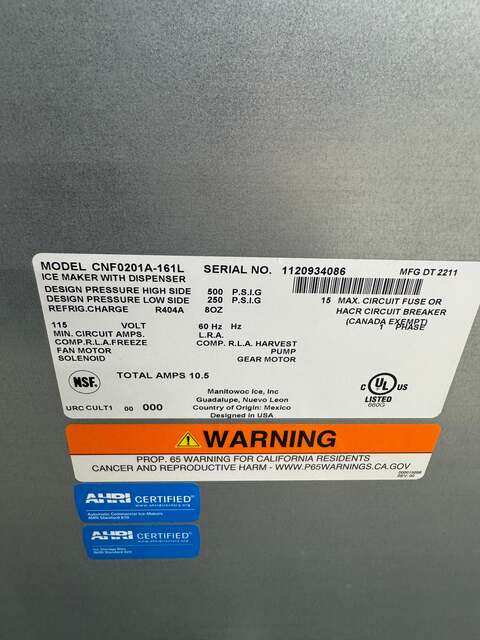

Used in commercial foodservice, healthcare, and hospitality environments, the Manitowoc CNF0201A-161L is a countertop nugget ice maker and water dispenser rated at up to 315 lb of ice production per 24 hours at standard conditions of 70 degrees F air and 50 degrees F water. At elevated ambient conditions of 90 degrees F air and 70 degrees F water, production capacity is 222 lb per 24 hours. The unit is air cooled with a self-contained condenser, operates on 115V single-phase power at 60 Hz, and carries a total amperage draw of 10.5 amps per the nameplate. Maximum circuit fuse or HACR circuit breaker rating is 15 amps. Refrigerant is R404A with an 8 oz charge. Design pressure is 500 PSIG on the high side and 250 PSIG on the low side. The stainless steel cabinet features a DuraTech front panel with a push-button dispense interface and three selectable dispensing modes. The integrated 10 lb storage bin is accessed via a lever-activated dispense mechanism. Water and drain connections are located at the rear and bottom of the unit for flush mounting. Serial number 1120934086 is visible on the nameplate. MFG date code is 2211, indicating manufacture in November 2022. The unit carries NSF and cULus listings and is AHRI certified under Standards 810 and 820. Dimensions per published specifications are 16.25 in. W x 24 in. D x 35 in. H.

Stock # 0426-01367
