Manchester Horizontal Air Receiver Tank 304962 200 PSI MAWP

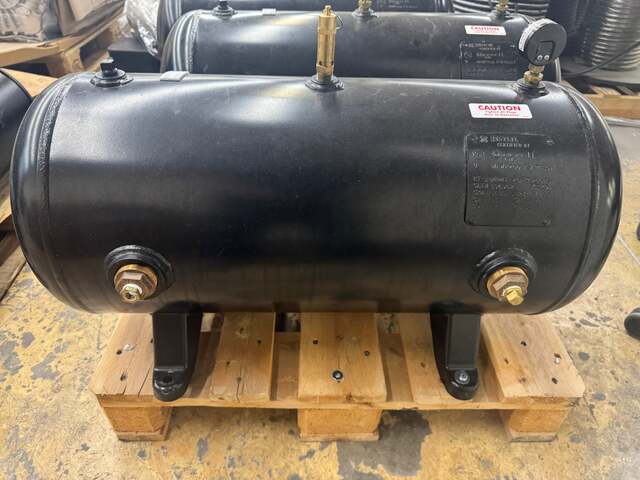

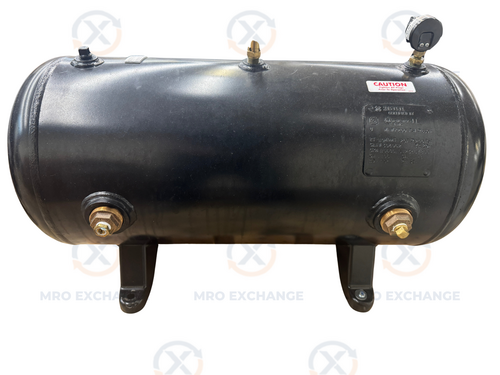

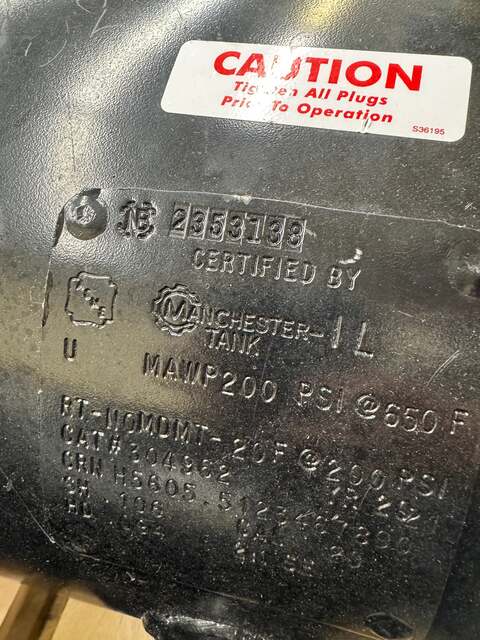

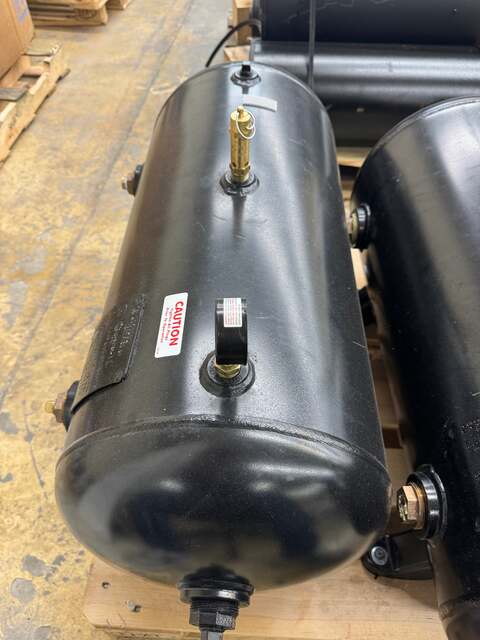

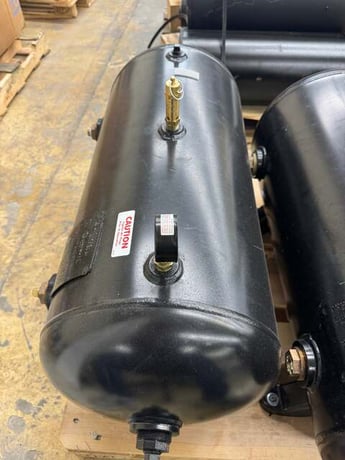

Used in industrial compressed air systems as a standalone storage and pressure stabilization vessel, this Manchester Tank horizontal air receiver is rated for a maximum allowable working pressure of 200 PSI at 650 degrees Fahrenheit, with a minimum design metal temperature of 20 degrees Fahrenheit at 200 PSI. The tank is stamped with National Board number 2353138 and carries ASME Section VIII Division I certification with a "U" stamp, confirming compliance with US pressure vessel codes. The nameplate identifies this as CAT# 304962, a horizontal configuration with four cast iron saddle-style legs for floor-mounted installation. Visible hardware includes a brass safety relief valve on the top port, two large inlet/outlet ports positioned at the ends, and a drain fitting at the lower center. A partial Canadian Registration Number (CRN) beginning H5605.5 is stamped on the nameplate, indicating the vessel was also certified for Canadian use. The exterior carries a factory primer finish and is currently painted black. Manchester Tank is a US manufacturer with an established reputation in the ASME pressure vessel and compressed air receiver segment. This vessel is physically consistent with the standard 60-gallon horizontal receiver series manufactured by Manchester Tank at 20 inches in diameter and 48 inches in overall length, though the exact gallon capacity could not be confirmed directly from the nameplate.

Stock # 0326-908
