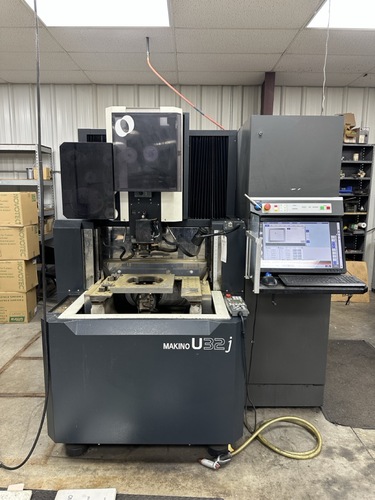

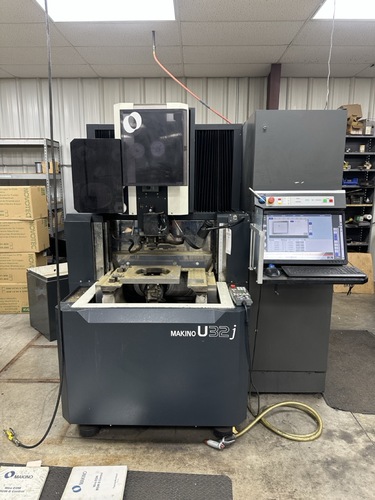

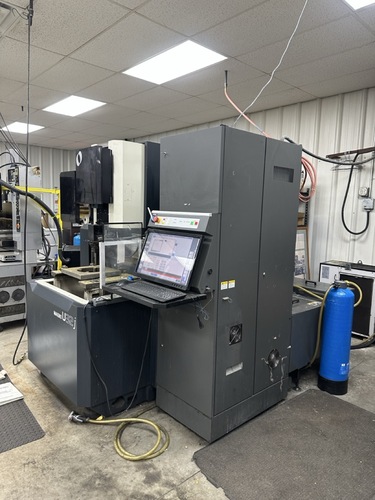

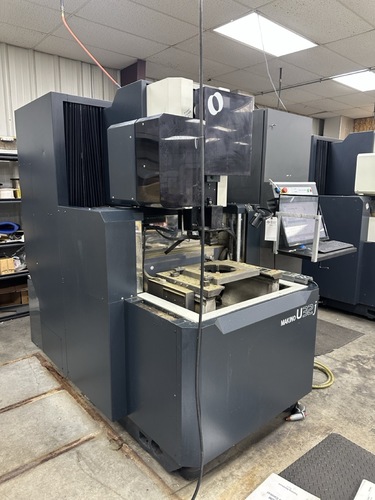

Makino #U32J, CNC Wire Electrical Discharge Machine, 14.6" x 10.6" x 8.7" travels, Hyper I CNC, 24" HD touch screen, 2013

Travels & Capacity
X / Y / Z Travels: 370 mm x 270 mm x 220 mm (14.6″ x 10.6″ x 8.7″)
U / V Travels: +/- 50 mm X +/- 50 mm (+/- 2.0″ x +/- 2.0″)
Max Workpiece Size: 780 mm x 590 mm x 220 mm (30.7″ x 23.2″ x 8.7″)
Max Workpiece Weight: 1,322 lbs
Work Table Dimensions: 570 mm x 370 mm (22.4″ x 14.6″)

Machining Performance
Surface Finish Capability: Down to 0.07µmRa (34µinRa) with Crystal II Circuit
Wire Diameter Support: 0.1 mm to 0.3 mm (Standard); 0.05 mm to 0.07 mm (Optional)
Positioning Accuracy: 0.05mm Glass

Scale Feedback System
Taper Angle: +/- 15° at 100 mm Thickness (Standard Guides)

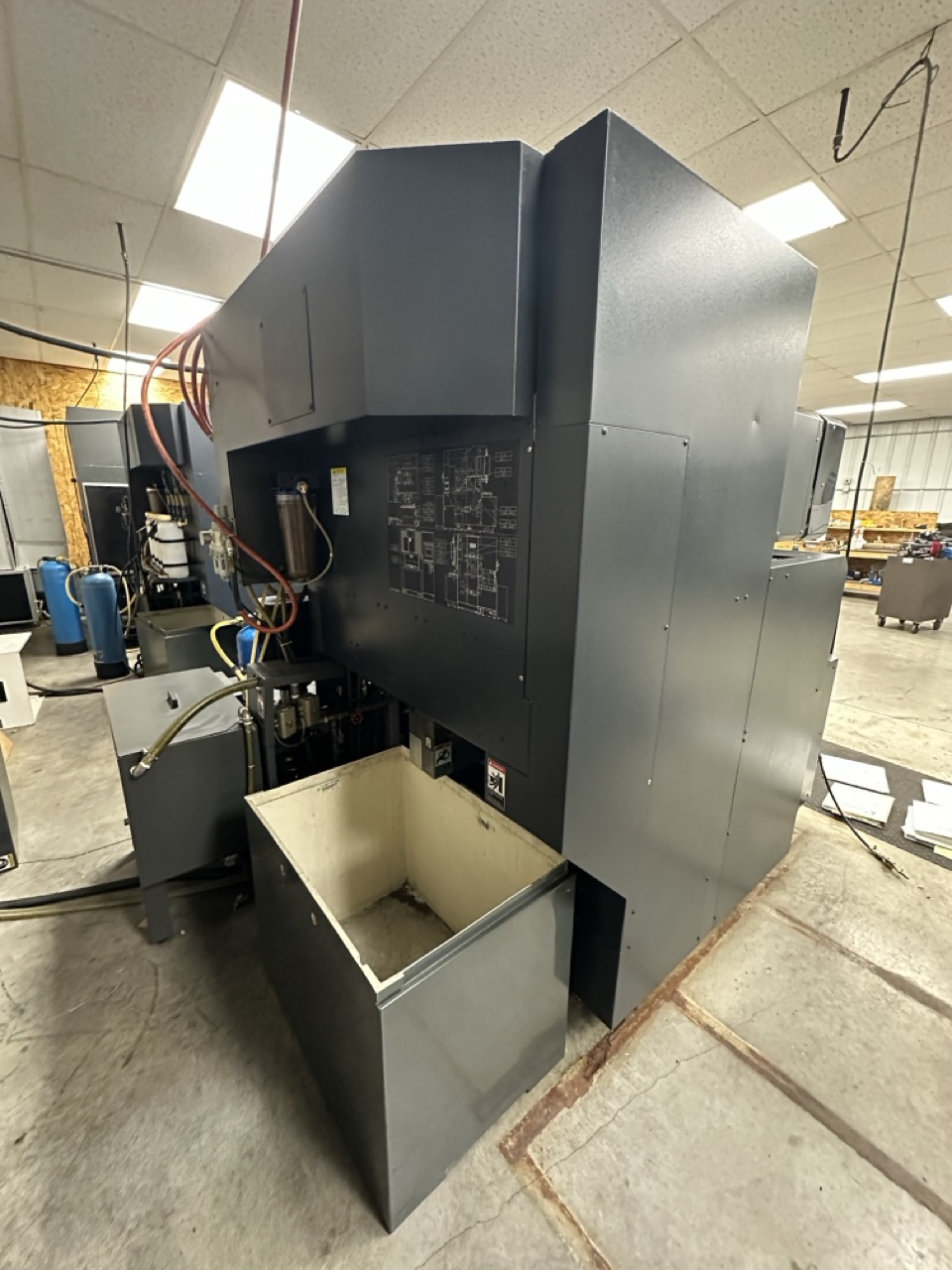

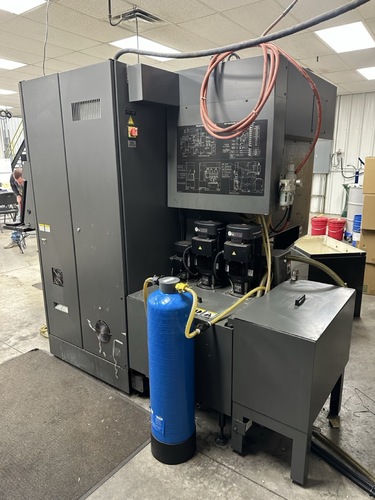

Machine & Fluid System
Machine Weight: 7,055 lbs
Dielectric Capacity: 156 Gallons
Filter Type: Paper Filter (2 Elements)
Tank Type: Programmable 3-Sided Rise & Fall Work Tank

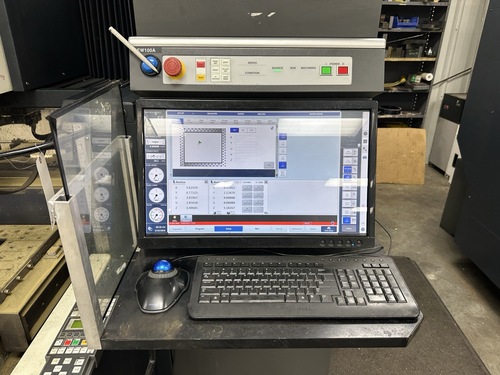

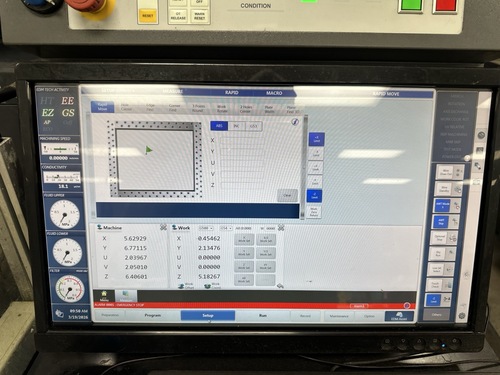

Control System: Makino Hyper I CNC (24″ HD Touch Screen)

Installation Requirements
Power Supply: 200 V +/- 10%, 3-Phase, 50/60 Hz; 12 kva Total Capacity
Air Supply: 0.5 mpa (72 psi) Minimum; 21 scfm Flow Rate
Footprint (W x D): 80.7″ x 99.2″

Machine Timestamps & Totals
Power On Time: 38,376:41
Auto Run Time: 12,140:14
Machining Time: 11,257:39
