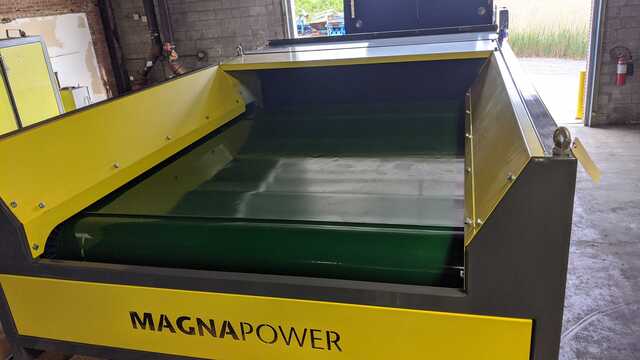

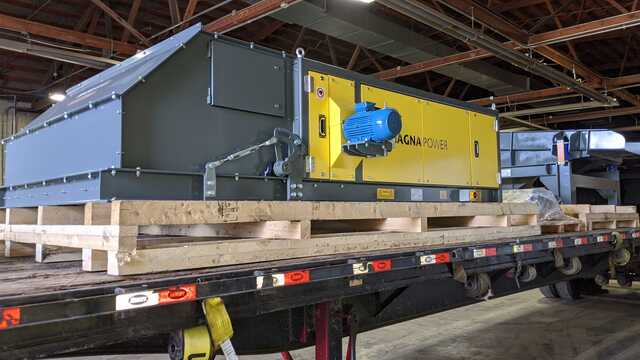

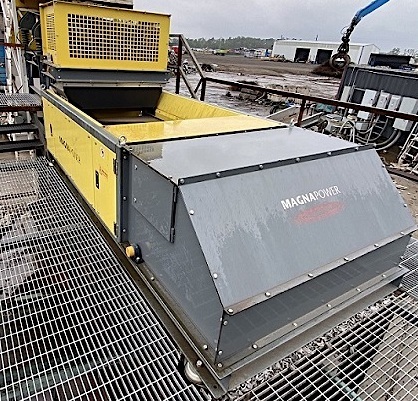

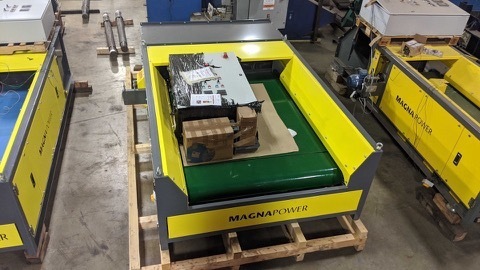

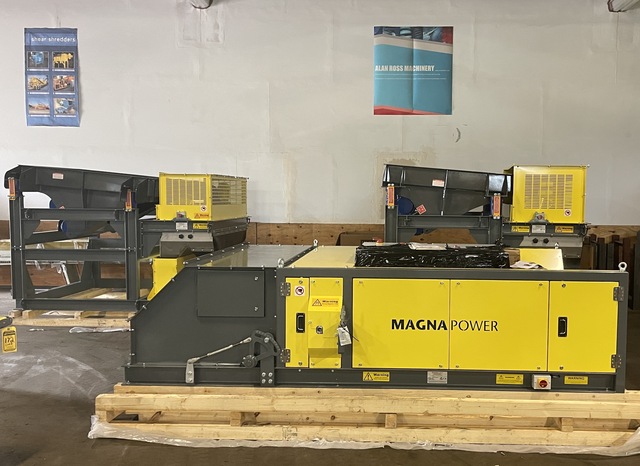

Magnapower Eddy Current sorter + control panel, 60" width, VFD ctrs & feeder controls

Eccentric Rotor / High Frequency / High Inductive Force / Easy Maintenance
Put proven Magnapower performance to work for you. In use throughout North America, Europe & Globally, Magnapower enjoys a well earned reputation for quality engineering, outstanding performance & ease of use/maintenance.
------------------------------------------
Magnapower Eddy Current Separator
------------------------------------------
**Effective Width:**
- 1500mm (60").
**Drive Systems:**
- ECS Rotor Drive:
- Power: 3kW
- Voltage: 3/60/240/480 Volt
- ECS Belt Drive:
- Power: 1.5kW
- Voltage: 3/60/240/480 Volt
**Design Features:**
- Anti-leakage design enhances performance up to 50%.
- Optimized pole to diameter ratio for maximum efficacy.
- Eccentric rotor design for enhanced reliability and improved effective area & tolerances.
**Construction:**
- Frame: Heavy duty cantilever for easy belt change and maintenance.
- Splitter Box: Adjustable, included with frame.
- Seals: Labyrinth bearing seals to safeguard rotor and bearings.
**Controls:**
- Variable Frequency Drive (VFD) controls and feeder controls.
**Applications:**
- Versatile suitability for a range of applications including recovery of small non-ferrous metals starting from 2mm size (fines) to larger shredded scrap metal processes.
**Optional Features:**
- Belt Cleaning Brush
- Motorized Splitter Adjustment: .18kW
- Heavy Duty Vibratory Feeder: 60"
- PMDS RE Drum Magnet: 60"
