For Sale by Asset Exchange Corporation
Surplus Record Dealer Since 2004
Location: Elk Grove Village, IL
Contact Gregg/Mark
Phone Number: 773...> Show Phone Number 773-866-9600
Let the seller know you found their listing on Surplus Record!
Description
Overview
Specifications
| Type: | Grinder-CNC All Types |
| Manufacturer: | MFP125N35M45GAS CNC CREEP FEED |
| Model: | MFP125N35M45GAS CNC CREEP FEED |
| Year: | 1992 |
| Stock #: | 92901 |
| Status: | For Sale |
| Serial #: | 143 |
| Country: | United States |
Specifications
| size | 49" x 14" | 49" x 14" |
| # Axis | 4 | 4 |
| Power | 27.5 hp | 20.5 kW |
| Max RPM | 9,000 RPM | 9,000 RPM |
| Control | CNC (Allen Bradley) | CNC (Allen Bradley) |

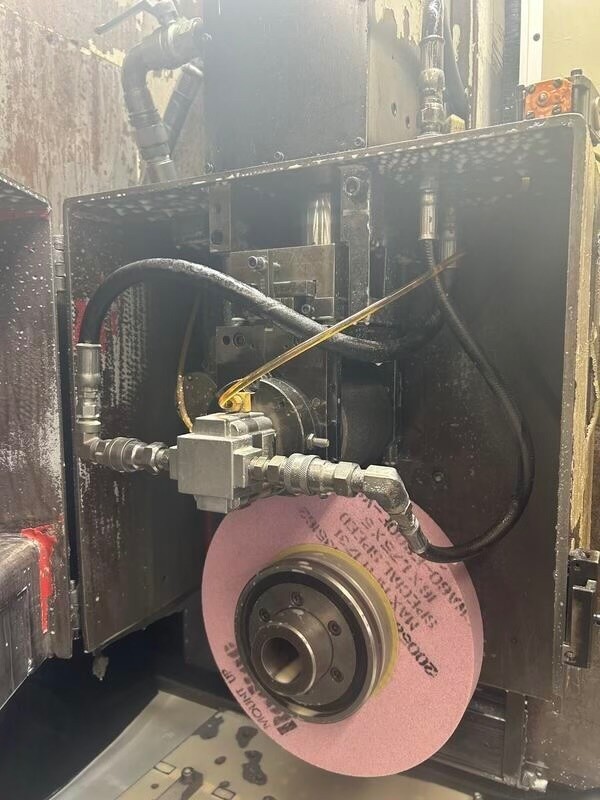

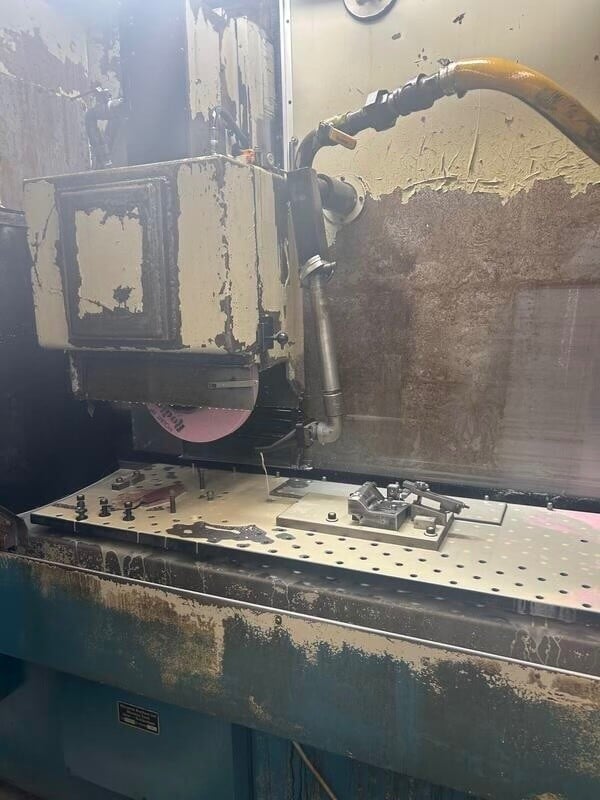

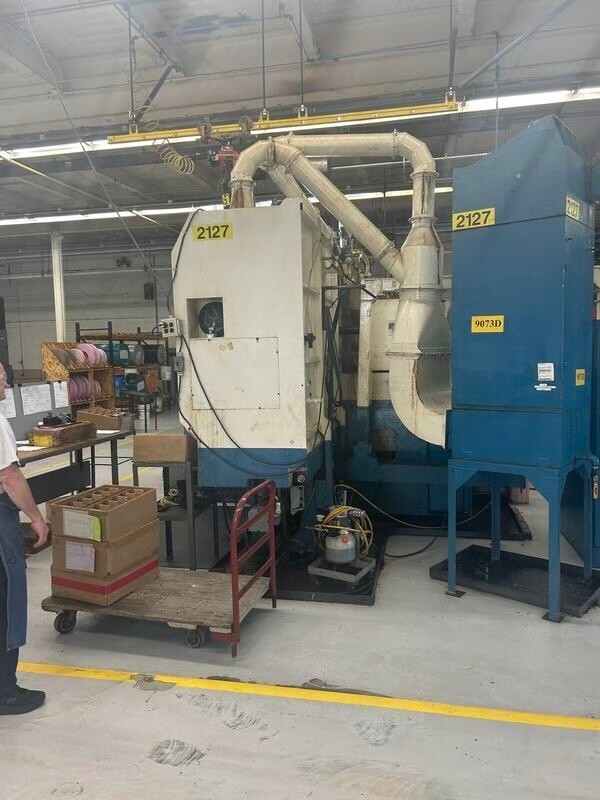

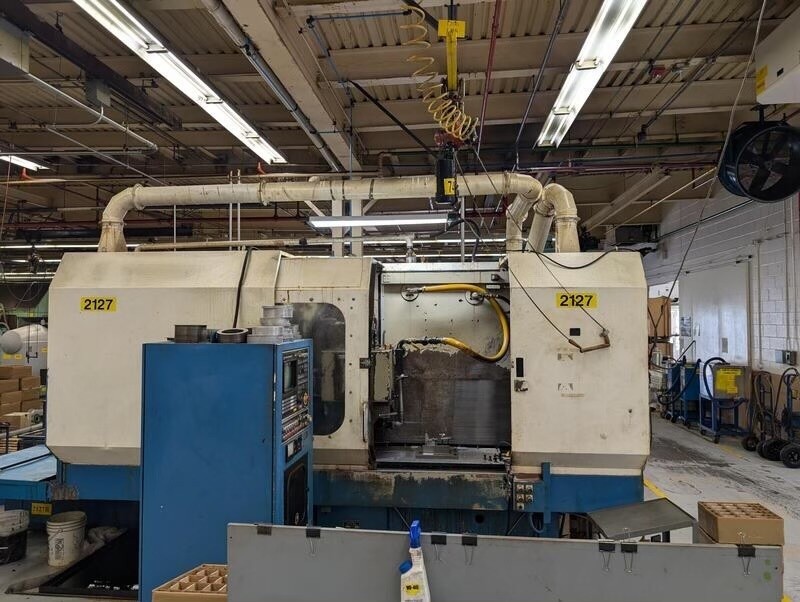

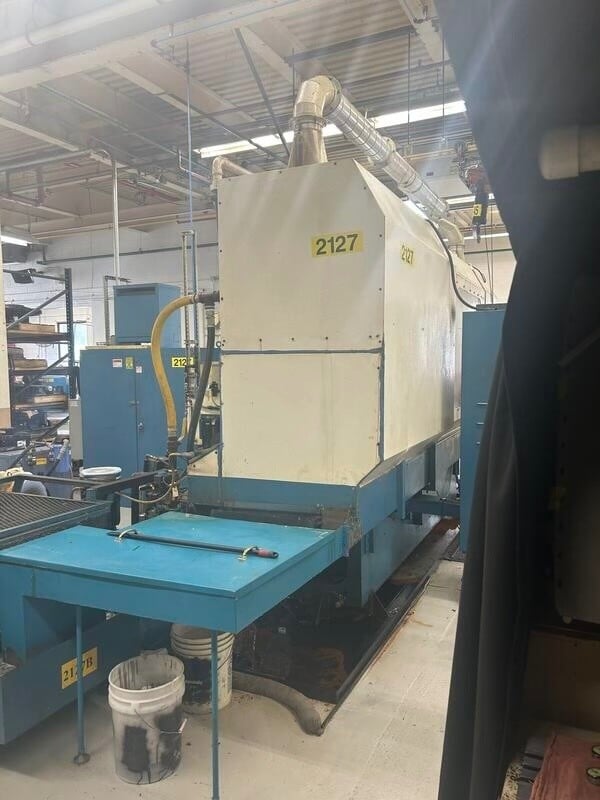

Magerle MFP125.35.45 4 Axis CNC Creep Feed Grinder (1992)
Working Range 49" X 14"
Grinding Length 47"
Longitudinal Stroke 49"
Traverse Stroke Of Wheel Head 13"
Vertical Stroke Of Wheel Head 17"
Dist. Between Table And C/L Grinding Spindle 23"
Grinding Wheel Motor 27.5 Hp
Log. Stroke Speed 1176/Ipm
Horiz. Stroke Speed 120/ Ipm
Vert. Stroke Speed 98/ Ipm
Profile Roll Dia. 5"
Profiel Roll Length 5"
Profile Roll Bore 1.3"
Speeds 9,000 Rpm
Horizontal Dressing Stroke 4.3"
Vertical Stroke 3.3"
Stroke Speed ( Horiz) 40 Ipm
Vert. Stroke Speed 2.9 Ipm
Min. In Feed Value .001 Mm
