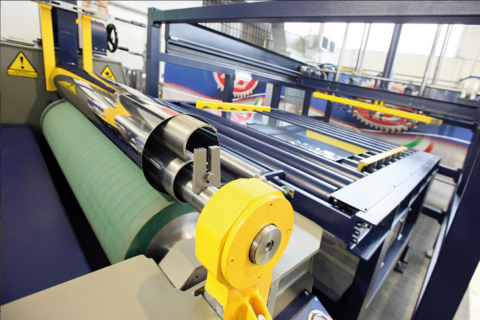

M.g. #F-Line, 2-Roll Bending Machines, 13.75"-80.71" Work length, 2-4 mm Thickness, 2.4"-7.1" Top Roll diameter, 6.25"-13.75" Urethane Roll diameter, 5.5-10 HP, New

The new F Line is the ideal solution for bending very small diameters and for maximum industrial productivity. The MG machine has the upper roll made of steel and the motorized lower roll made of special urethane material: the curvature with this urethane roll allows very fast bending times.

The motorization aspect is also very important during the pre-bending, in fact it allows us to bring the plate to the center of the rolls with maximum precision and control, without risk of slipping of the metal sheet . We will obtain a pre-bending that will not exceed 1.5 or 2 times the thickness of the sheet.

With the F Line the correct deformation of the sheet is obtained along the whole useful length: a perfectly circular shell ring without any flat part, in a single pass.

MG designs and builds directly this wide range of automated machines, which carry out the whole bending process in one simple step. The precision of processing allows the insertion of our machine in automatic production lines, even very sophisticated.
