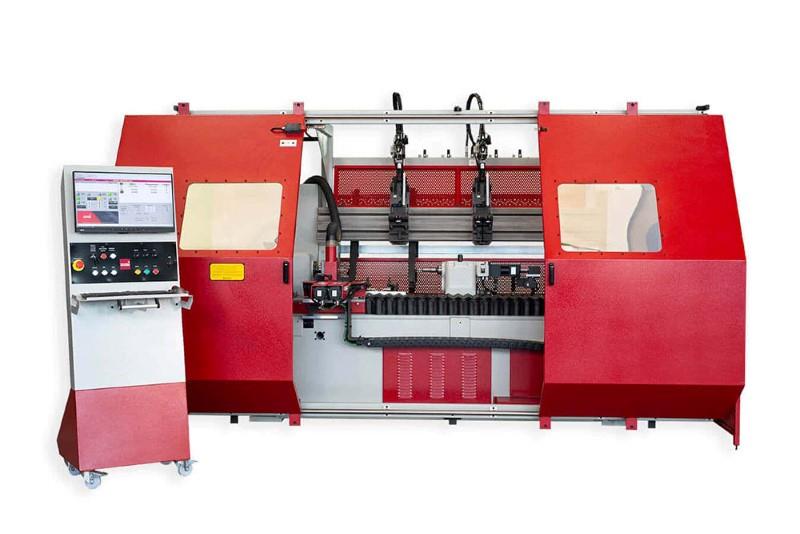

Locatelli MULTIMATIK-SE-CC, woodworking lathe, 1-fixed gouge for cylindering, 2-hydraulic copiers, 110 mm stroke, 2022

Manufacturer: Locatelli
Year: 2023
Stock # LC-300051

For Sale by Ex-Factory

Gold Level Dealer
Surplus Record Dealer Since 2022

Description

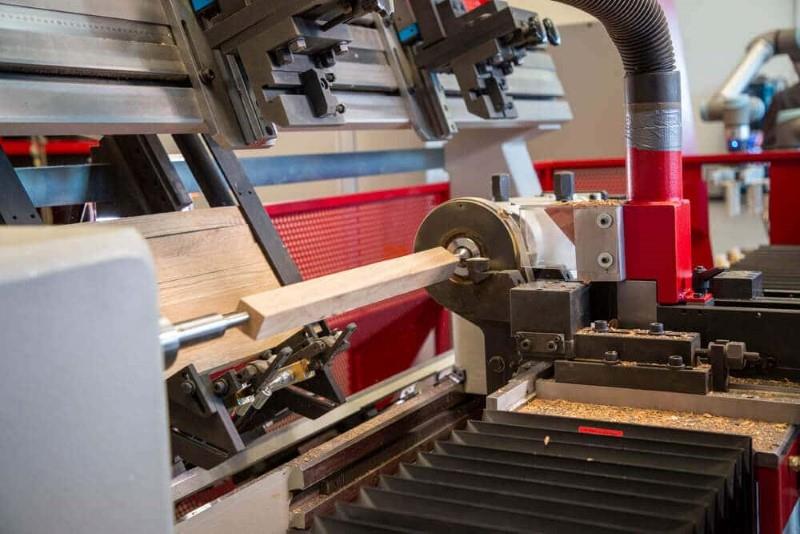

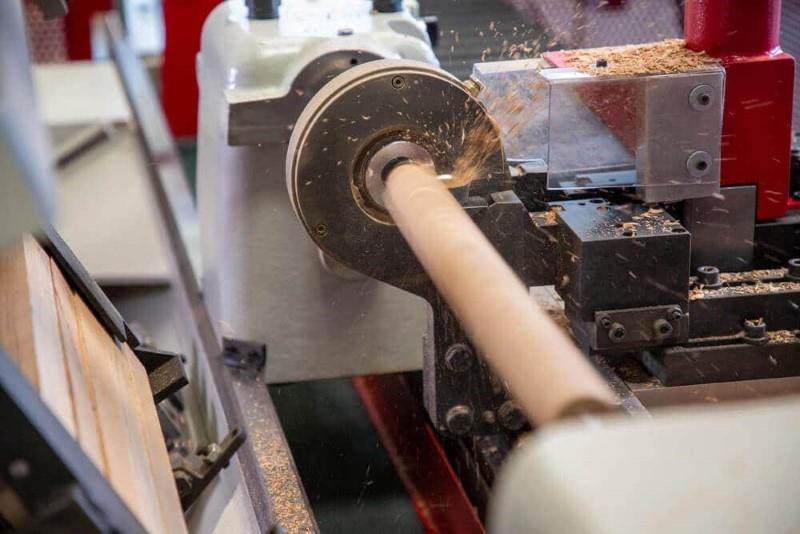

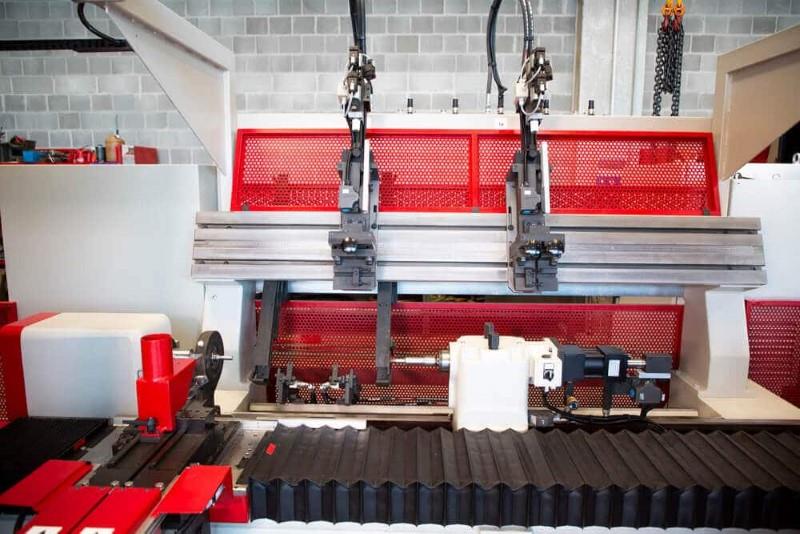

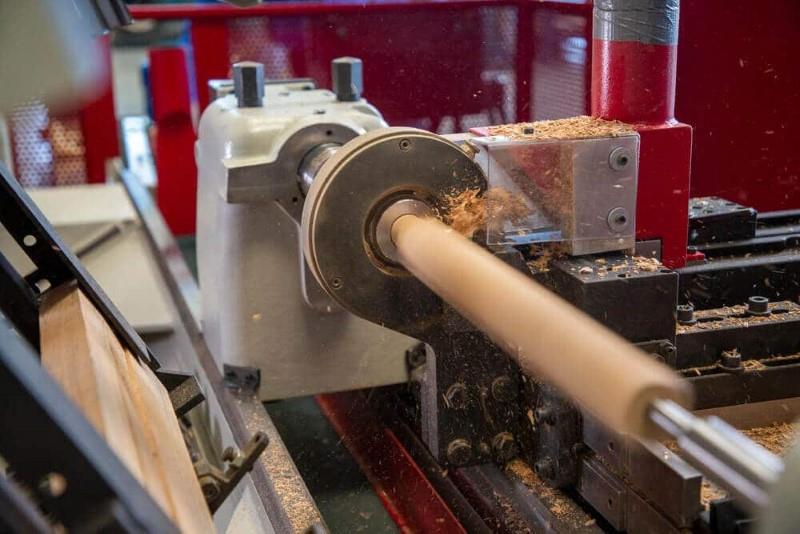

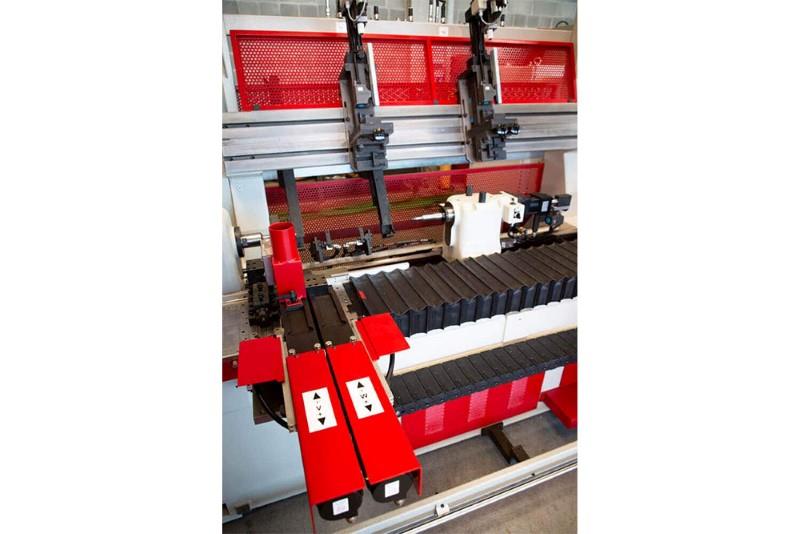

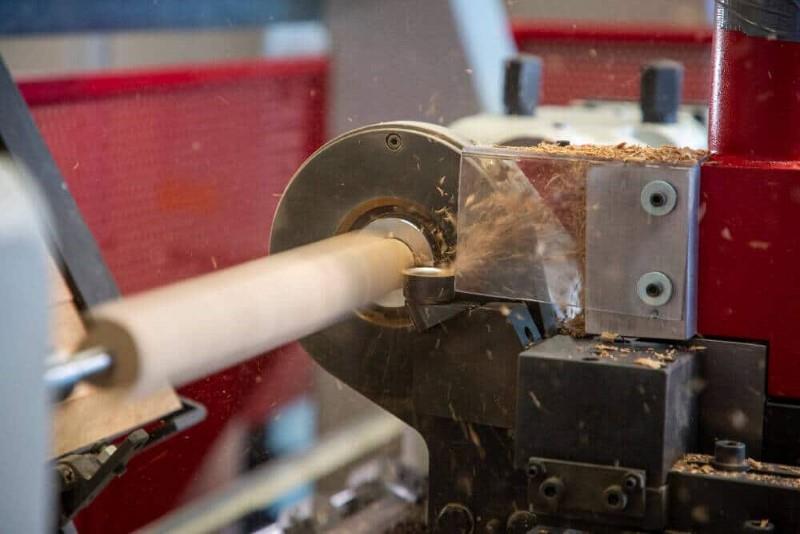

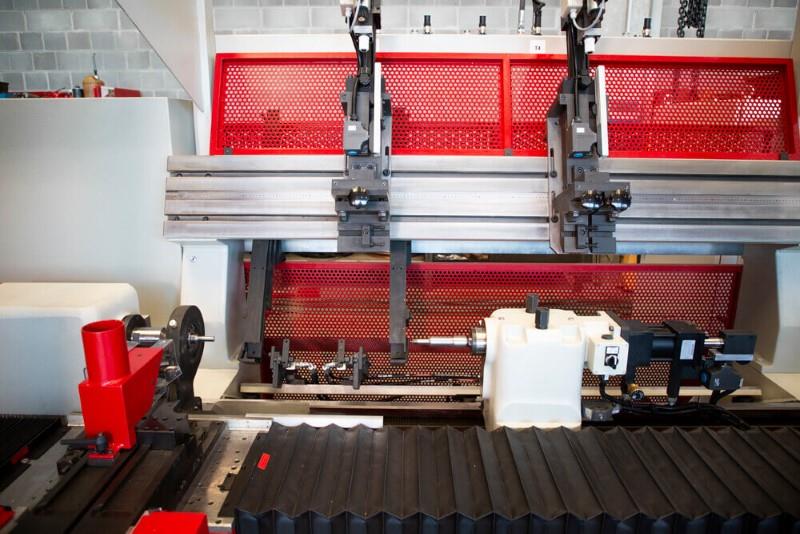

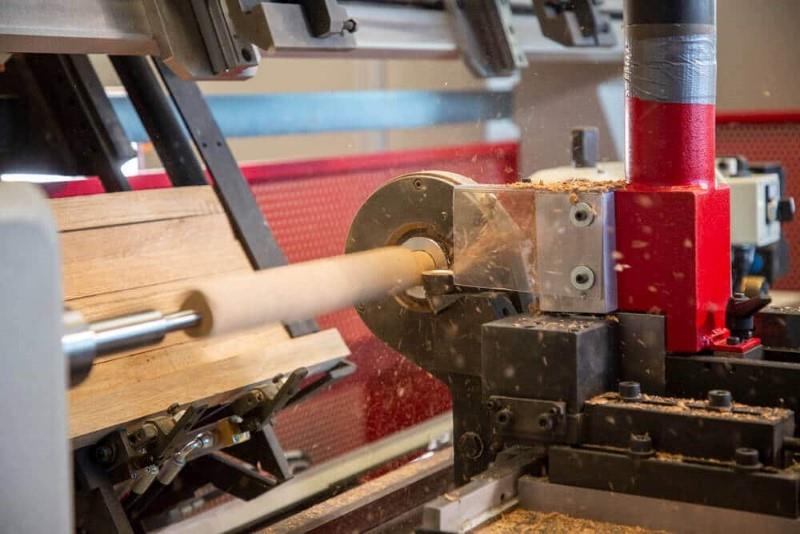

LOCATELLI Automatic MULTIMATIK SE/CC, ...Copy Lathe: Fully automatic hydraulic Lathe with (1) fixed gouge for cylindering and (2) hydraulic copiers with stroke of 110 mm with very high sensitivity. Copying possible either from wooden sample and shaped template. Automatic positioner for pieces up to a max. dia. of 140 mm. Provisions available for pieces up to a max. 220 mm dia. (8.76") to be positioned and turned semi-automatically. Automatic hopper feeder, tailstock, and workpiece expeller. The copiers slide is mounted on linear guides and driven by a hydraulic cylinder controlled by the PLC.The max. speed of the copiers slide is 32 MPM (105 FPM). All working functions of the machine are controlled by the Programmed Logic Control (PLC).The machine is equipped with the "self-learning" system for the creation, change, and revision and storing of up to (66) working programs.During the self-learning, it’s possible to store the advancement speed of the copiers slide and the rotation speed of the spindle at optimum settings, depending on the sample to be machined. Features special device for minimizing tailstock pressure when long and slender wooden pieces have to be turned.Machine specially equipped for turning and sanding processes of professional drum sticks.Supplied with provisions for the future addition of 3rd tool carrier (electrical and hydraulic provisions).Standard equipped with: Clamping device on the feeder for a perfect centering of the wooden blanks. Safety guards as per CE regulations. Mobile chip (dust) collection hood with 120 mm (4.71") in diameter. 10 HP Spindle motor; regulation of working speeds via frequency converter (speed adjustable every 25 RPM increments from 600 - 6,000 RPM). 3 HP Pump motor. Tooling: Extra (not in price), based on wooden samples and/or drawings in scale 1:1.Voltage: 460 V, 60 Cy, 3-Ph. - Machine's electric load is rated at 11 kW, 22 Amps.Machine fully complies with EEC regulations (CE mark) and E & OE.Terms & Conditions: Price – ex.works Almè (Bergamo) Italy. Price includes: Packed on wooden skids for loading, enclosed/sealed in appropriate plastic foil & loaded into O.T. Container Delivery time : Appr. (12 - 14) weeks after the receipt of the down payment, except August (exact delivery time to be specified at the time of the order) Training: At factory in Italy with Customer. Alternative: Factory Technician on site for (6) days for Euro 3,000 (travelling & accommodation not included). Shipment: For Overseas 20’ O.T. Container - machine weight is approx. 3,320 kG (7,300 Lbs).Payment :50% Down Payment with Order50% When machine is ready for dispatch.Warranty : (18) Months from date of delivery.
