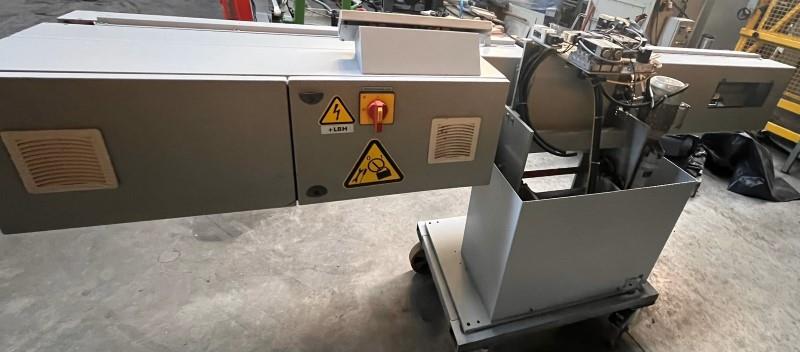

LISEC LBH-25V Automated Butyl Coating Machine For Spacer Frames In Insulating Glass ProductionSemi-automated butyl extruding machine for precision butyl coating on both sides of spacer frames. Sensor-controlled guide rollers ensure optimal stabilization of the frame and thus enable even coating.Opening and closing of the coating nozzles for each frame side are controlled automatically. The integrated measurement device for frame widths ensures continuous nozzle adjustment from 6 to 24 mm. The coating speed can be set individually.Features: ● Continuously adjustable working height ● Processing of spacer frames with or without georgian bars / muntins ● Round arches and special shapes can be coated ● Frame widths up to 42 mm are possibleSpecifications: - Profile width: 4 - 22 mm, 5 - 23 mm, 6 - 24 mm (optional 22 - 40 mm, 23 - 41 mm, 24 - 42 mm) - Profile height: 6 - 8,5 mm - Minimal size: 120 x 120 mm (4.72" x 4.72") - Working height: 540 - 940 mm variable (21.25" - 37") - Butyl nozzle: 3 x 2,2 mm, 4,2 x 1,5 mm - Butyl supply: 14 L butyl reservoir (3.7 gal.) - Dimensions: 3040 x 725 x 935 (120" x 29" x 37")NOTE: Reconditioned to like new and ready for immediate shipment.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
