Lisec Complete, Insulated Glass Line, R-L, 79" x 98" size, 14" x 7" min. IG unit size, 2.4" single IG unit thickness, 0.5" x 2.4" IG unit width, 2014

$567,150 USD

Request Formal Quote

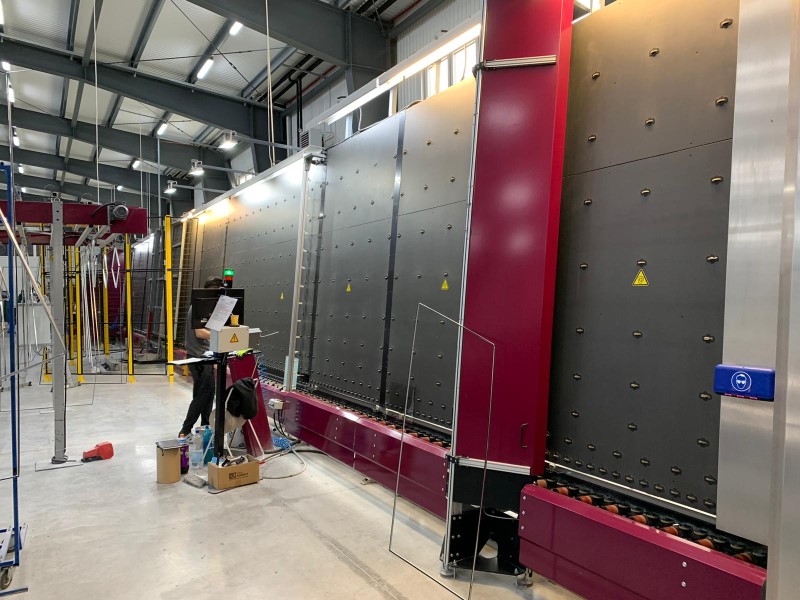

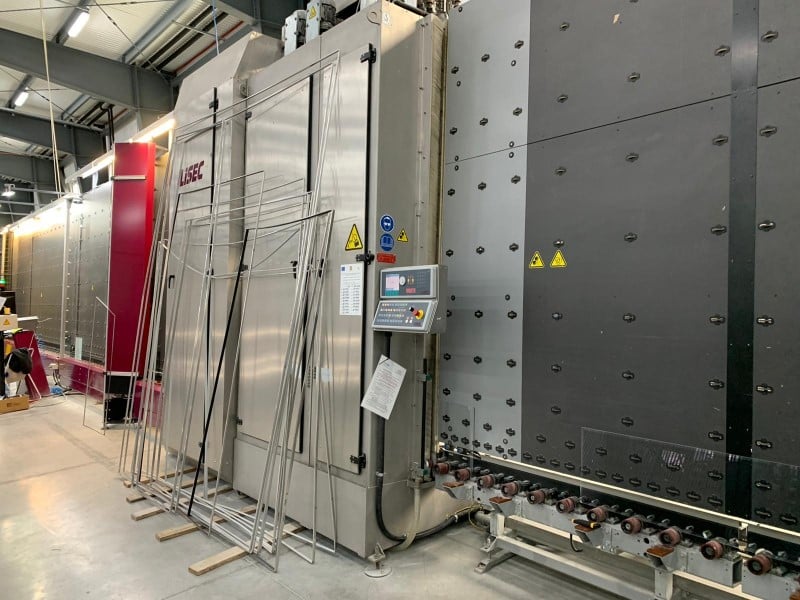

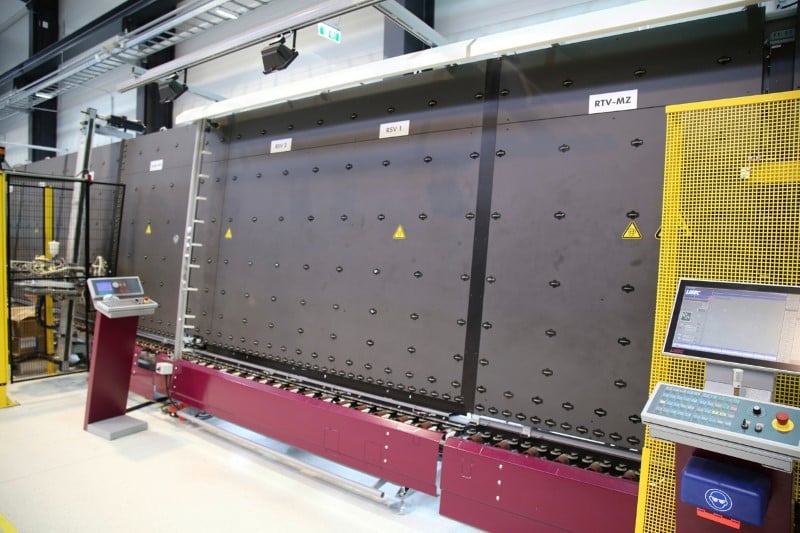

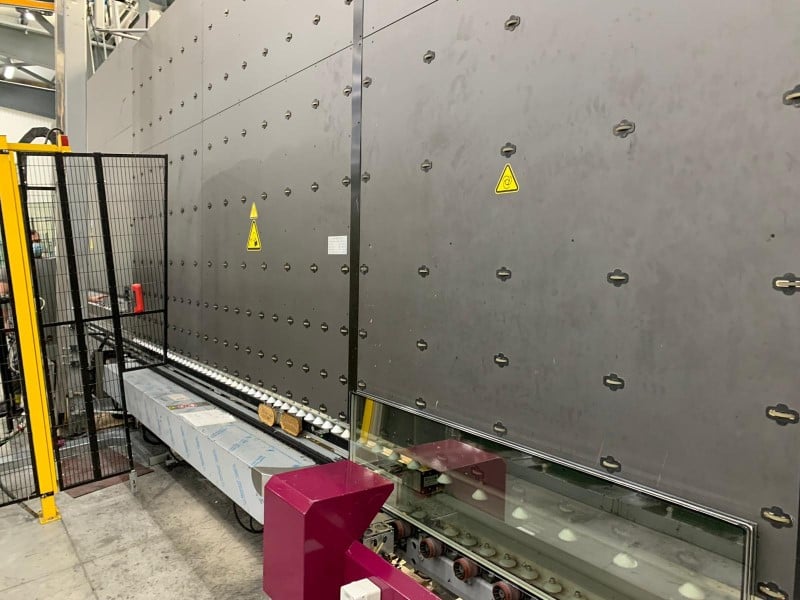

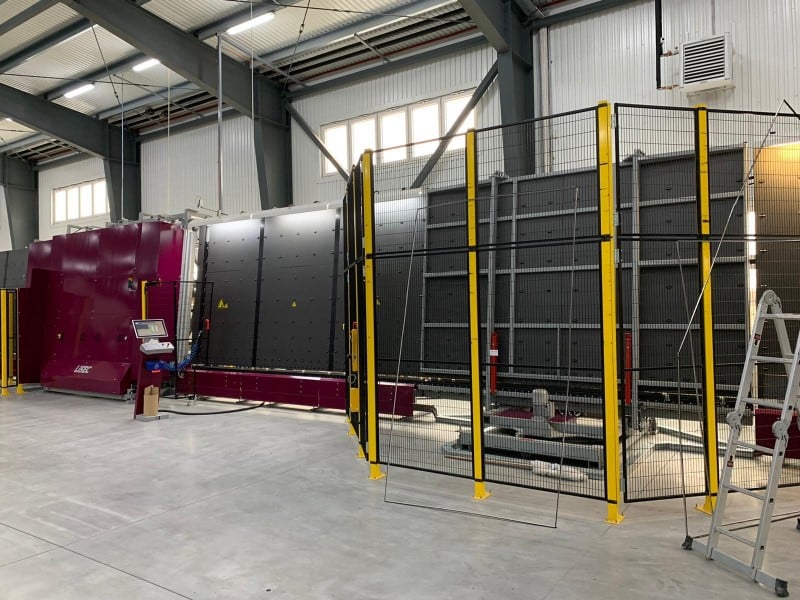

LISEC Complete Automated Insulating Glass Line - 2500 X 5000 mmInsulating Glass line for assembly of double or triple insulating glass units. Using an 8-Brush Washing and Drying station ensures the cleanness of the single sheets before glass assembly. Final visual quality checks are done at the frame mounting station. The press finalizes this automated process before manual take-off and secondary sealing.Specifications: -- LISEC Working direction: from RIGHT to LEFT -- Maximum glass production size 2500 X 5000 mm (98" x 197") -- Minimum IG unit size 350 x 180 mm (14" x 7") -- Single IG unit thickness up to 60 mm (2.4") -- Shapes according to LISEC shape catalog -- (4) Side steps (bottom step is 40 mm) -- IG Unit width 12 - 60 mm (0.5" x 2.4") -- Capable Of Triple UnitsConsists Of The Following Equipment Components:1. LISEC "RTVB-15/25WE" Transport and Storing StationThe transport rollers are covered with a durable coating ring and the transport and storage station is equipped with its own drive.The back support of the glass sheet is provided by support rollers. The support wall is made of composite material which is suitable for transporting wet glass.2. LISEC "RTB- 32/25WE" Transport & Storing Station3. LISEC "VHW - 25/6" Automatic Vertical Washing MachineAutomatic 8-Brush Washing and drying system for glass panes with infinitely variable adjustment of the glass thicknesses. Designed to wash and dry flat glass sheets, and can be used in continuous operation or as a stand-alone system. The machine's construction is mainly made of stainless steel. The machine has a separate, optimized control program as well as automatically controlled water supply and brush drives.4. LISEC "RTVB - 32/25ST"5. LISEC "RTVB - 15/25ST"6. LISEC "RTVB - 11/25ST"7. LISEC "RTVB - 15/25MZ-U2"8. LISEC "FPS - 35/25U2B" Automatic Gas Filling PressFully automated machine for gas filling, assembly, and flat pressing of insulating glass units. The press is suitable for processing double and triple insulating glass units, any kind of shape (LiSEC Shape Catalog), cast glass, and laminated glass. Precise metering of the quantity of gas and a specially developed nozzle system enable units to be filled with Argon or Krypton at the highest possible gas filling rate. When using mixed gases, precision regulators will control the gas amount and mixing ratio.9. LISEC "RTVN 15/25DL" Transport and Measuring Station10. LISEC "RTVB 15/25ST"11. LISEC "RTVB 15/25VFE"12. LISEC "VL 1N/25" Automatic Sealing Robot With (2) Component SealantsAutomatic sealing machine designed to apply sealant to insulating glass units. VL-1N is a stationary metering unit for one- or two-component sealants. Its electronic speed control ensures perfect sealing even in the corners where the sealing cavities may have varying depths. The sealed glass units are transported by chains in order to avoid contact with the sealant and the edges of the glass sheet. The transport chain has special support points preventing any k
