For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Dan Wheeler
909-34...> Show Seller's Phone Number 909-348-5610 Let the seller know you found their listing on Surplus Record!
Description

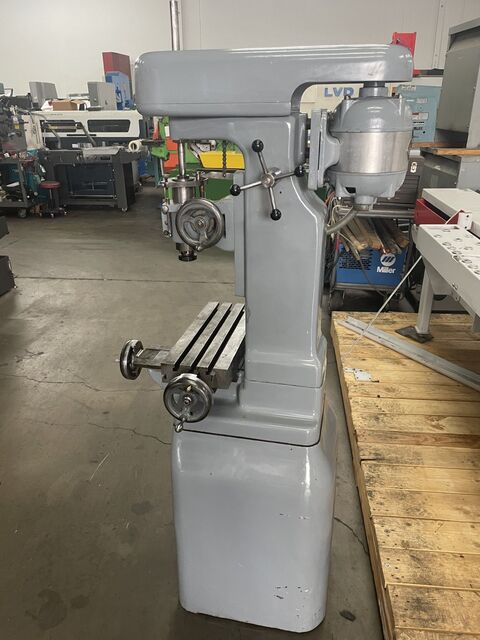

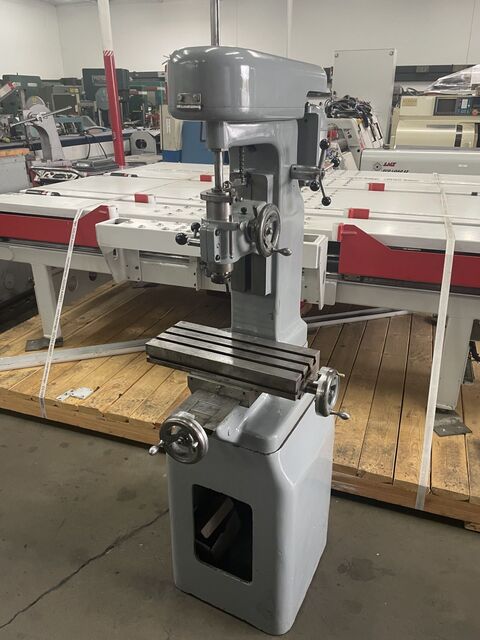

LINLEY MK. 1A Vertical Jig Borer #7972 #1
SPECIFICATIONS:

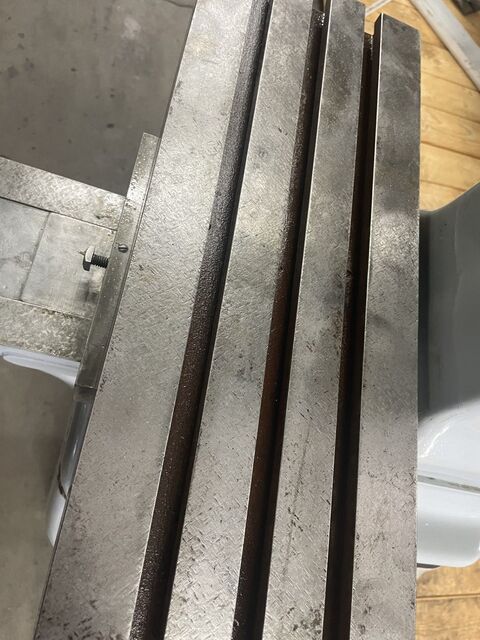

Table size: 18 x 7 inches with three 1/2-inch T-slots.
Table travel: Approximately 10 inches longitudinal and 6 inches transverse

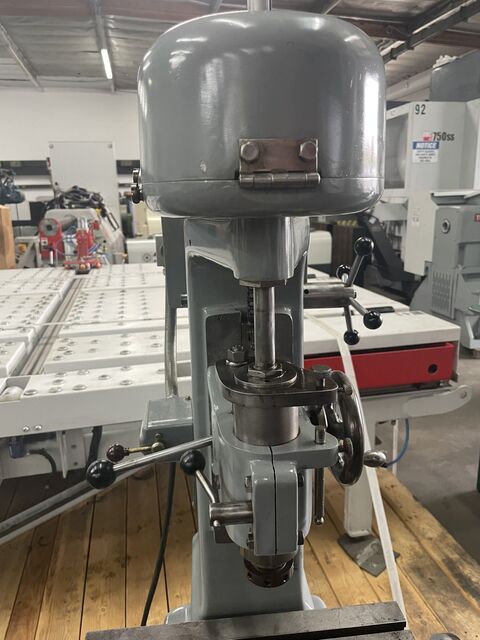

Quill travel: 3 inches, with an optional power down feed
Spindle speeds: Eight speeds via a belt-driven pulley system: 275, 430, 550, 860, 1250, 2125, 2500, and 4250 rpm.
Collet capacity: 1/8 to 1/2 inch in 1/32-inch increments, using ordinary split-from-one-end type collets.

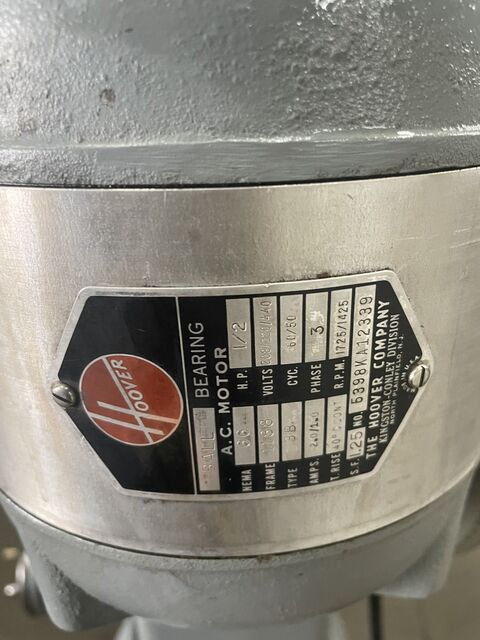

Motor: 0.5 horsepower, three-phase.
Footprint: A Mk. 1 on a box stand measures approximately 30 inches long by 23 inches wide and 65 inches high.
Weight: Approximately 950 lbs crated.
SPECIFICATIONS:
Table size: 18 x 7 inches with three 1/2-inch T-slots.
Table travel: Approximately 10 inches longitudinal and 6 inches transverse
Quill travel: 3 inches, with an optional power down feed
Spindle speeds: Eight speeds via a belt-driven pulley system: 275, 430, 550, 860, 1250, 2125, 2500, and 4250 rpm.
Collet capacity: 1/8 to 1/2 inch in 1/32-inch increments, using ordinary split-from-one-end type collets.
Motor: 0.5 horsepower, three-phase.
Footprint: A Mk. 1 on a box stand measures approximately 30 inches long by 23 inches wide and 65 inches high.
Weight: Approximately 950 lbs crated.
Inquire Further with Wheeler Machinery Sales!
