For Sale by Vander Ziel Machinery Sales
Surplus Record Dealer Since 2006
Location: Alto, MI
Contact Andy VanderZiel
Phone Number: 616...> Show Phone Number 616-868-1111
Let the seller know you found their listing on Surplus Record!
$2,750 USD
Description
Description

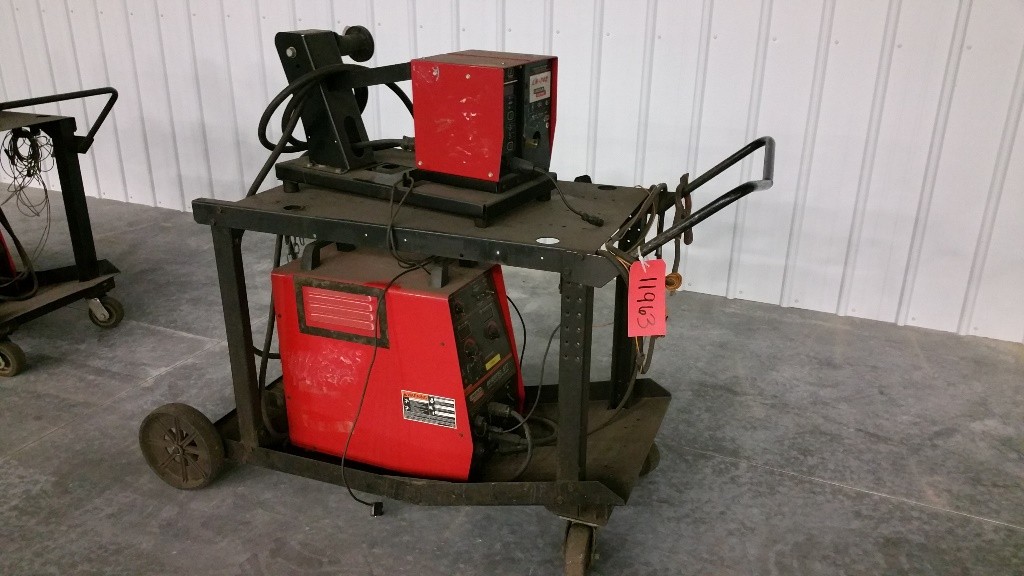

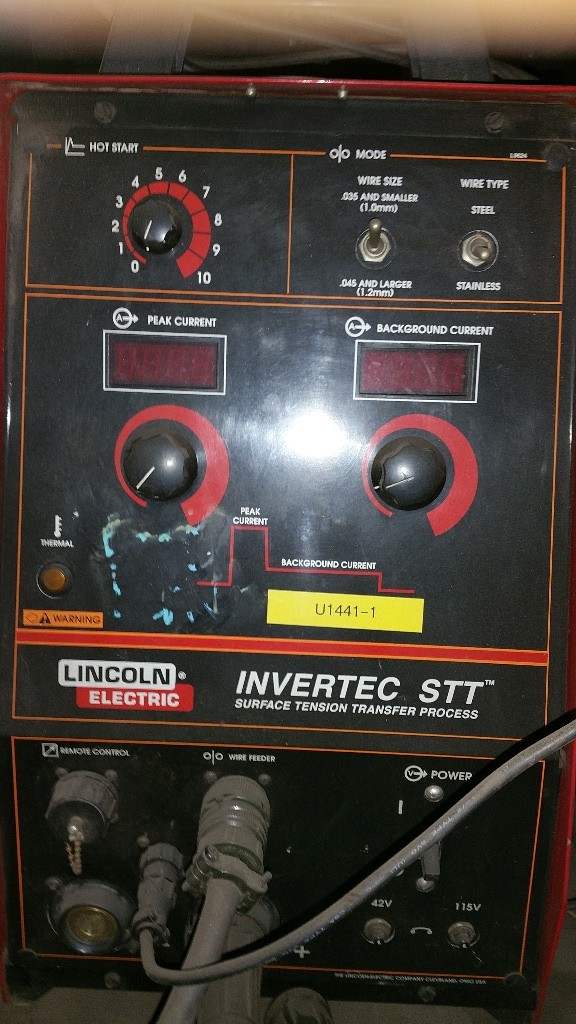

Lincoln Invertec STT Welder with Lincoln LN-742 Feeder
Serial # U1950902T8
Asset # 11963
Specifications:
Standard Voltage 208/230/460/3/60 HZ
Input Current at Rated Output 33/30/19
Standard Voltage 200/220/380/415/440/3/50/60 HZ
Input Current at Rated Output 32/30/18/17/16
Rated Output at 60% Duty Cycle 225 Amps/29 Volts
Rated Output at 100% Duty Cycle 200 Amps/28 Volts
Output – Peak Current 0-450 Amps
Output – Background 0-125 Amps
Open Circuit Voltage 85 VDC Max.
Auxiliary Power – Peak 112 VAX at 4 Amps
Auxiliary Power – Background 42 VAX at 4 Amps
Dimensions (WO Cart) 24” x 13”
Height 23”
Weight 100 lbs.

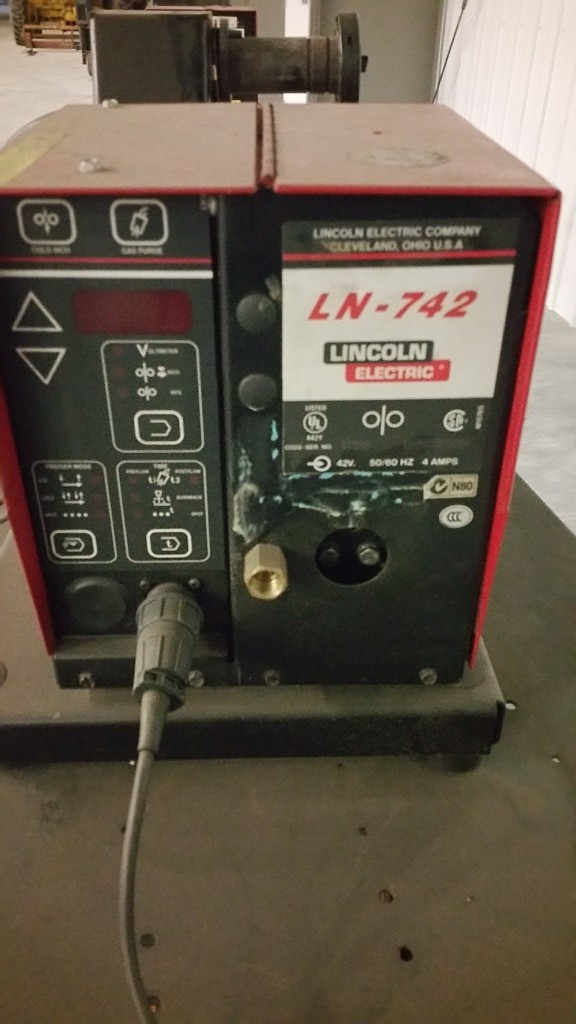

Welder is equipped with a Lincoln LN-742 Feeder.
Preliminary Specifications – Subject to Verification
Inquire Further with Vander Ziel Machinery Sales!
