Lincoln Electric, Power Wave R450, Robotic Welder, IRB 2600ID-8 2.0 6-Axis robot package, 2020

IRB 2600ID-8 2.0 Six Axis Robot Package
Includes:

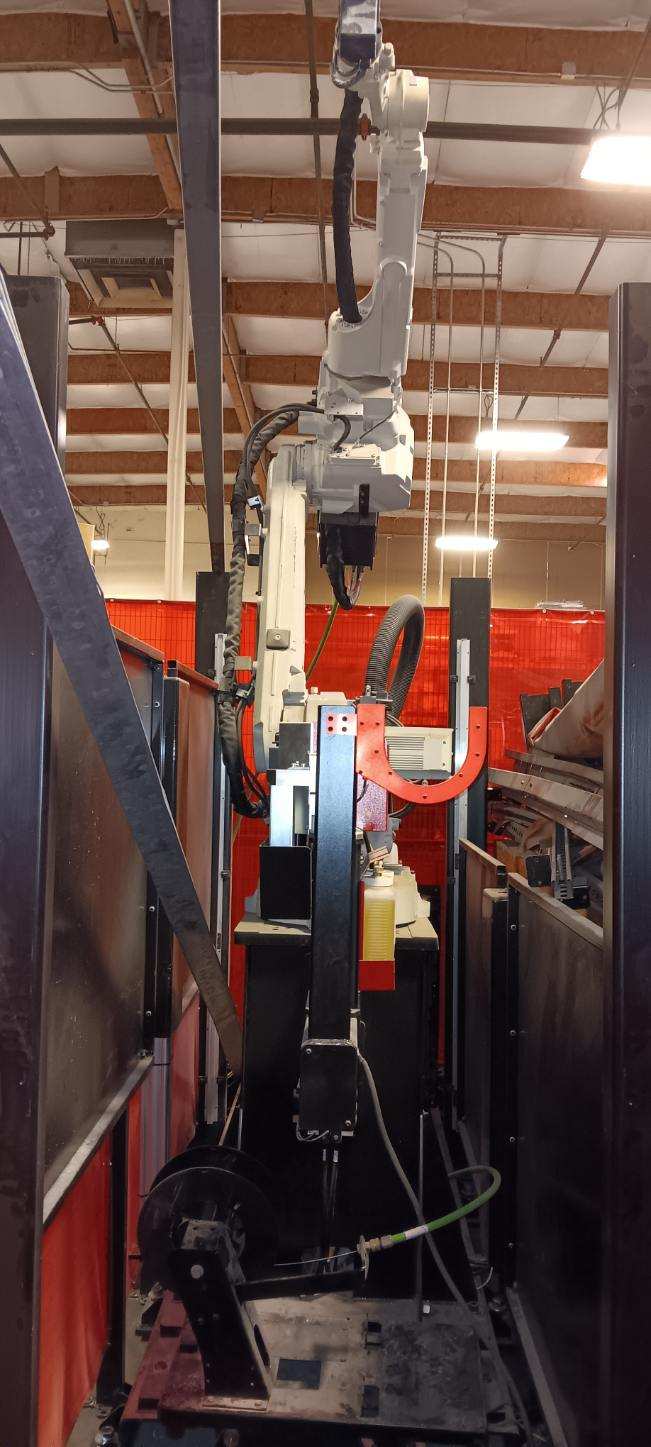

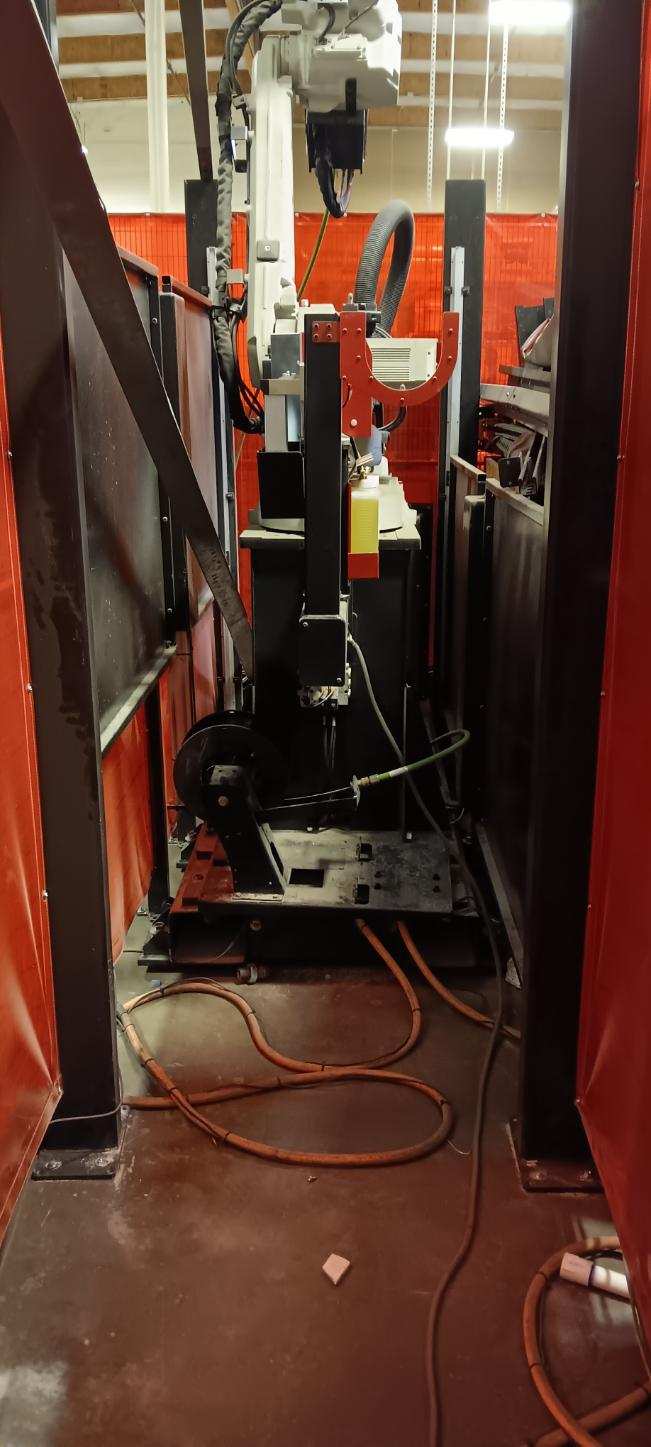

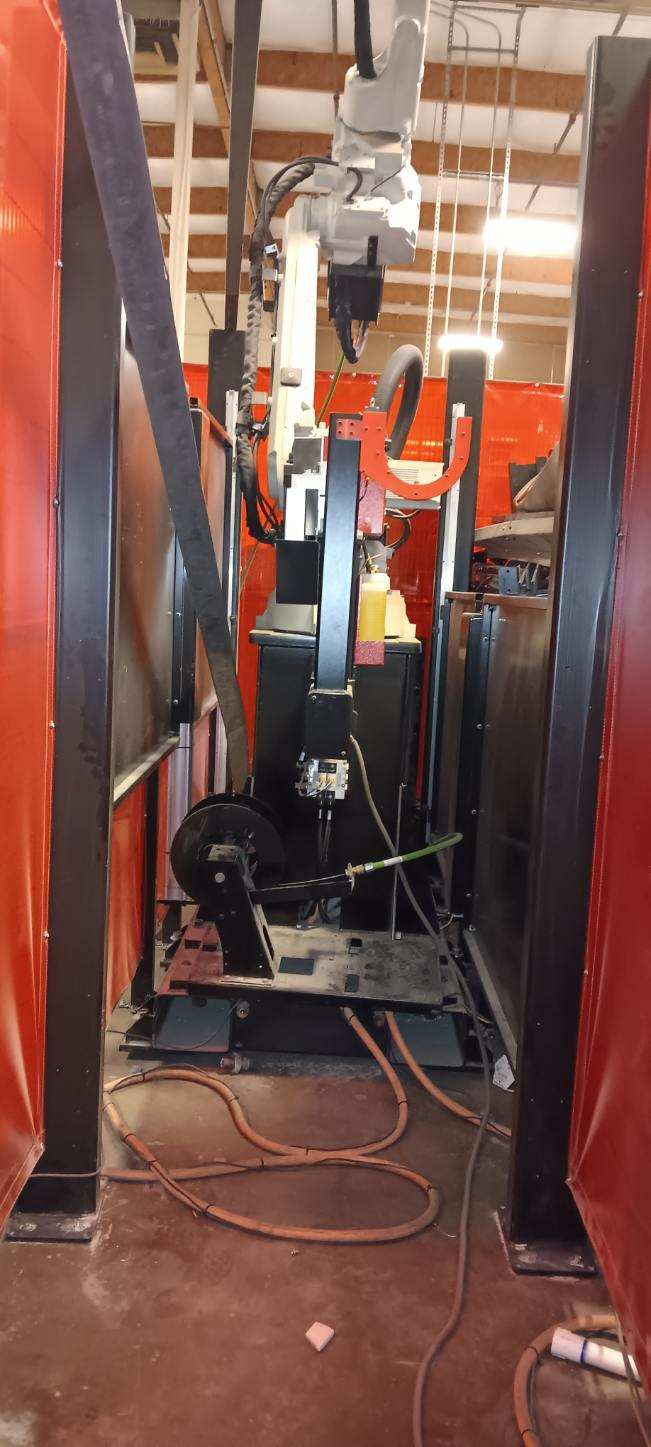

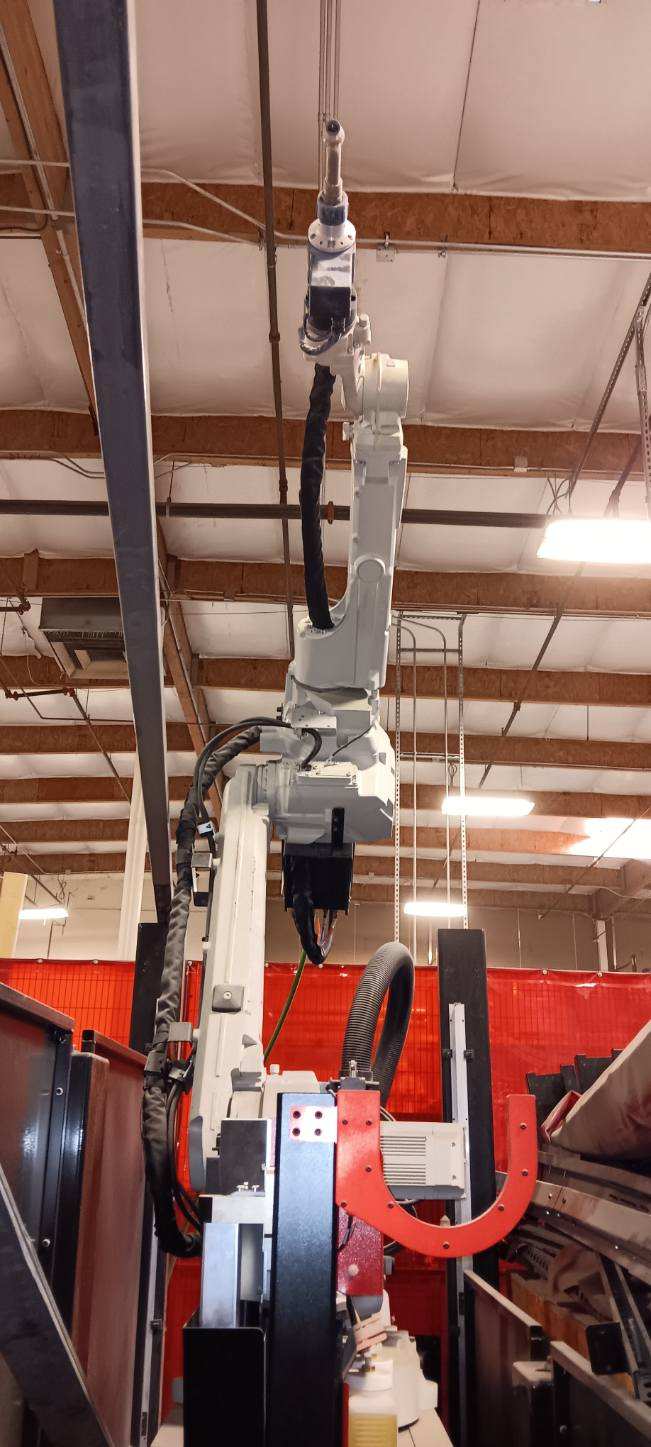

IRB 2600ID 6 Axis Robot

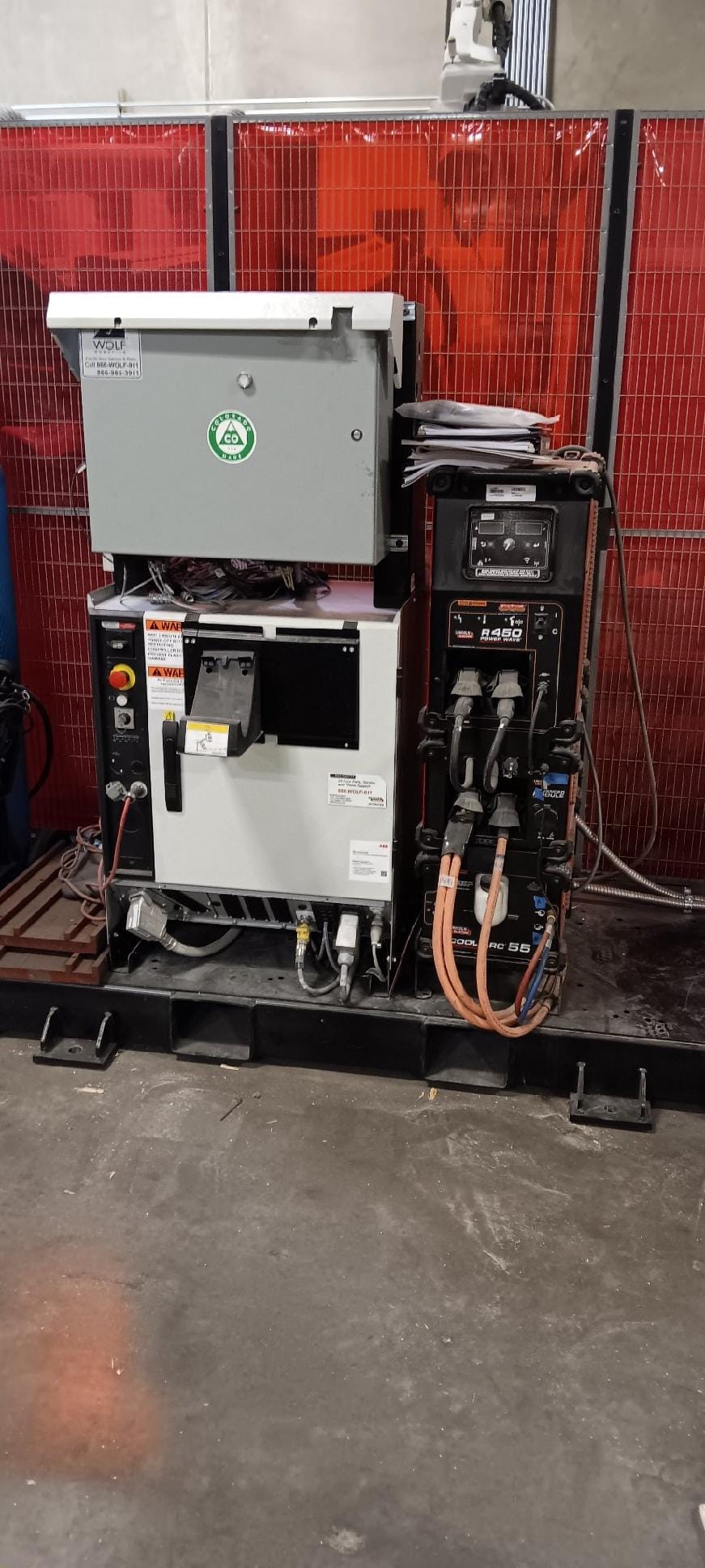

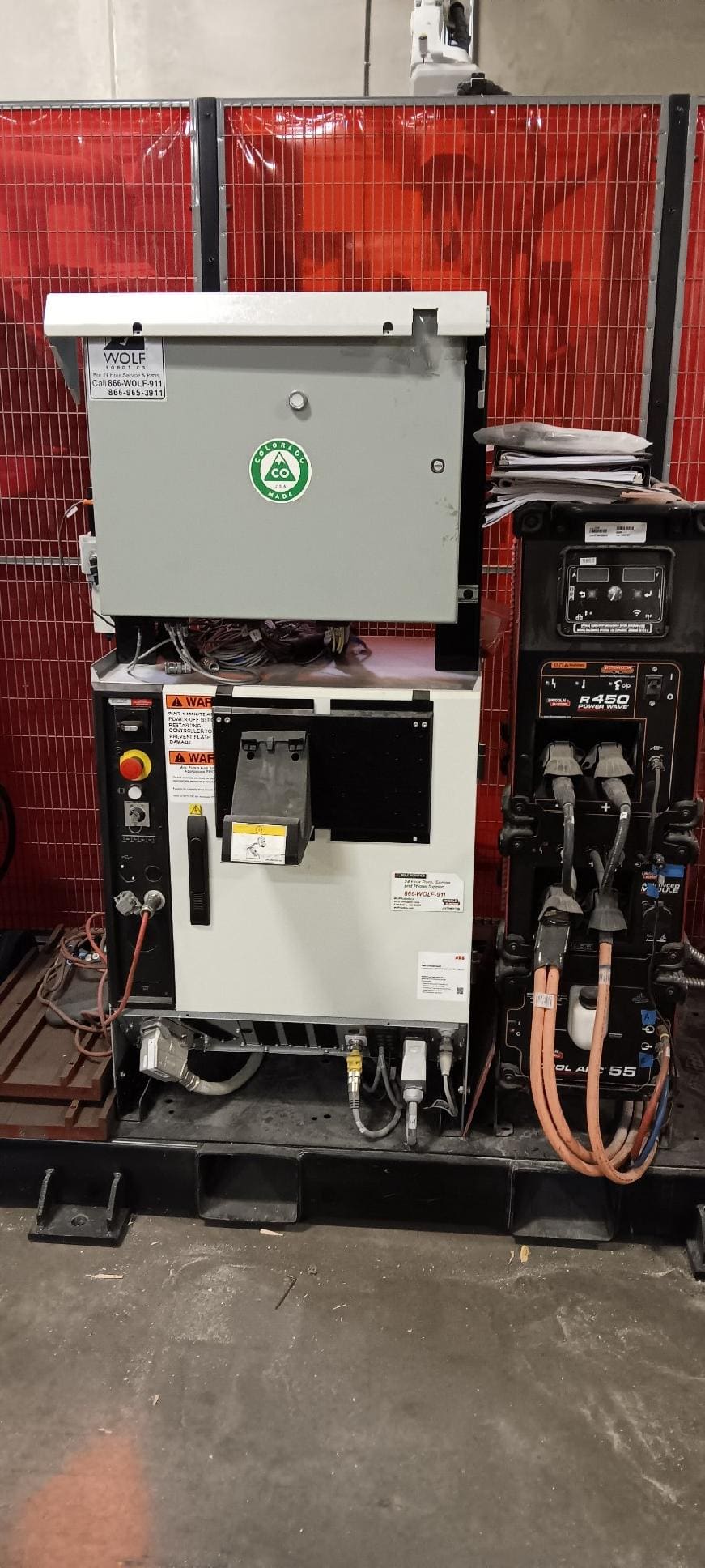

IRC5 Controller
Collision Detection
Path Recovery
Multitasking
Color Touch Screen FlexPendant (10m Cable)
Cable Management
Specifications:
Reach: 78.74″
Repeatability: 0.001″
Payload Capacity: 17 LBS
480V 3Ph

Lincoln Power Wave R450 Welding Package
Includes:
Power Wave R450 Power source
PowerConnectTM Technology (patent pending) – Automatically adjusts to input power while maintaining a constant welding
output throughout the entire input voltage range
TribridTM Power Module – Exceptional welding performance with high power factor and efficiency
Built in feeder control
Gas flow sensor
Wire conduit from wire barrel to wire feeder
Specifications:
450A output at 100% duty cycle
550A output at 40% duty cycle
Process Capabilities:
o Pulse
o Pulse-on-Pulse
o Power Mode
o RapidArc
o Rapid XTM (When paired with STT Module)

Power Wave Advanced Process Welder Module
AC Aluminum waveforms enabled
Surface Tension Transfer (STT) process enabled. STT reduces spatter and helps with gap bridging through precise arc
control
Exceptional Arc Control – Burnthrough control on thin metal or critical pipe welding
UltimarcTM – Dynamically and simultaneously controls all heat input parameters
Modular Design – Easy connection and fast digital communication
Compact Footprint – Connects directly to Power Wave
Self-Protecting Circuits – Protects itself from the excessive transient voltages associated with highly inductive weld circuits
Rapid XTM Weld Process Enabled
o Provides excellent arc stability at shorter arc lengths
o Increases Travel Speed by up to 40%
o Reduced Spatter by up to 30%
o Increases Penetration
o Reduces Heat Input
o Reduces Distortion
Specifications:
300A output at 100% duty cycle
350A output at 40% duty cycle
Process Capabilities:
o Multi-Process reverse polarity (DC+)
o Straight polarity (DC-)
o AC
o High Frequency TIG
o STT
o Rapid XTM

Equipped With:

IRB 2600ID-8 2.0 Six Axis Robot Package
BullsEye TCP Calibration System
FHS-B2B System w/ Wire Mesh Paneling
Lincoln Power Wave R450 Welding Package
Lincoln AutoDrive SA Aluminum ServoTorch Package
Power Wave Advanced Process Welder Module
Touch Sense
WolfArcTM
Binzel Single Wire Torch Cleaner
Virtual Cell In RobotStudio
Operator Panel
Product Documentation
Fab-Pak FHS Installation Supervision

Note: 2 Tables pictured are not included
