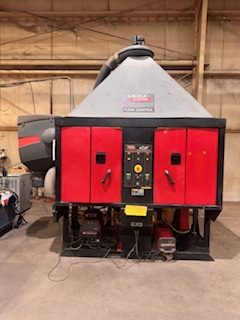

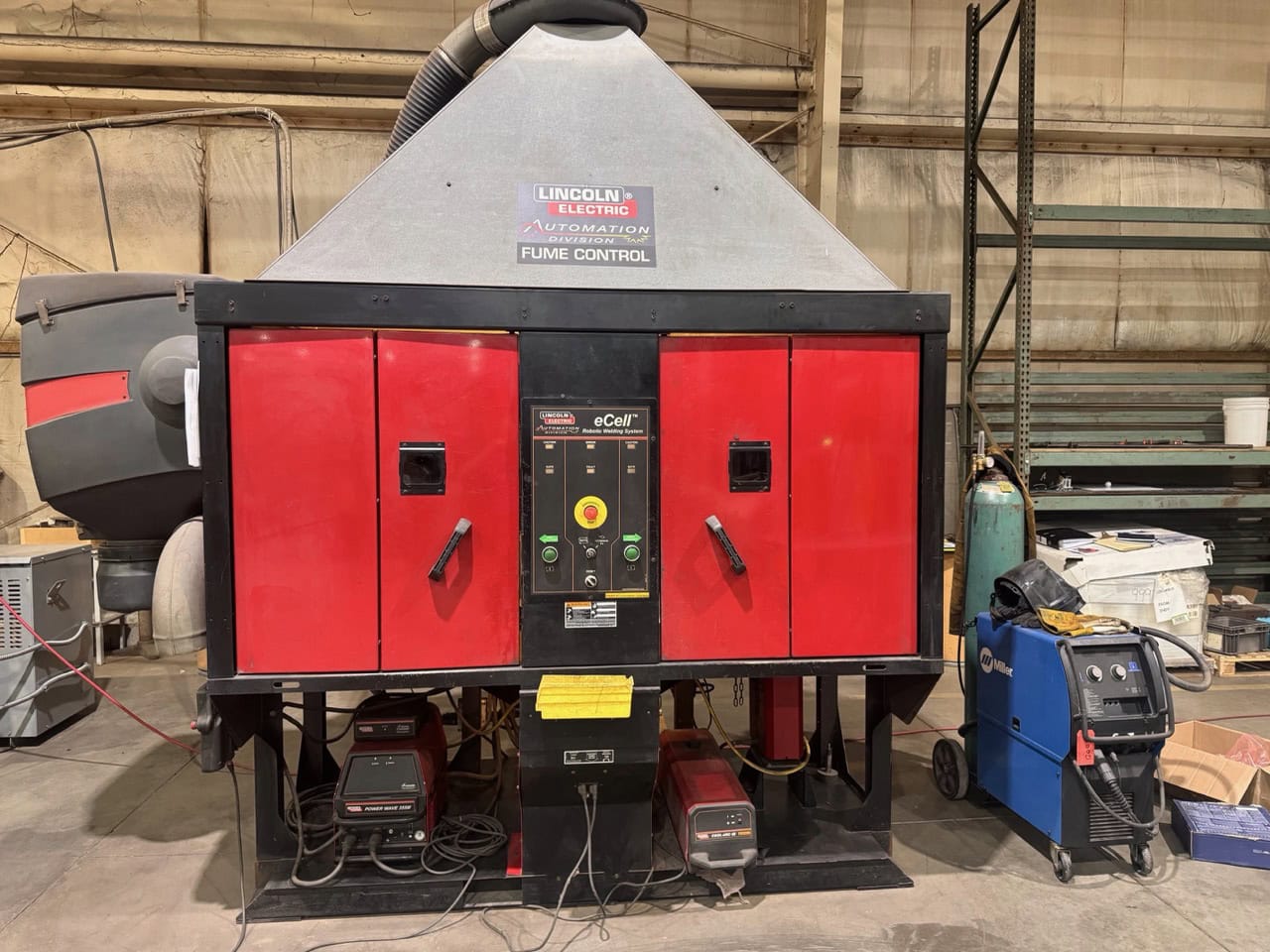

Lincoln Electric eCell, dual-zone robotic MIG weld cell, Fanuc ArcMate 6-Axis robot, Lincoln Power Wave MIG power source, fume extraction, 2007

Inspection Recommended

Cell type: Enclosed dual‑zone fixed‑table robotic MIG weld cell, Lincoln eCell / System‑30 style

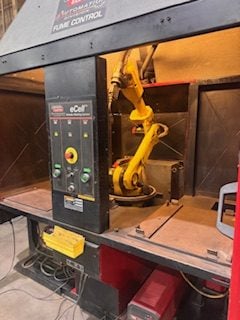

Robot: Fanuc ArcMate‑series 6‑axis welding robot, F‑No. F63780 (exact model TBD – likely 100iB/100iC family)

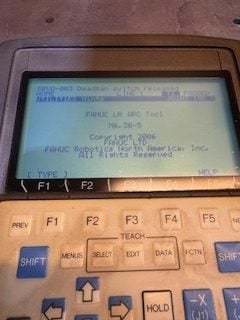

Robot controller: Fanuc R‑J3iC / R‑30iA generation

Welding process: MIG / Pulsed MIG / flux‑cored, air‑cooled torch

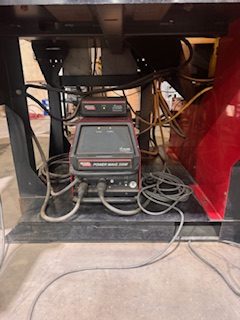

Power source: Lincoln Power Wave‑series MIG power source (approx. 350–450A class) with Lincoln wire feeder

Work zones: Two fixed workstations with precision tooling plates, approx. 24″ x 24″ work area per zone

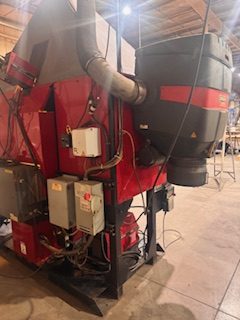

Fume control: Integrated Lincoln fume‑extraction hood and base unit

Safety: Fully enclosed cell with interlocked doors, operator control pendant, and E‑stop

Input power: Approx. 230/460/575V, 3‑phase, 60 Hz, ~20–25 kVA max

Estimated year: Mid‑2000s to early‑2010s based on eCell design and Power Wave hardware
