Description

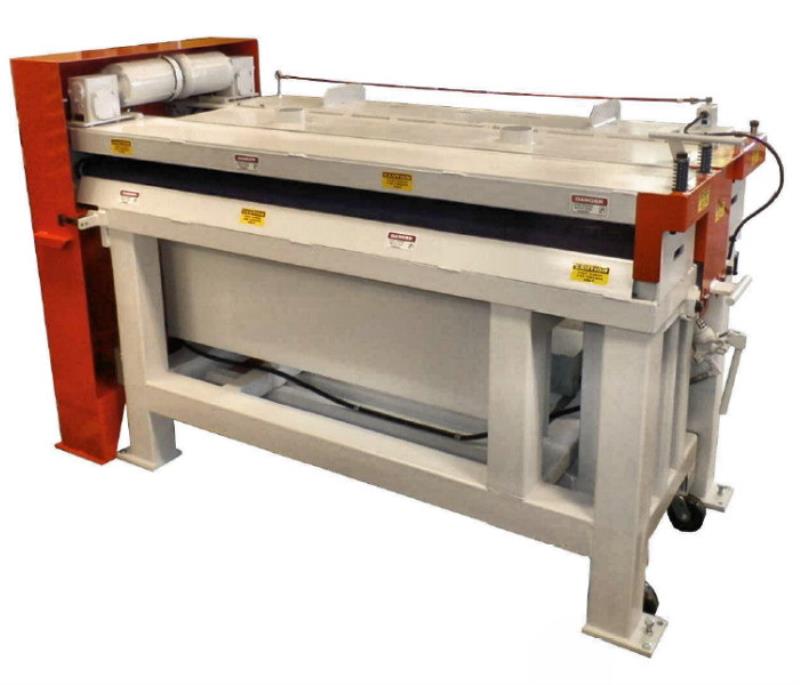

LHI RFPR 102/10 MULTI-BLADE PANEL SAW: with 102" of usable width cutting capacity. Specifications: -- (1) 40 HP main arbor motor for 1/8" min. - 4-1/4" max. material thickness; min. panel length 30"; 102" of usable width cutting capacity. -- 12" Dia max. blade capacity; 1.25" minimum spacing between the blades; -- 3-15/16" Dia. arbor with 1-15/16" precision arbor bearings; -- Positive powered steel contact feed rollers with (8) Polyurethane drive rollers; fixed feed speed of 80 FPM. -- Includes (6) arbor collars - blades not included. -- Complete with:(2) 4" dia dust collection ports on top and (1) 8" dust collection port on bottom. Total recommended 2,200 CFM.Available Options: -- Blade Box & "Quick Change" Arbor Cart and Trolley $12,590.00 each -- Arbor Carts modifications to accept 12" dia. blades $700.00 each -- Single Point Height Adjustment $ 6,000.00 each -- "Quick Change" set up kit (includes belt guide, belt tensioner, and hydraulic arbor lock) $3,695.00 each -- Tandem 8000# capacity infeed Scissors Lift, 2 HP, 3 Phase, 230/460 Volt, 31" x 192" platform and cross bars for fork truck entry $14,495.00 each -- Tandem 8000# capacity outfeed Scissors Lift, 2 HP, 3 Phase, 230/460 Volt with 48" x 192" platform and beveled crossbars for fork truck entry and auto down indexing $16,390.00 each -- Drag Chain Feeder Conveyor - Roller conveyor transfers sheets to in-feed of saw and dog chains align and start the sheets into the saw feed rolls. Recommended with 102" wide machines, $18,800 Tooling Cost: -- Carbide Tip Blades 10" dia. x 40-tooth thin kerf blades $125.00 each -- Saw Blade Tooling Collars $125.00 eachOn average this machine will cut a bundle (42 sheets) of 3/4" Plywood. LVL, PB, MDF or OSB into narrow strips in 4 minutes or less.NOTE: PRICING DOES NOT REFLECT FACTORY'S 10% MATERIALS SURCHARGE
SKU: 132550, Condition: Used, Electrical :, Voltage: 120/208 volts, Phase: Single-phase, Additional :, Includes: 15 kVA Transformer to bring down power from 600 volts to 208/120 volts.
Homag CNC Angular Saw System w/ Automatic Loading & Unloading Model Profi HKL570/43/22 Automatic Panel Saw. Main Saw Motor - 42kW (56.3HP) Scoring Motor - 2.2kW (3HP) 2 Main Saw Blade: 570mm x 4.8mm x 60mm 2 Scoring Blades: 200mm x 4.8-5.8mm x 45mm Saw blade projection (6.7 inches) 170 mm Saw carriage speed - ...more
used- holzma model hpp11/38 saw. successful model/ frequently produced beam saw with 125 mm saw blade projection and in the version hpp with front loading. cutting lengths 1300 mm (as crosscut saw) up to 5600 mm. saw carriage feed 0.120 m/min, rack and pinion drive.
