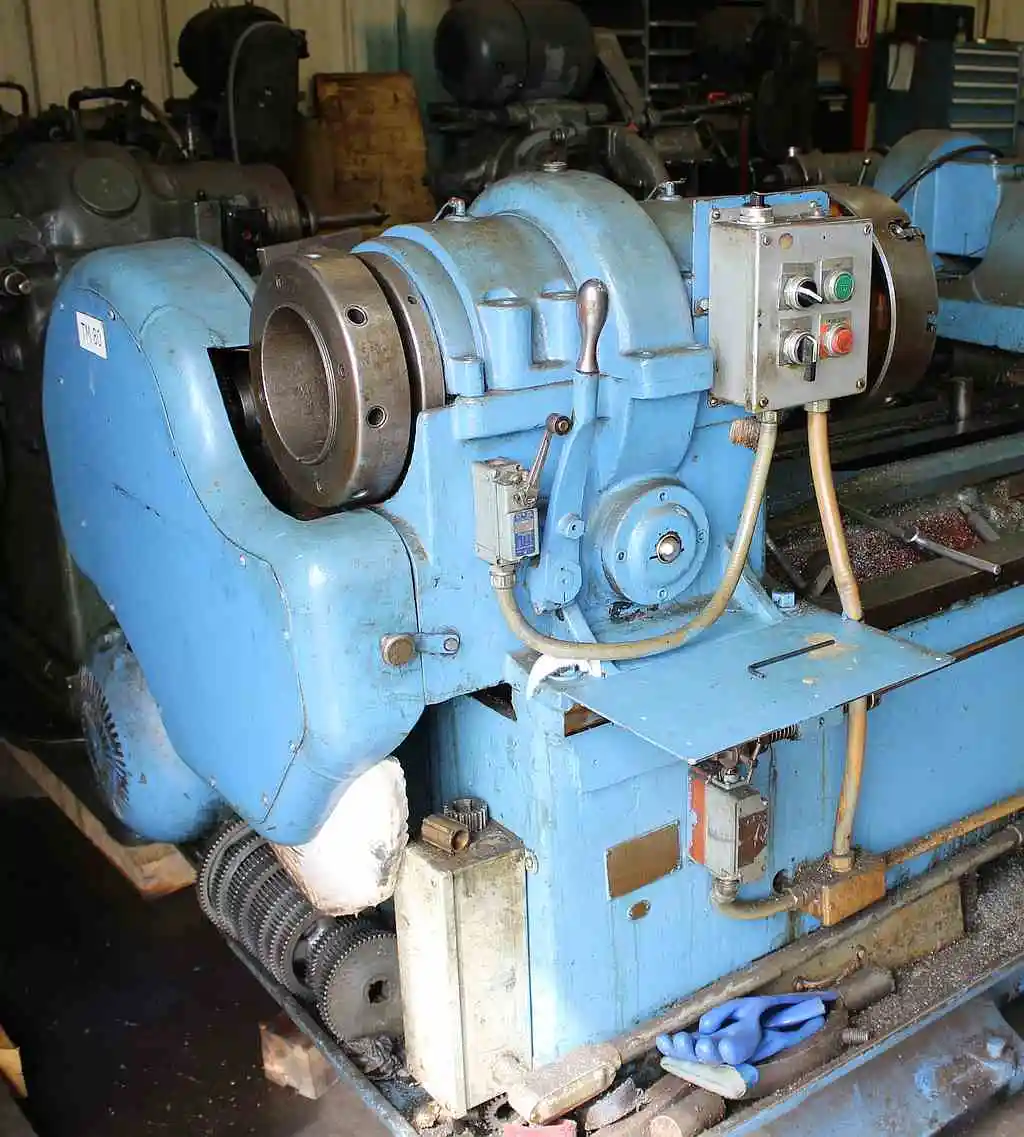

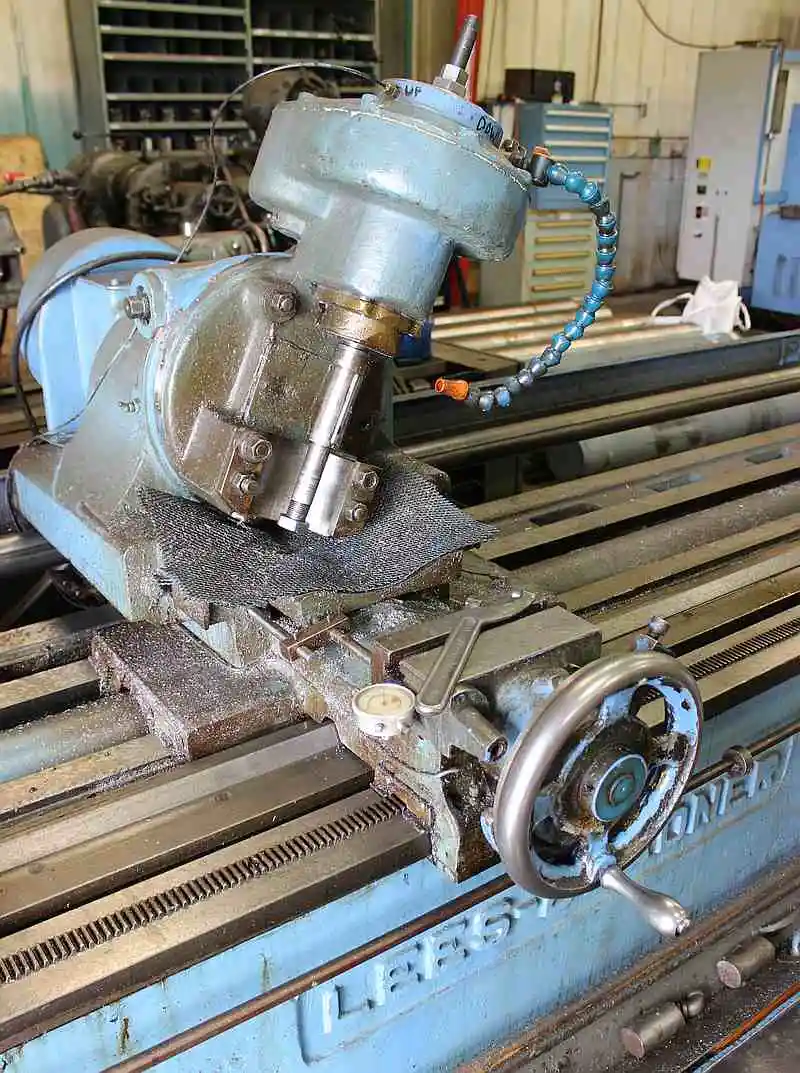

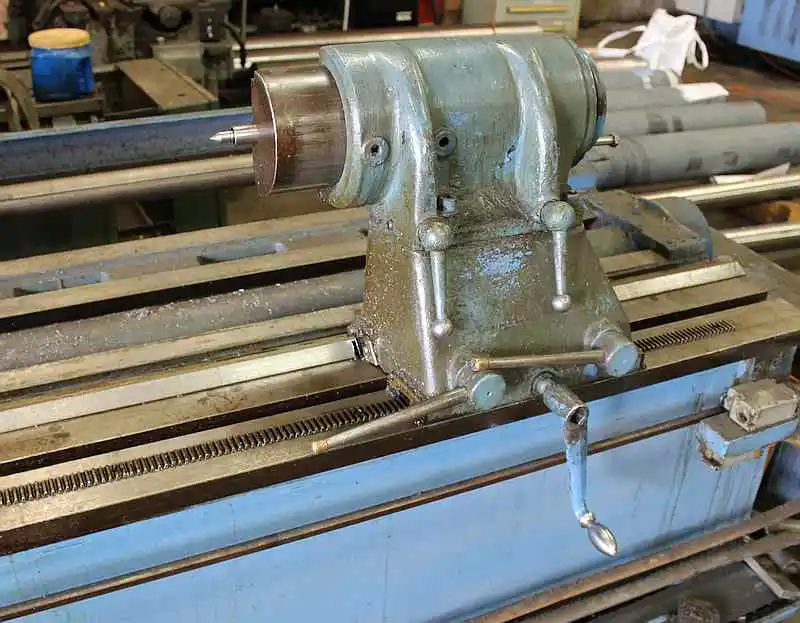

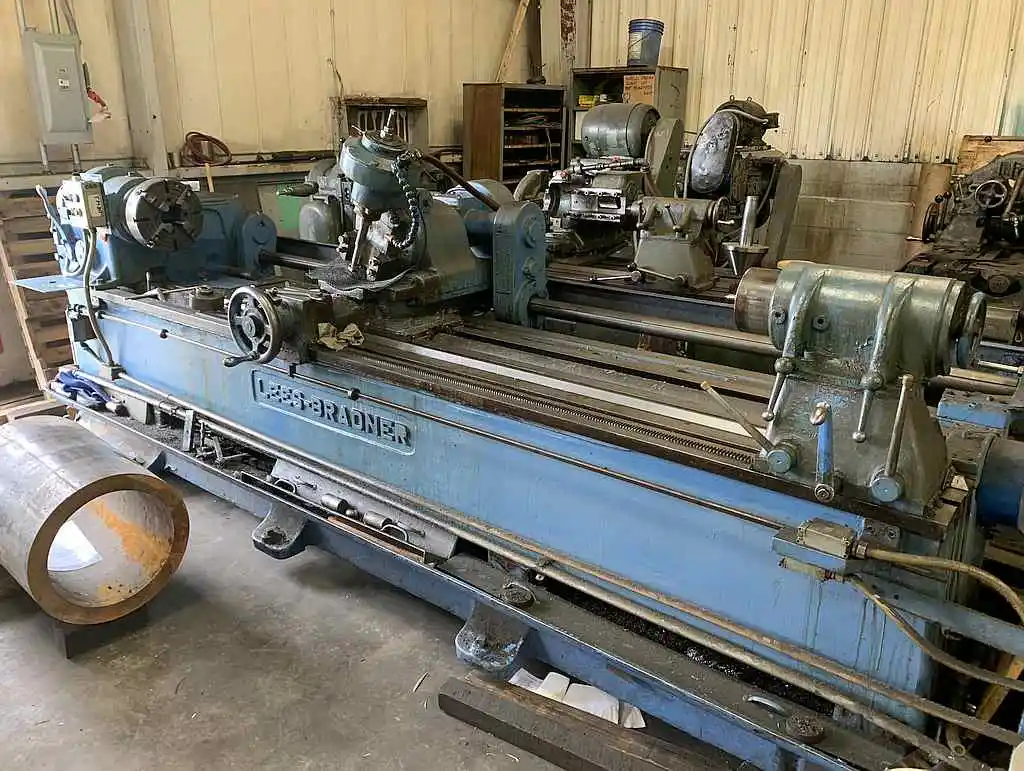

Lees-Bradner #12, 8" x 102", 4" hob capacity, 24" swing, 6" spindle hole

MODEL SH

SPECIFICATIONS:
MAX. HOBBING CAPACITY (4" HOB)............ 8 3/4"
HOLE THRU WORKSPINDLE..................... 6 7/16"
CAPACITY BETWEEN CENTERS.................. 102"
SWING OVER WAYS........................... 24"
SWING OVER CARRIAGE....................... 12"
MAX. HELIX ANGLE.......................... 45 DEG.
MAX. HOB LENGTH........................... 4"
MAX. HOB DIAMETER......................... 4"
AXIAL SHIFT OF HOB........................ 2"
NO. OF HOB SPEEDS......................... 6
MAX. HOB SPEED............................ 145
MIN. HOB SPEED............................ 72.5
CAPACITY THROUGH WORK SPINDLE AND COLLET.. 6"
APPROX. FLOORSPACE........................ 4'1" WIDE x 14' LONG
APPROX. WEIGHT............................ 11,250 LBS

OUTSTANDING FEATURES & EQUIPMENT:

5 H.P. DRIVE TO HEADSTOCK

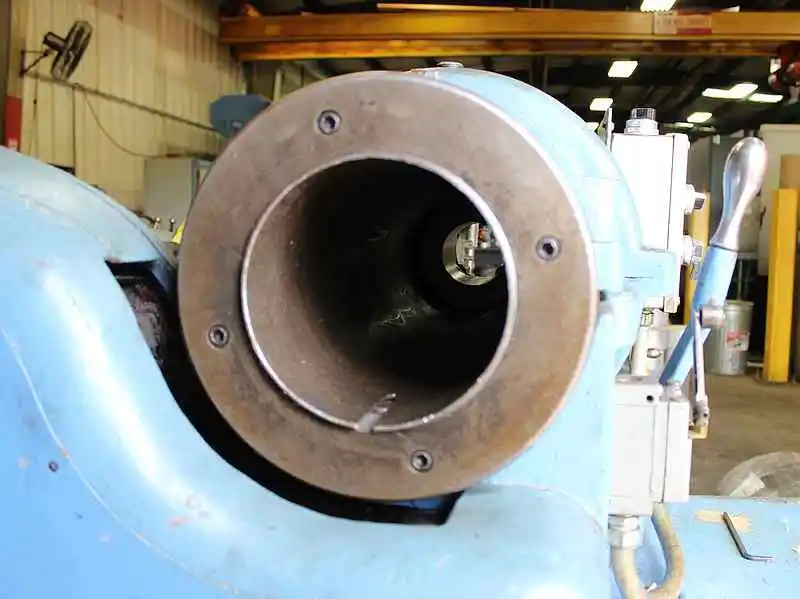

6" SPINDLE BORE

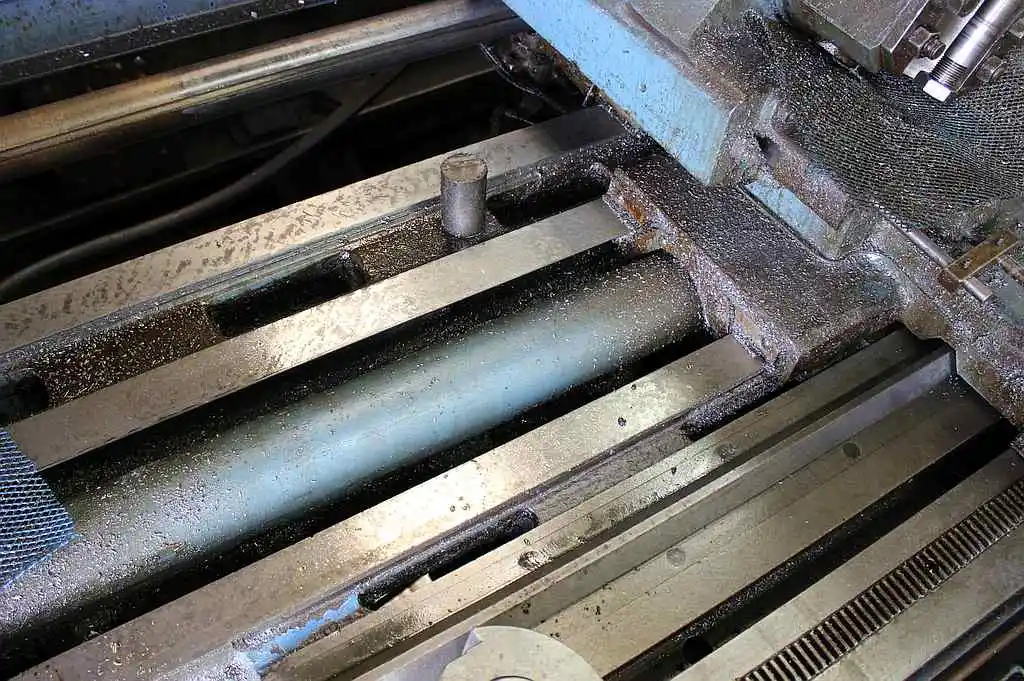

FLAT & V-WAYS
MANY CHANGE GEARS

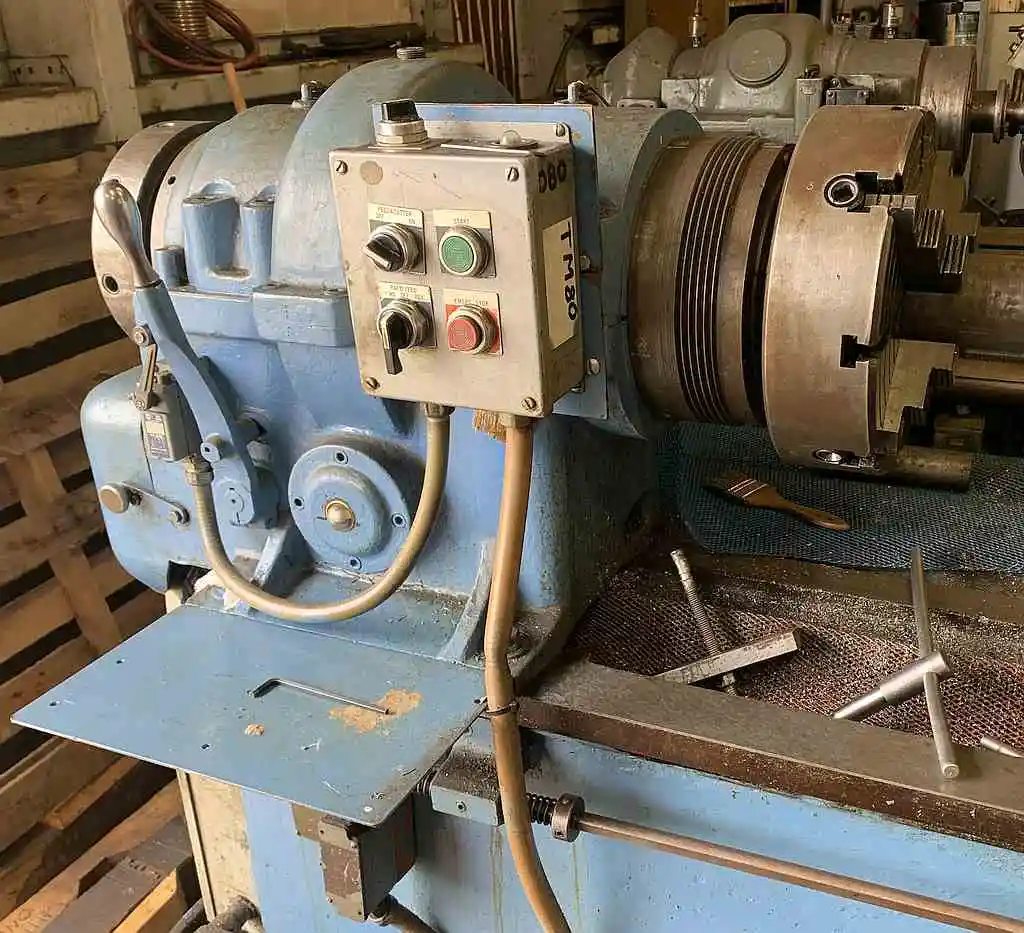

4-JAW CHUCK
MISC. TOOLING
MISC. GAURDING

SPECIFICATIONS SUBJECT TO VERIFICAITON
