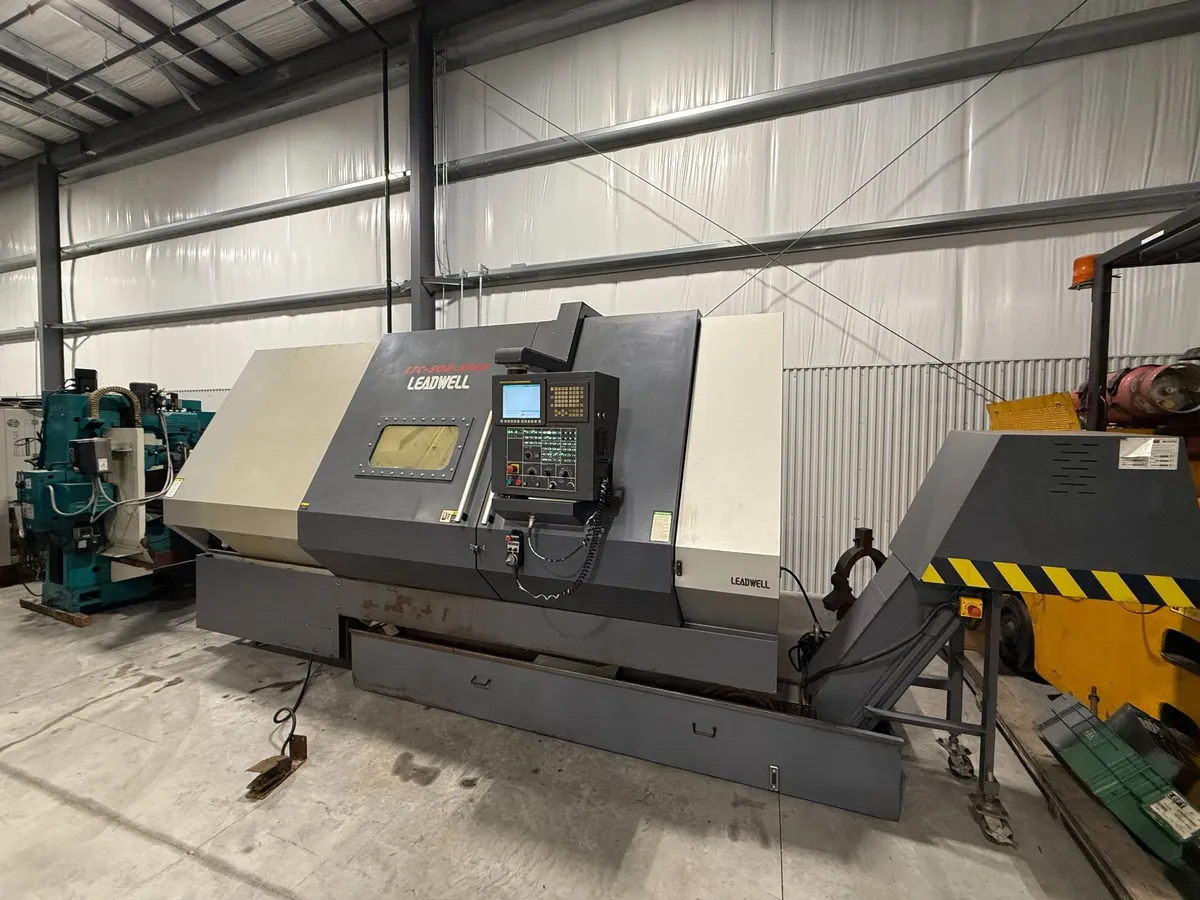

Leadwell #LTC-50B, Multi-Axis CNC Lathe, 35" swing, 27.55" socs, 17.9" X, 40.2" Z, 15" chuck, 4.6" bar, 60 HP, 1,500 RPM, 8-station turret, Fanuc control, 2012

Used CNC lathe. Features include FANUC OiTD control, 60 HP spindle motor, 1,500 RPM spindle, 15 3-jaw chuck, and 8 tool stations. Equipped with chip conveyor, tool setter, and coolant system. Weight: 43,000 lbs.
SPECIFICATIONS:
CAPACITY
Max. Work Swing ....................................... 35"
Swing Over Cross Slide ................................ 27.55
TRAVELS
X Axis ................................................ 17.9
Z Axis ................................................ 40.2"
FEED RATES
X Axis Rapid ........................................... 590 IPM
Z Axis Rapid ........................................... 787 IPM
Jog Feed Rate .......................................... 50 IPM
NO TAILSTOCK WITH STAR STYLE TURRET
BALL SCREWS
X Axis Ball Screw......................................1.97 Dia. X .394 Pitch-Double Nutted
Z Axis Ball Screw ......................................2.48 Dia. X .472 Pitch-Double Nutted
DRIVE MOTORS
X Axis Motor ........................................... 12.8 HP Fanuc Alpha A/C Brushless*
Z Axis Motor ........................................... 28 HP Fanuc Alpha 40 A/C Brushless*
ACCURACY (Ball Bar Tested)
Positioning X/Y/Z/B...................................... +/-0.0002
Repeatability X/Y/Z/B ................................... +/-0.0001
SPINDLE (Option C, D)
Spindle Nose ............................................ A2-11 (A2-15, A2-20)

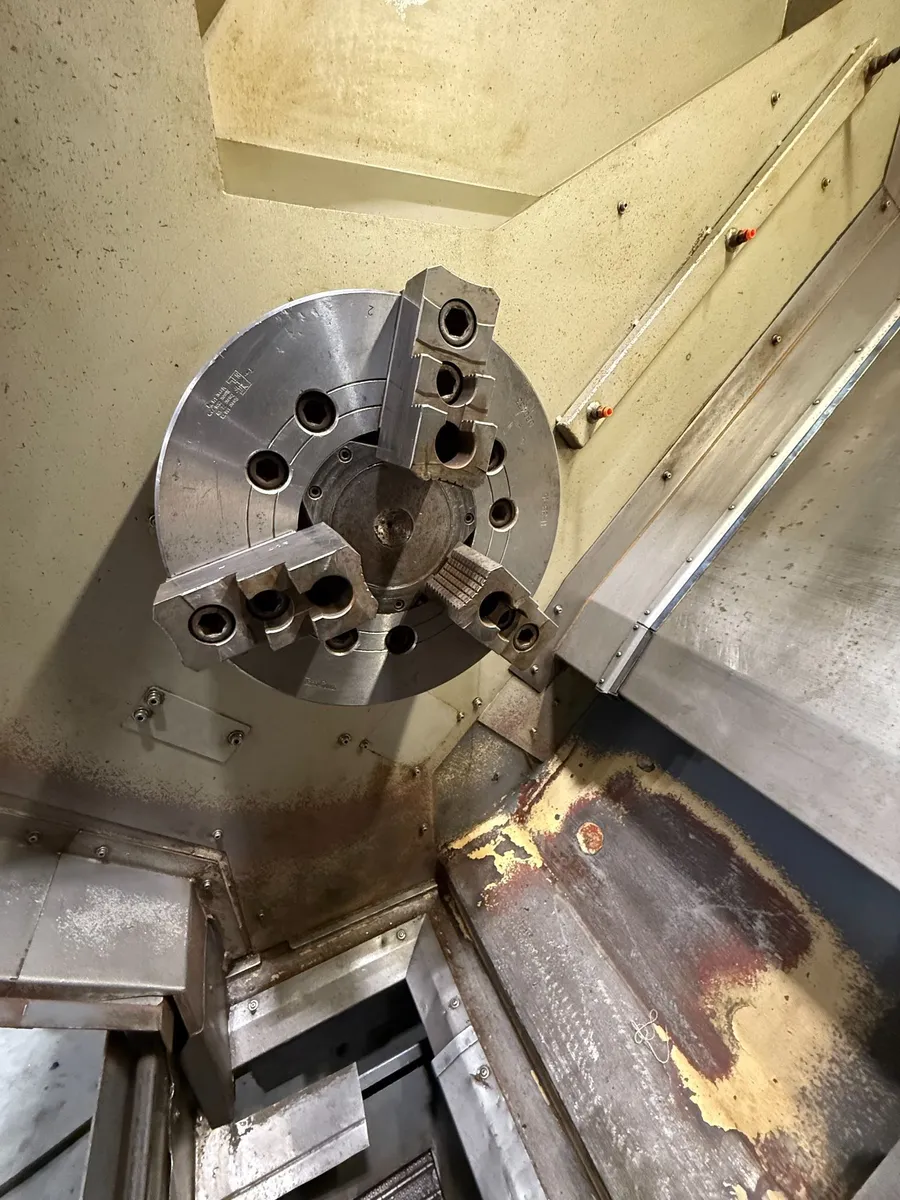

Chuck Diameter & bar capacity ........................... 15/4.6(20/6.25, none)
Spindle Bore ............................................5.50 (7.25, 10.25)
Spindle Speed ........................................... 1,500 (1,500, 1,000)

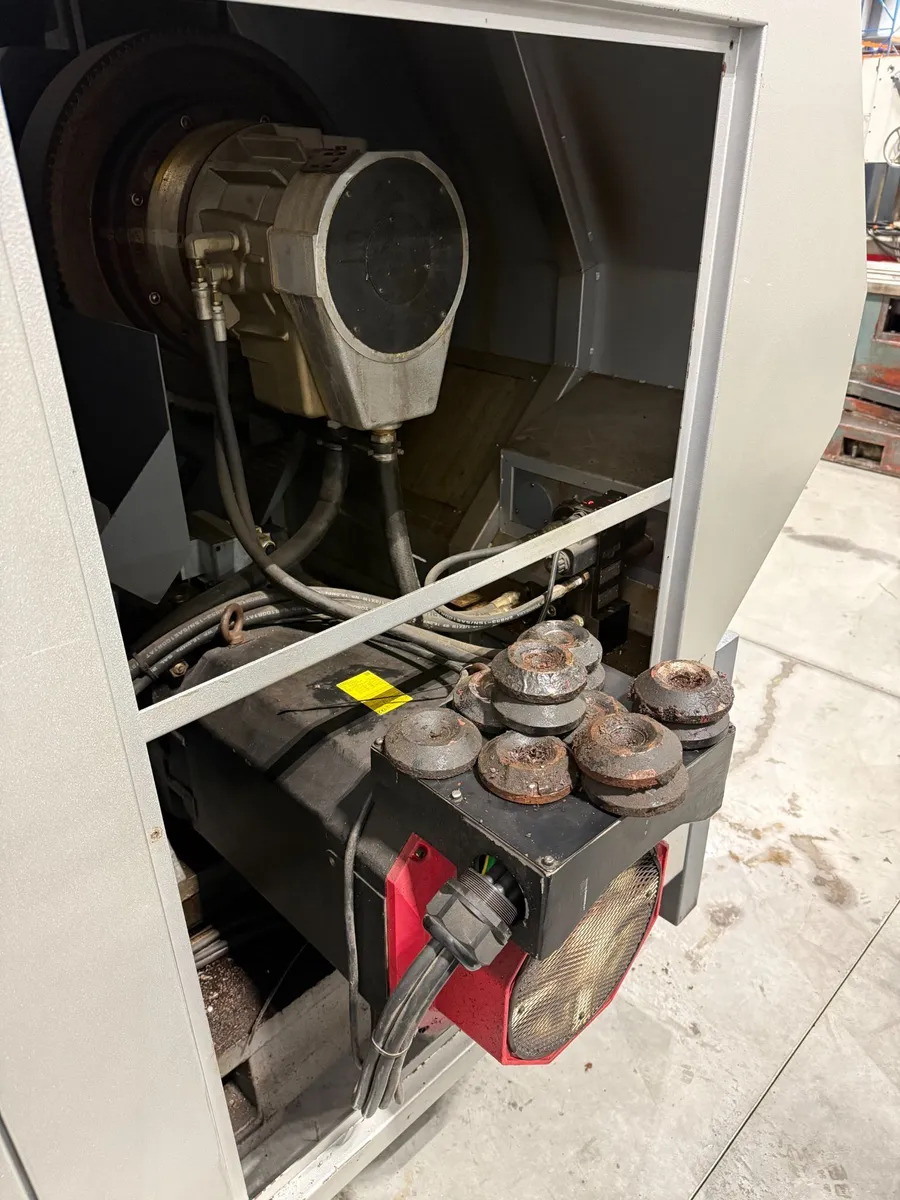

Spindle Motor (Fanuc A/C Brushless) ....................... 2 Speed ZF 60.0 Hp*Peak
(50hp 30min ~ Alpha 30)

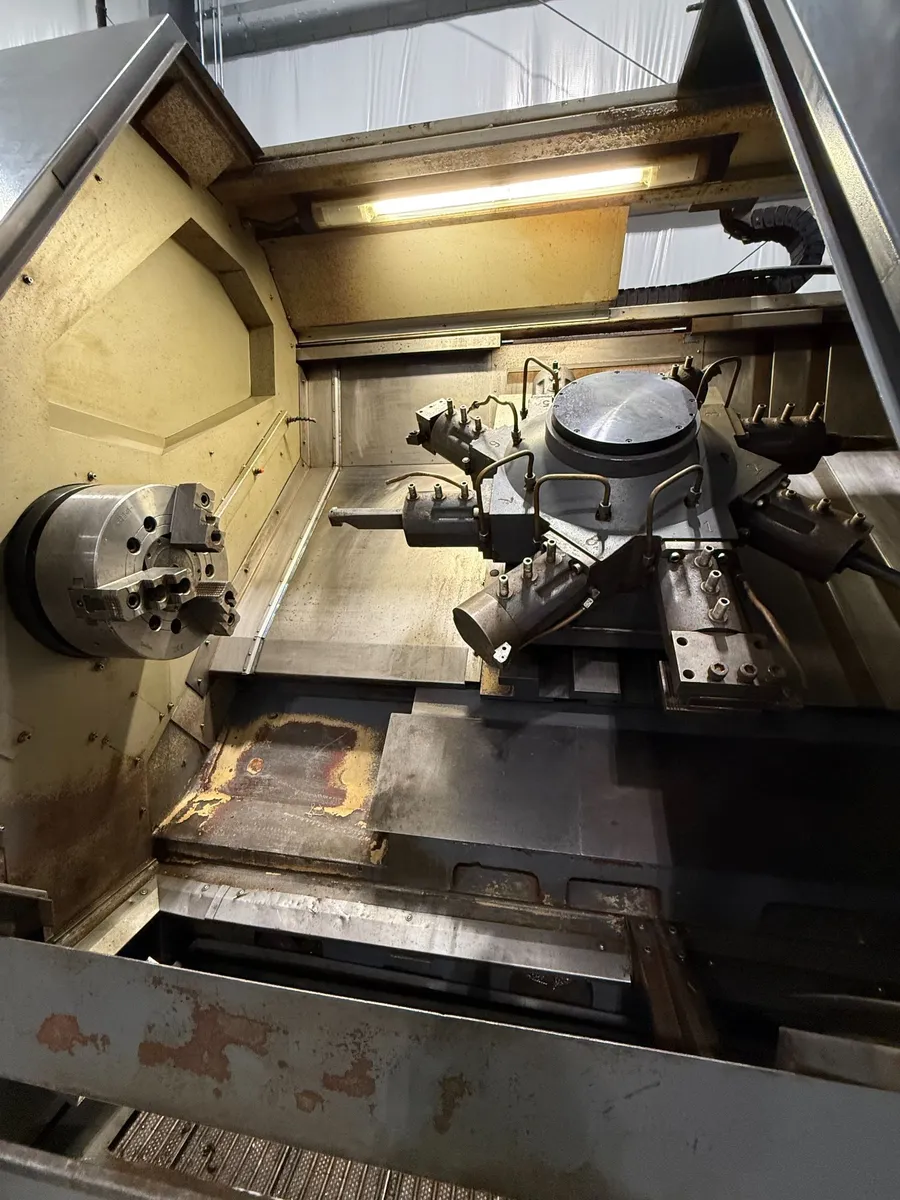

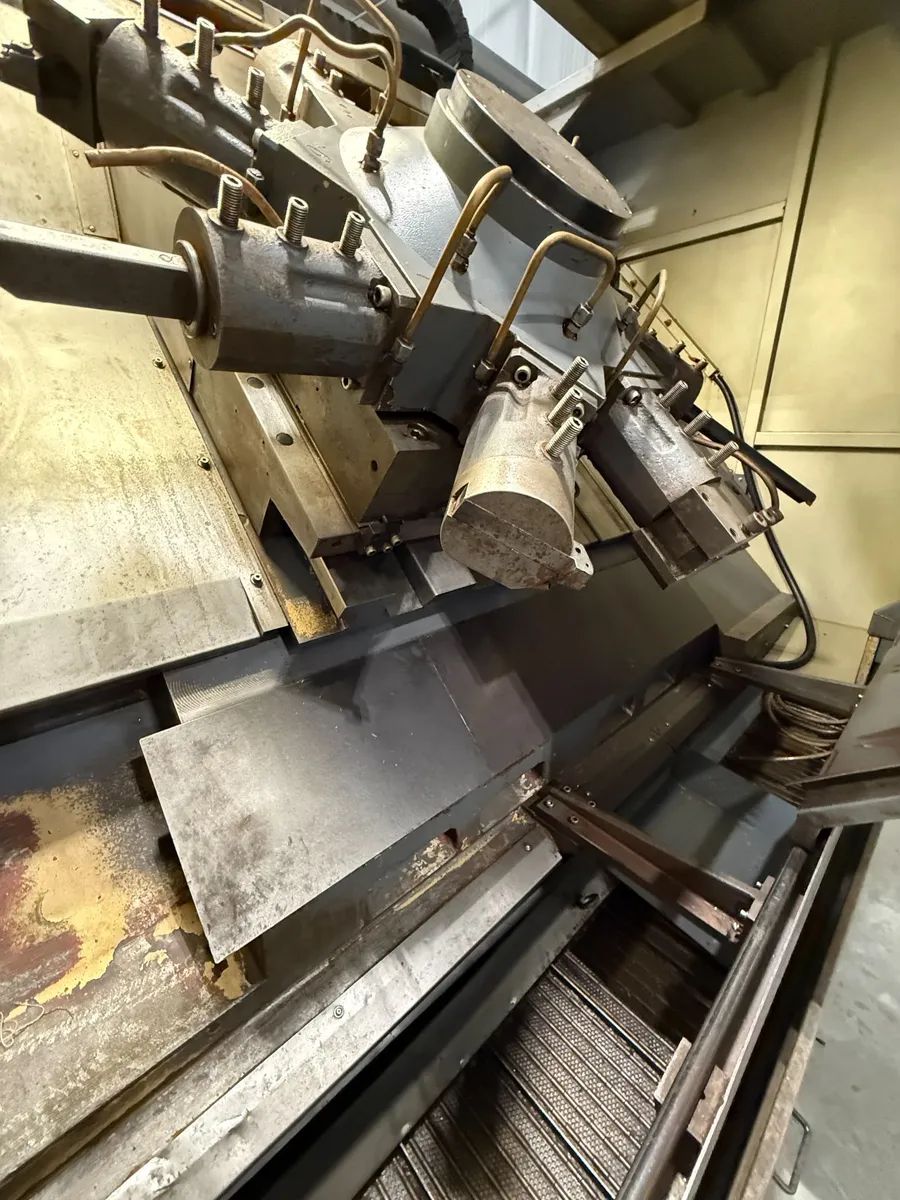

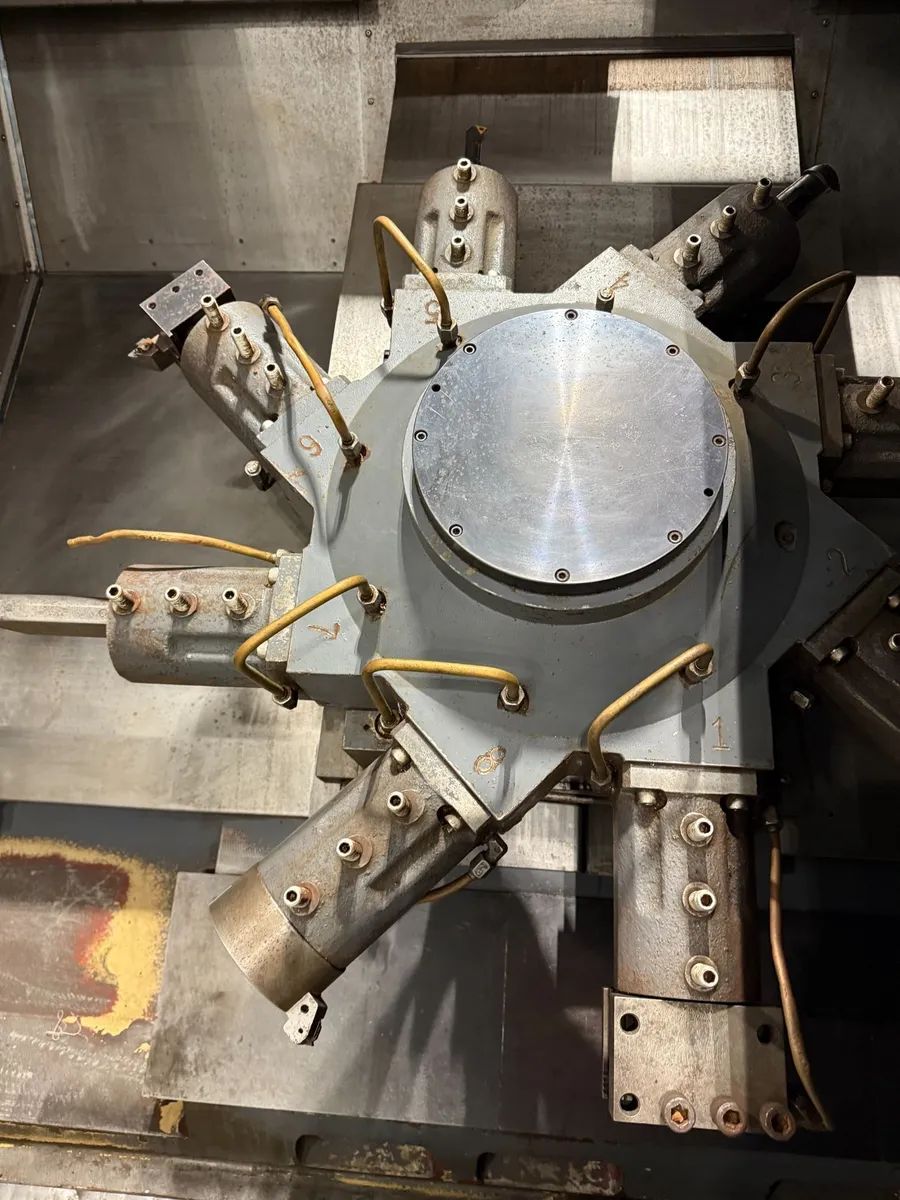

TURRET-STAR STYLE
Tool Stations ............................................. 8
COOLANT SYSTEM
Pump Motor Output ........................................ 1.3 HP
Pump Flow Rate ........................................... 7.1 gpm
Pump Pressure ............................................ 29.0 psi
Tank Capacity ............................................ 42 gal.

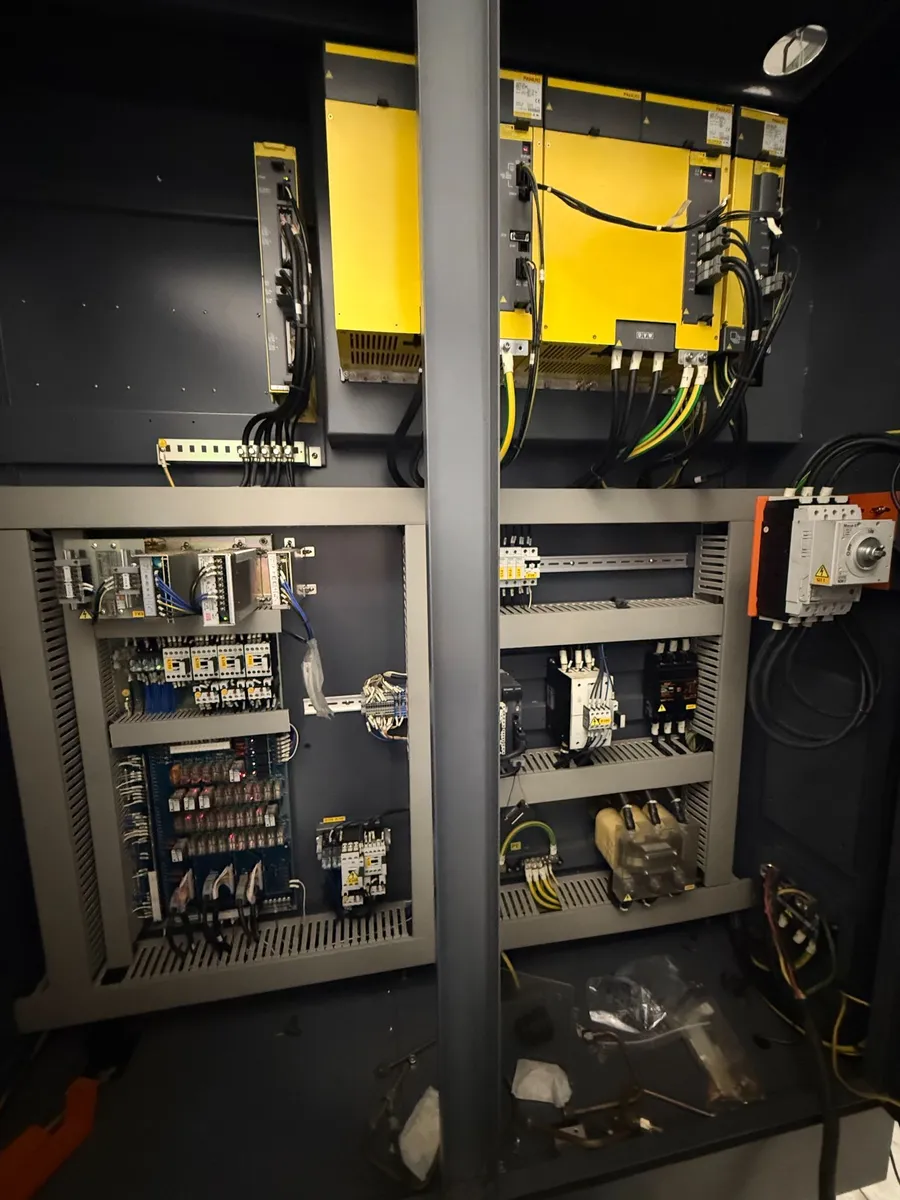

POWER REQUIREMENTS
220 Volts/3 Phase/60 Cycle
70 KVA (180 amps. @ 220 volts)
GENERAL
Machine Weight ........................................... 43,000 lbs
