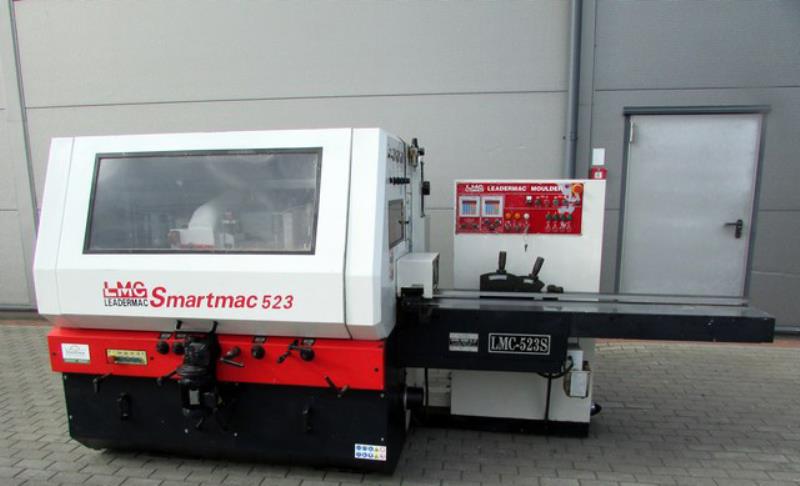

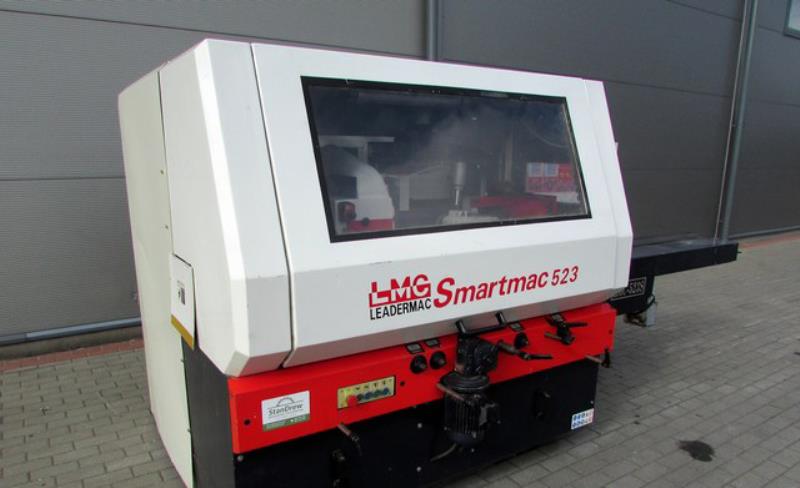

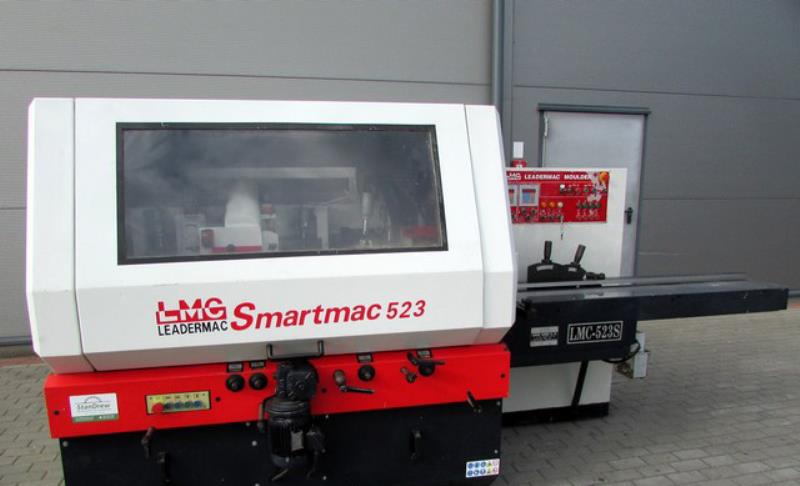

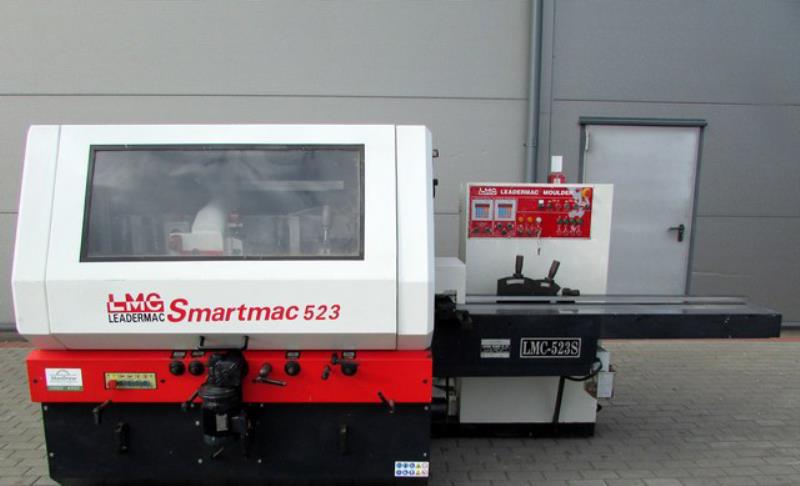

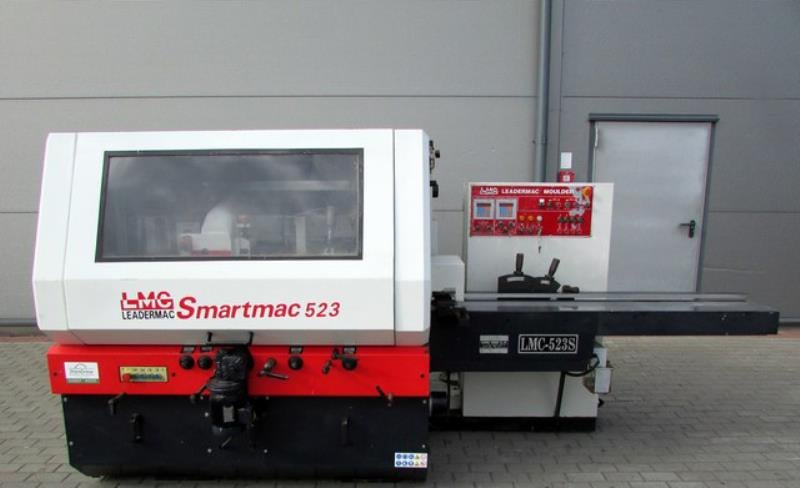

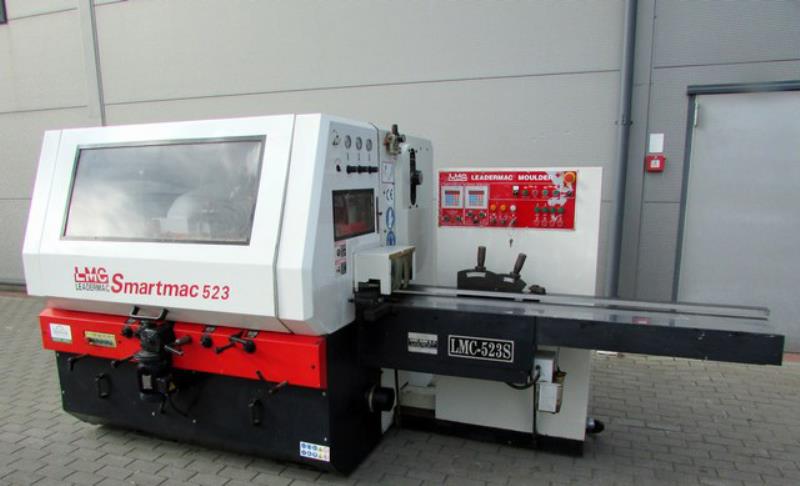

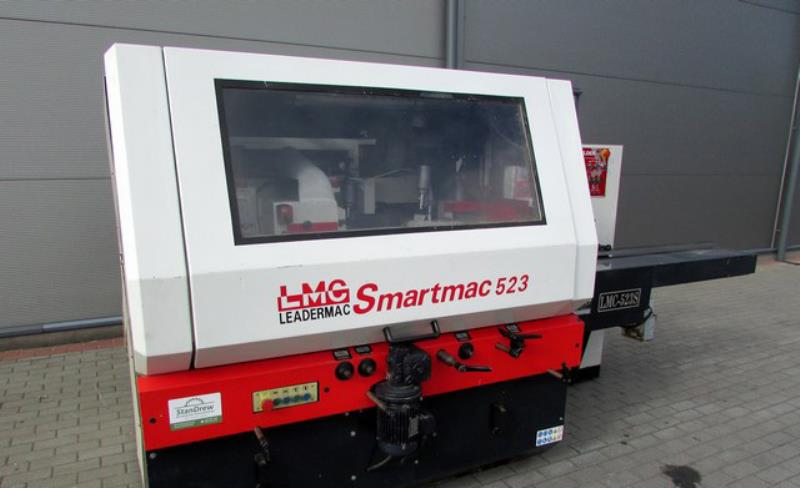

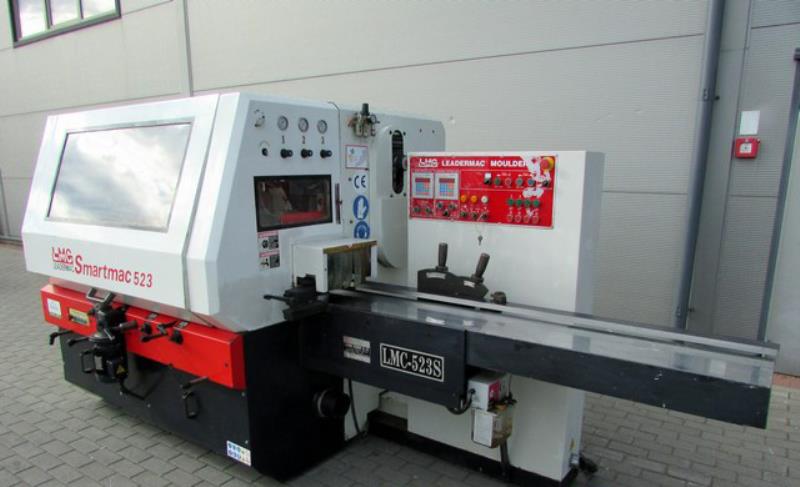

Leadermac #Smartmax-523, Moulder, 5-Head, 6000 RPM, 78 FPM Feed Speed, 6' 7" Infeed Table, 400 V., 2000

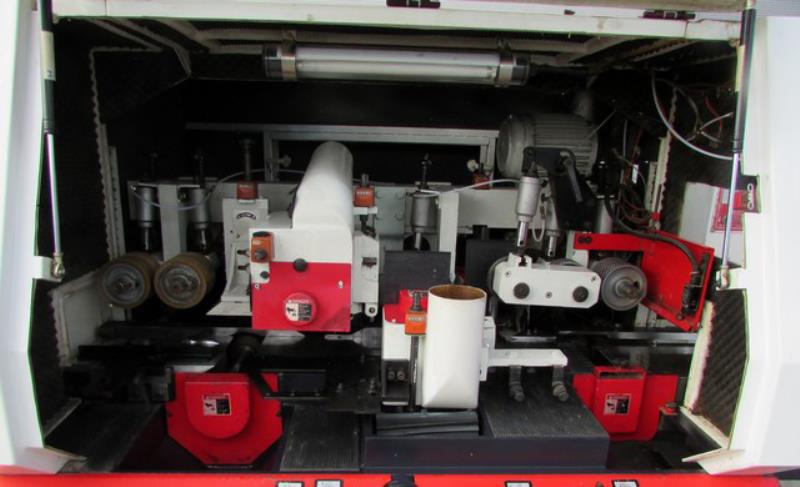

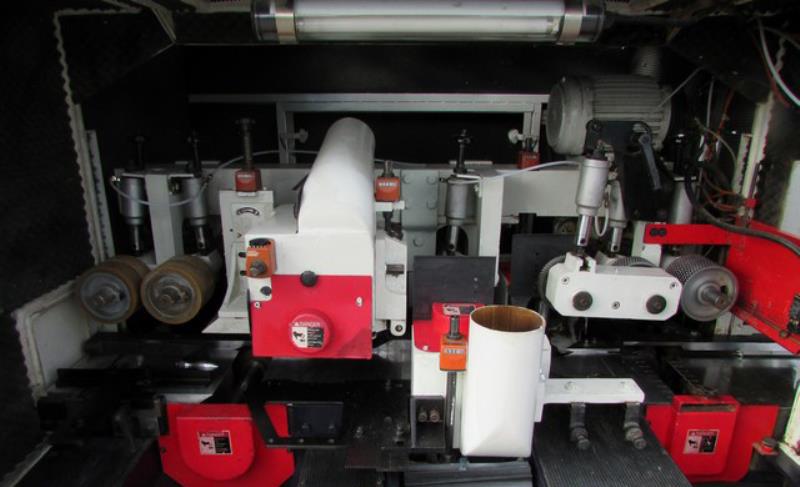

LEADERMAC SMARTMAC 523 ... Feed Through Moulder, 5-head;Cast-iron 1-piece machine frame, specially heat-treated, for maximum stability & rigidity.Specifications: -- Head configuration: 5-Head (B-R-L-T-B), working capacity 230 x 125 mm (9-1/16" x 4-15/16"). -- Spindle sequence: 1. Bottom 7.5 kW (10 HP), 2. right 5.5 kW (7.5 HP), 3. left 5.5 kW (7.5 HP), 4. top 7.5 kW (10 HP) and, 5. bottom 7.5 kW (10 HP). -- Spindle dia. 40 mm (1-9/16"). All spindles 6,000 RPM. All spindles with brakes and mechanical digital readouts. -- Motorized adjustment for height & width, operated from control panel. -- Feed System: ● Variable feed speed 6 - 24 m/Min (19 - 78 FPM) with 4 kW (5.5 HP) motor. ● Overhead feed wheels 140 mm (5-1/2") with pneumatic pressure, 6 bar (87 psi). ● (1) powered table roller in machine table, smooth, at outfeed. ● Cardan drive, chainless, maintenance-free. -- Machine Tables: Made of hardened steel, chromed. ● Infeed straightening table is 2,000 mm (6'- 7") with adjustable fence & adjustable outfeed table; (1) side pressure roller mounted to infeed table. ● Spring loaded side pressure rollers. ● Slots in machine bed prior and behind 1st spindle for noise reduction. -- Complete with: ● Short stock attachment. ● Central lubrication, located at the front of the machine. ● Bed lubrication pump, manually operated. ● Full sound/safety enclosure, with illumination inside. ● Automatic star delta starters. ● Emergency stop buttons. -- CE conformity. Actual model is: LEADERMAC SMARTMAC 523 ... Feed Through Moulder, 5-head. Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
