Description

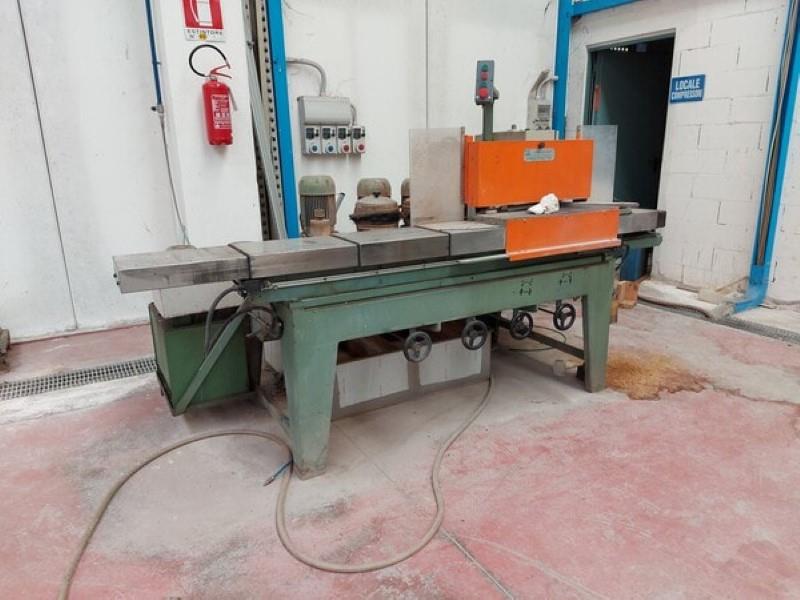

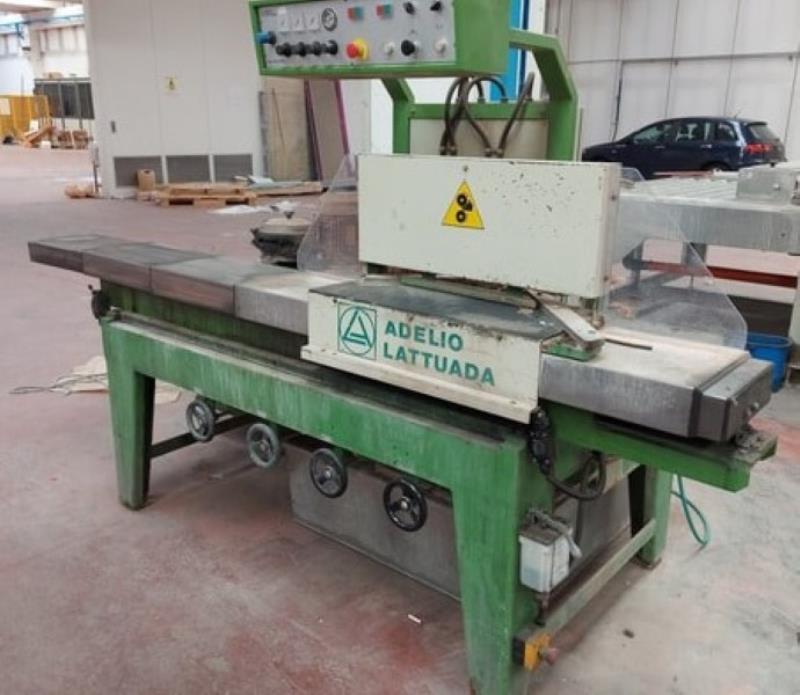

ADELIO LATTUADA DELTA M4 Automatic Corner Grinding Machine For Radius And Straight CornersAutomatic corner grinding machine for the processing of radium and straight corners perfectly polished in a single passage with flat edge with arris, pencil edge and other profiles (according to the wheels that are fitted). Pneumatic movement of wheel-holder groups. A peculiar advantage of this machine is the possibility to carry out the processing with continuous cycle having the chance to time the end stroke break from 0 to 30";. Moreover it is possible to process certain types of corners directly without the cutting. The DELTA M4 model fits (4) spindles: (2) for diamond wheels and (2) for polishing wheels. On demand it is possible to fit (3) spindles for diamond wheels and (1) spindle for polishing wheel. Wheel Configuration:(1) Diamond peripheral wheel (1) Diamond peripheral wheel (1) Polishing wheel for arris (1) Polishing wheel for arris Specifications: ● Number of spindles: (4) spindles ● Min. glass size: 200 x 300 mm (8" x 12 ") ● Max. glass size: 1000 x 1000 mm (39.37" x 39.37") ● Glass thickness: 4 - 20 mm (0.16 - 0.79") ● Radius corner range: 10 - 150 mm (0.39 - 5.91") ● Cant corner range: 10 - 200 mm (0.39 - 7.87 ") ● Dimensions: 2680 x 1300 x 1750 mm (106" x 51" x 68") ● Weight.: 1000 kG (2,205 lbs)NOTE: Machine is in good condition and ready for immediate delivery.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
