Description

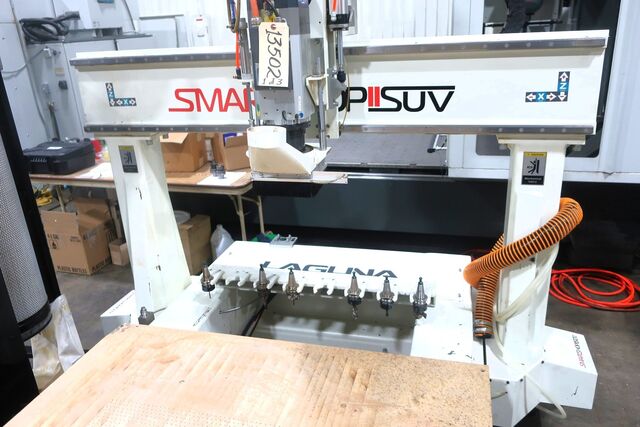

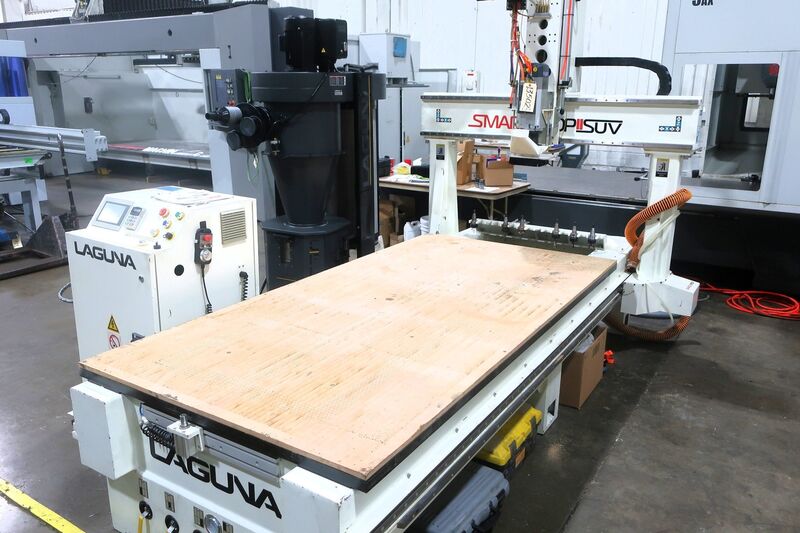

The Laguna SmartShop II SUV (Souped Up Version) is the newest addition to the companys line of SmartShop routers. Based on the robust and reliable platform of the Smart Shop II, proven in hundreds of applications over the past 10 years, the SS II SUV offers a host of new features and enhanced performance. Developed in cooperation with B+R Automation, the SS II SUV uses the latest servo and controls technology available today, including powerful control and program features usually only found on much higher priced systems.
Table size: 4 x 8
Motor: 12 HP
extended 24" Z axis
900 in/min rapid travel.
600 in/min maximum cutting speed.
8 Position Automatic Tool Changer
Heavy-duty welded tubular steel frame (3500 lbs).
Vacuum table
25mm heavy-duty HiWin HG Series linear bearings and rails on all axis rack.
Helical rack-and-pinion drives on X and Y axis, and precision-ground ball screw drive on Z axis.
Gantry is driven on each end (two helical rack-and-pinion drives on Y axis).
Delta brand VFD-B variable frequency drive.

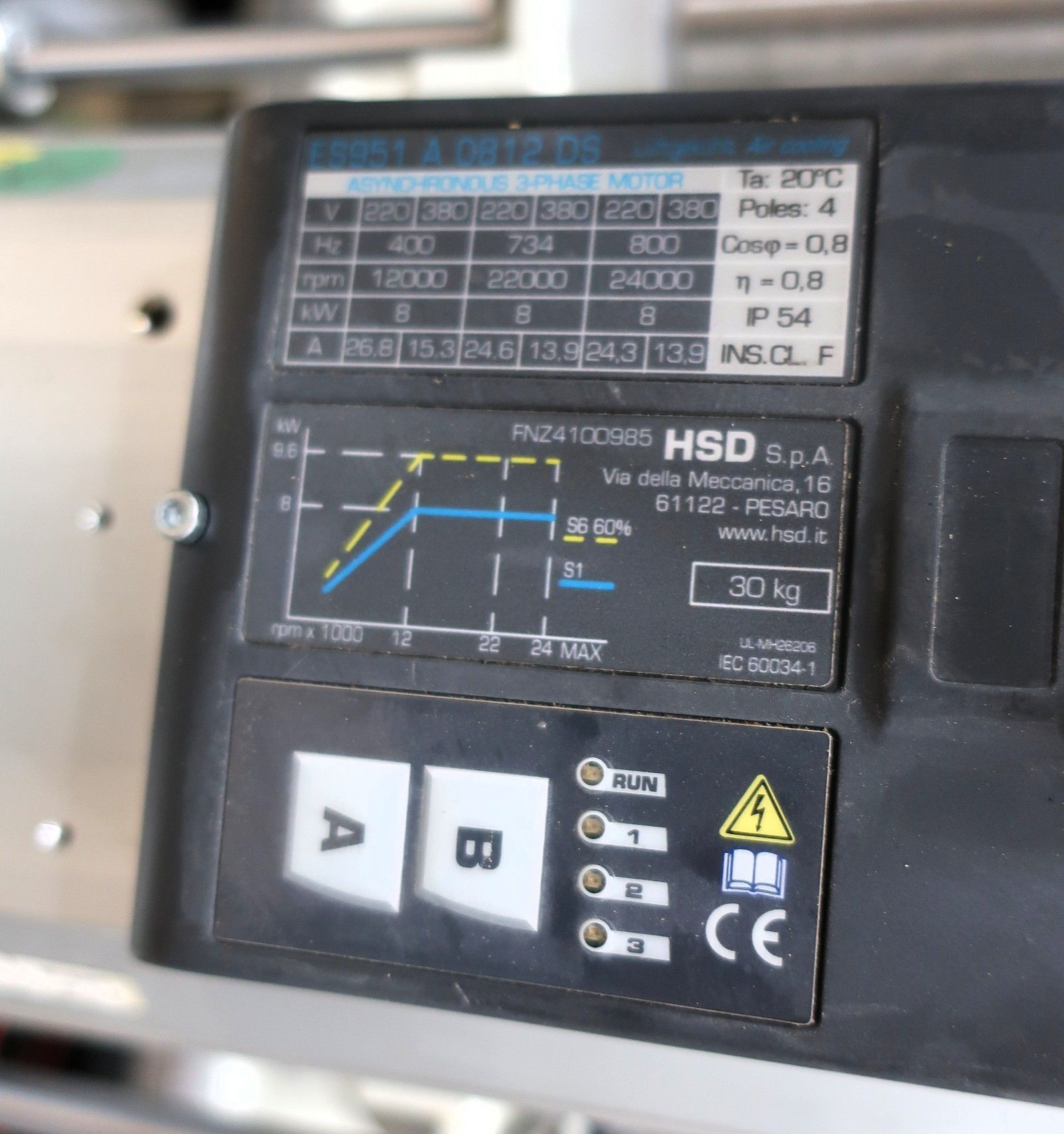

12 HP HSD (Italian) Electrospindle ISO-30 (ATC), 6,000 24,000 RPM Range, Ceramic Spindle Bearings

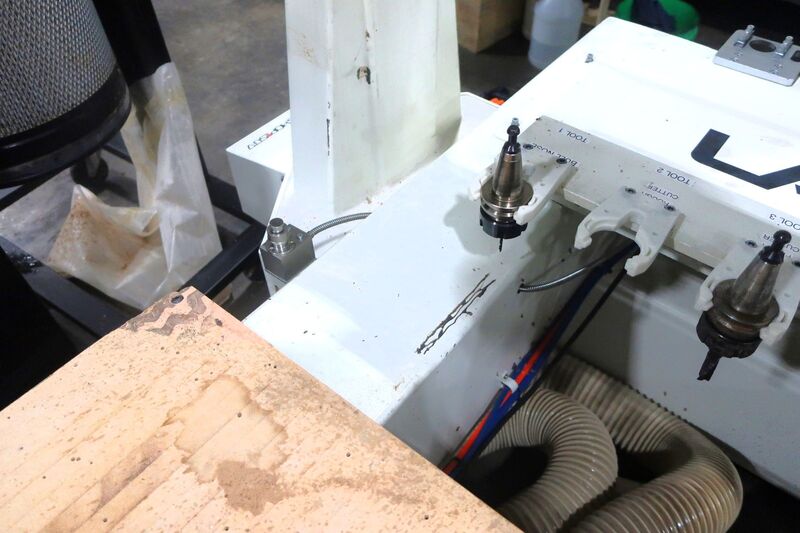

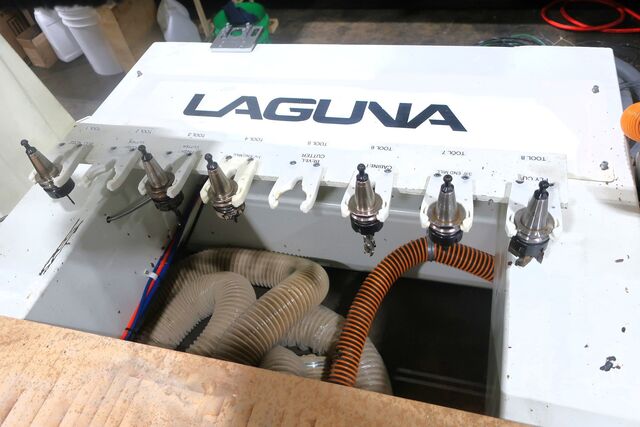

Automatic Tool Changer with 8 tool position tool rack.
Table size: 4 x 8
Motor: 12 HP
extended 24" Z axis
900 in/min rapid travel.
600 in/min maximum cutting speed.
8 Position Automatic Tool Changer
Heavy-duty welded tubular steel frame (3500 lbs).
Vacuum table
25mm heavy-duty HiWin HG Series linear bearings and rails on all axis rack.
Helical rack-and-pinion drives on X and Y axis, and precision-ground ball screw drive on Z axis.
Gantry is driven on each end (two helical rack-and-pinion drives on Y axis).
Delta brand VFD-B variable frequency drive.
12 HP HSD (Italian) Electrospindle ISO-30 (ATC), 6,000 24,000 RPM Range, Ceramic Spindle Bearings
Automatic Tool Changer with 8 tool position tool rack.
Get Your Price from CNC Exchange div. Gray Machinery Co.!
