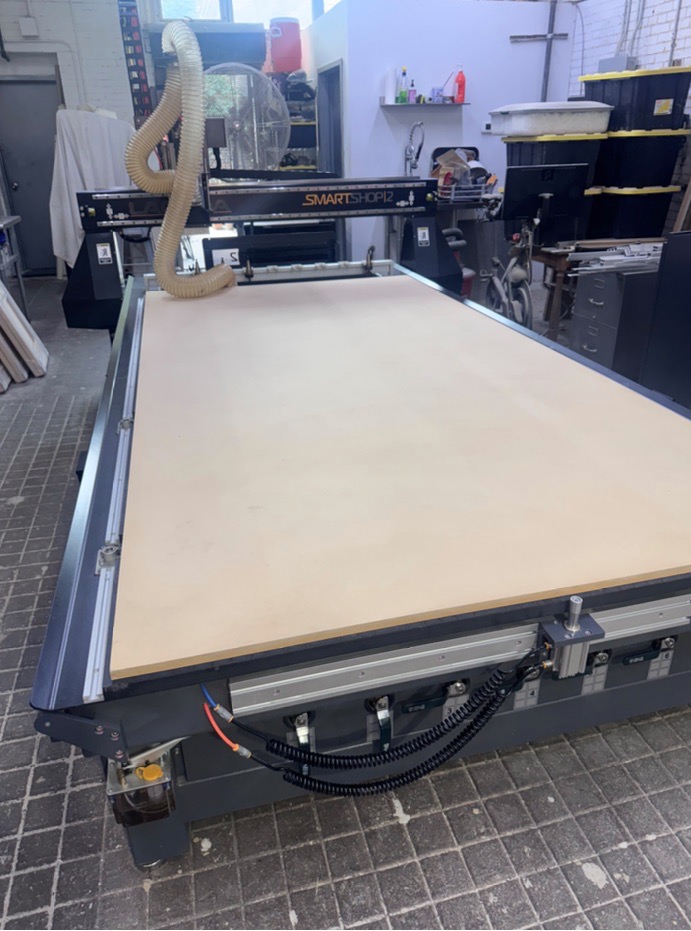

Laguna #SmartShop-II-SS2-2, CNC router, 5' x 10' vacuum table, 12 HP HSD ATC spindle, 24000 RPM, 8-position ATC, Syntec FC60-CA, 2021

Laguna Tools SmartShop II SS2-2
Year: 2021
Controller: Syntec FC60-CA
Cutting Area: 5 ft. x 10 ft.

Spindle
Manufacturer: HSD
Spindle Power: 12 HP
Spindle Type: ISO-30 Automatic Tool Change (ATC)
Bearings: Ceramic
Maximum Spindle Speed: 24,000 RPM
Voltage: 208-230V, 3 Phase

Tool Changer
Automatic Tool Changer: 8 Position
Tool Holders Included: 4
Tool Cone Holder for Quick Bit Changes

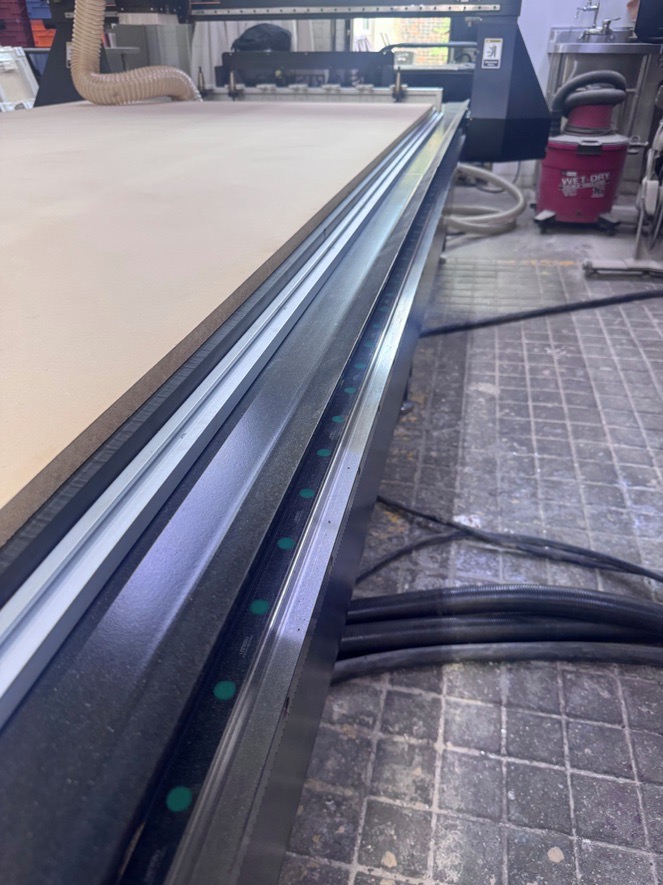

Table
Table Size: 5′ x 10′
Vacuum Table: Universal Grid Phenolic Vacuum

Table
T-Slot Workholding
Vacuum Zones: 6 Independently Controlled Zones

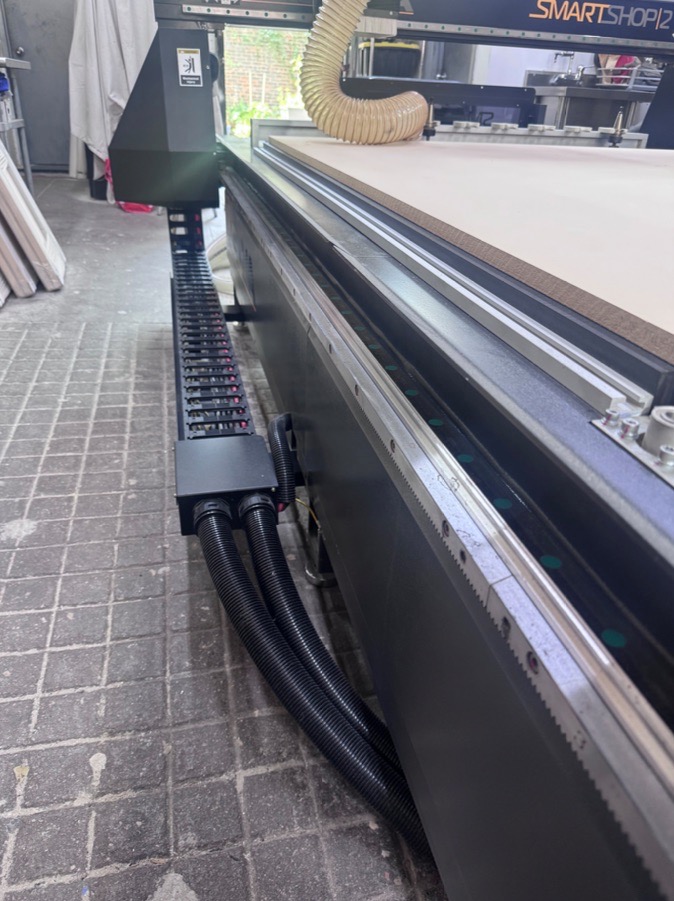

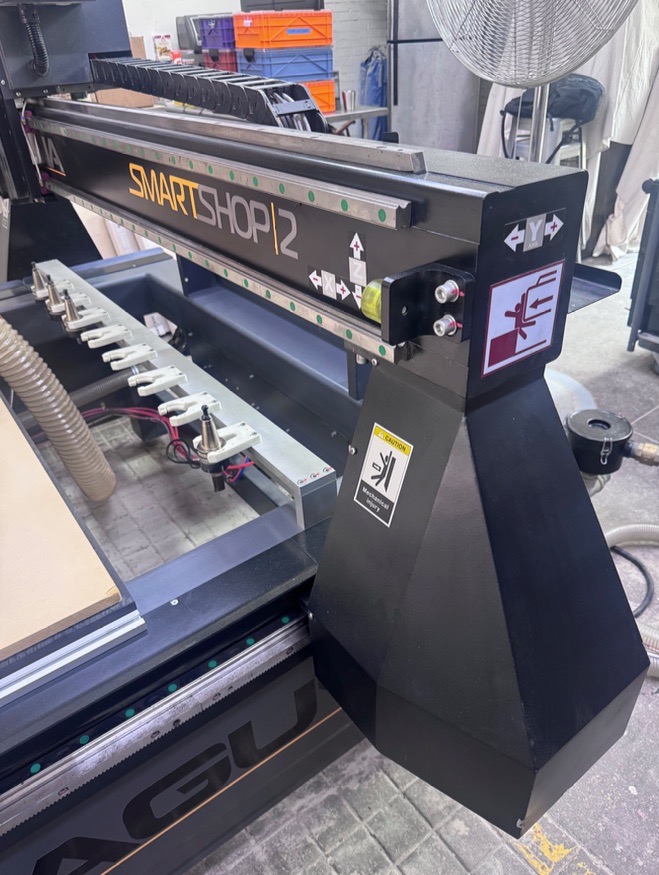

Motion System
X-Axis: Helical Rack & Pinion
Y-Axis: Dual Helical Rack & Pinion
Z-Axis: Precision Ground Ball Screw

Machine Features
Programmable Dust Hood with M-Code Driven Retraction
Emergency Stop
Soft Limits with Limit Switches on All Axes
Heavy-Duty All-Welded Structural Steel Frame
Approximate Machine Weight: 3,500 lbs.

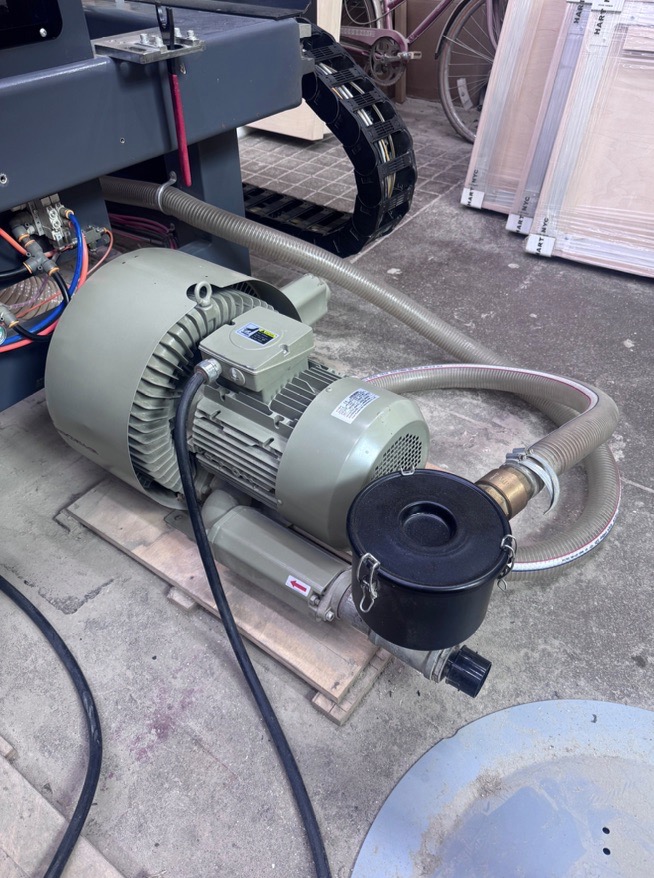

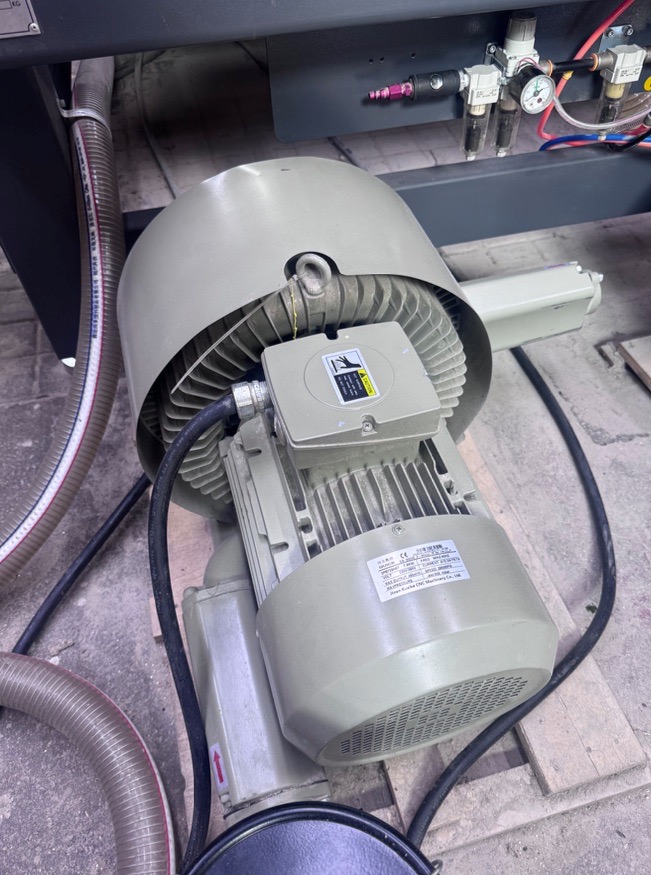

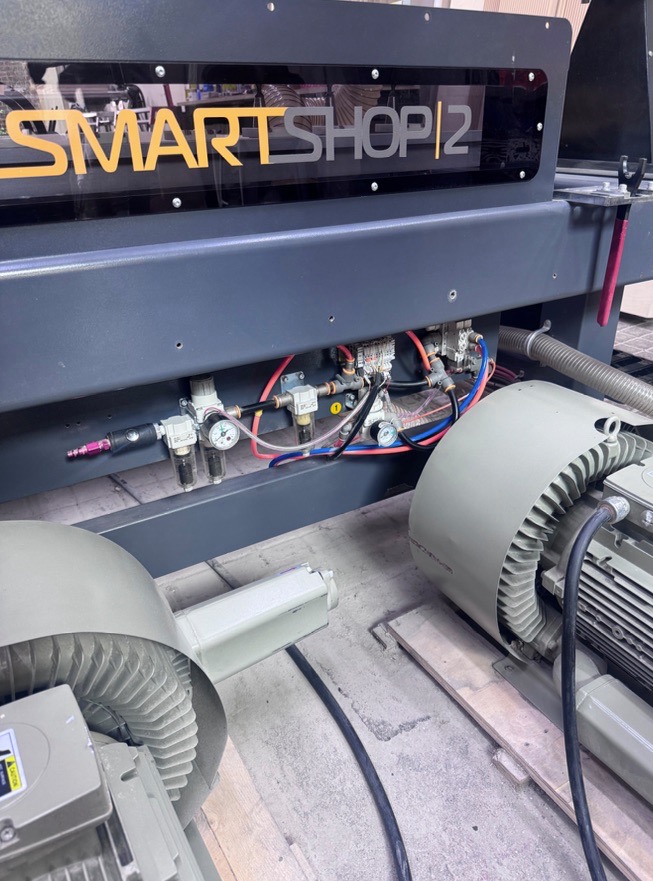

Vacuum System
(2) 10 HP Regenerative Blower Vacuum Pumps
285 CFM Each
220V, 3 Phase
Includes Filter Housing & Filter Fittings

Software

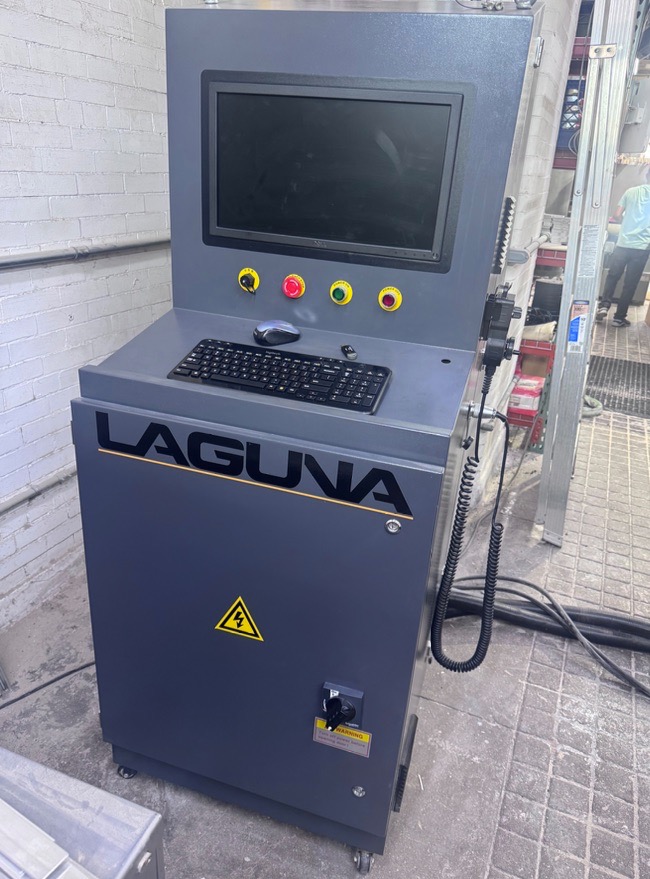

Syntec FC60-CA Controller
VCarve Pro Software Included (Original Purchase)
