For Sale by Machinery Marketing International
Surplus Record Dealer Since 2013
Location: Chicago, IL
Contact Victoria
Phone Number: 312...> Show Phone Number 312-226-4150
Let the seller know you found their listing on Surplus Record!
Description

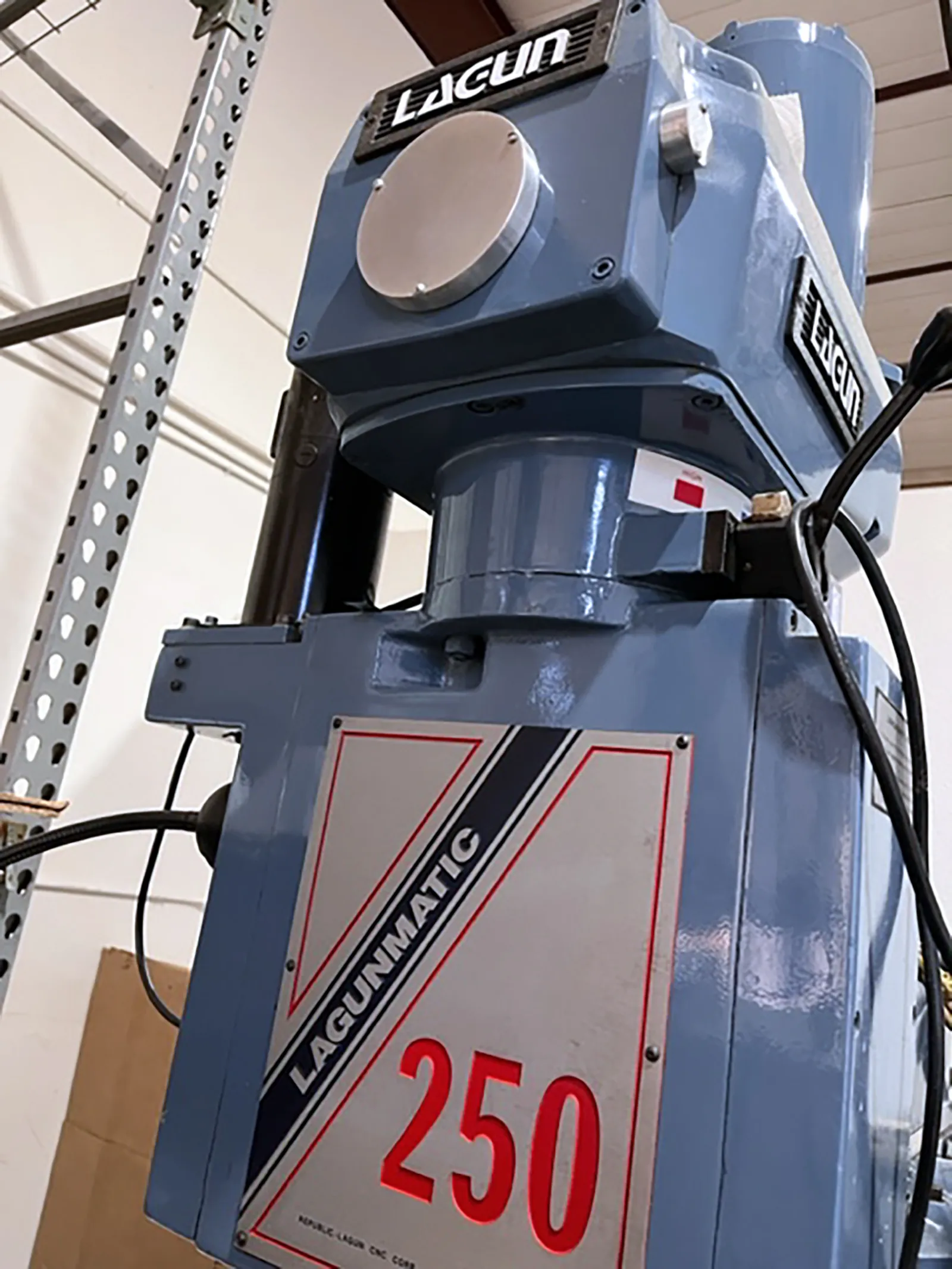

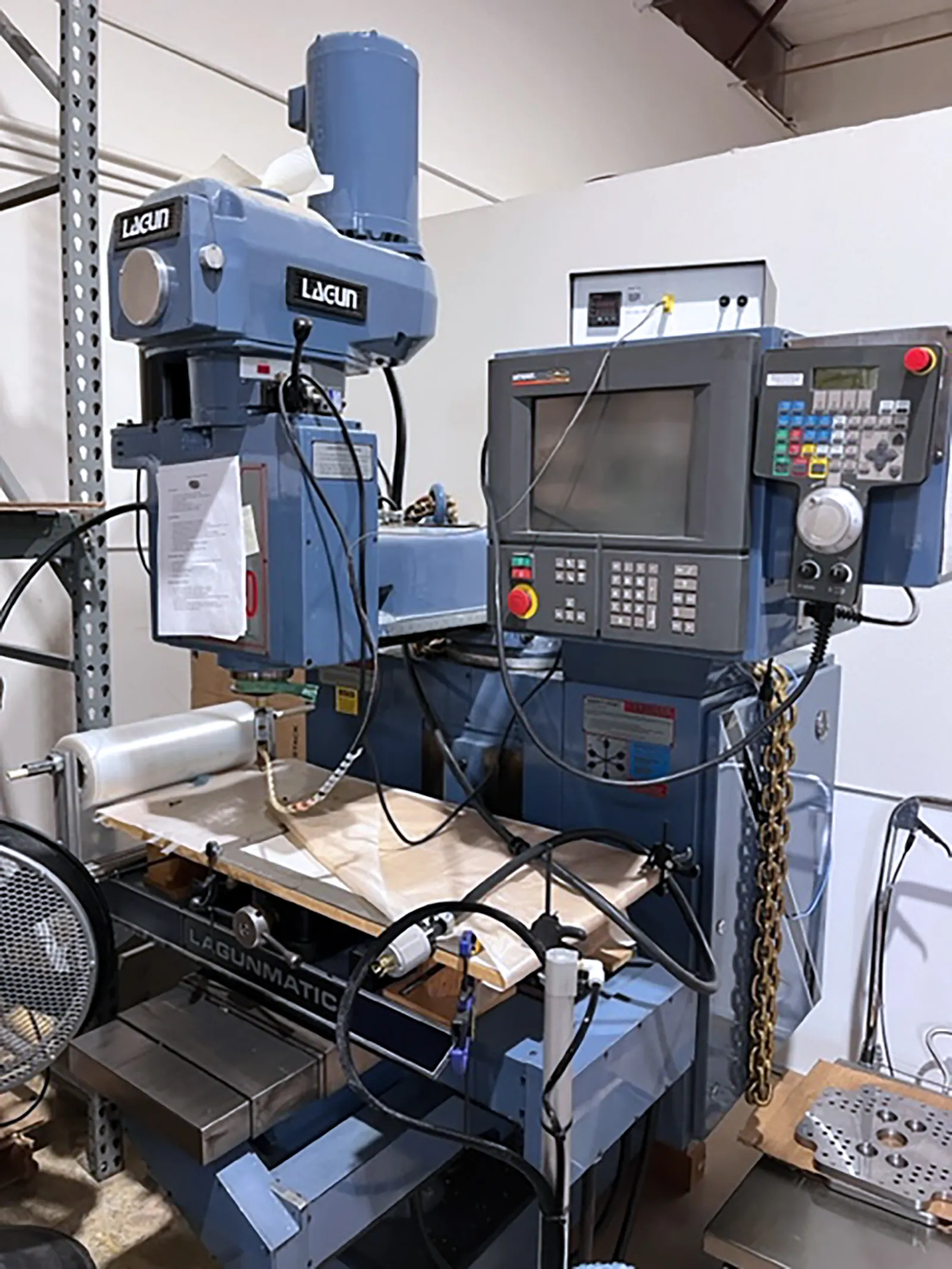

Used Lagun Lagunmatic 250. This pre-owned Machine is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Lagun Machine we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Table Working Surface: 10" x 44"
Table Size: 16" x 48"
Table Load Capacity: 1000 lbs
Longitudinal Travel (X-Axis): 27"
Cross Travel (Y-Axis): 15"
Vertical Travel (Z-Axis) Spindle: 6.5"
Vertical Travel (Z-Axis) Knee (Manual): 16"
Maximum Clearance Table Top to Spindle Nose: 18.25"
Spindle Taper: 40
Spindle Motor: 3 HP
Feed Rates, All Axes: 0.1 to 250 IPM
Rapid Traverse Rate All Axes: 350 IPM
Spindle Speeds Range: 60-4250 RPM
Approximate Machine Dimensions: 5" L x 4" W x 9" H
Approximate Machine Height: 99"
Approximate Machine Weight: 4,500 lbs
Electrical: 240V, 3PH,60HZ
Table Working Surface: 10" x 44"
Table Size: 16" x 48"
Table Load Capacity: 1000 lbs
Longitudinal Travel (X-Axis): 27"
Cross Travel (Y-Axis): 15"
Vertical Travel (Z-Axis) Spindle: 6.5"
Vertical Travel (Z-Axis) Knee (Manual): 16"
Maximum Clearance Table Top to Spindle Nose: 18.25"
Spindle Taper: 40
Spindle Motor: 3 HP
Feed Rates, All Axes: 0.1 to 250 IPM
Rapid Traverse Rate All Axes: 350 IPM
Spindle Speeds Range: 60-4250 RPM
Approximate Machine Dimensions: 5" L x 4" W x 9" H
Approximate Machine Height: 99"
Approximate Machine Weight: 4,500 lbs
Electrical: 240V, 3PH,60HZ
Get Your Price from Machinery Marketing International!
Buyers Who Viewed This Listing Also Viewed:

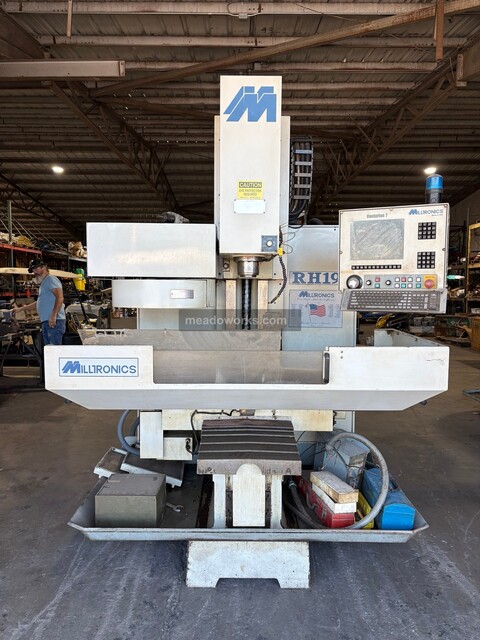

Milltronics #RH19, rigid head bed mill, 15" x50" tbl., 100-6000 RPM, #40, Centurion 7000, splash guard, automatic lube
