For Sale by Machine Tool Bids
Surplus Record Dealer Since 2025
Location: Chicago, IL
Contact Stephanie Buczek
Phone Number: 312...> Show Phone Number 312-604-1850
Let the seller know you found their listing on Surplus Record!
$3,900 USD
Description
Description

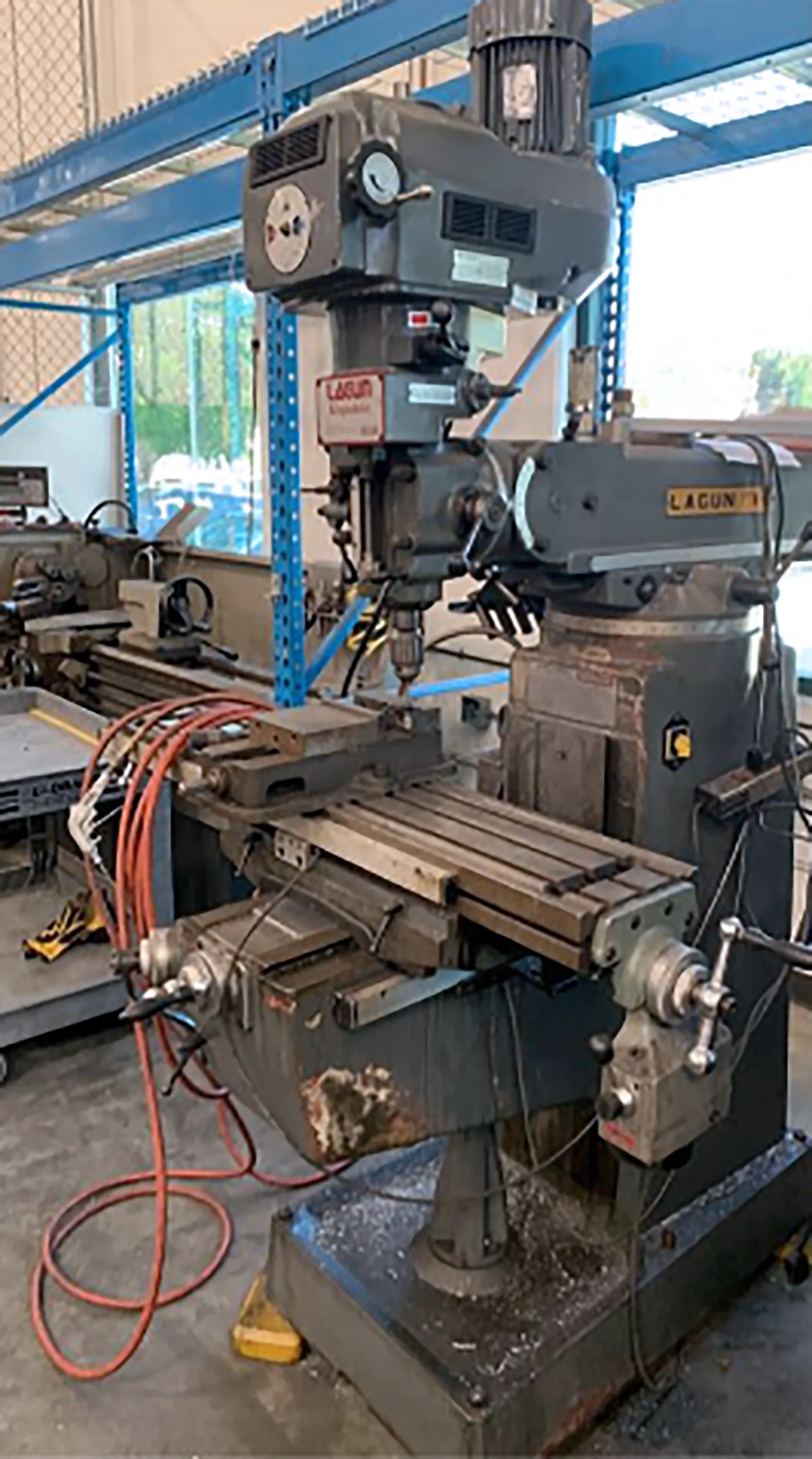

Used 1996 Lagun FTV-2. Machine Tool Bids offers plenty of Vertical Milling Machines and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Lagun FTV-2 or any of our machines.
MACHINE SPECIFICATION
Table Size: 9" x 48"
Max Weight of the Workpiece: 441 LBS
X-axis: 34.62" (longitudinal table travel power feed)
Y-Axis: 16" (cross saddle travel)
W-Axis: 16" (vertical knee travel)
Z-axis: 5"
Distance from Spindle Center to Column: 5" - 27"
Ram Adjustment: 22-3/16" Manual
Head Swivel: 90 (left to right)
Head tilt (Left-to-Right): 45
Spindle Taper: R-8
Spindle Speeds: 55 - 4,250 RPM
Power Quill Feed: 0.0015, 0.003, & 0.006 IPR
Quill Diameter: 3.37"
Spindle Horsepower: 3 HP
Electrics: 220/440/3/60 Operating Voltage 460
Full load current: 3 amps
Approximate Machine Dimensions: 57" x 65"
Approximate Machine Height: 83"
Table Size: 9" x 48"
Max Weight of the Workpiece: 441 LBS
X-axis: 34.62" (longitudinal table travel power feed)
Y-Axis: 16" (cross saddle travel)
W-Axis: 16" (vertical knee travel)
Z-axis: 5"
Distance from Spindle Center to Column: 5" - 27"
Ram Adjustment: 22-3/16" Manual
Head Swivel: 90 (left to right)
Head tilt (Left-to-Right): 45
Spindle Taper: R-8
Spindle Speeds: 55 - 4,250 RPM
Power Quill Feed: 0.0015, 0.003, & 0.006 IPR
Quill Diameter: 3.37"
Spindle Horsepower: 3 HP
Electrics: 220/440/3/60 Operating Voltage 460
Full load current: 3 amps
Approximate Machine Dimensions: 57" x 65"
Approximate Machine Height: 83"
Approximate Machine Weight: 2,425 LBS
Used 1996 Lagun FTV-2. Machine Tool Bids offers plenty of Vertical Milling Machines and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Lagun FTV-2 or any of our machines.
MACHINE SPECIFICATION
Table Size: 9" x 48"
Max Weight of the Workpiece: 441 LBS
X-axis: 34.62" (longitudinal table travel power feed)
Y-Axis: 16" (cross saddle travel)
W-Axis: 16" (vertical knee travel)
Z-axis: 5"
Distance from Spindle Center to Column: 5" - 27"
Ram Adjustment: 22-3/16" Manual
Head Swivel: 90 (left to right)
Head tilt (Left-to-Right): 45
Spindle Taper: R-8
Spindle Speeds: 55 - 4,250 RPM
Power Quill Feed: 0.0015, 0.003, & 0.006 IPR
Quill Diameter: 3.37"
Spindle Horsepower: 3 HP
Electrics: 220/440/3/60 Operating Voltage 460
Full load current: 3 amps
Approximate Machine Dimensions: 57" x 65"
Approximate Machine Height: 83"
Table Size: 9" x 48"
Max Weight of the Workpiece: 441 LBS
X-axis: 34.62" (longitudinal table travel power feed)
Y-Axis: 16" (cross saddle travel)
W-Axis: 16" (vertical knee travel)
Z-axis: 5"
Distance from Spindle Center to Column: 5" - 27"
Ram Adjustment: 22-3/16" Manual
Head Swivel: 90 (left to right)
Head tilt (Left-to-Right): 45
Spindle Taper: R-8
Spindle Speeds: 55 - 4,250 RPM
Power Quill Feed: 0.0015, 0.003, & 0.006 IPR
Quill Diameter: 3.37"
Spindle Horsepower: 3 HP
Electrics: 220/440/3/60 Operating Voltage 460
Full load current: 3 amps
Approximate Machine Dimensions: 57" x 65"
Approximate Machine Height: 83"
Approximate Machine Weight: 2,425 LBS
Inquire Further with Machine Tool Bids!
