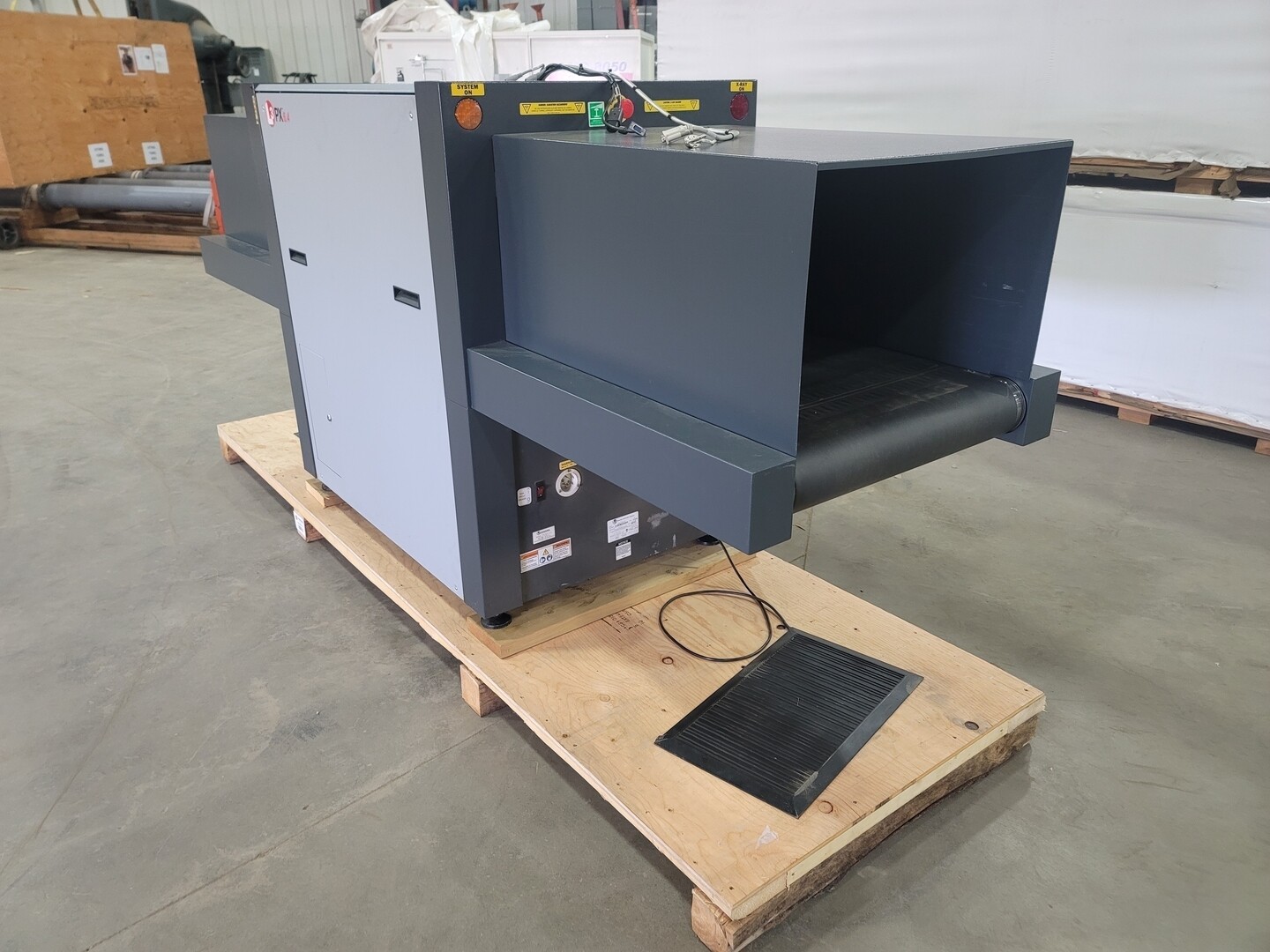

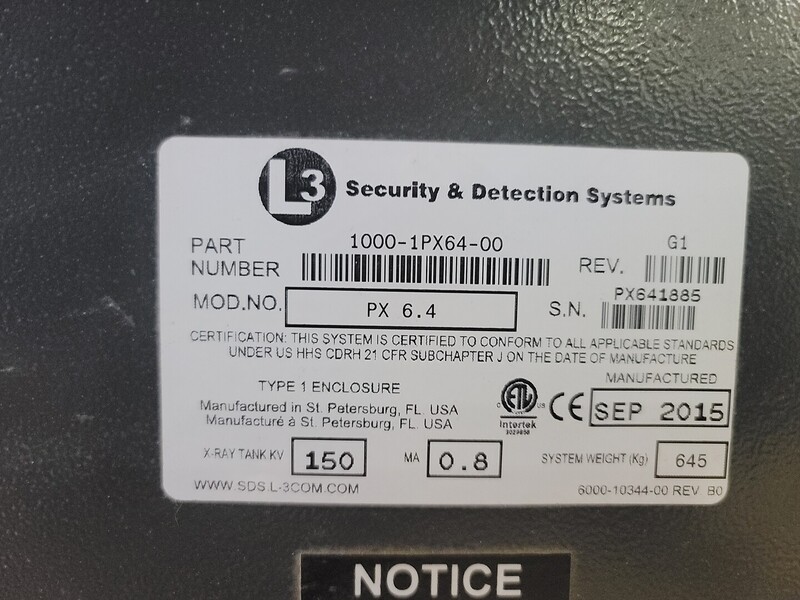

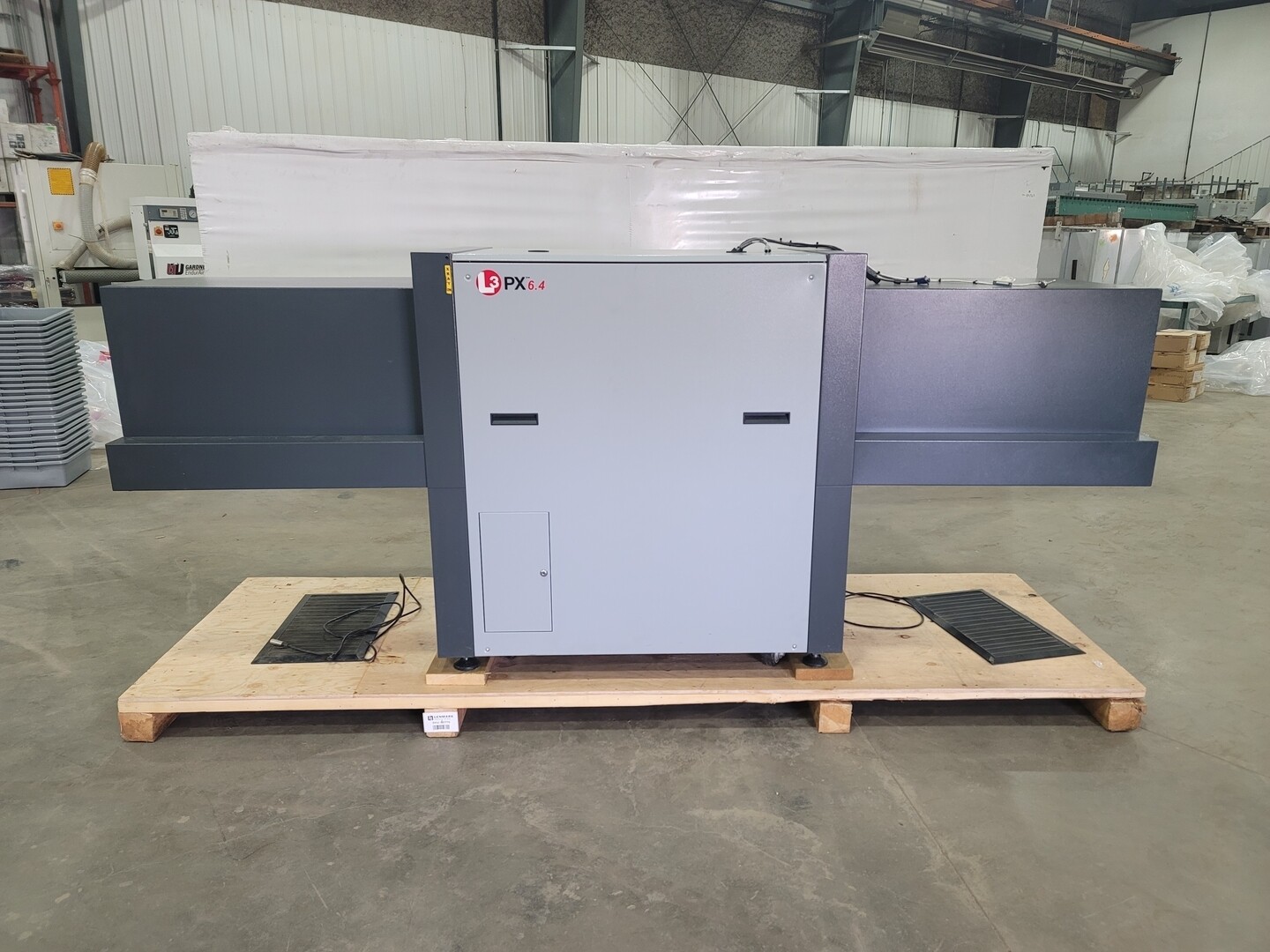

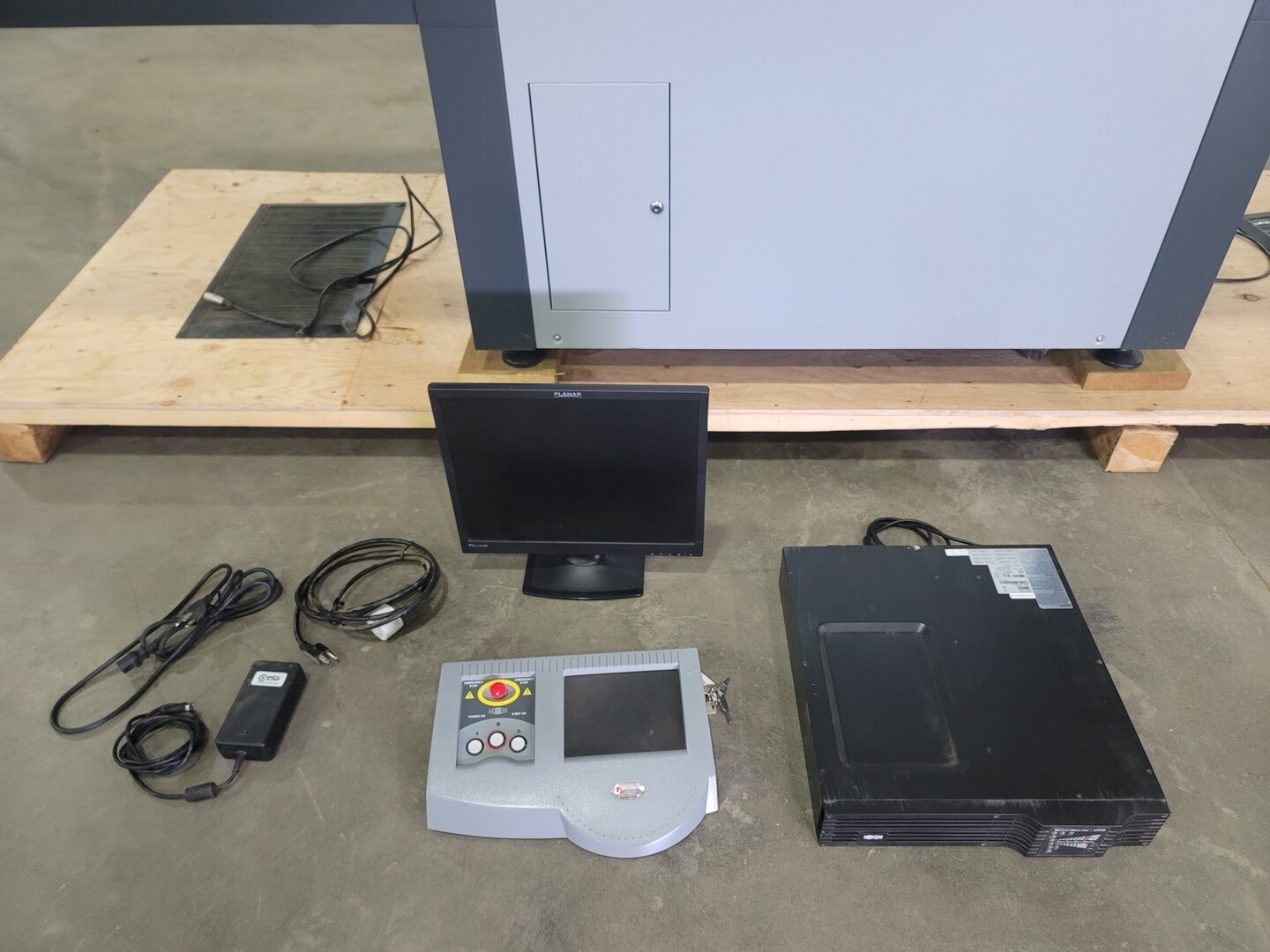

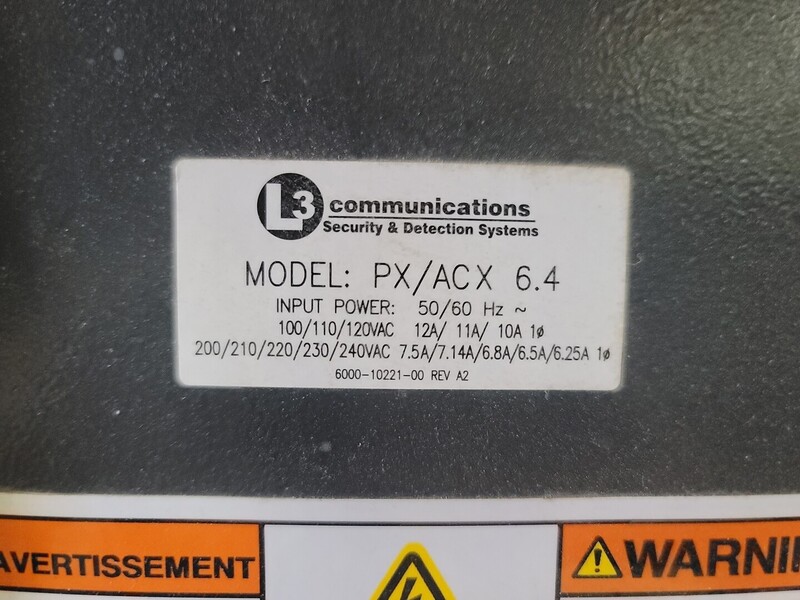

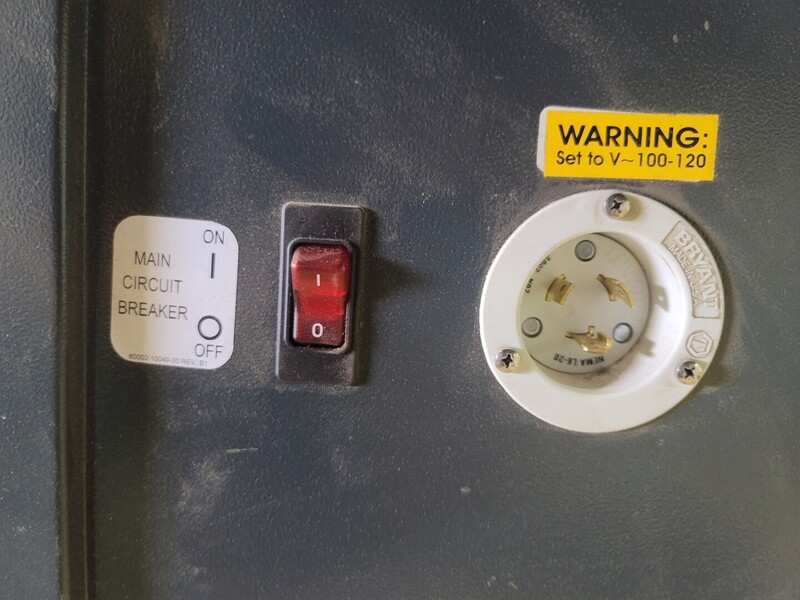

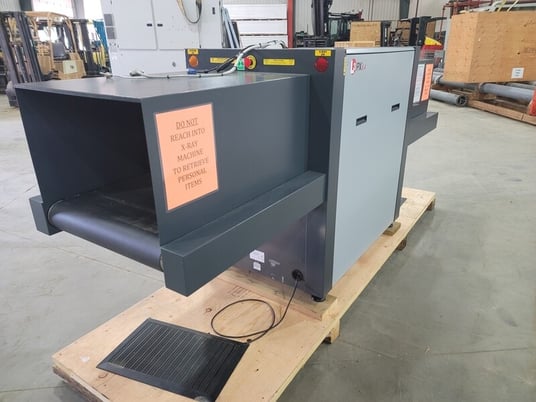

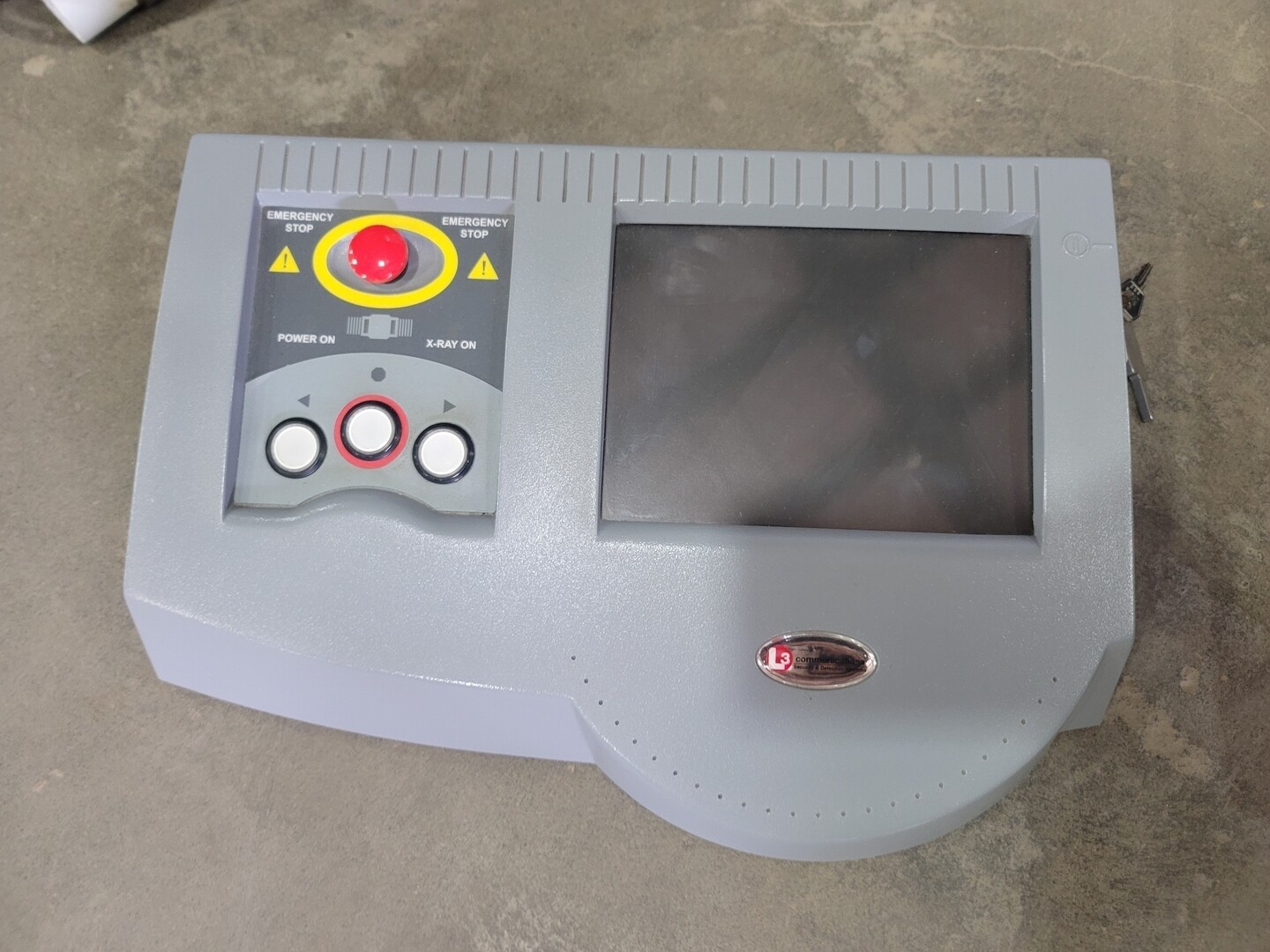

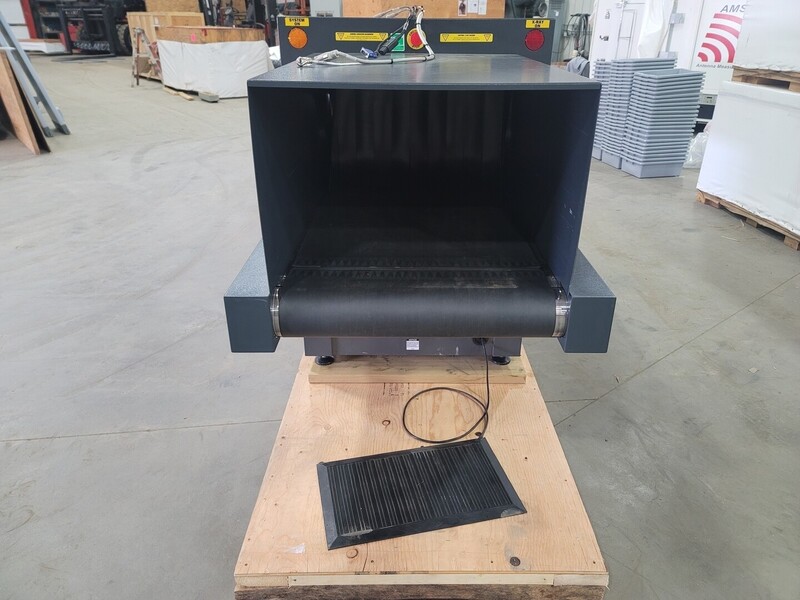

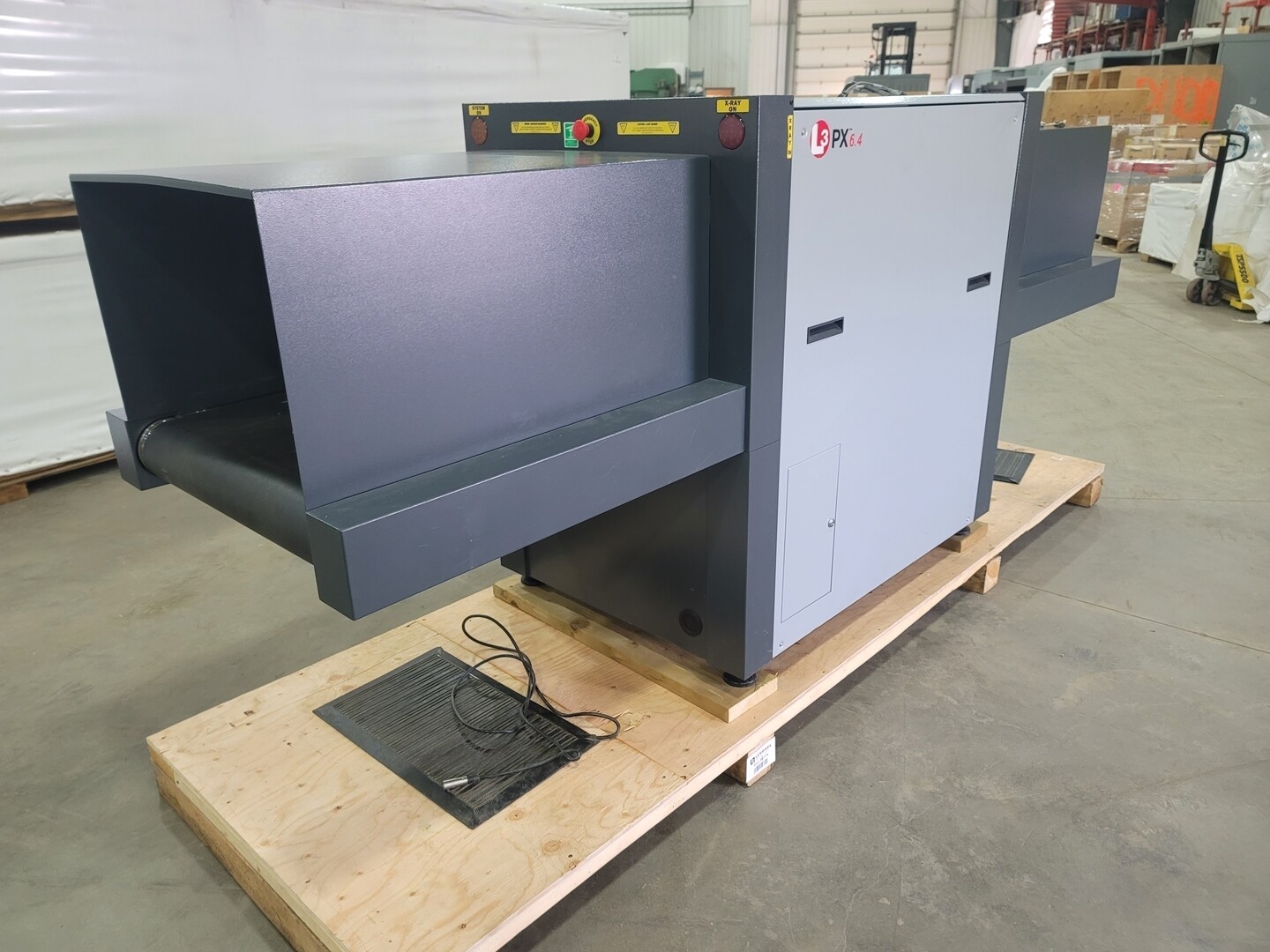

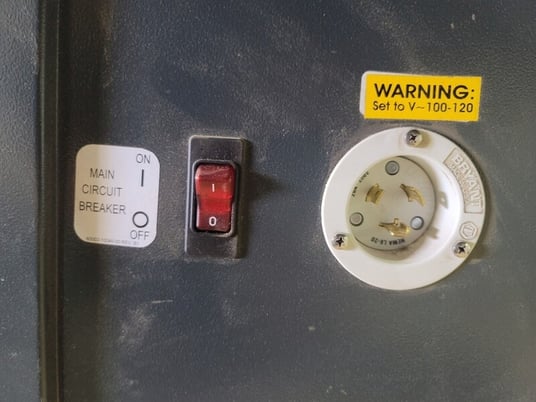

SKU: 80775 Model: PX/ACX 6.4 Year: 2015 Condition: Used Made In: UNITED STATES Dimensions: 61.00 (H) x 40.00 (W) x 144.00 (L) inches Additional Description: Applications:- - Threat Detection - Manifest & Declaration Verification - Contraband Detection - Theft Prevention - Regulatory Compliance/Inspection General:- Height: 1312 mm (51.7") Width: 862 mm (34") Length:- - Short Conveyor: 1700 mm (67") - Medium Conveyor: 2236 mm (88") - Long Conveyor: 3030 mm (119.3") Tunnel Opening: 640 mm (25.2") W x 430 mm (16.9") H Conveyor Height: 775 to 835 mm (30.5" to 32.9") Power Requirements: 100-240 VAC, 1-Ph, +/-10%, 50/60 Hz, 1.0 kVA max Conveyor Speed: 0.25 m per second +1/-2% @ 50/60 Hz Conveyor Capacity: 100 kg (220 lb) Scan Rate:>750 bags/hour (continuous mode), 400 bags/hour (2 level screening) X-Ray:- Voltage: 150 kV Duty Cycle: 100% Cooling: Sealed Oil Bath Beam Orientation: Vertically Upward Detector Configuration: 1152 photodiodes in L-shaped folded array configuration Imaging and Performance:- Resolution: 38 AWG standard, 40 AWG typical Penetration: 38 mm of steel standard, 40 mm typical Contrast Sensitivity: 4096 gray level stored Display Monitor: 19" LCD Monitor Penetration: 38 mm of steel standard, 42 mm typical Environmental:- Operating Temperature: 0 deg. C to 40 deg. C (32 deg. F to 104 deg. F) Storage Temperature: -20 deg. C to 50 deg. C (-4 deg. F to 122 deg. F) Humidity: 95% non-condensing Airborne Noise Level: <70dB(A) Accession Number 0612321-000
