Description

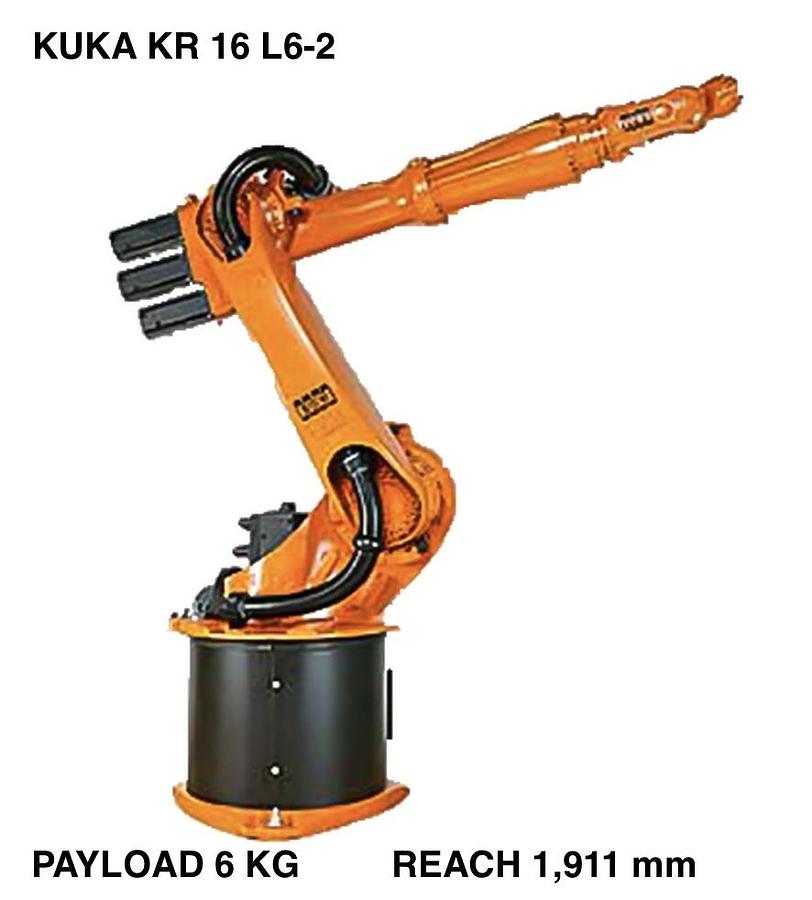

The 2014 KUKA KR16 L6-2 is a six-axis articulated robot designed for applications including arc welding, machine loading, material handling, order picking, packaging, palletizing, and part transfer. It features a rated payload of 6 kg and a maximum reach of 1,911 mm. The robot provides a positioning repeatability of ±0.05 mm. Mounting options include floor, wall, and ceiling positions. The unit has a mass of approximately 240 kg and a footprint of 500 mm x 500 mm. It operates with a KRC4 controller and is equipped with connection cables and a teach pendant. Axis motion ranges and speeds are: Axis 1 (A1) ±185° at 156°/s, Axis 2 (A2) +35°/–155° at 156°/s, Axis 3 (A3) +154°/–130° at 156°/s, Axis 4 (A4) ±350° at 335°/s, Axis 5 (A5) ±130° at 355°/s, and Axis 6 (A6) ±350° at 647°/s. The system requires a 7.3 kVA connection and has a noise level of less than 75 dB. It is rated with an IP 65 protection classification and is suitable for operation in temperatures ranging from +5 °C to +55 °C.
used- keyence 3d vision-based picking robot, model rb-1200. 49.61" x x 49.61" y x 39.37" z detection range; 78.74" working distance to top of detection range;.016" repeatability; monochrome cmos image receiving element; blue led light source; 32-113 degrees f operating ambient temperature; 4.5a current consumption; ...more
Kawasaki Robots are high quality robots considered to be workhorses. This robot has long reach and a wide working range. This one was converted to ZZX130LFD32 from 7th to 6th axis. Contact us for manuals, brochures, and more info., Located at our warehouse in Preston, Idaho., We care about the machines we sell and ...more
