KSI #TCM32, CNC swiss lathe, 1.25" bar, 12" length, 7-Axis, 10000 RPM, 10 HP, live tooling, Fanuc Oi-TF, 2019

Intelligent Chucking| 7 Axis| Low hours| live tooling

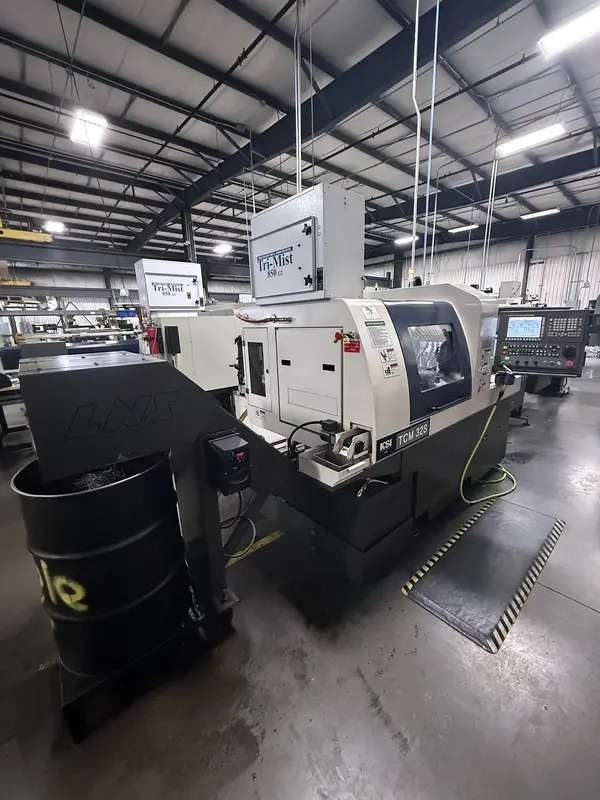

The KSI TCM32S Swiss Lathe (2019) with Fanuc OI-TF Control is engineered for high-precision, high-volume production of complex small-diameter components. Ideal for medical, aerospace, automotive, and electronics industries, it excels at machining bone screws, surgical instruments, fasteners, connectors, pins, shafts, bushings, and hydraulic fittings with exceptional accuracy and repeatability.

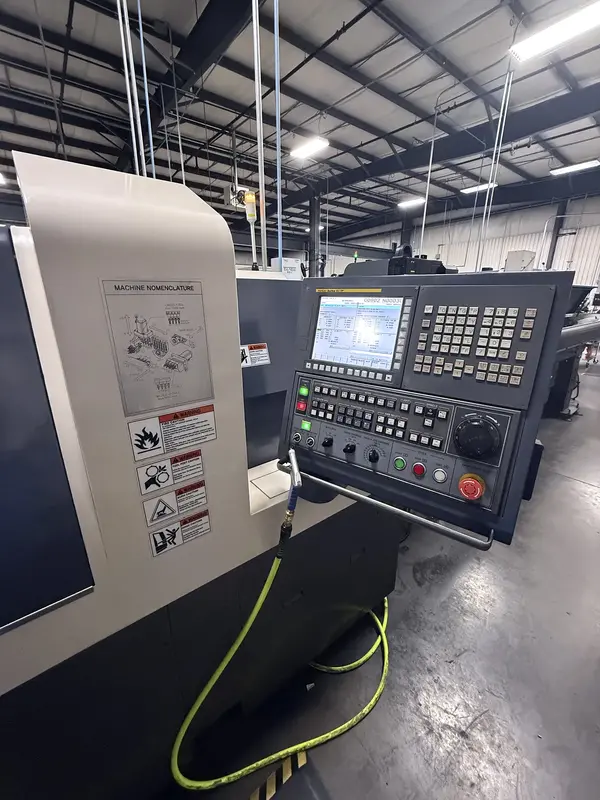

CNC Control: Fanuc Oi-TF
Axes: 7-axis (X, Y, Z, C, and 2 rotary tool axes)
Turning Diameter: Max 1.25" (32 mm)
Turning Length: Max 12.00" (305 mm)
Main Spindle: 10,000 RPM, 10 HP (7.5 kW)
Sub Spindle: 8,000 RPM, 3 HP (2.2 kW)
Cross Spindle: 8,000 RPM, 1.34 HP (1.1 kW)
Back End Spindle: 5,000 RPM, 1.34 HP (1.1 kW)
Weight: 7,716 lbs (3,500 kg)
Dimensions: 118" x 57" x 70" (300 x 145 x 178 mm)

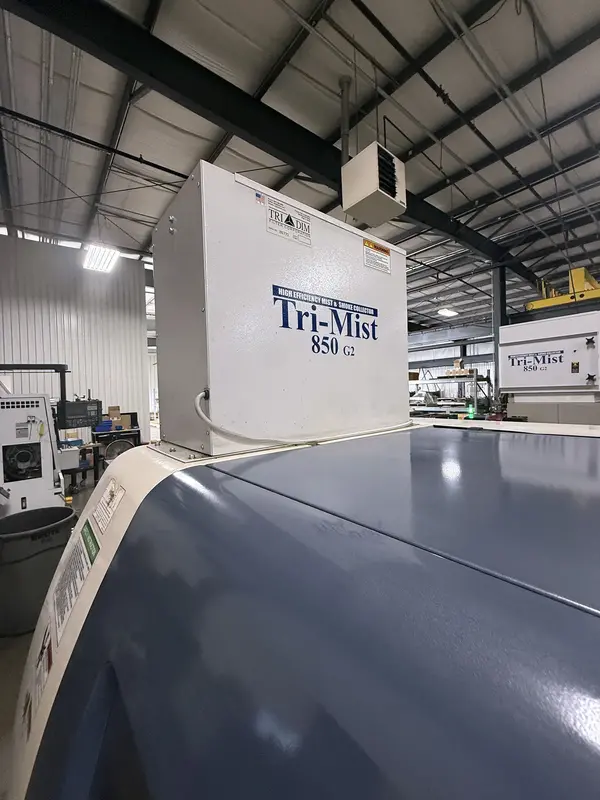

Cooling: 200 L tank, main/sub coolant pumps, chip conveyor, tri-mist cooling system

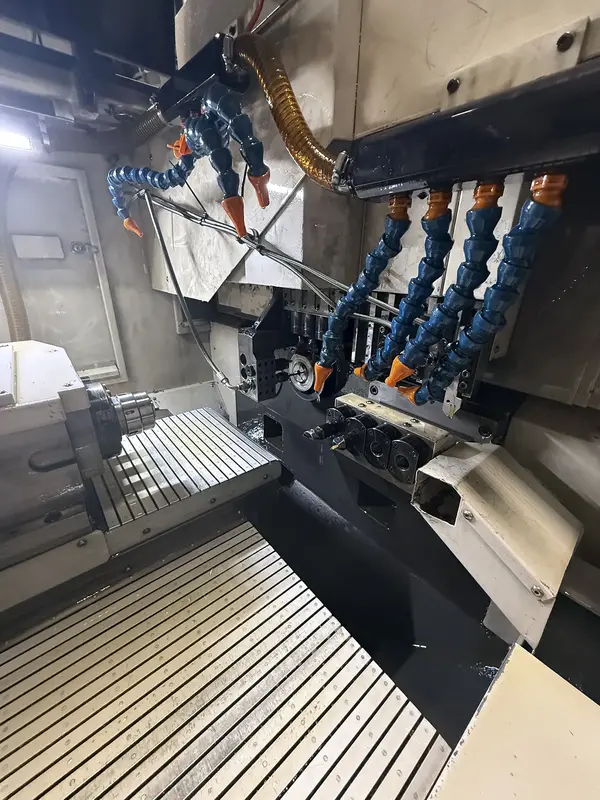

Tooling Capacity: Techspex+1
Main Spindle Block: 6 turning tools (ER16)
Y-Axis Block: 5 turning tools (ER16)
Cross Drilling: 8 mm (M6, ER16)
Cross Tapping: M6 (ER16)
Slotting: Width 1.5 mm x Depth 4 mm
Back End Drilling: 10 mm (M8, ER16)
Back End Tapping: M8 (ER16)
Total Tools: 26 (13 fixed, 9 live)
