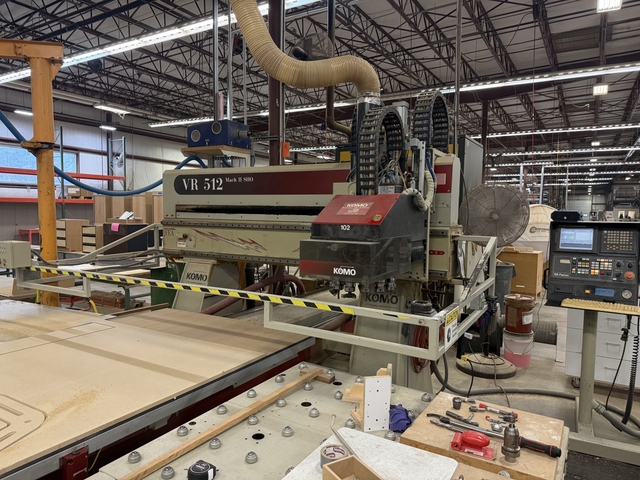

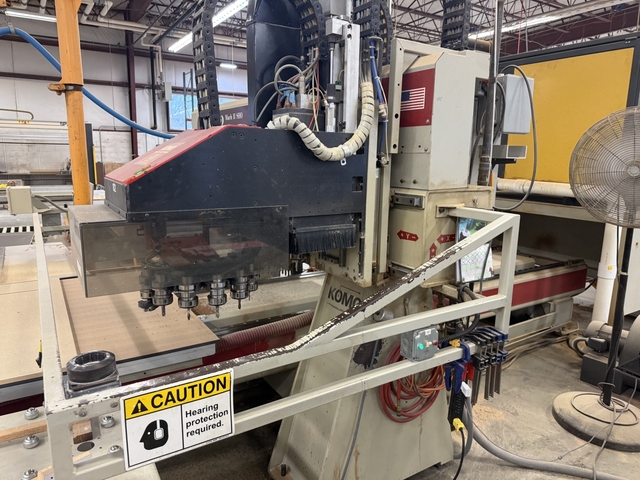

Description
- Standard Features
- 11” (279mm) Programmable Z Axis

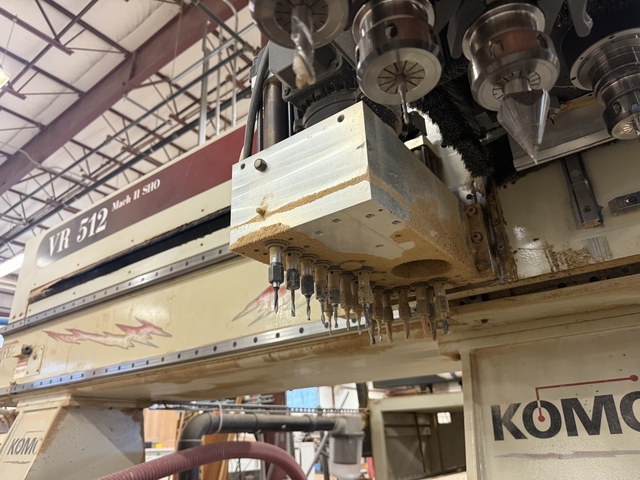

- 12 Pocket Automatic Toolchanger with Aggregate Capability
- Automatic Tool Length Measurement
- Universal Grid Fixture Table
- Komo-GE Fanuc Panel i Control with HVI Servo System and Integrated PC
- Closed-loop Counterbalance System (minimizes air consumption) Construction
- Heavy-duty contour linear rail system with matched bearing trucks
- Non-rotating ballscrew system for maximum acceleration and deceleration at high cutting feedrates
Technical Data - Following information taken from product literature
Tables - Number of Tables: 1
- Table Dimensions: 144” x 60” (3658mm x 1524mm)
- Material: cast precision machined aluminum vacuum plenum with four 1” part locating pins
Axis Travels - X Axis: 159” (4038mm)
- Y Axis: 84” (2133mm)
- Z Axis: 11” (279mm)
Feedrate/Traverse - X & Y Axes: up to 3150 IPM (80,000 mm/min.) with standard HSHP
- Z Axis: 600 IPM (15,240 mm/min)
Positioning - ± 0.0004” (0.01mm) unidirectional repeatability
- ± 0.0008” (0.02mm) unidirectional accuracy
Spindle - Quantity: 1
- Type: 20 HP peak, 16 HP continuous duty, 4-pole
- RPM: up to 24,000, fully programmable
- Taper: HSK 63F

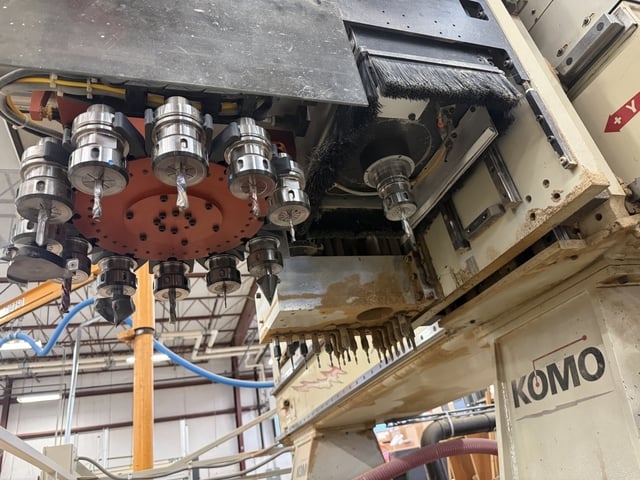

Aggregate-Capable Toolchanger - Maximum Number of Tools: 12
- Maximum Diameter: 6.5” (165mm)
- Maximum Weight: 12 lbs / 96 lbs total (5.4 kg / 43.5 kg)
Part Programming Solution - One seat of router-CIM CAM Companion software
Space (with guarding) - Height: 110” (2794mm)
- Width: 142.75” (3626mm)
- Depth: 314” (7976mm)
Vacuum System - Kaeser Compressor model CSV 150
- PSIa: 14.5 / 0.145 vac
- Power: 40 HP, 230/460V, 3 Ph
Get Your Price from RT Machine!
Buyers Who Viewed This Listing Also Viewed:
Komo #VR510-Mach-1, CNC Router, 5' x 10', 131" X, 78" Y, 6" Z, 18000 RPM, BT 30, 2000
Category: CNC Routers
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Komo
Model: VR510-MACH-1
Year: 2000
Make: Komo, Model: Mach 1 VR510, Year: 2000, Machine Location: Kansas, 60″ x 120″ Moving table, X Axis Travels: 131″, Y Axis Travels: 78″, Z Axis Travels: 6″, Spindle Taper: BT 30, Spindle Max Speed: 18,000 RPM, Spindle Motor: 12 HP, Number of Tool Stations: 8, Feed Rate/Traverse Rate X ...more
Komo #VR810-MACHIII, CNC router, 102" x 120" table, HSK-50 spindle, GE Fanuc Panel i, 2006
Category: CNC Routers
Seller: Silverlight CNC
Location: Barrington, IL
Mfr: Komo
Model: VR810-MACHIII
Year: 2006
2006 KOMO VR 810 MACHIII CNC Router, (2) 30,000 RPM Heads, GE Fanuc Panel i Controls, HSK-50 Spindles, and Chip Blaster Coolant Filtration System. Includes Koolant Koolers and dust collector. Table size: 102 x 120., 2006 KOMO VR 810 MACHIII, 2006 Komo VR 810 Mach III 1-Head (2-Capable) CNC Router, GE Fanuc Panel i ...more
Komo #VR510-Fusion, CNC Router, 60" x 120" table, 140" X, 84" Y, 15" Z, 16 HP, 24,000 RPM, 15-position tool changer, Fanuc Series CNC, 480 Volt, 2012
Category: CNC Routers
Seller: Ex-Factory
Location: Charlotte, NC
Mfr: Komo
Model: VR510-FUSION
Year: 2012
KOMO VR 510 FUSION CNC Router (ATC/Boring): -- :Heavy Duty "VR 510 FUSION" with 60" x 120" table, (4) parts location pins & vacuum table zones; precision machined 2" solid aluminum table, spoil board ready. -- Table travels on precision THK contour linear guideways, extra Heavy Duty fixed center supported gantry ...more
JUST ADDED!
Laguna #SmartShop-SUV-II, CNC router, 5' x 10' worktable, complete system w/ vacuum & dust collection, 2022
Category: CNC Routers
Seller: South Coast Lighting & Design
Location: San Clemente, CA
Mfr: Laguna
Model: SMARTSHOP-SUV-II
Year: 2022
JUST ADDED!

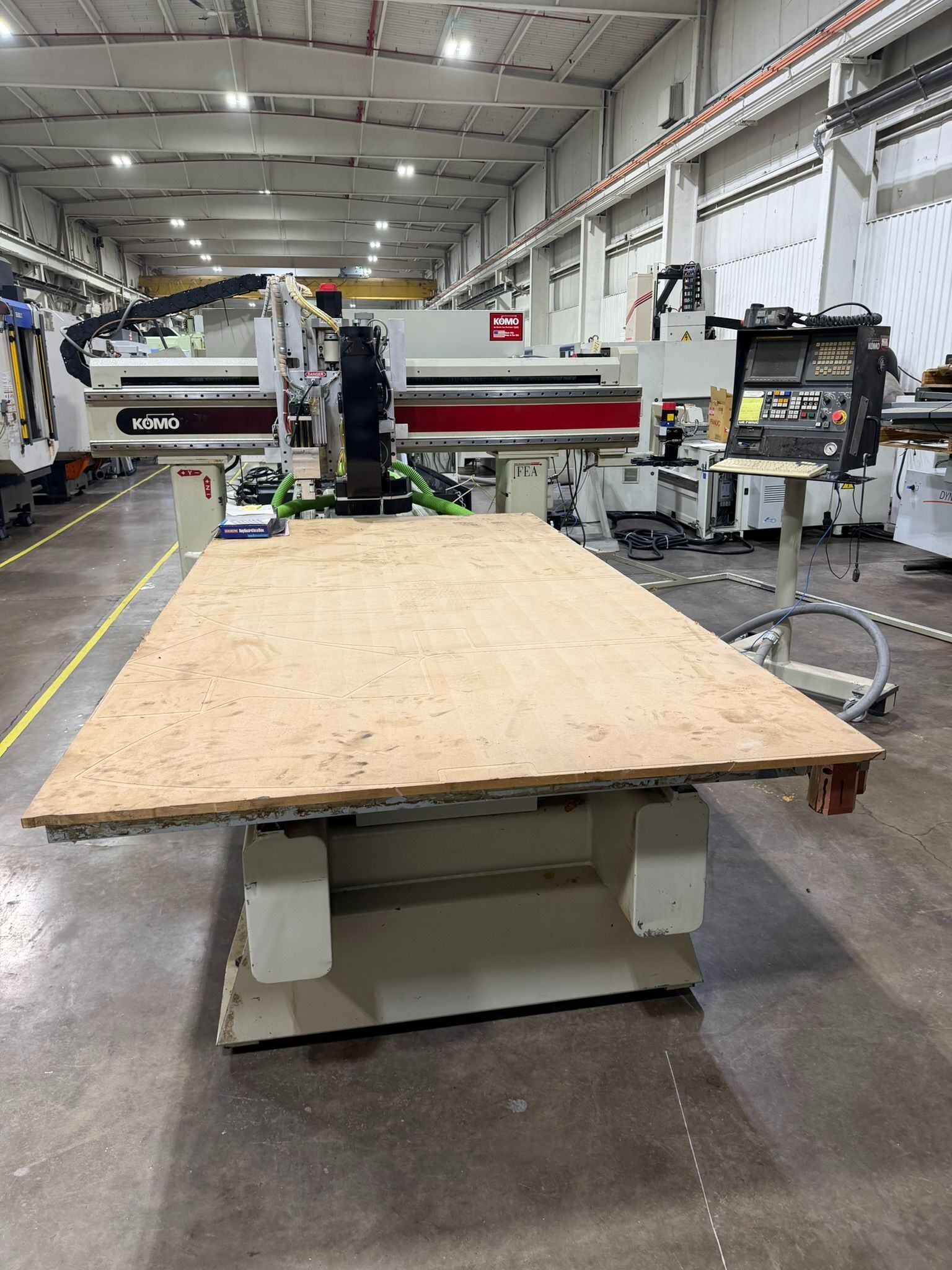

Komo #VR510, Mach One 3-Axis CNC Router, 134" X, 84" Y, 8" Z, 120" x 60" table, 10-station tool changer, 11.39 HP, 17,600 RPM, Fanuc control, 2003
