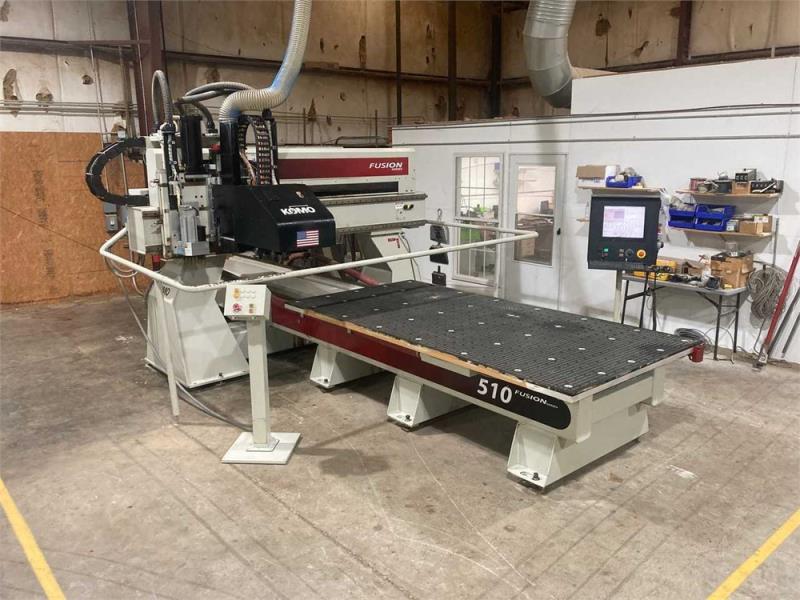

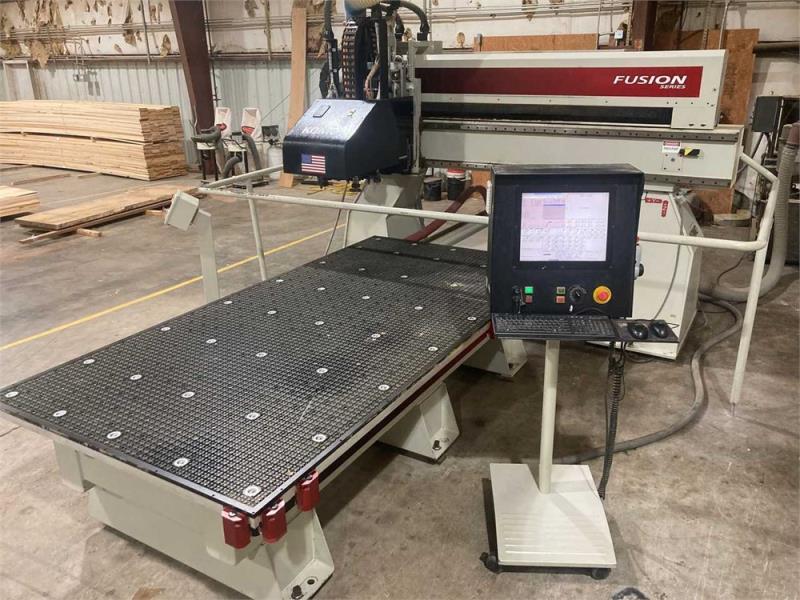

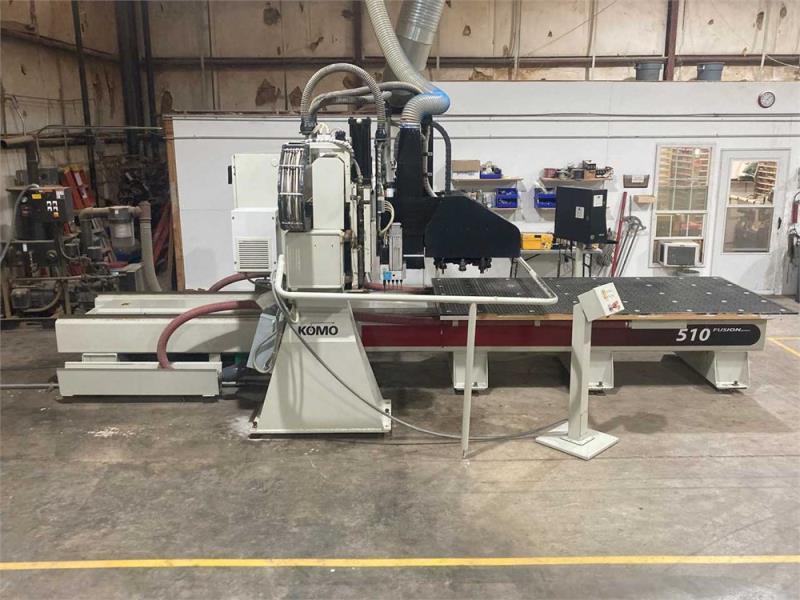

Komo #VR-510-Fusion, CNC Router, 60" x 120" table, 140" X, 84" Y, 15" Z, 16 HP, 24,000 RPM, 15-position tool changer, Fanuc Series CNC, 480 Volt, 2012

Estimated monthly payment valid upon approved credit.

Request Formal Quote

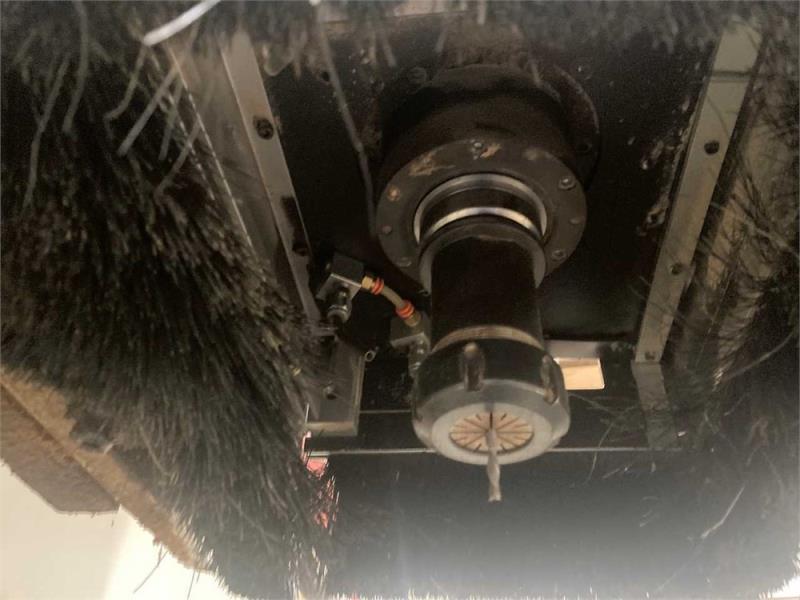

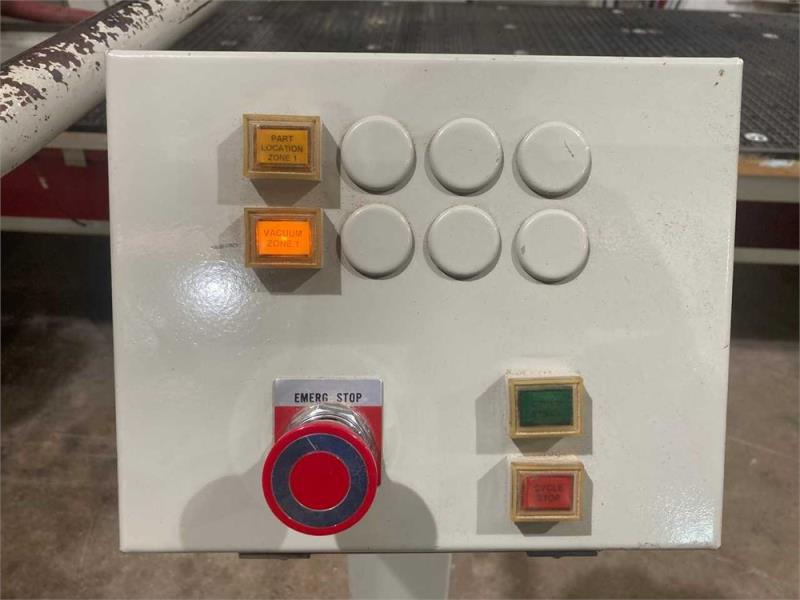

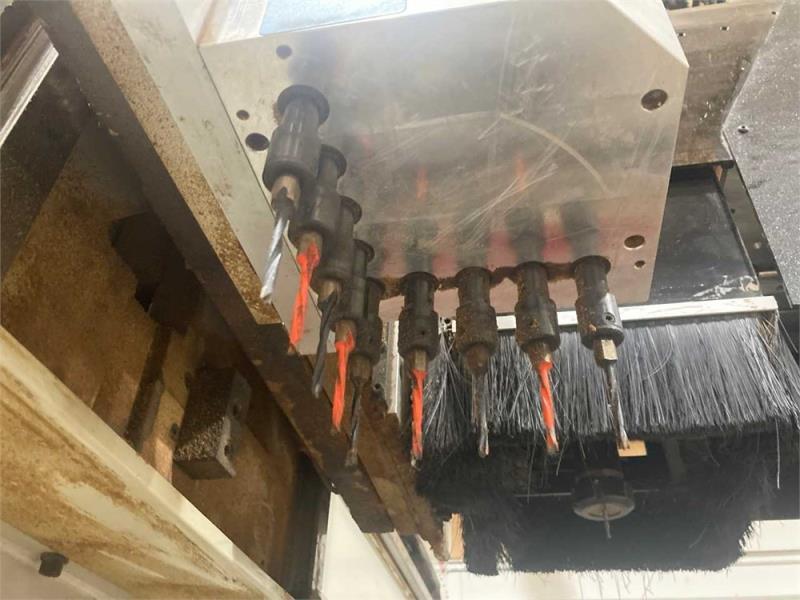

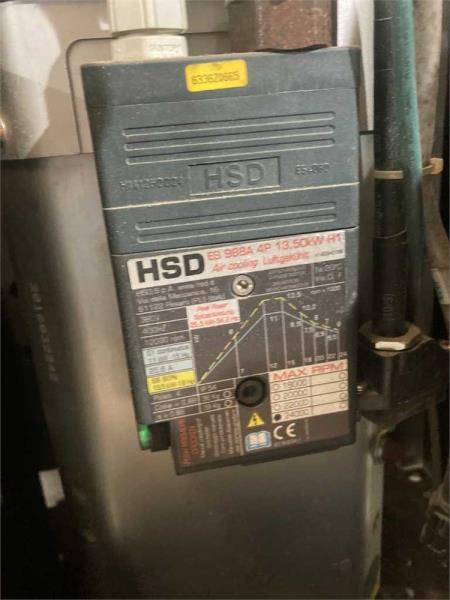

KOMO VR 510 FUSION CNC Router (ATC/Boring): -- Specifications:Heavy Duty "VR 510 FUSION" with 60" x 120" table, (4) parts location pins & vacuum table zones; precision machined 2" solid aluminum table, spoil board ready. -- Table travels on precision THK contour linear guideways, extra Heavy Duty fixed center supported gantry for full 10' of X-axis travel table coverage. -- Machining:(1) 16 HP High Frequency router with "HSK 63F" air cooled electro-spindle, variable speed 6,000 - 24,000 RPM; router has a 15-position dynamic ride along Tool Changer, ATC is front mounted, travels with router spindle and allows loading-and-changing of aggregates. -- Router spindle has air cooling through independent electric fans, ceramic bearings and internal blowing device for cleaning of the "HSK 63F" tool holder cones. - Router is mounted on slides for individual positioning by Servo motors. -- Boring:(1) 9-Spindle (5x4) Boring unit -- Travel:Closed loop Servo drive system with precision ground pre-loaded precision ball screws driven by FANUC brushless AC Servo motors at (65,536) pulses/revolution for positioning +/- 0.0004 on all axis at 0.001 - 3,150 IPM max. machining feed rate with 3,150 IPM rapid traverse on X- & Y-axis, 600 IPM on Z-axis. -- X-Axis travels 140", Y-axis 84", and Z-axis 15" with 19" clearance under the gantry, extended gantry bridge for full 60" x 120" table coverage by all work heads. -- All axes ride on extra-large THK precision contour linear guideways, all positioning bearings serviced by an automatic lubrication system. -- Operator Interface:FANUC Series computer control with: 10.4" High resolution CRT, 3-1/2" floppy and 1.6 GB hard drive; RS-232 ports, (MPG) handheld controller, full Qwerty keyboard & air conditioning system for temperature control. -- Remote pedestal at opposite side of machine for Cycle/Start/Stop. As well as Vacuum control, locating pins, and Pop-up roller balls on the table. -- Features:(3) Axes simultaneous control, background editing, self-diagnostic, canned cycles, absolute & incremental programming, cutter & tool length compensation, feed rate & spindle speed override, inch/metric operation, and linear/circular & helical interpolation. -- Includes Quincy vacuum pump.
