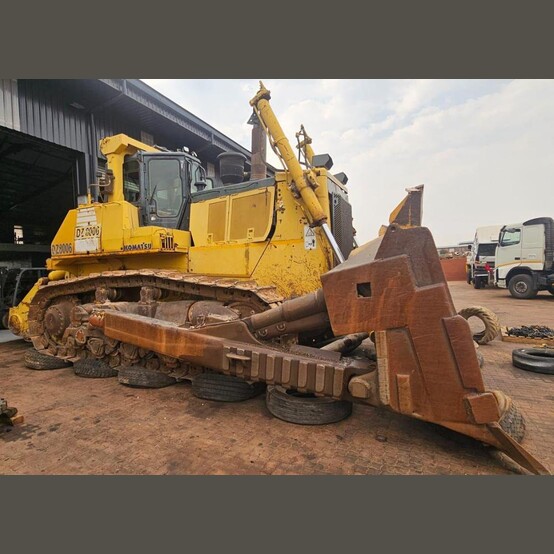

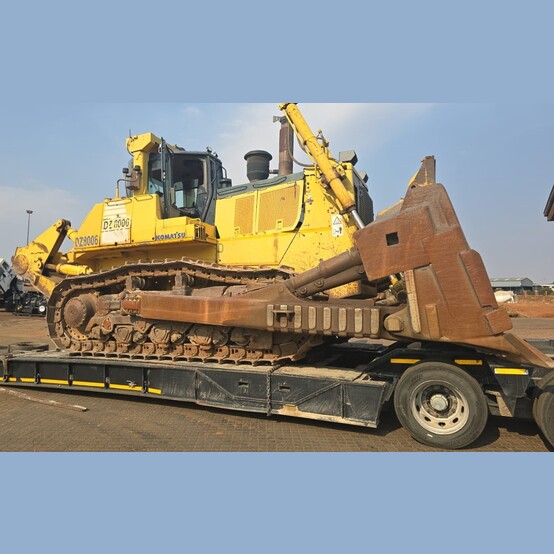

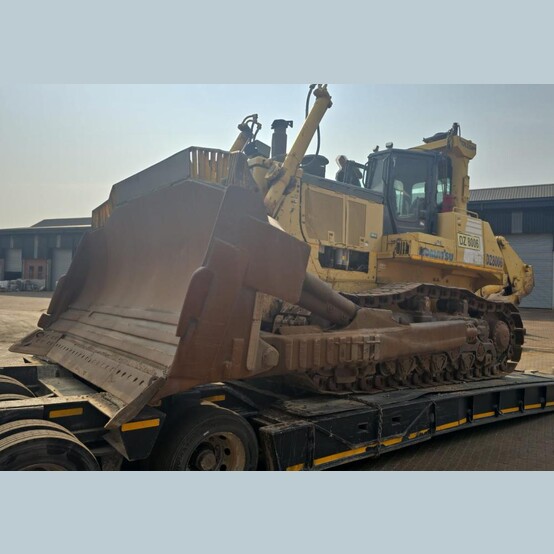

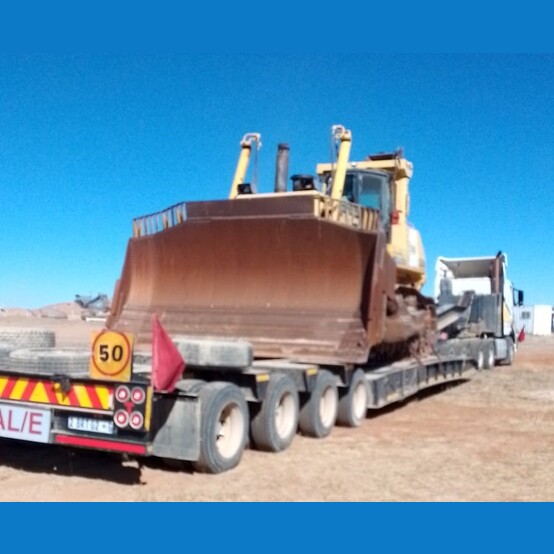

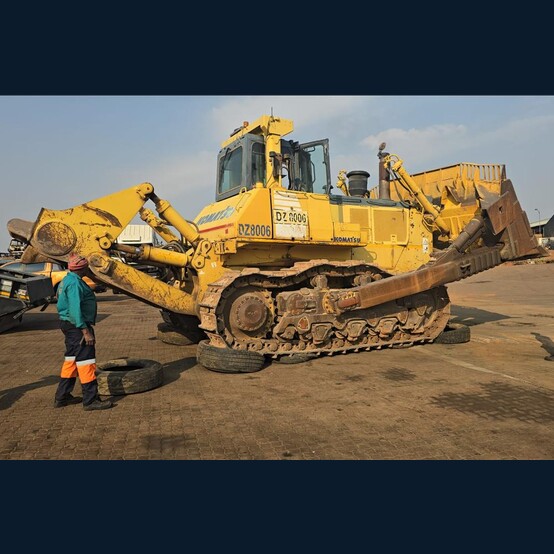

Komatsu D375-6, Crawler Dozer, 636 HP engine, 26,000 hours, 2011

2011 Komatsu D375-6 Dozer

• Make: Komatsu
• Model: D375-6
• Type: Dozer
• Year: 2011
• Hours: 26,000 Hours
• Condition: Used Condition - "Needs Work or a Refurbishment"
• Movement: Crawler Track

• General Model Specifications:
  • Engine:
    • Model: Komatsu SAA60170E-5*
    • Type: 4-Cycle, Water-Cooled, Direct Injection
    • Aspiration: Turbocharged, Air- to-Air Aftercooled, Cooled EGR
    • Number of Cylinders: 6-Cylinder
    • Bore x Stroke: 170mm x 170mm (6.69" x 6.69")
    • Piston Displacement: 23.15 liter (1,413 in³)
    • Governor: All-Speed and Mid-Range, Electronic
    • Horsepower:
      • SAE J1995 Gross: 636 HP (474 kW)
      • ISO 9249 / SAE J1349 Net: 610 HP (455 kW)
  • Transmission: TORQFLOW Transmission
    • Consists of a Water-Cooled, 3-Element, 1-Stage, 1-Phase Torque Converter with Lockup Clutch and a Planetary Gear, Multiple-Disc Clutch Transmission
    • Hydraulically Actuated and Force-Lubricated for Optimum Heat Dissipation
    • Gearshift Lock Lever and Neutral Safety Switch Help Prevent Accidental Starts
  • Final Drives:
    • Double Reduction Final Drive of Spur and Planetary Gear Sets to Increase Tractive Effort and Reduce Gear Tooth Stresses
    • Segmented Sprocket Teeth are Bolt-On for Easy Replacement
  • Steering System:
    • PCCS, Joystick Controlled, Wet Multiple-Disc Steering Clutches are Spring Loaded and Hydraulically Released
    • Wet Multiple-Disc, Pedal/Lever Controlled Steering Brakes are Spring-Actuated, Hydraulically Released
    • Steering Clutches and Brakes are Interconnected for Easy Responsive Steering
    • Minimum Turning Radius: 13ft 9in (4.2m)

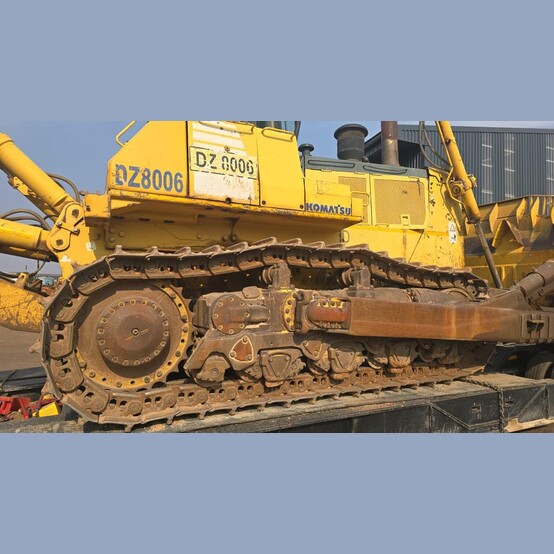

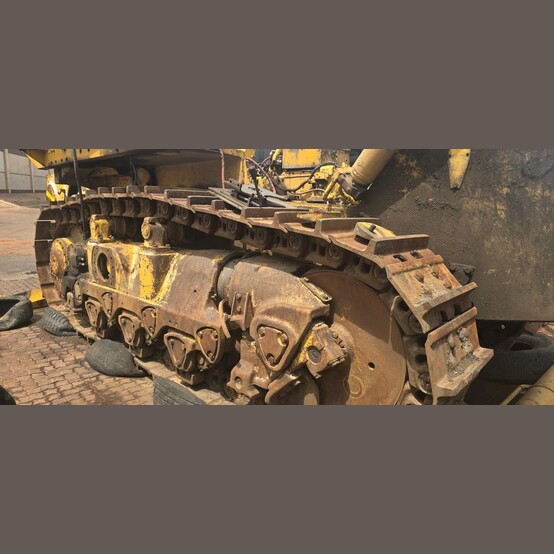

  • Undercarriage:
    • Suspension: Oscillating Equalizer Bar and Pivot Shaft
    • Track Roller Frame: Cylindrical, High-Tensile-Strength Steel Construction
    • Roller and Idlers: Lubricated Track Rollers
    • K-Bogie Undercarriage
    • Extreme Service Track Shoes
    • Number of Shoes (Each Side): 41
    • Grouser Height - Single Grouser: 3.7in (93mm)
    • Shoe Width - Standard: 24in (610mm)
    • Ground Contact Area: 7,527in² (48,560cm²)
    • Ground Pressure - Tractor: 15.6 PSI (108 kPa, 1.10kg/cm²)
    • Number of Track Rollers: 8
    • Number of Carrier Rollers: 2
  • Operating Weight:
    • Tractor Weight: 117,290 Lbs. (53,200 kg)
    • Operating Weight: 157,940 Lbs. (71,640 kg)
      • Ground Pressure: 21.0 PSI (145 kPa, 1.48kg/cm²)

• Location: South Africa
