For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Jerry/ Ryan
847-58...> Show Seller's Phone Number 847-580-6800 Let the seller know you found their listing on Surplus Record!

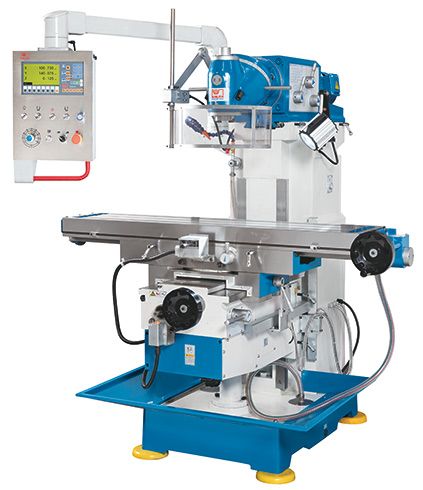

Description
| Table set up area | 54x12 in |
| Table load capacity (max.) | 660 lbs |
| Number of T-slots | 3 positions |
| T-slot (width x spacing) | 0.55x3.15 in |
| Milling table swivel range | 45 deg |
| Travel X-axis | 39.4 in |
| Travel Y-axis | 14 in |
| Travel Z-axis | 16 in |
| Speed range | (11) 45 - 1,660 rpm |
| Spindle mount | DIN 2080 / ISO 40 |
| Throat | 6 - 22 in |
| Vertical spindle-to-table surface distance | 3.94 - 19.69 in |
| Milling head swivel range | 360 deg |
| Rapid feed X-/ Y-axis | 53 in/min |
| Rapid Feed Z-axis | 39.37 in/min |
| Feed speed X-axis | (9) 1 - 33 in/min |
| Feed speed Y-axis | (9) 1 - 33 in/min |
| Feed speed Z-axis | 1 - 25 in/min |

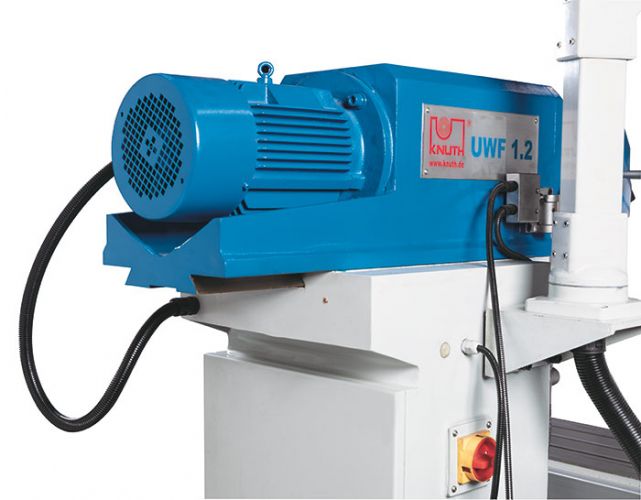

| Motor rating main drive | 4 Hp |
| Overall dimensions (length x width x height) | 73x70x67 in |
| Weight | 3,850 lbs |
| Part No. | 362694 |
- Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
- Large rectangular guideways ensure precision and quiet operation within permissible high loads
- Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining
- By combining both swivel levels, almost any angle can be set
- Outer arbor support for horizontal milling, mounts to cutter head

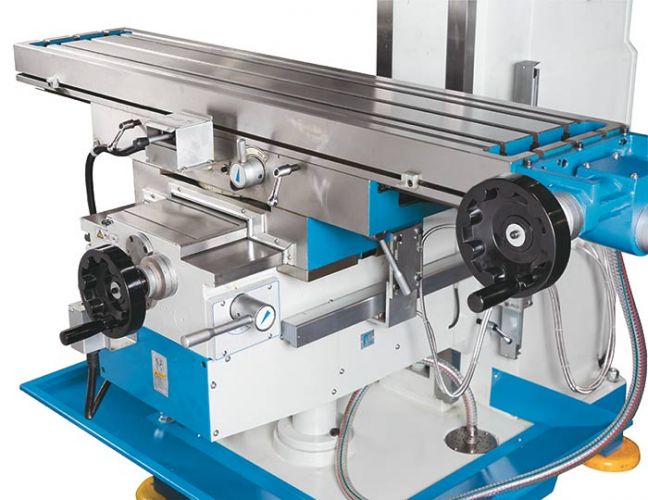

- The milling table features a large setup area and can be rotated in linear direction
- Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
- Quiet, precision-made headstock gears with hardened and ground gears
- Powerful servo-motor for infinite variation of feeds in all 3 axes
- Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
- Control panel swivels for comfortable operation
- Coolant system and chip tray are included
- chip tray
- coolant system
- central lubrication
- 3-axis position indicator
- operator manual
- M16 draw bar
- operating tools
- outer arbor support for horizontal milling
Get Your Price from Blumberg Machinery Co!
