For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description
| Table set up area | 44x10 in |
| Table load capacity (max.) | 550 lbs |
| Number of T-slots | 3 positions |
| T-slot (width x spacing) | 0.55x2.48 in |
| X axis travel | 24 in |
| Y axis travel | 9 in |
| Z axis travel | 15 in |
| Speed range | 45 - 1,660 rpm |
| Spindle mount | DIN 2080 / ISO 40 |
| Throat | 2 - 20 in |
| Vertical spindle-to-table surface distance | 3.94 - 18.9 in |
| Milling head swivel range | 360 deg |
| Rapid Feed Z-axis | 16.61 in/min |
| Feed speed X-axis | (9) 1 - 16 in/min |
| Feed speed Y-axis | (9) 1 - 16 in/min |
| Motor rating main drive | 3 Hp |
| Overall dimensions (length x width x height) | 66x60x69 in |
| Weight | 3,256 lbs |
| Part No. | 362693 |
- Heavy machine frame with wide, adjustable dovetail guides in all axes

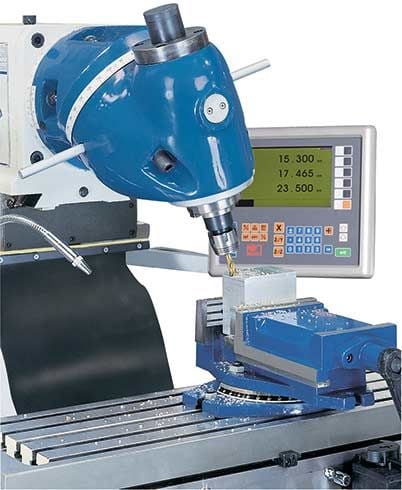

- Rigid universal cutter head, can be moved to virtually any spatial angle on two levels

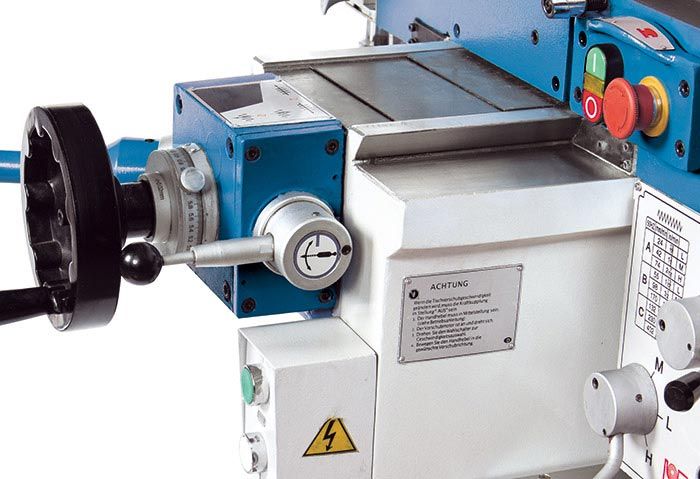

- Automatic table feed on X and Y axes, including rapid feed
- Motorized height adjustment in Z direction
- 3-axis position indicator
- outer arbor support for horizontal milling
- milling chuck with collets 0.61",0.2",0.24",0.31",0.39",0.47",0.55",0.63"
- long cutter arbor 1.25"
- coolant system
- LED work lamp
- operator manual
Get Your Price from Blumberg Machinery Co!
