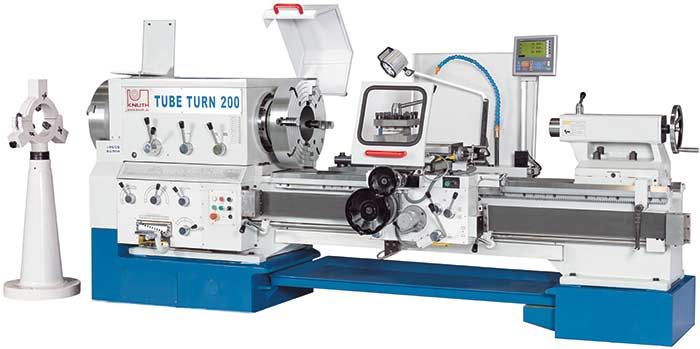

Knuth #Tubeturn, Large Bore Universal Lathe

• Heavy machine bed made of premium cast-iron with hardened and ground guideways

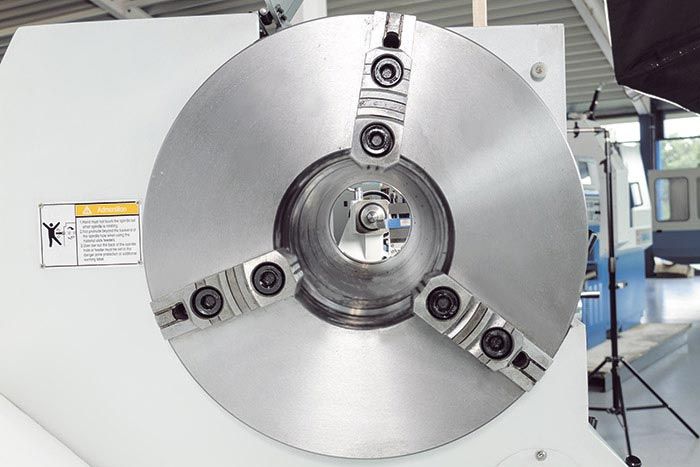

• Massive headstock with high-precision spindle running in tapered roller bearings, and 2 lathe chuck mounts on both sides
• Gears are hardened and ground
• High torque at the working spindle ensures high chip removal rates when machining parts with large diameters
• Powerful main drive motor with 10 hp power
• Central, practical controls for feeds and thread leads
• Wide spectrum of inch and metric threads
• Heavy-duty 4-station tool holder
• Coolant system is included
• Taper turning unit with 20 in turning length

3-axis position indicator

• More accuracy
• Lower error rate
• Increased productivity
• Resulting in valuable time savings
• For increased productivity
• Easy to read display
• Operator-specific features
• Convenient keyboard layout
• Resolution: 0.0004 / 0.0002"
• Default coordinates
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Calculator function
• Storage for 10 tools
• Radius / diameter toggle
• Mm/inch conversion
• Easy expansion and maintenance-free operation
• Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
