For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description
| Center width | 40 in |
| Turning diameter over bed | 16 in |
| Turning diameter over support | 9 in |
| Turning diameter without gap bridge | 20 in |
| Bed width | 12 in |
| Travel X-axis | 9.4 in |
| Travel Z1-axis | 5 in |
| Spindle speed | (12) 30 - 2,000 rpm |
| Spindle bore | 2 in |
| Spindle mount | D1/6 |
| Spindle taper | MT 6 |
| Feed X-axis | 0.00039 - 0.07874 in/R |
| Feed Z-axis | 0.00039 - 0.07874 in/R |
| Tapping, metric | 0.02 - 14 mm |
| Tapping, diametric | 6 - 100 |
| Tapping, module | 0 - 0.2 in |
| Tapping, withworth | 2 - 100 TPI |
| Leadscrew | 1.26x0.24 in |
| Tailstock taper | MT 4 |
| Tailstock quill diameter | 2 in |
| Tailstock quill stroke | 5 in |
| Motor rating main drive | 5 Hp |
| Motor rating coolant pump | 0.1 Hp |
| Overall dimensions (length x width x height) | 87x39x48 in |
| Weight | 3,850 lbs |
| Part No. | 470546 |

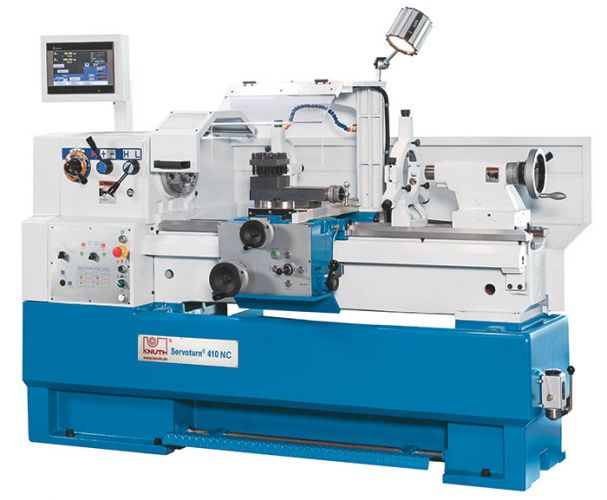

- A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
- Wide, hardened and ground guideways ensure superior turning results and long life
- Removable bridge allows machining of workpieces with larger diameters
- The massive headstock is equipped with a large main spindle that runs on two high-capacity tapered roller bearings and one grooved ball bearing
- The main drive features a wide speed range with 12 gear steps that easily can be selected via shifting
- Feeds, thread types, and contours are designed simply and intuitively with electronic selection via a headstock-mounted rotary switch
- In addition to standard machining tasks with extensive thread options, this machine can be used for turning tapers and radii

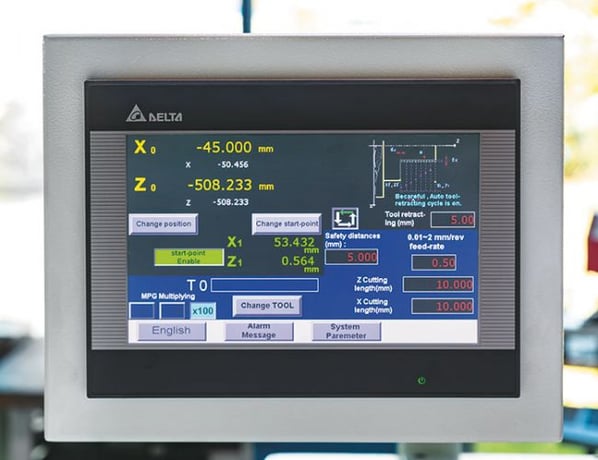

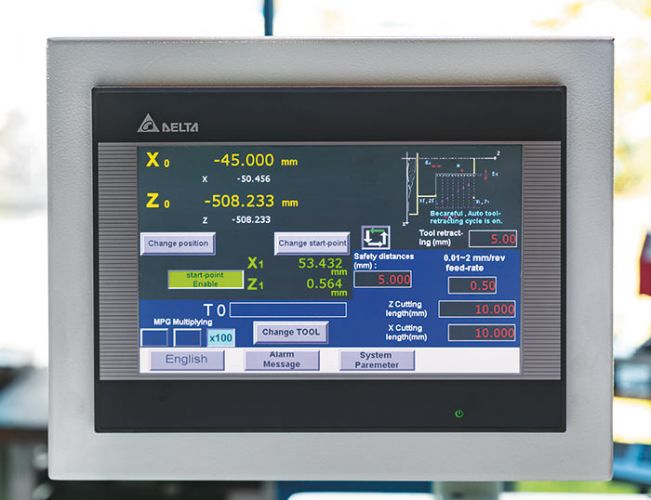

- Values for travel distances, feed speeds, and thread leads are input via touchscreen at the control
- Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
- Ball screws in Z and X axes ensure considerably less errors due to loseness (backlash), resulting in significantly higher precision
- A manual central lubrication system simplifies maintenance and supplies all guideways with lubricant
- delta servoconventional CNC control
- fixed splash guard (wall)
- chuck guard
- protective shield for support
- steady rest
- follow rest
- coolant system
- leadscrew cover
- work lamp
- manual central lubrication
- 4-station tool holder
- fastening bolts
- operator instructions
