For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description

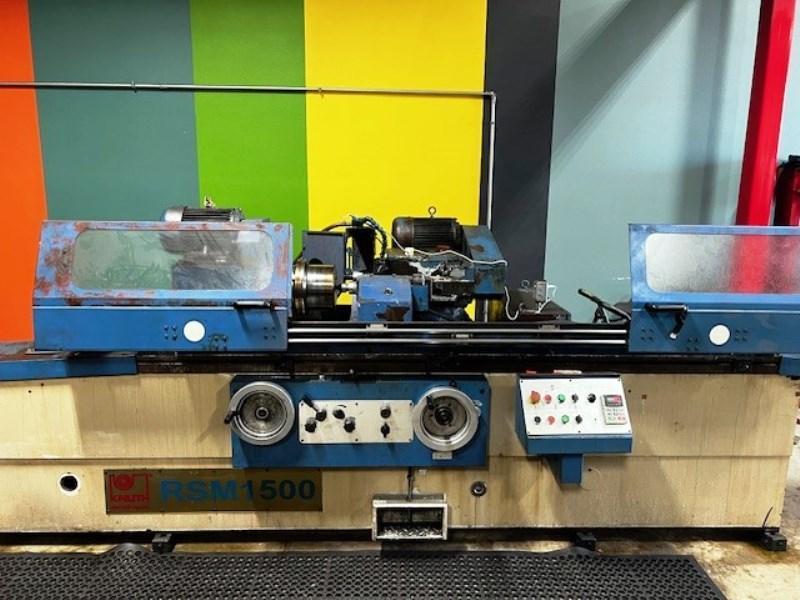

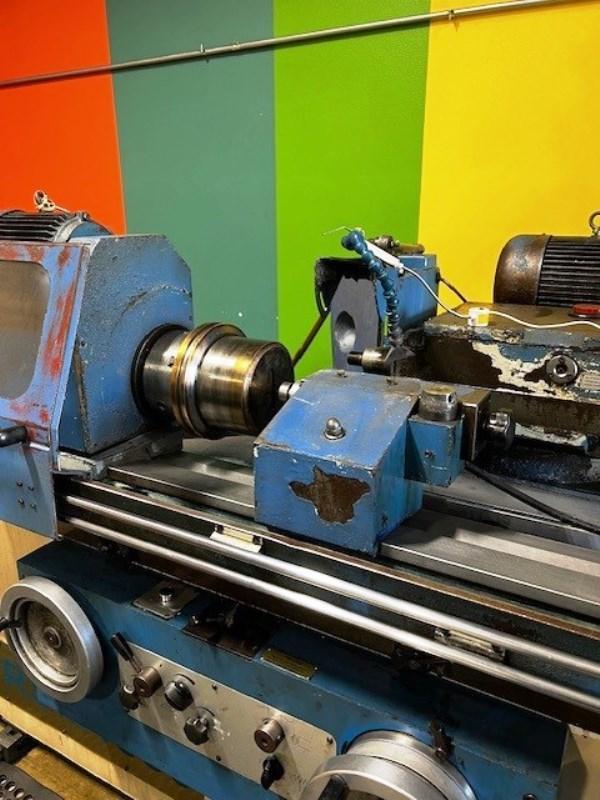

KNUTH 4HP RSM 1500 CONVENTIONAL CYLINDRICAL GRINDING MACHINE
New 2013
EQUIPPED WITH
Magnetic & Cloth Cooant Filtration
Wheel Dresser on Both Tailstock Mounting and Table Mounting
SPECIFICATIONS:
Grinding Diameter 0.3" - 12.6"
Grinding Length 59"
Center Height 7"
Max. Weight Capacity 330 Lbs.
Table Swivel Range 3° / +7°
Grinding Head Travel 10"
Table Feed (Inf. Variable) 0.33 fpm - 13.08 FPM
Feed per Hand-Wheel Rotation X-Axis 0.0394”
Feed per Scale Division X-Axis 0.000098”
Grinding Wheel Dimensions 15.75” x 1.97” x 7.99”
Headstock Working Spindle Taper 4MT
Tailstock Taper 4 MT
Tailstock Quill Stroke 1"
Working Headstock Swivel Range 0 Deg - 45 Deg
Grinding Spindle Speed 1670 RPM
Approximate Dimensions 182” x 72” x 60”
Approximate Weight 9,460 Lbs.
New 2013
EQUIPPED WITH
Magnetic & Cloth Cooant Filtration
Wheel Dresser on Both Tailstock Mounting and Table Mounting
SPECIFICATIONS:
Grinding Diameter 0.3" - 12.6"
Grinding Length 59"
Center Height 7"
Max. Weight Capacity 330 Lbs.
Table Swivel Range 3° / +7°
Grinding Head Travel 10"
Table Feed (Inf. Variable) 0.33 fpm - 13.08 FPM
Feed per Hand-Wheel Rotation X-Axis 0.0394”
Feed per Scale Division X-Axis 0.000098”
Grinding Wheel Dimensions 15.75” x 1.97” x 7.99”
Headstock Working Spindle Taper 4MT
Tailstock Taper 4 MT
Tailstock Quill Stroke 1"
Working Headstock Swivel Range 0 Deg - 45 Deg
Grinding Spindle Speed 1670 RPM
Approximate Dimensions 182” x 72” x 60”
Approximate Weight 9,460 Lbs.
Get Your Price from Blumberg Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

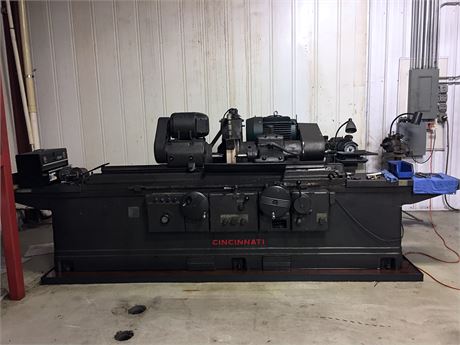

Cincinnati, outside dimension cylindrical grinder
