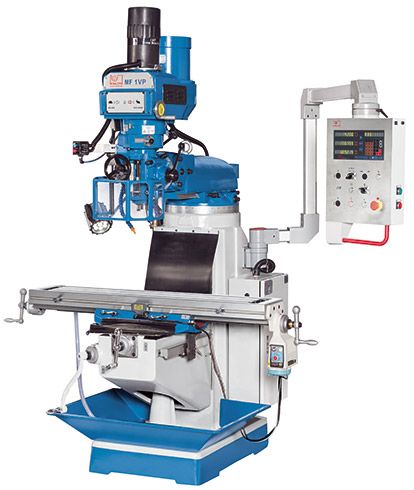

Knuth #MF-1-VP, Multi-purpose Milling Machine

• The most widely used milling machine type in the world - with standard pneumatic tool clamping
• Infinitely variable spindle speed via hand wheel adjustment
• Larger table with larger travel on X-axis
• TV 1000 automatic table advance on X-axis is included, retrofitting of Y-axis available
• Head swivels on 3 axes: swivel r + l 90; tilt forward + reverse 45; rotation on the column 45
• Dovetail guides, hardened, adjustable
• 3 automatic drill feeds
• Manual coarse feed for quill, with change-over for manual fine feed
• Quill with automatic micrometer depth stop
• Spindle mount ISO 30
• Reversing switch for forward reverse rotation

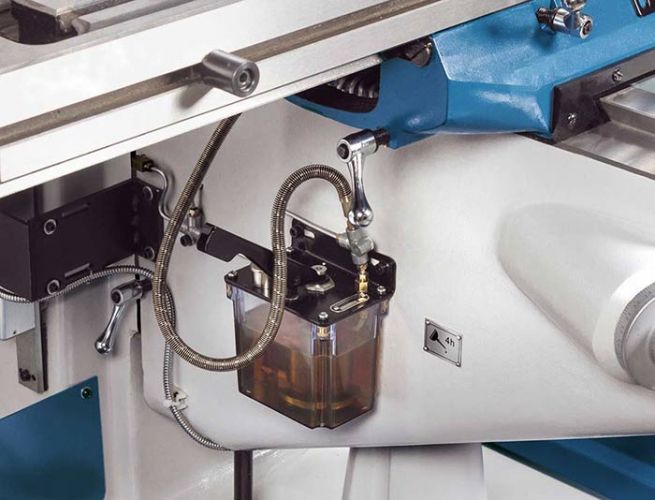

• Central lubrication for spindle, nut and guides
• Manual spindle brakes
• Pneumatic tool clamping
• 3-axis position indicator, coolant system, and LED work lamp (included in standard equipment)

3-axis position indicator

• More accuracy
• Lower error rate
• Increased productivity
• Resulting in valuable time savings
• For increased productivity
• Easy to read display
• Operator-specific features
• Convenient keyboard layout
• Resolution: 0.0004 / 0.0002"
• Default coordinates
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Calculator function
• Storage for 10 tools
• Radius / diameter toggle
• Mm/inch conversion
• Easy expansion and maintenance-free operation

• 3-axis position indicator
• automatic table feed in X direction (TV 1000)
• pneumatic tool clamping
• coolant system
• central lubrication
• vertical guide way cover
• LED work lamp
• operating tools
• operator manual
