For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Jerry/ Ryan
847-58...> Show Seller's Phone Number 847-580-6800 Let the seller know you found their listing on Surplus Record!
Description
| Mark Super S | Mark Super SV | |
|---|---|---|
| Working Area | ||
| Table dimensions | 31x9 in | |
| Drilling capacity in steel | 1 in | |
| Guide width | 7 in | 5 in |
| Shaft milling | 1.26 in | 0.98 in |
| Head elevation | 14 in | 15 in |
| Number of table T-slots | 3 positions | |
| T-slot table (width x spacing) | 0.55x3.15 in | |
| Travels | ||
| Travel X-axis manual / autom. | 19 / 22 in | |
| Travel Y-axis | 7 in | |
| Vertical Milling Head | ||
| Spindle mount | MT 4 | |
| Quill stroke | 5 in | |
| Quill diameter | 3 in | |
| Spindle nose-to-table distance | 18 in | |
| Throat | 10 in | |
| Head swivel range | 45 | |
| Speed | (12) 75-3200 rpm | (2) 75-438 / 438-2500 rpm |
| Drive Capacity | ||
| Main motor rating | 2 / 1.5 Hp | 2 Hp |
| Measures and Weights | ||
| Overall dimensions (length x width x height) | 50x38x56 in | 49x37x83 in |
| Weight | 836 lbs | 1,056 lbs |

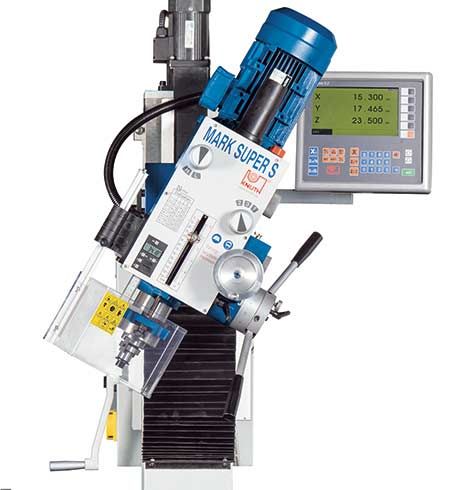

Mark Super S SV
- Motorized cutter head movement and hand-wheel for exact positioning of head
- Hand-wheel for quill micro-feed
- Digital depth indicator for quill travel
- Tapping unit with adjustable rotation reversal for thread cutting
- Hardened gear racks and shafts for quiet operation and long life
- Rigid base with storage room is included
- Infinitely variable feed on X-axis is included
Mark Super SV - more power and variable speed control for a wider range of applications
- Two gear steps and premium frequency control technology ensure high torque across the entire speed range for powerful machining
- The selected spindle speed is displayed directly on the control panel
- 3-axis position indicator
- automatic quill feed
- base
- table feed TV 1000
- drill chuck 1/2"
- tool-holder bits
- operator manual
Get Your Price from Blumberg Machinery Co!
