Description
| Drilling capacity | 0.98 in |
| Table set up area | 16x22 in |
| T-slots, width | 0.6 in |
| Number of T-slots | 3 positions |
| Quill stroke | 8 in |
| Table stroke | 12 in |
| Feed Z-axis | (9) 0.0022 - 0.0709 in/R |
| Feed force, axial (max.) | 9 |
| Spindle nose-to-table distance (max.) | 29 in |
| Throat | 11 in |
| Vertical head travel | 8 in |
| Spindle speed | (9) 50 - 2,000 rpm |
| Spindle Torque (max.) | 1,416 ft.lb. |
| Spindle taper | MT 3 |
| Motor rating main drive | 3 Hp |
| Motor rating coolant pump | 0.1 Hp |
| Flow rate | 6.6 gal/min |
| Overall dimensions (length x width x height) | 38x34x93 in |
| Weight | 2,090 lbs |
| Part No. | 101691 |
- Box-column design provides high load capacity, and is torsion-proof and rigid
- Table and drill head can be moved individually for an optimum machining height
- 9-step feed and speed gears, with oil-bath lubrication
- High torque across the entire speed range
- Thread-cutting unit automatically reverses upon reaching the preset depth
- coolant system
- tapping unit
- work lamp
- operating tools
- operator instructions
Get Your Price from Blumberg Machinery Co!
Buyers Who Viewed This Listing Also Viewed …

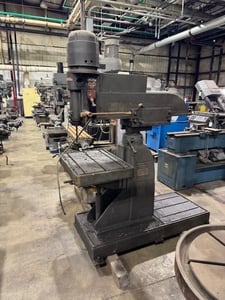

Johansson Drill Press, 2/1 HP, 230 V.,
Category: Single Spindle Drill Presses
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Johansson
Reuland Motor, S/N: 725863A-1, Model #: 10932X2682, Ph: 3, Hz: 60, HP: 2/1, RPM: 1800/900, Volts: 230, Amps: 6.0/5.7.

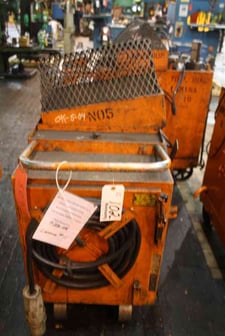

Lamina #A10048SH, magnetic drill with portable hydraulic unit, 5-1/4 HP, pendant Control, hand feed, portable on wheels, #1MT taper, 5-1/4 HP, 0-625 RPM, #54248
Category: Single Spindle Drill Presses
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lamina
Model: A10048SH
SERIAL # HYDRAULIC TANK. P511R, DRILLING HEAD SERIAL. CH12354, DRILLING HEAD MODEL #. A10048SH, DRILLING CAPACITY. 13/16" STEEL, TAPPING CAPACITY. 3/4"- 10, SPINDLE SPEEDS (VARIABLE). 0 TO 625 RPM, STROKE OF HEAD ON COLUMN. 3-1/8", TAPER IN SPINDLE. #1MT, TORQUE. 525 IN.LBS, MAGNETIC BASE. YES, MAGNETIC ...more
Jet Equipment & Tools, drill press with vise, direct drive, tilting table, 2 speed forward/reverse
Category: Single Spindle Drill Presses
Seller: Global Equipment International
Location: Chalfont, PA
Mfr: Jet
JET EQUIPMENT & TOOLS DRILL PRESS WITH VISE, DIRECT DRIVE DRILL PRESS, OVERSIZED BASE WITH T-SLOTS FOR SECURING WORKPIECES, TILTING TABLE (45 DEGREES LEFT AND RIGHT), 400LB CAPACITY WORKTABLE, TWO SPEED FORWARD AND REVERSE, MANUAL QUIL LOCK FOR SECURE DRILLING, Manufacturer JET Condition Used Stock Number ...more

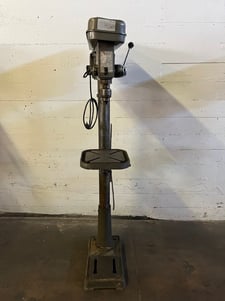

Master Machinery #MC-14FDP, 12-Speed Industrial Drill Press, 1990
Category: Single Spindle Drill Presses
Seller: Turners Machinery Inc
Location: Santa Paula, CA
Mfr: Master Machinery
Model: MC-14FDP
Year: 1990
MASTER MACHINERY MC-14FDP 12-SPEED INDUSTRIAL DRILL PRESS, MAKE: MASTER MACHINERY, MDL: MC-14FDP, S/N: 3446, YR: 1990, CAPACITY: 5/8", SPINDLE: NT2, 12-SPEED, PRICE: $350.00, *** SHOWN ARE TO BE, USED AS A GUIDELINE ONLY. IT IS, THE CUSTOMERS RESPONSIBILITY TO, CHECK FOR SIZE AND S BEFORE, PURCHASING. WE WILL NOT BE ...more

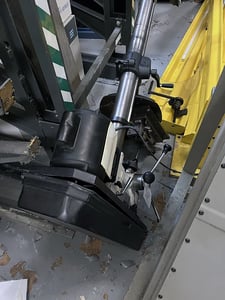

Jet #J-2500, drill press, 16 speed, MT-2, 3-3/8" spindle travel
