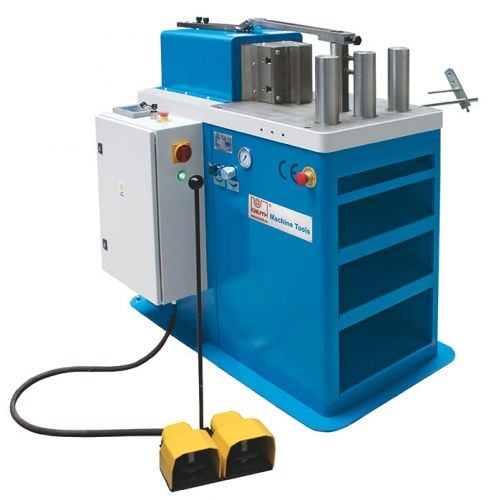

Knuth #KHP-28-NC, Hydraulic Straightening And Die Pressing Machine

Manufacturer: Knuth
Model: KHP-28-NC
Stock # 16246

For Sale by Blumberg Machinery Co

Platinum Level Dealer
Surplus Record Dealer Since 1971
  Jerry/ Ryan
  847-58...> Show Seller's Phone Number 847-580-6800 Let the seller know you found their listing on Surplus Record!

Description

Working Area
Pressure force61,600 lbs
hydraulic pressure max.2,900 psi
Y-axis stroke7 in
piston diam.5 in
Bending speed0.1 - 0.4 in/s
Return speed0.79 in/s
Table size12x22 in
fastening holes in working table4 positions
diameter fastening holes3 in
Drive Capacity
Motor rating main drive5.4 Hp
Measures and Weights
Overall dimensions (length x width x height)46x30x44 in
Weight1,430 lbs
Part No.131547

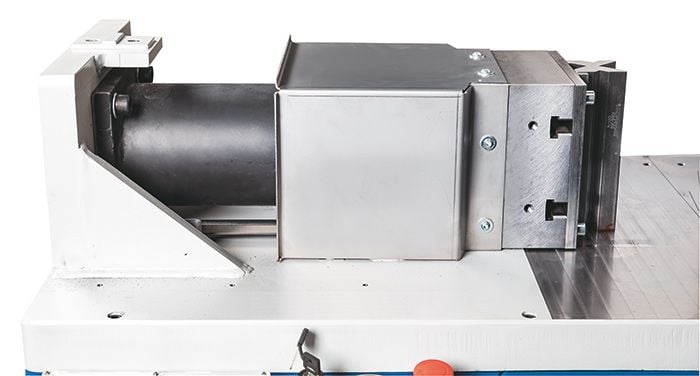

  • The horizontal bending and straightening press features a stamp and a 4-channel die for machining up to 8 inch wide material
  • The work table can be set up for a wide range of applications, depending on the type of tools placed on the table and installed in the tool mounts
  • The work table features an angle scale that simplifies alignment of the bending process
  • The hydraulic system can be regulated via pressure and flow valves, allowing the user to control the pressing force and work speed according to requirements
  • The integrated pressure gauge provides an exact indication of the current bending force

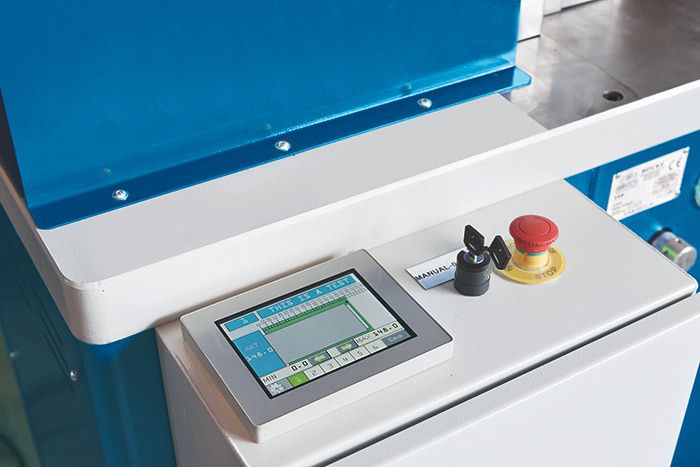

  • Practically arranged control panel, and easy to read LED display showing the work cylinder positions
  • The operator can choose between manual or automatic control, and up to 4 different programs can be stored
  • The hydraulic press is controlled via a safety foot switch

  • stamps and dies
  • material stop
  • operator manual
