For Sale by Clark Machinery Sales LLC
Surplus Record Dealer Since 2005
Location: Hunt Valley, MD
Contact Troy Clark
Phone Number: 410...> Show Phone Number 410-252-5494
Let the seller know you found their listing on Surplus Record!
Description

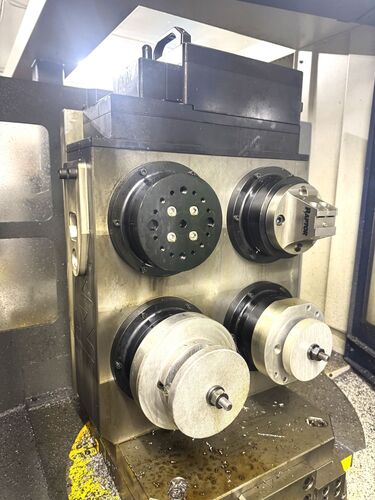

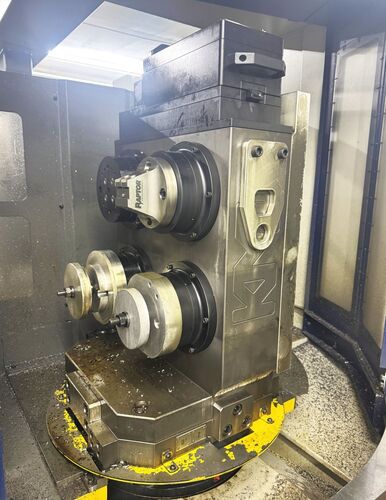

KME CNC TS-400MM 4-0 OFFSET TALL
RESOLUTION: 0.0018
DISTANCE BETWEEN UPPER AND LOWER PLATTERS: 10.236"
MAX ROTATION/STEP: 999.999
MAX HOLDING TORQUE: 300 FT-LB / 407N-m
ROTATING TORQUE: 45 FT-LB / 61 N-m
SIDE LOAD TORQUE: 1250 FT-LB / 1627 N-m
ACCURACY: +/- 10 ARC SEC
REPEATABILITY: +/- 5 ARC SEC
GEAR RATION: 100:1
MAX PART SIZE: 7" (177.8MM)
MAX PART WEIGHT: 100 LBS
CONSTRUCTION: MEEHANITE CAST IRON
FACEPLATE DIAMETER: 180MM
BASE SIZE: 400MM TOMBSTON
HEIGHT (TOMBSTONE): 840MM

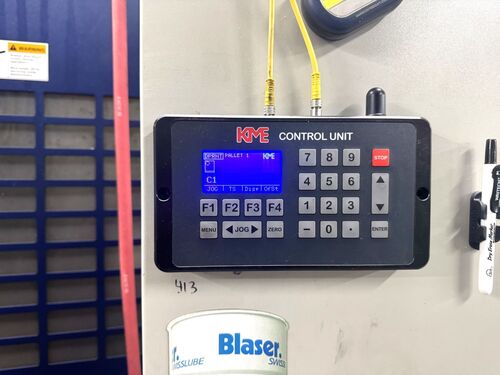

SIGNAL: SINGLE M-CODE FUNCTION
APPROX. WEIGHT: 450 LBS
RESOLUTION: 0.0018
DISTANCE BETWEEN UPPER AND LOWER PLATTERS: 10.236"
MAX ROTATION/STEP: 999.999
MAX HOLDING TORQUE: 300 FT-LB / 407N-m
ROTATING TORQUE: 45 FT-LB / 61 N-m
SIDE LOAD TORQUE: 1250 FT-LB / 1627 N-m
ACCURACY: +/- 10 ARC SEC
REPEATABILITY: +/- 5 ARC SEC
GEAR RATION: 100:1
MAX PART SIZE: 7" (177.8MM)
MAX PART WEIGHT: 100 LBS
CONSTRUCTION: MEEHANITE CAST IRON
FACEPLATE DIAMETER: 180MM
BASE SIZE: 400MM TOMBSTON
HEIGHT (TOMBSTONE): 840MM
SIGNAL: SINGLE M-CODE FUNCTION
APPROX. WEIGHT: 450 LBS
Get Your Price from Clark Machinery Sales LLC!
