Manufacturer: Kitamura
Model: MYTRUNNION-5
Year: 2017
Longitudinal" X: 32.3
Cross" Y: 29.3
Vertical" Z: 19.7
RPM: 20000
For Sale by Olympia Technical Services
Surplus Record Dealer Since 2018
Scot Samek
289-98...> Show Seller's Phone Number 289-980-2750 Let the seller know you found their listing on Surplus Record!
Description
USED KITAMURA MYTRUNNION 5-AXIS CNC VERTICAL MILLING MACHINE (2017) WITH FANUC 30iM CNC, COOLANT THRU, 50 POSITION ATC, 20000 RPM CAT 40 SPINDLE
Table Size: 24.8 x 19.7"
Table Capacity: 880 LBS
X-Axis Travel: 32.3"
Y-Axis Travel: 29.3"
Z-Axis Travel: 19.7"
Table to Spindle Nose 3.9" 23.6"
A-Axis Travel degrees: 150 (+30 to -120)
C-Axis Travel degrees: 360 (Continuous rotation)
Rapid Feed (X,Y, Z) 1969 IPM (X,Y); 984 IPM (Z)
Rapid Feed (A & C) 2000 deg/min ; 6000 deg/min
Spindle Speed: 20000 RPM
Spindle Taper: CAT 40
Main Motor: 20 HP
Tool Changer Capacity 50 Position
Max Tool Size 5.91 X 11.8
Max Tool Weight 22 lbs.
Tool Change Time 1.7 Second
Table T-Slot 0.7 X 3 Slots

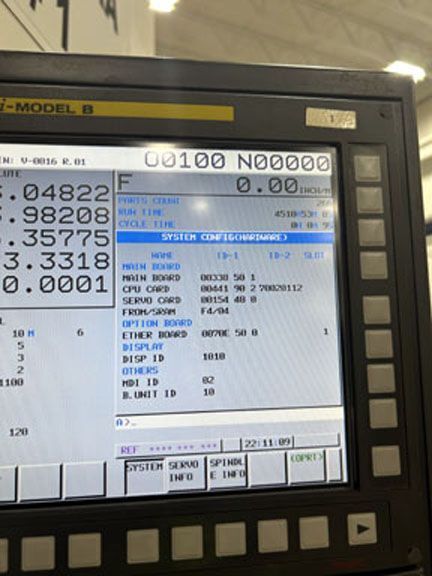

Type of CNC Control: Fanuc 30i-MB
Electrical 45KVA / 200-220V / 3 Ph
Dimensions (LWH): 156" X 114" X 120
Weight: 38,000 LBS
Table Size: 24.8 x 19.7"
Table Capacity: 880 LBS
X-Axis Travel: 32.3"
Y-Axis Travel: 29.3"
Z-Axis Travel: 19.7"
Table to Spindle Nose 3.9" 23.6"
A-Axis Travel degrees: 150 (+30 to -120)
C-Axis Travel degrees: 360 (Continuous rotation)
Rapid Feed (X,Y, Z) 1969 IPM (X,Y); 984 IPM (Z)
Rapid Feed (A & C) 2000 deg/min ; 6000 deg/min
Spindle Speed: 20000 RPM
Spindle Taper: CAT 40
Main Motor: 20 HP
Tool Changer Capacity 50 Position
Max Tool Size 5.91 X 11.8
Max Tool Weight 22 lbs.
Tool Change Time 1.7 Second
Table T-Slot 0.7 X 3 Slots
Type of CNC Control: Fanuc 30i-MB
Electrical 45KVA / 200-220V / 3 Ph
Dimensions (LWH): 156" X 114" X 120
Weight: 38,000 LBS
Get Your Price from Olympia Technical Services!
