Manufacturer: Kitagawa
Price: $1,950 USD
1 / 10
Click to zoom in
1 / 10
For Sale by Aucto
Surplus Record Dealer Since 2022
Location: Louisville, KY
Contact Trevor Jenson
Phone Number: 844...> Show Phone Number 844-605-1425
Let the seller know you found their listing on Surplus Record!
$1,950 USD
Description

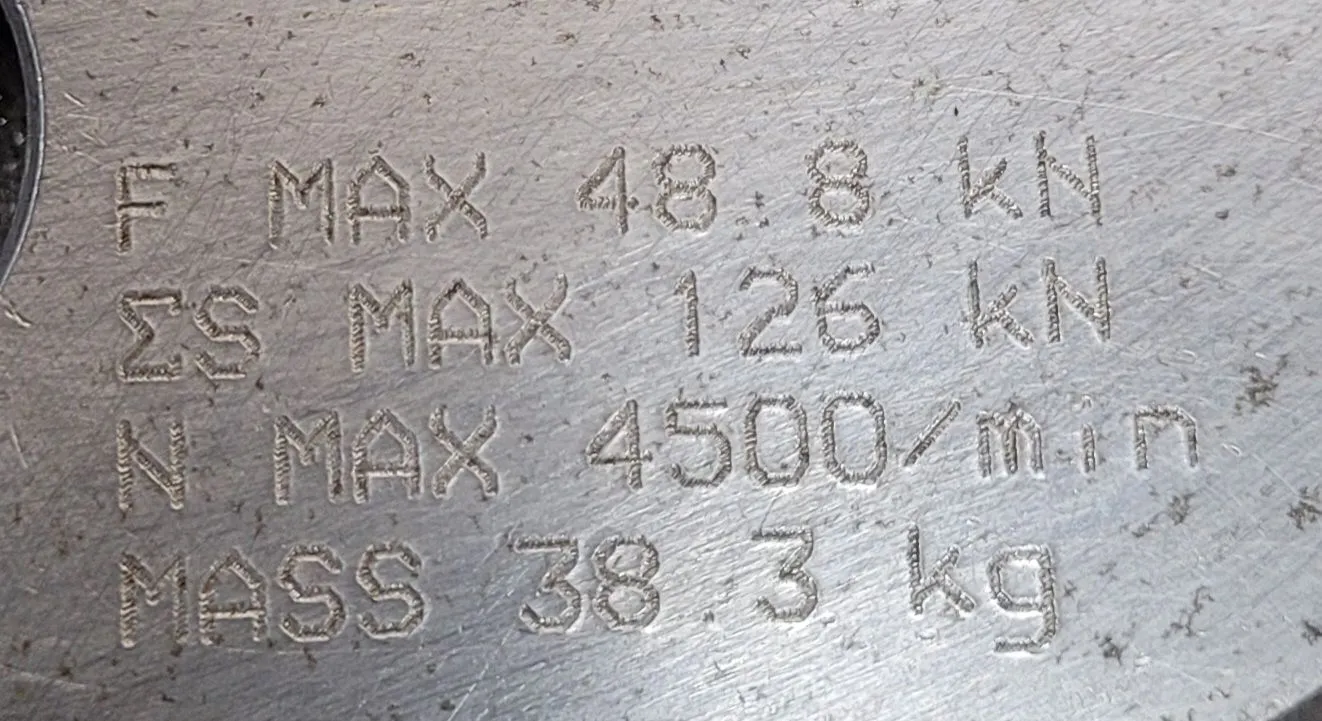

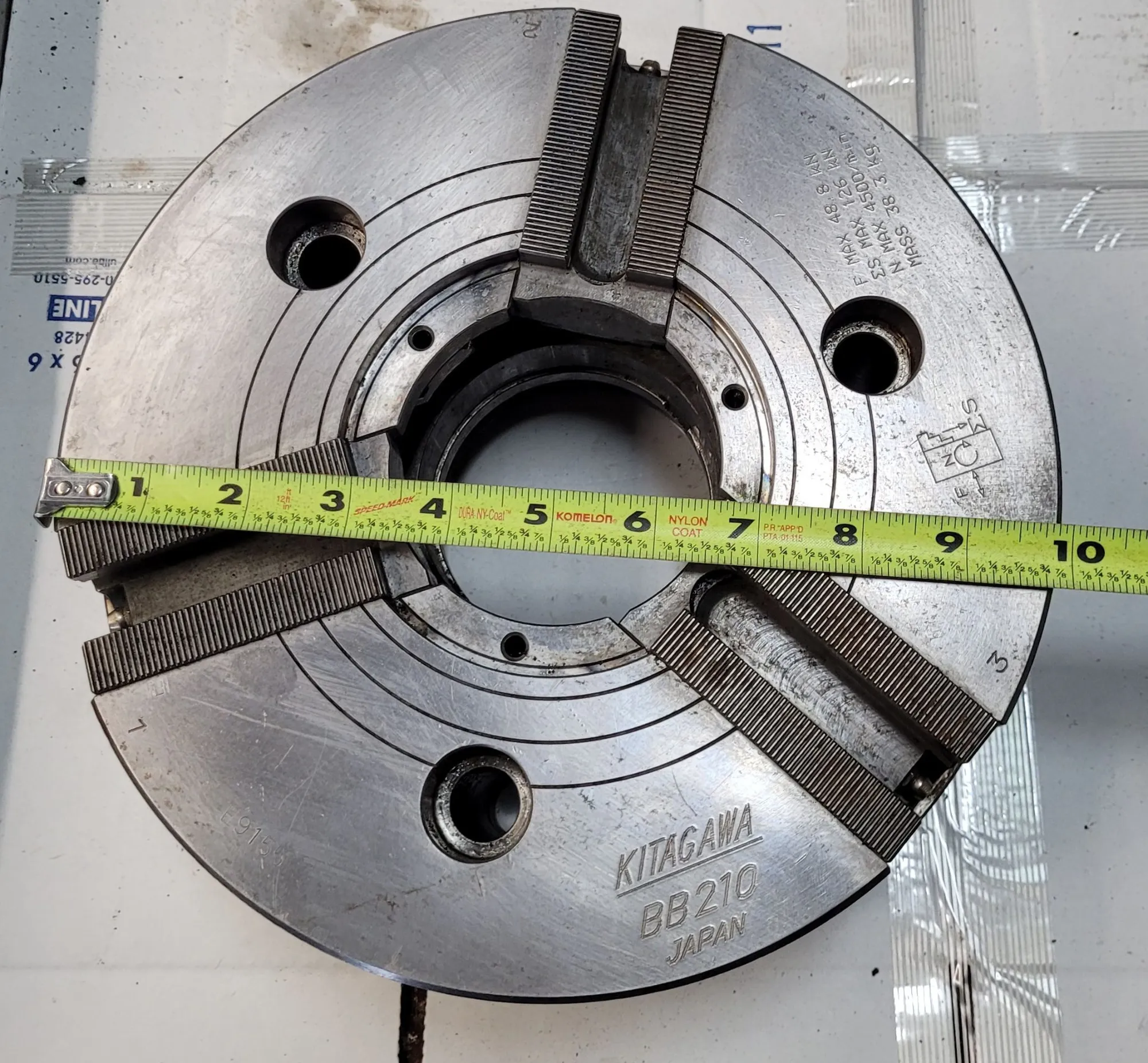

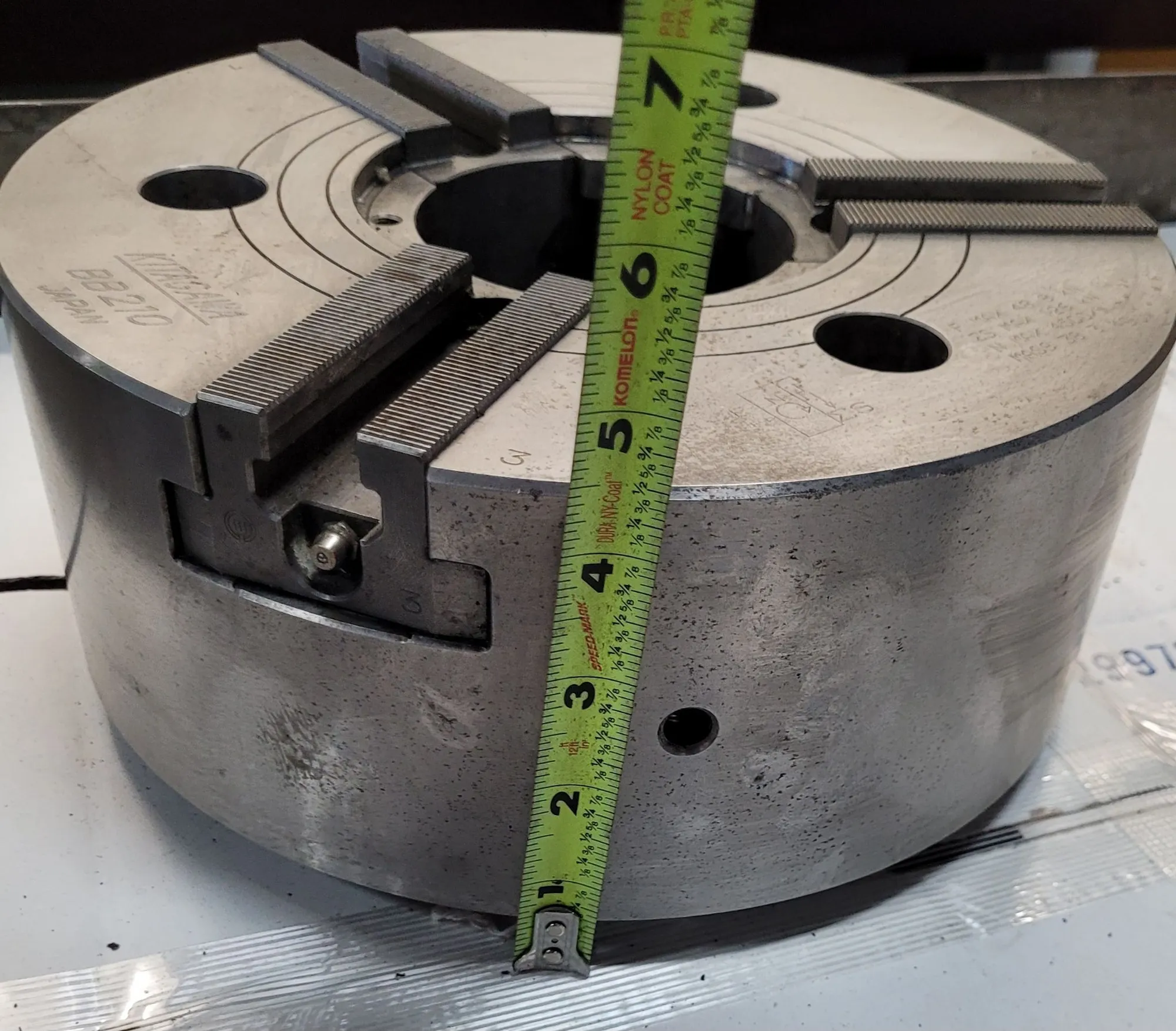

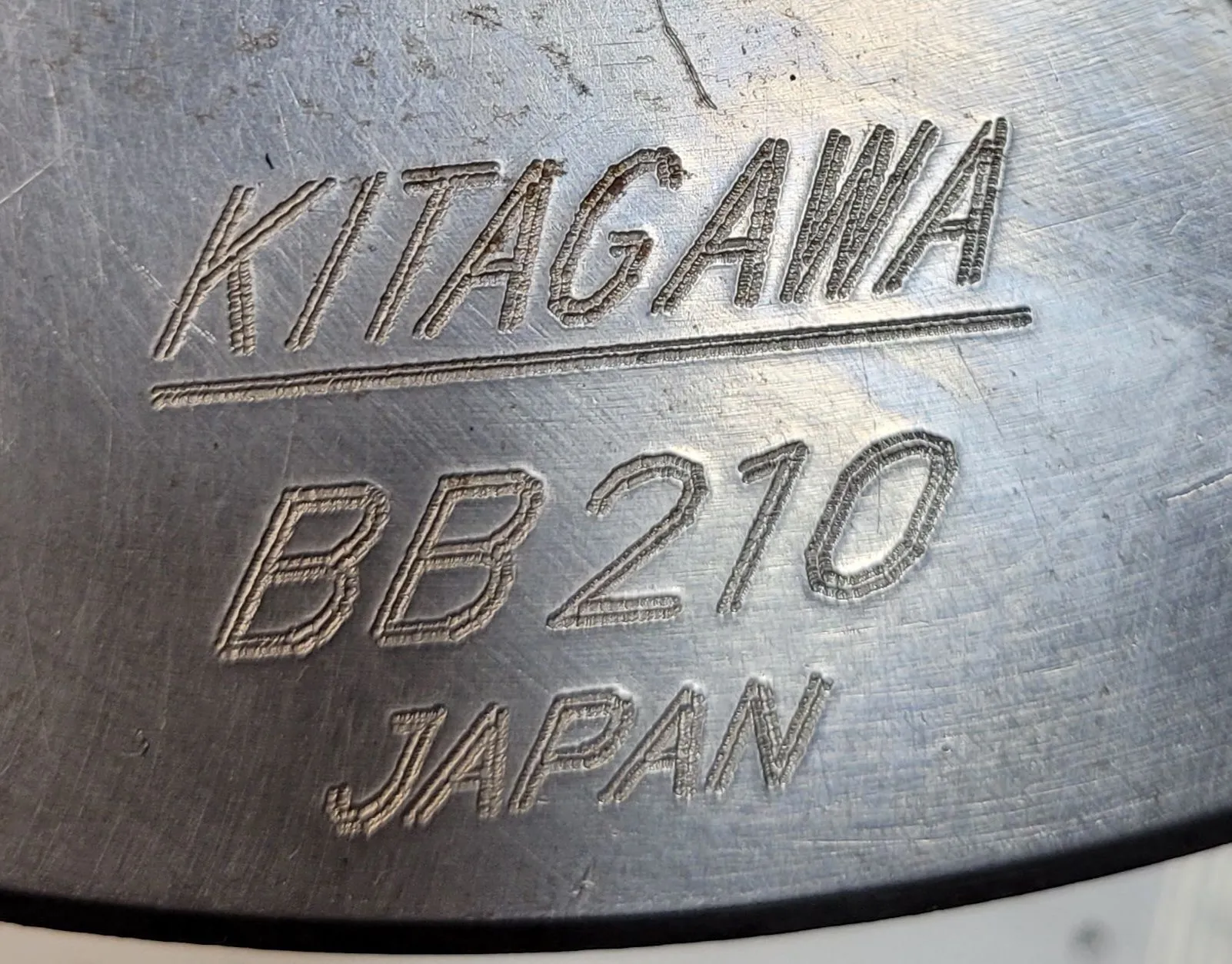

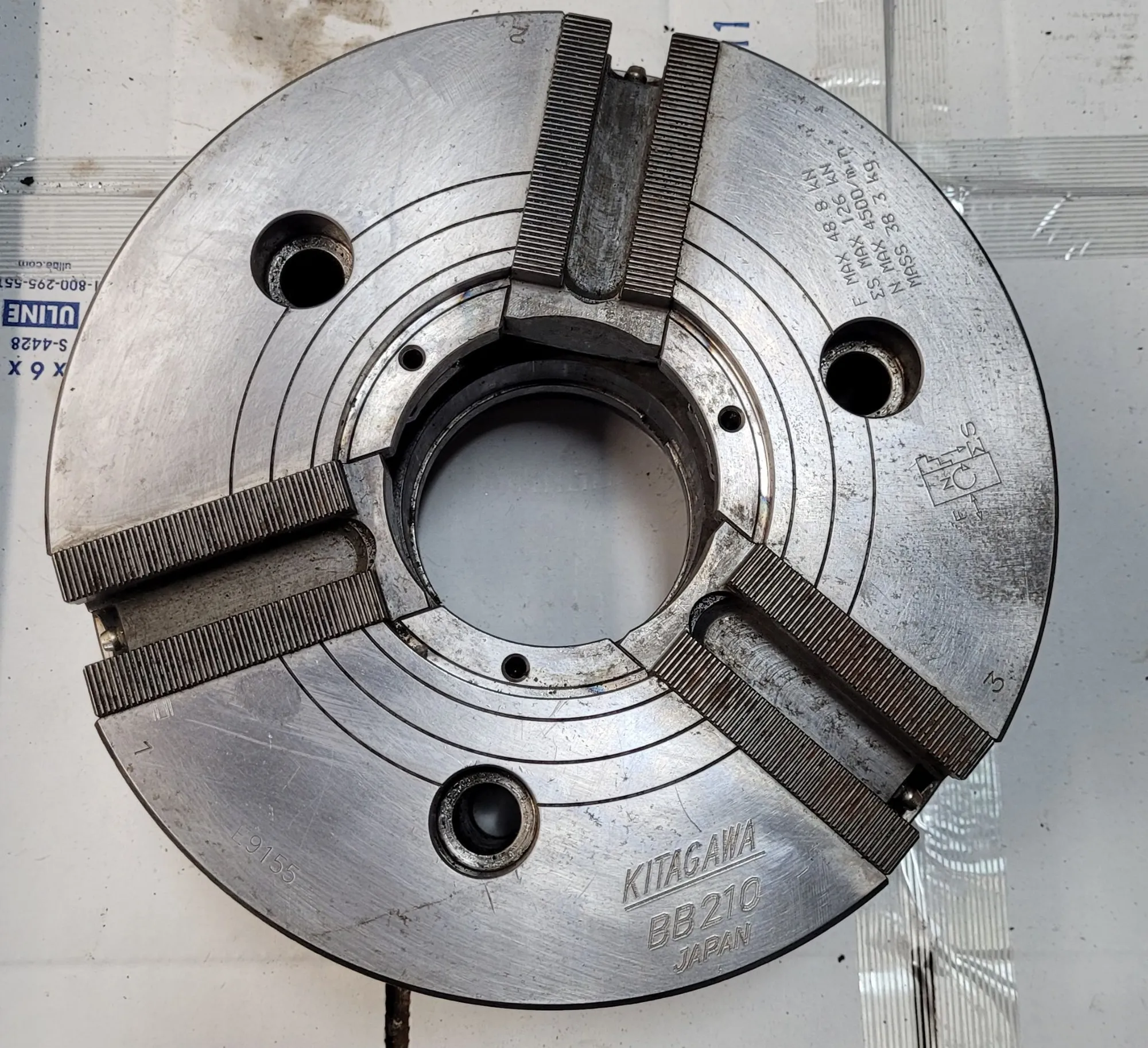

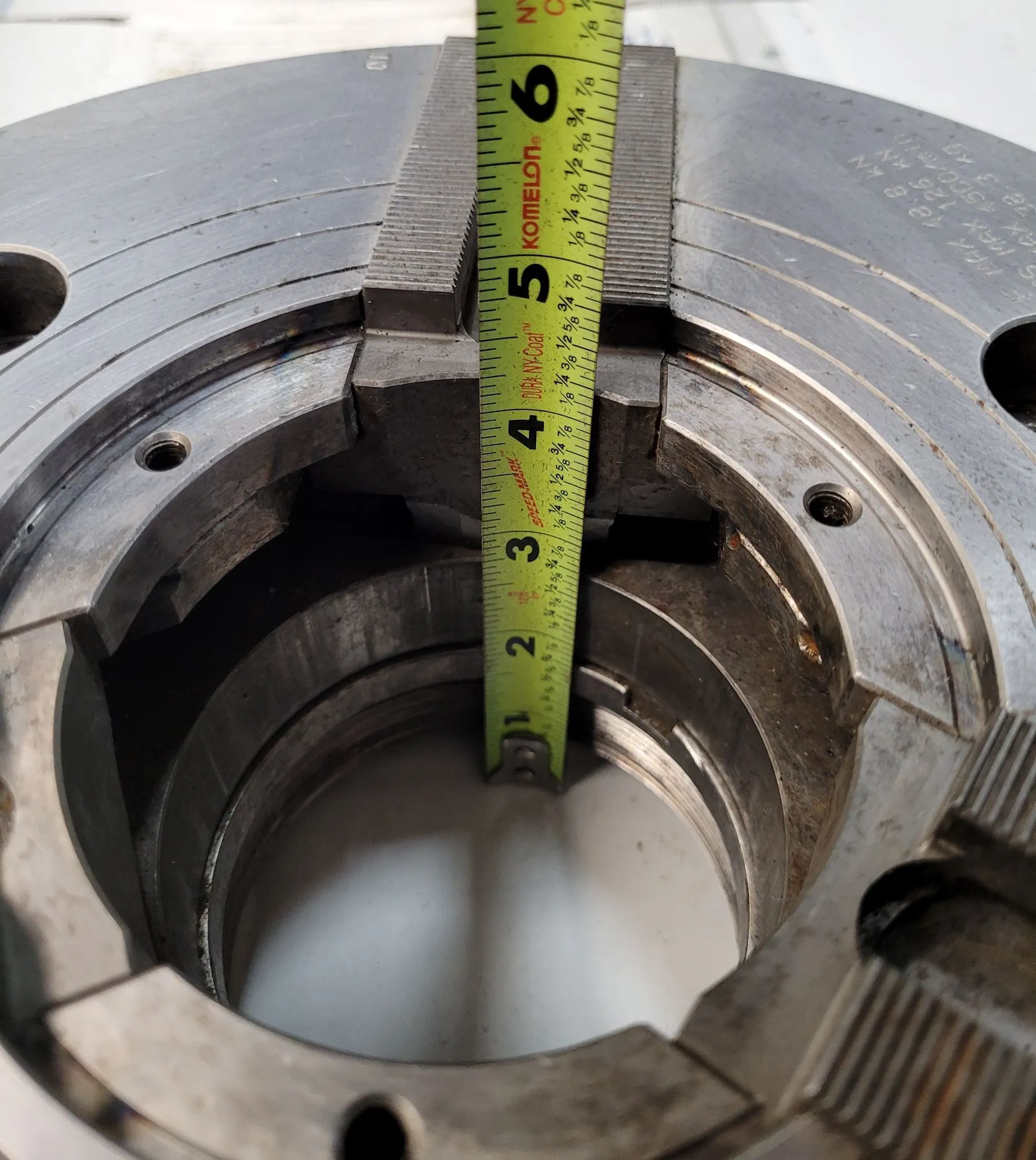

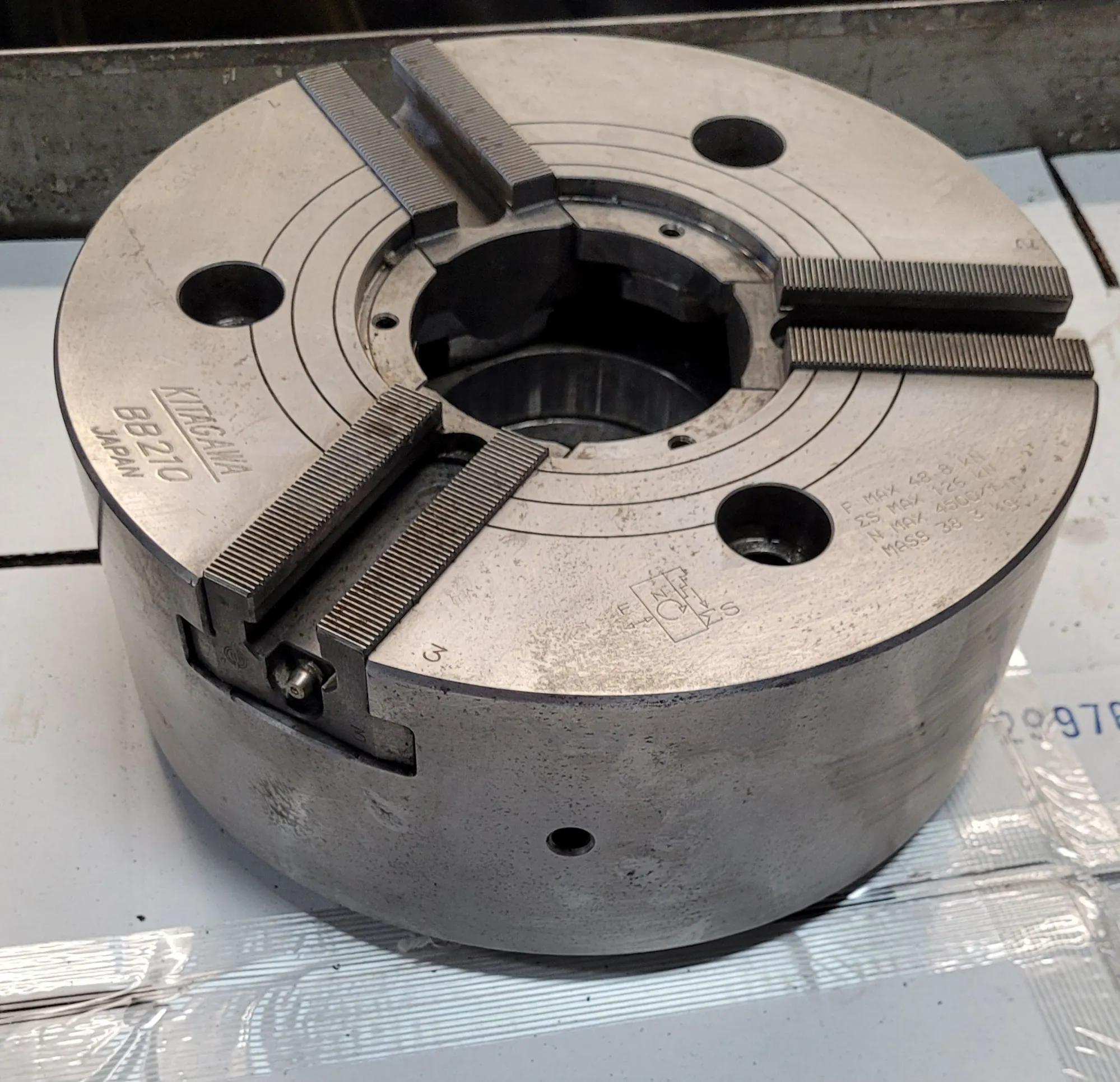

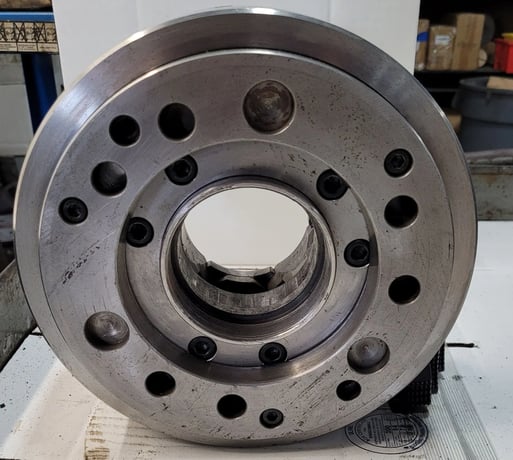

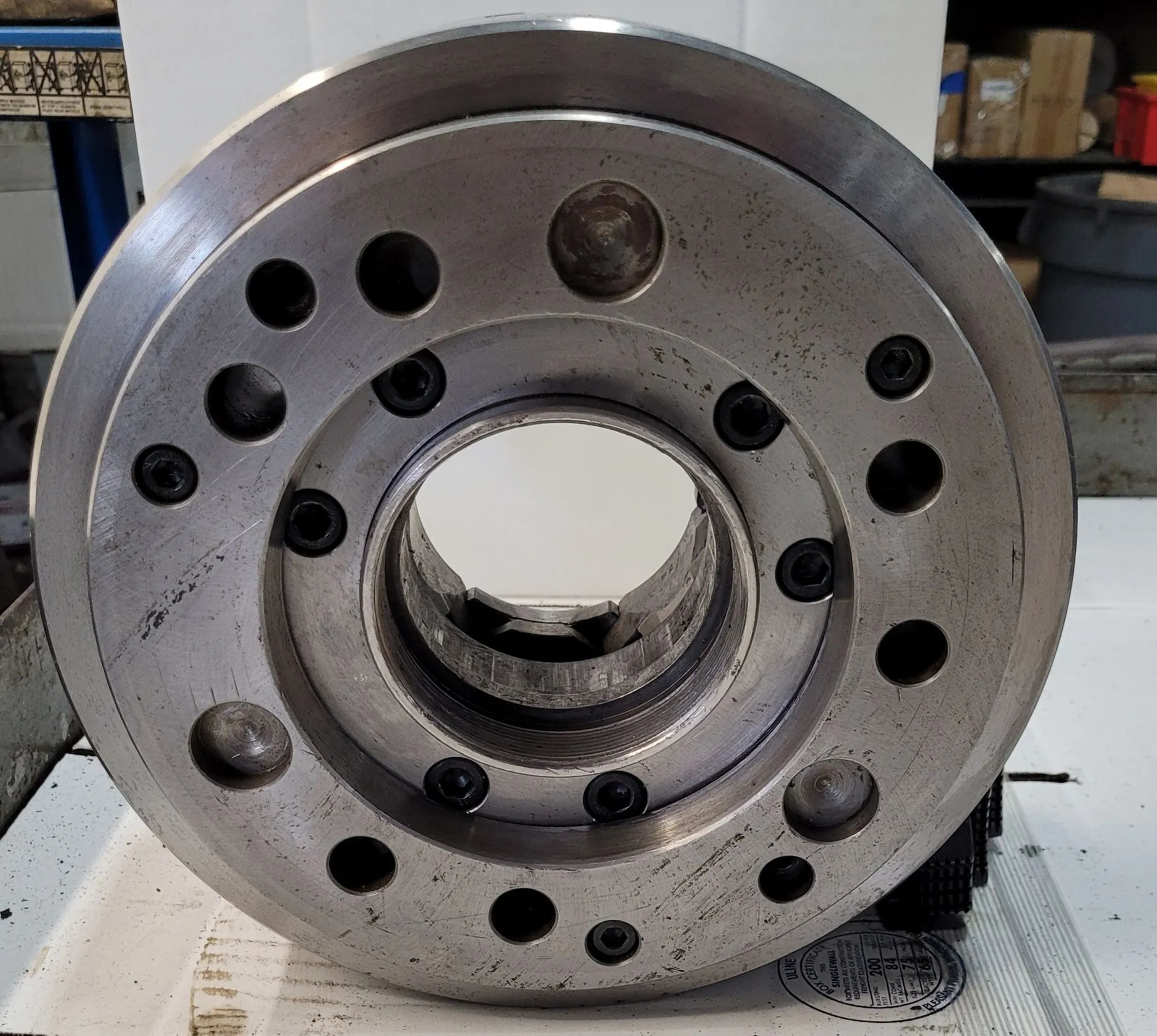

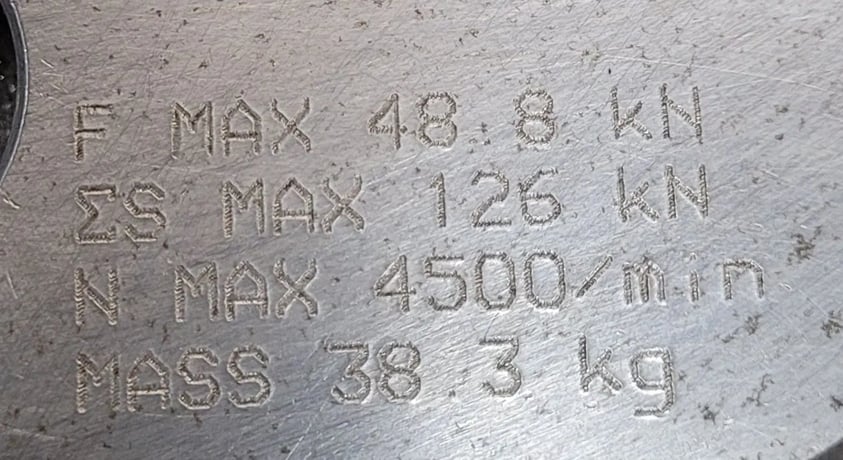

The Kitagawa model BB210 is a 10-inch, 3-jaw hydraulic chuck designed for lathe operations. Key specifications include an 81 mm (3.189 inch) through-hole and a gripping range from 41 mm minimum to 254 mm maximum. The chuck offers a jaw stroke diameter of 8.8 mm and a plunger stroke of 19 mm. It can sustain a maximum speed of 4500 RPM and delivers a maximum gripping force of 126 kN (12848 kgf), with a maximum input of 48.8 kN (4976 kgf). The maximum operating pressure is 3.09 MPa (31.5 cm²). The weight of the unit with soft jaws is 31.8 kg, and it has a moment of inertia of 0.312 kg.m².
Inquire Further with Aucto!
