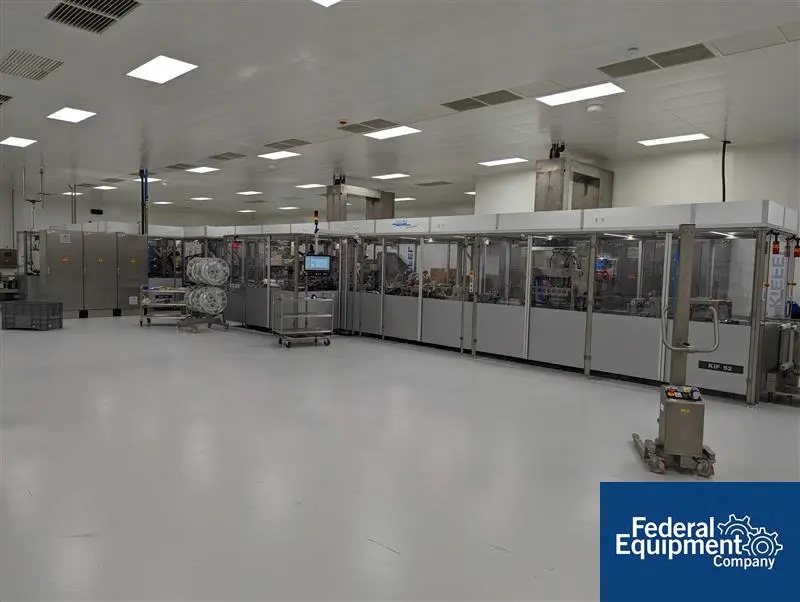

Kiefel Technologies #KIF-52, Bag FFS Machine, medical & IV bags, 100ml & 250ml bags

Used Kiefel Technologies Bag Making Machine, Model KIF 52, Serial #416-030, for forming, filling, and sealing medical-grade bags and IV bags. The KIF 52 machine is a 4-fold form-fill-seal system for manufacturing and filling infusion bags. The machine can manufacture and fill 100ml and 250ml bags. General Performance and operational data: UM1 Max. roll diameter - external: 600 mm Core diameter: 152.4 mm / 6" Max. film width: 400 mm Working rollers/reserve rollers: 2/0 AP1 Max. punch pressure: 0.24 kN Max. press stroke at top: 30 mm Max. press stroke at bottom: 30 mm Max. useful surface: 134 x 10 mm Weight: 100 kg. Compressed air connection: 6 bar Cooling water connection: G 3/8? AP2 Max. punch pressure: 2.0 kN Max. press stroke at top: 60 mm Max. press stroke at bottom: 60 mm Max. useful surface: 440 x 100 mm Weight: 100 kg. Compressed air connection: 6 bar Cooling water connection: G 3/8? AP3 Max. punch pressure: 2.0 kN Max. press stroke at top: 60 mm Max. press stroke at bottom: 60 mm Max. useful surface: 440 x 100 mm Weight: 100 kg. Compressed air connection: 6 bar Cooling water connection: G 3/8? IM1 Feed: 490 mm Max. film width: 250 mm Compressed air connection: 6 bar WT2 Max. force: 50 kN Max. stroke at top: 100 mm Max. stroke at bottom: 55 mm Max. useful surface: 490 x 320 mm Welding procedure: TC Compressed air connection: 5 bar Cooling water connection: G 3/8? AC2 Max. force at top: 1.5 kN Max. force at bottom: 2.5 kN Max. stroke at top: 50 mm Max. stroke at bottom: 50 mm Max. useful surface: 480 x 240 mm Compressed air connection: 5 bar Cooling water connection: G 3/8? SM1 Stripper: 4x set of products Stripping stroke of linear unit with servomotor Max.: 1050 mm Knee lever stroke pneumatic drive: 39 mm Hold-down clamp stroke pneumatic drive: 40 mm TL1 Stripper: 4x set of products Transfer stroke of linear unit with servomotor: 890 mm Suction pick and place unit stroke of pneumatic drive: 50/50 mm double stroke Compressed air connection: 5 bar TL2 Stroke of linear unit with servomotor: 700 mm Suction pick and place unit / swivel unit stroke of linear unit with servomotor: 100 mm / 90° Compressed air connection: 5 bar AP7 Max. vertical servo stroke: 40 mm Max. horizontal PN stroke: 153 mm Max. adjustment: +/-6 mm Compressed air connection: 5 bar
