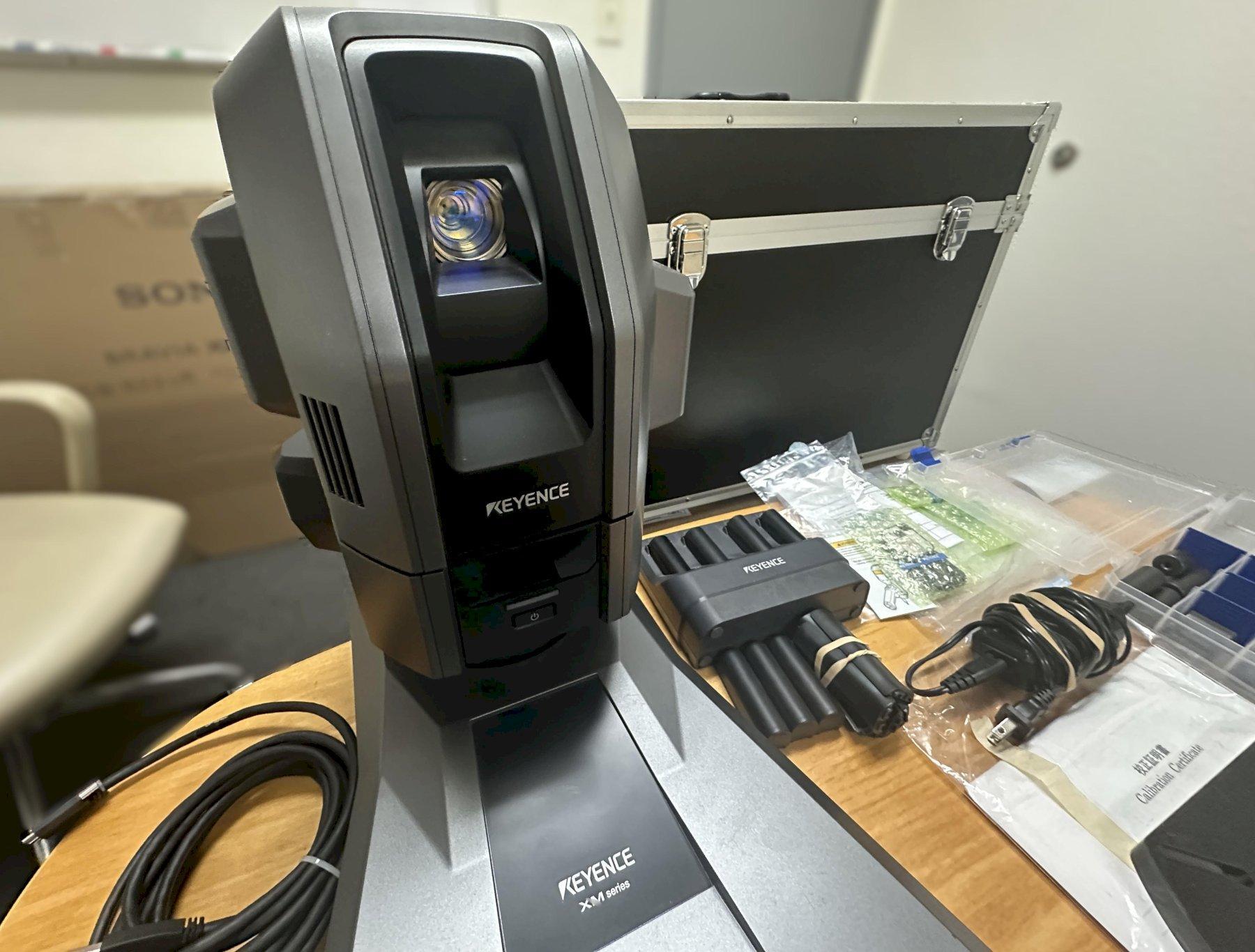

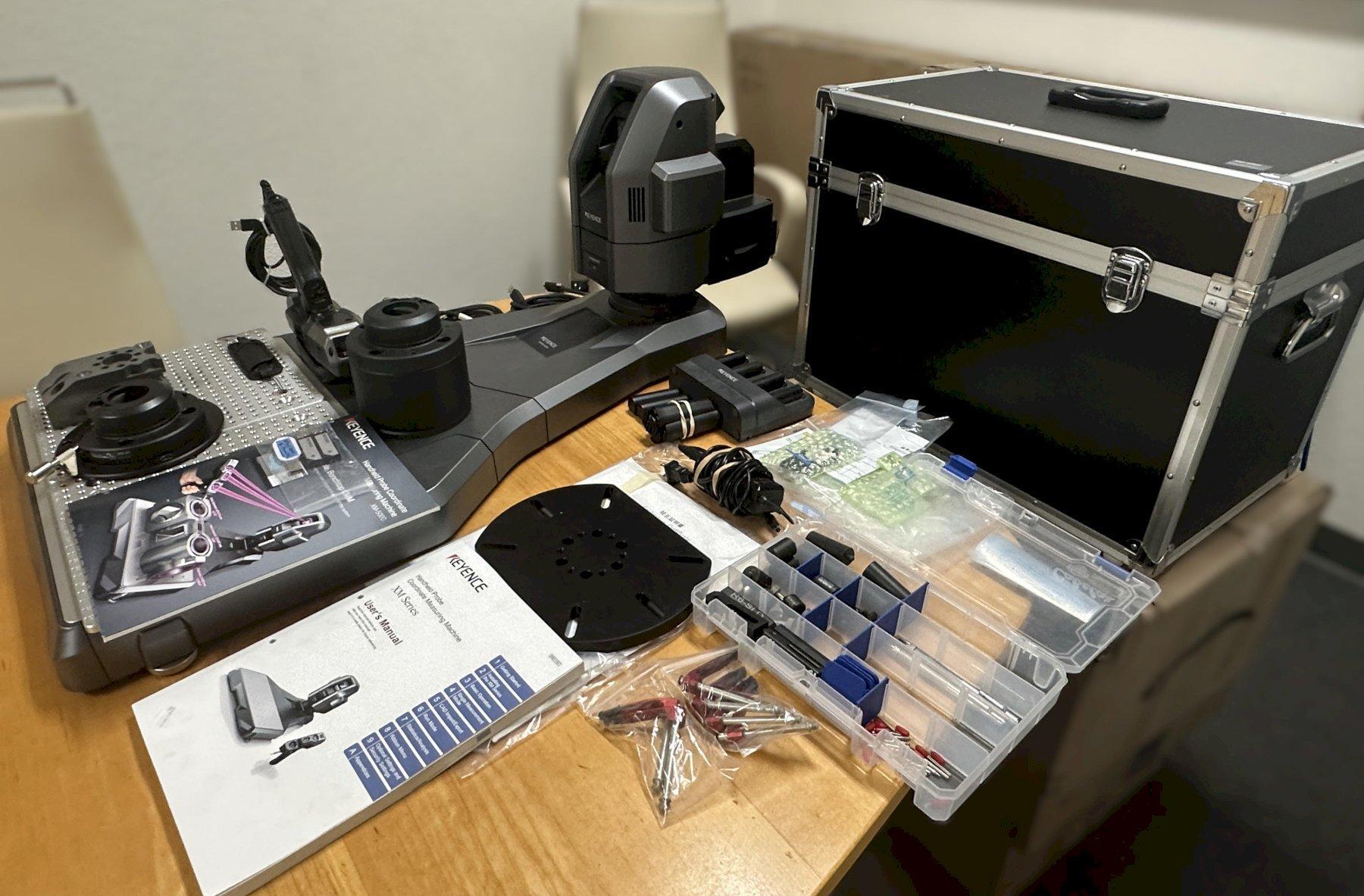

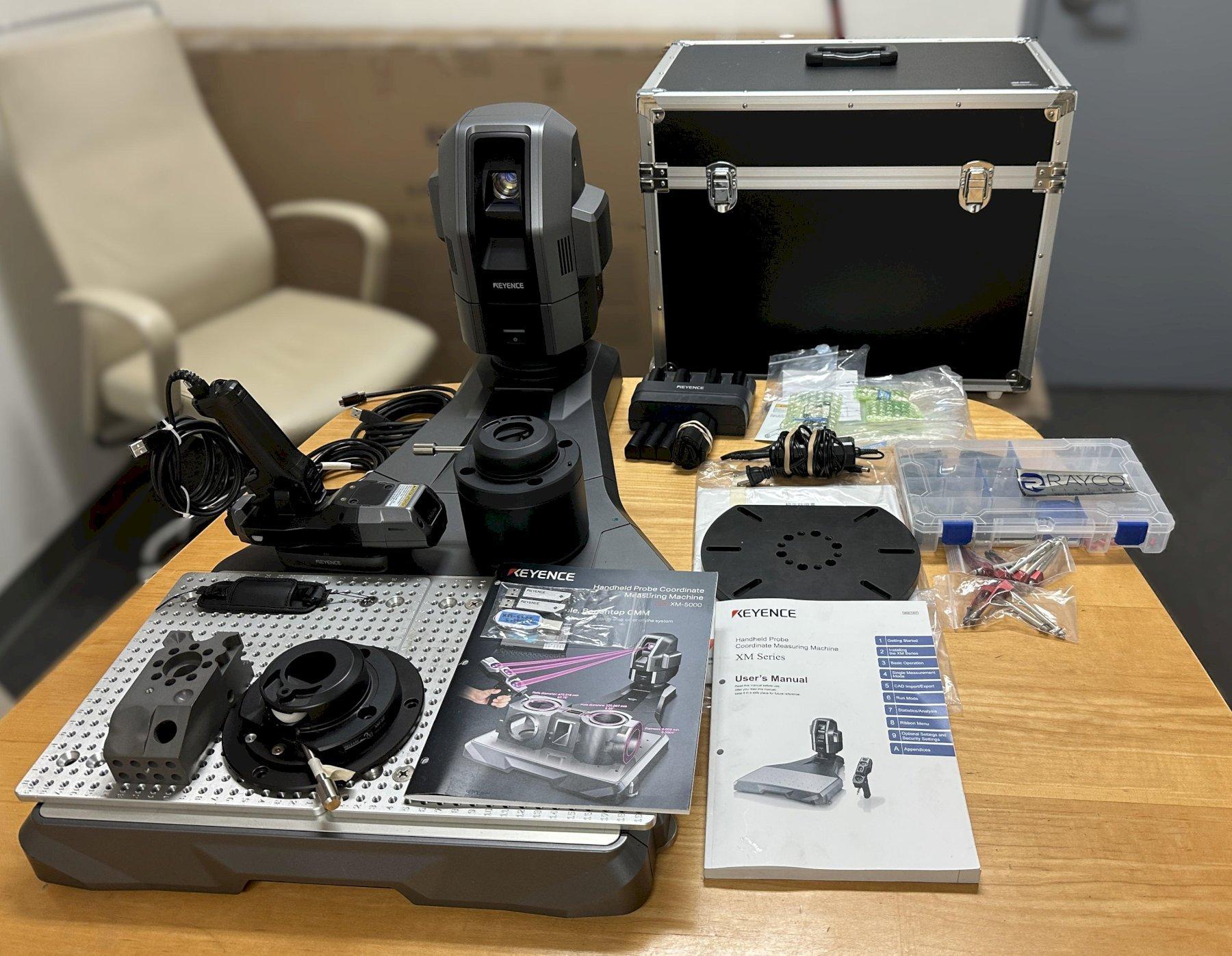

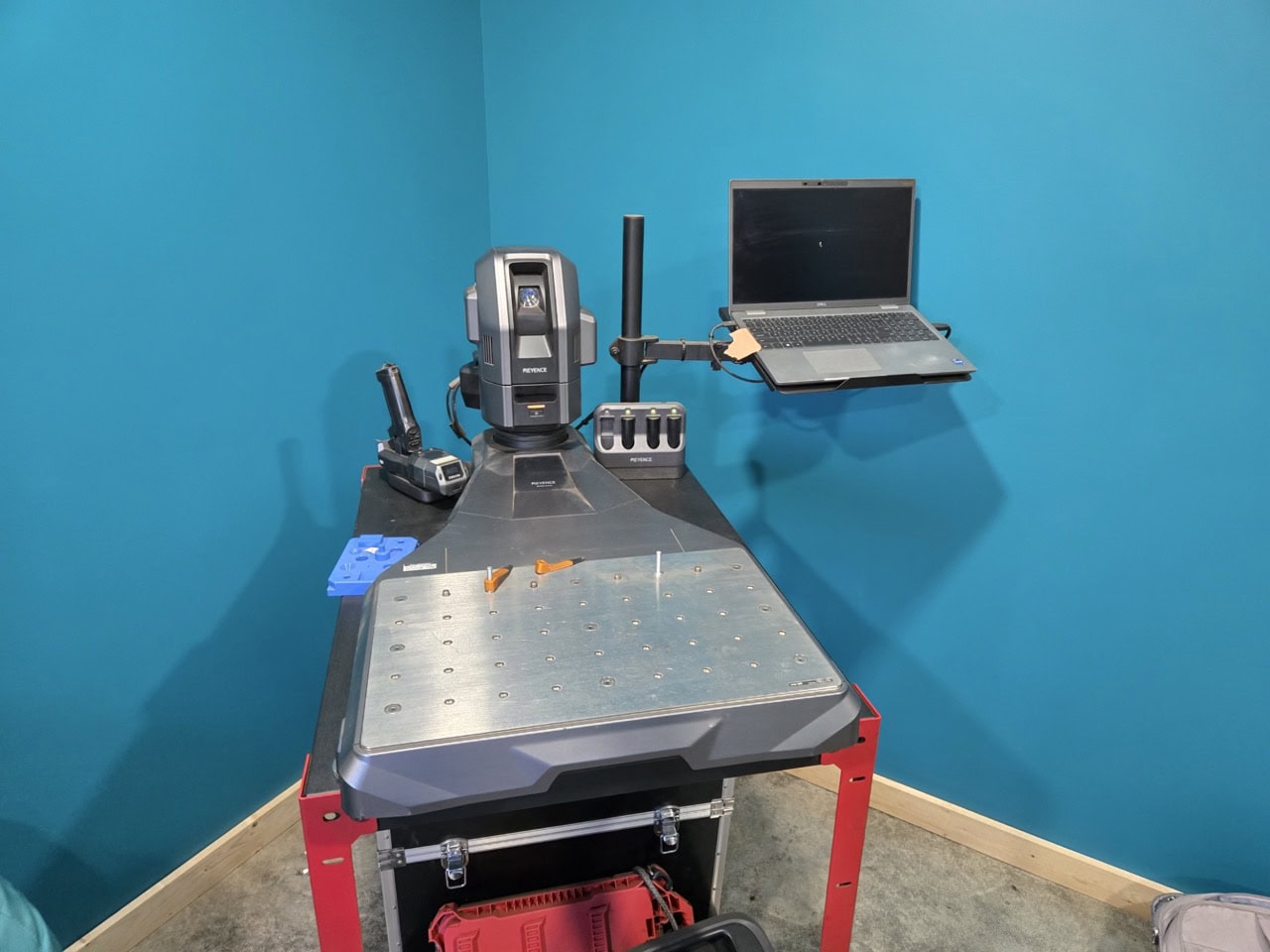

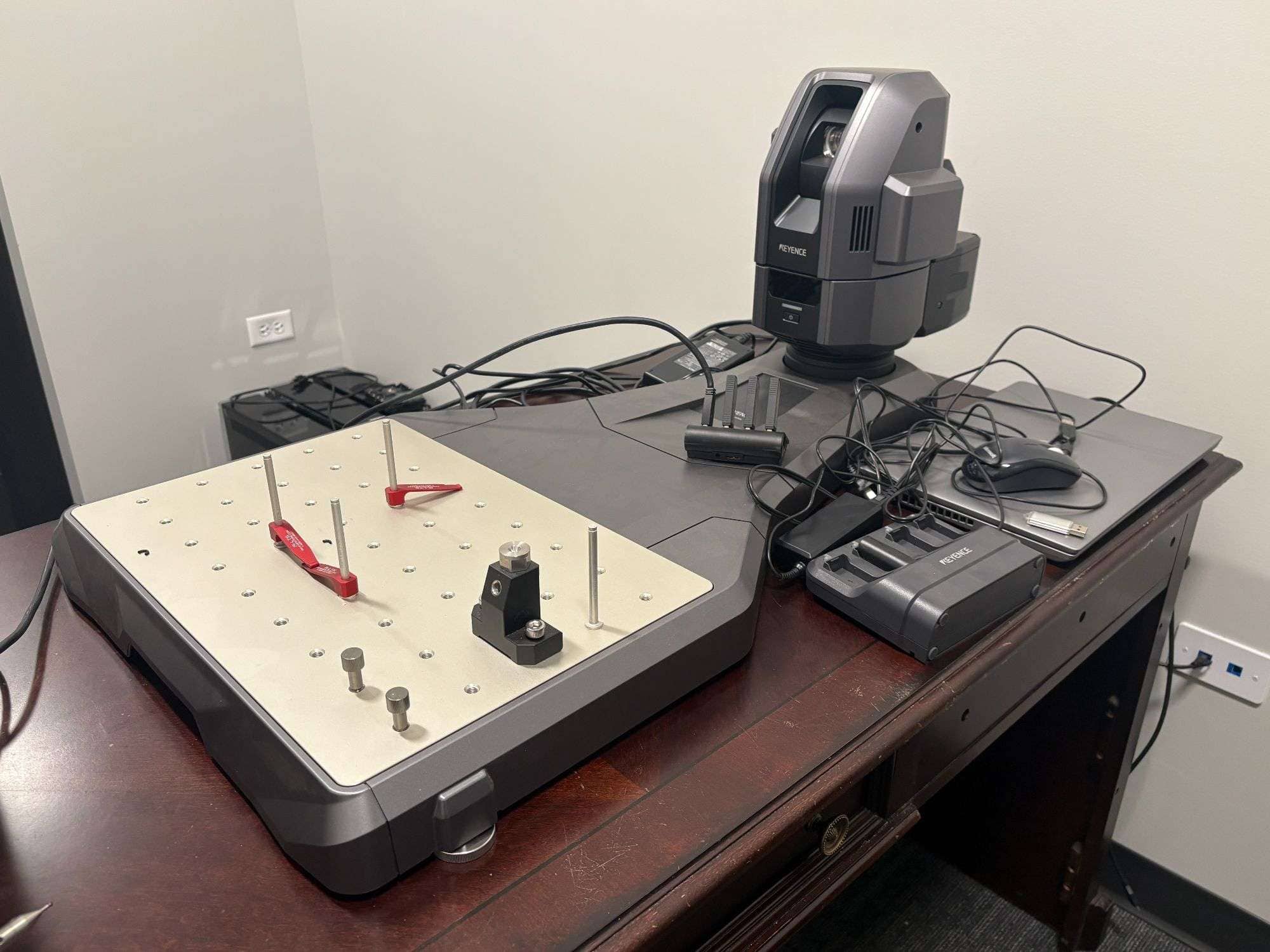

Keyence #XM-5000, coordinate measuring machine, 78.74" X, 47.24" Y, 39.37" Z

Specifications:
Camera Unit
(Specs Below)
Maximum Measurement Length (WxDxH)
78.74" x 47.24" x 39.37"
Indication Error Accuracy
(7 + 9L/1000) m
Repeatability
3 m
Minimum Display Unit (Distance)
0.000004"
Minimum Display Unit (Angle)
0.0001 degrees
Camera Unit Rotation Angle (Theta rotation)
40
Camera Unit Rotation Angle (Tilt Rotation)
25
Weight
Approx. 17.64 lb
External input
2 inputs, Maximum applied voltage: 26.4 V ON voltage: 19 V or more, OFF current: 0.1 mA or less
External Output
7 outputs, Maximum applied voltage: 30 V, Maximum sink current: 50 mA, Leakage current: 0.1 mA or less, Residual voltage: 1.4 V or less (50 mA) / 1.0 V or less (20 mA)
Probe
(Specs Below)
Number of Markers
7
Light Source
870 nm
Applicable Stylus
M5
Display Method
OLED
Resolution
96 x 39 pixels
Hardware Keys
MEASURE, OK, CANCEL, CAMERA, TRIGGER, POWER
WLAN Communication
IEEE 802.11b/g/n
USB Communication
USB 2.0
Infrared Communication
945nm
Battery
Dedicated lithium-ion battery pack
Battery Capacity
3250 mAH

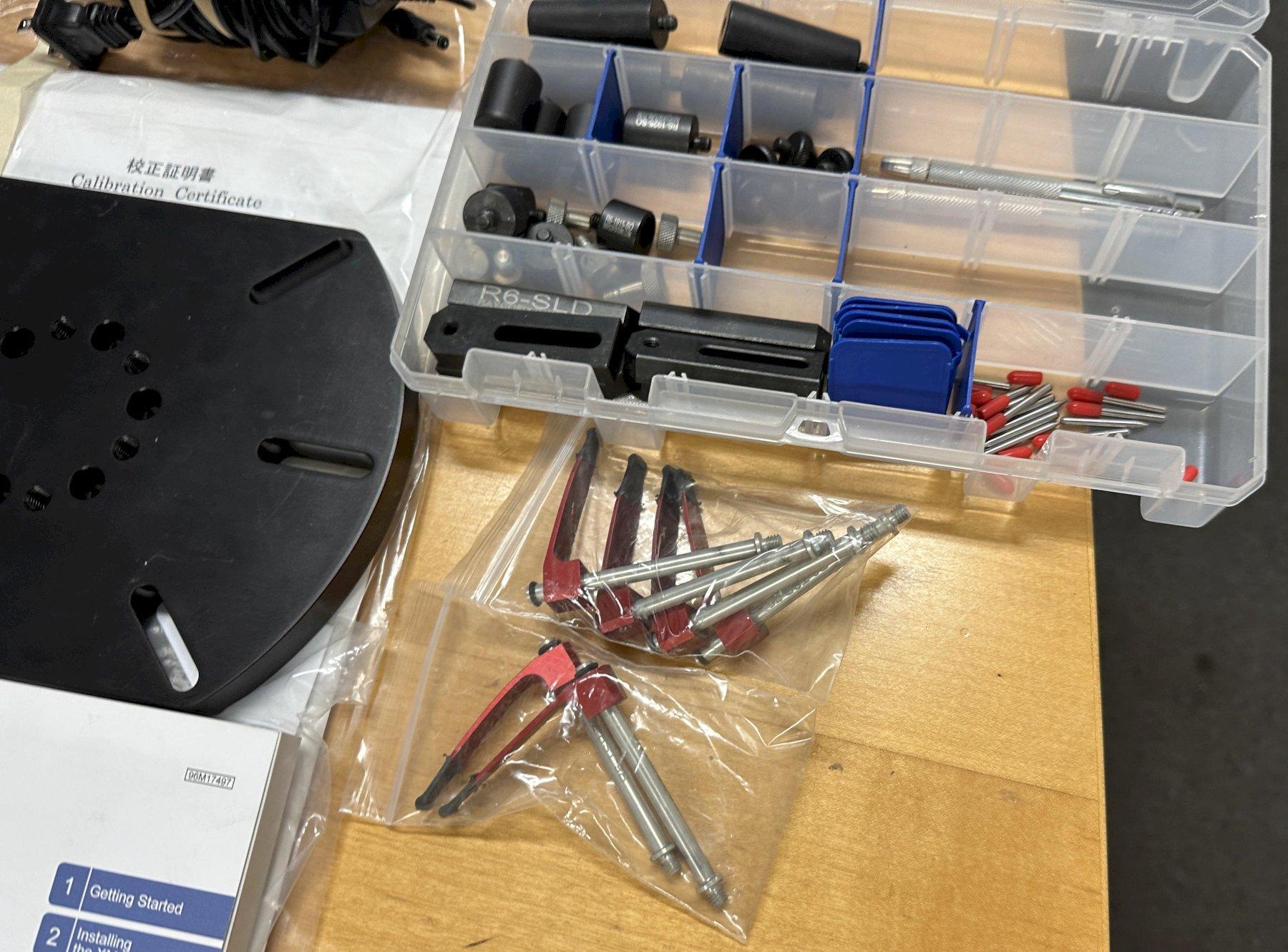

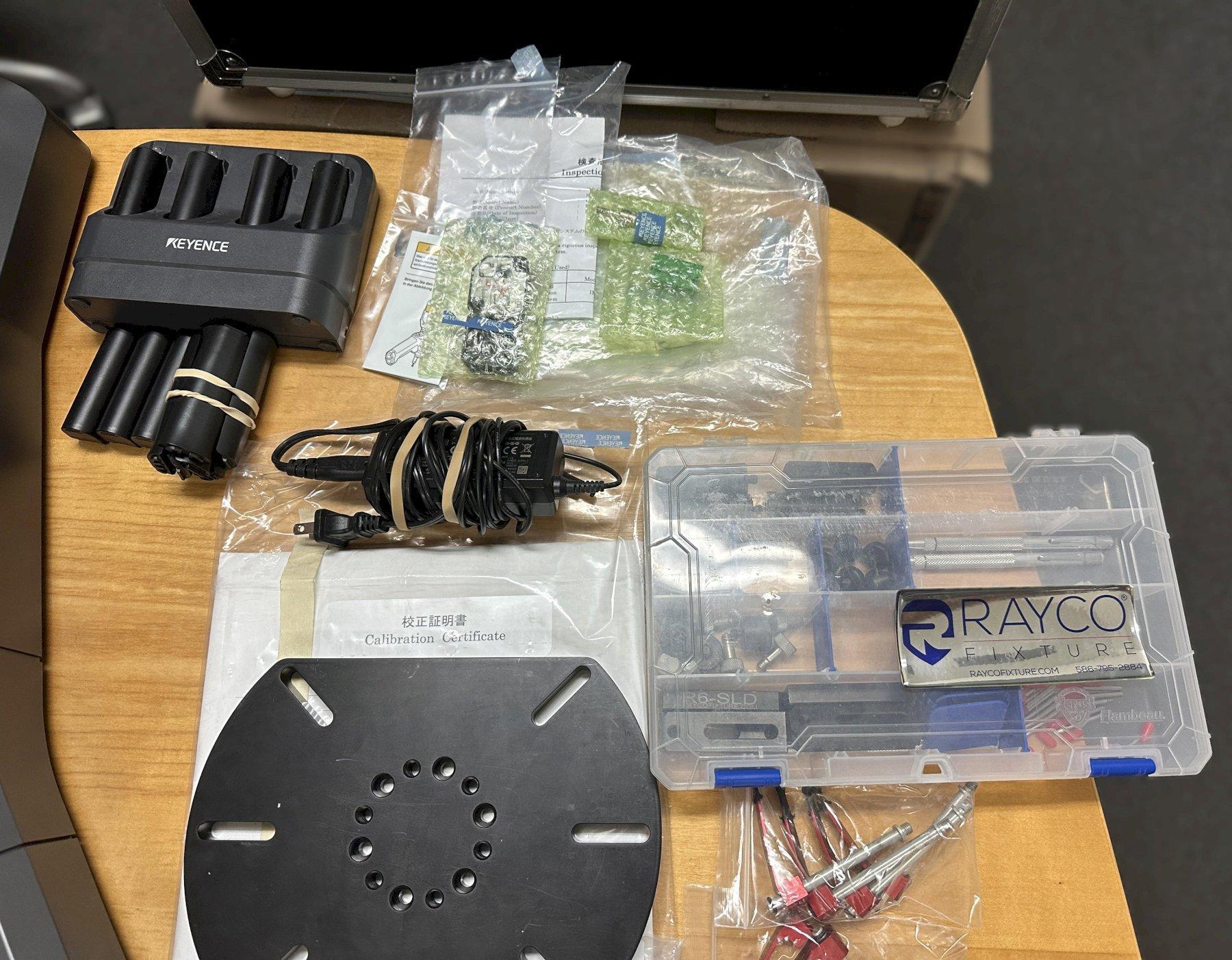

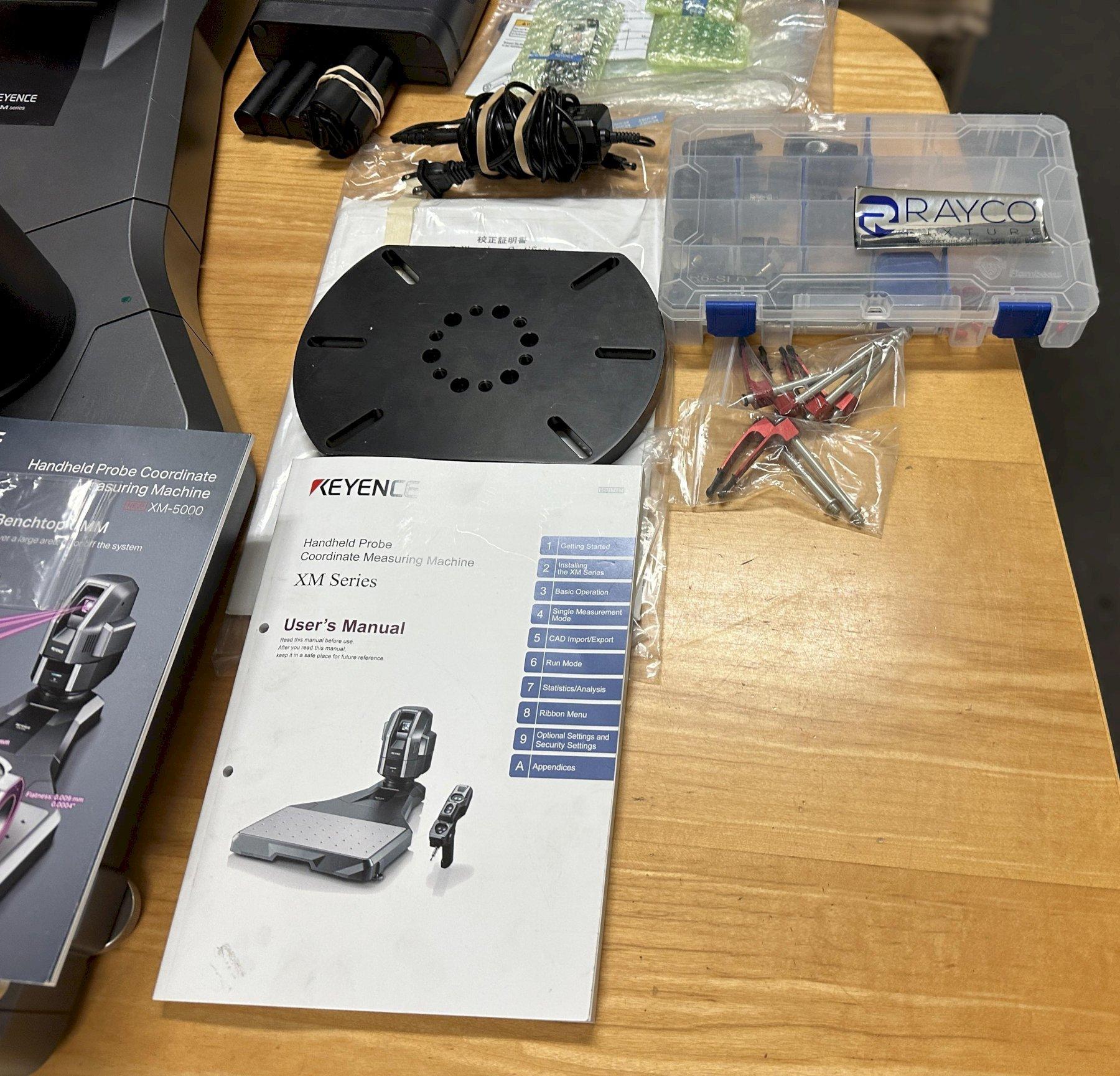

Equipped with:

BANK OWNED – OPEN TO ALL OFFERS

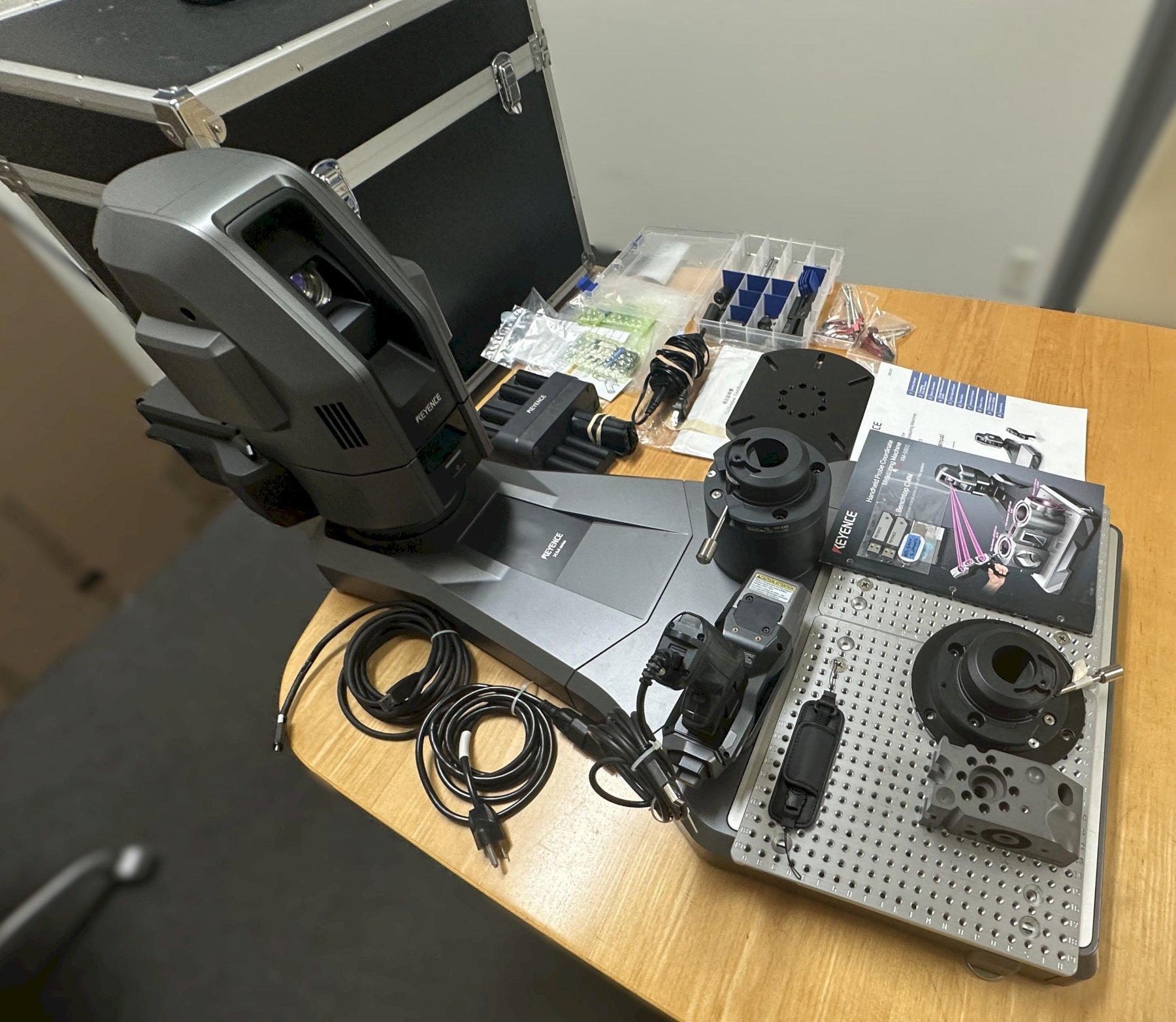

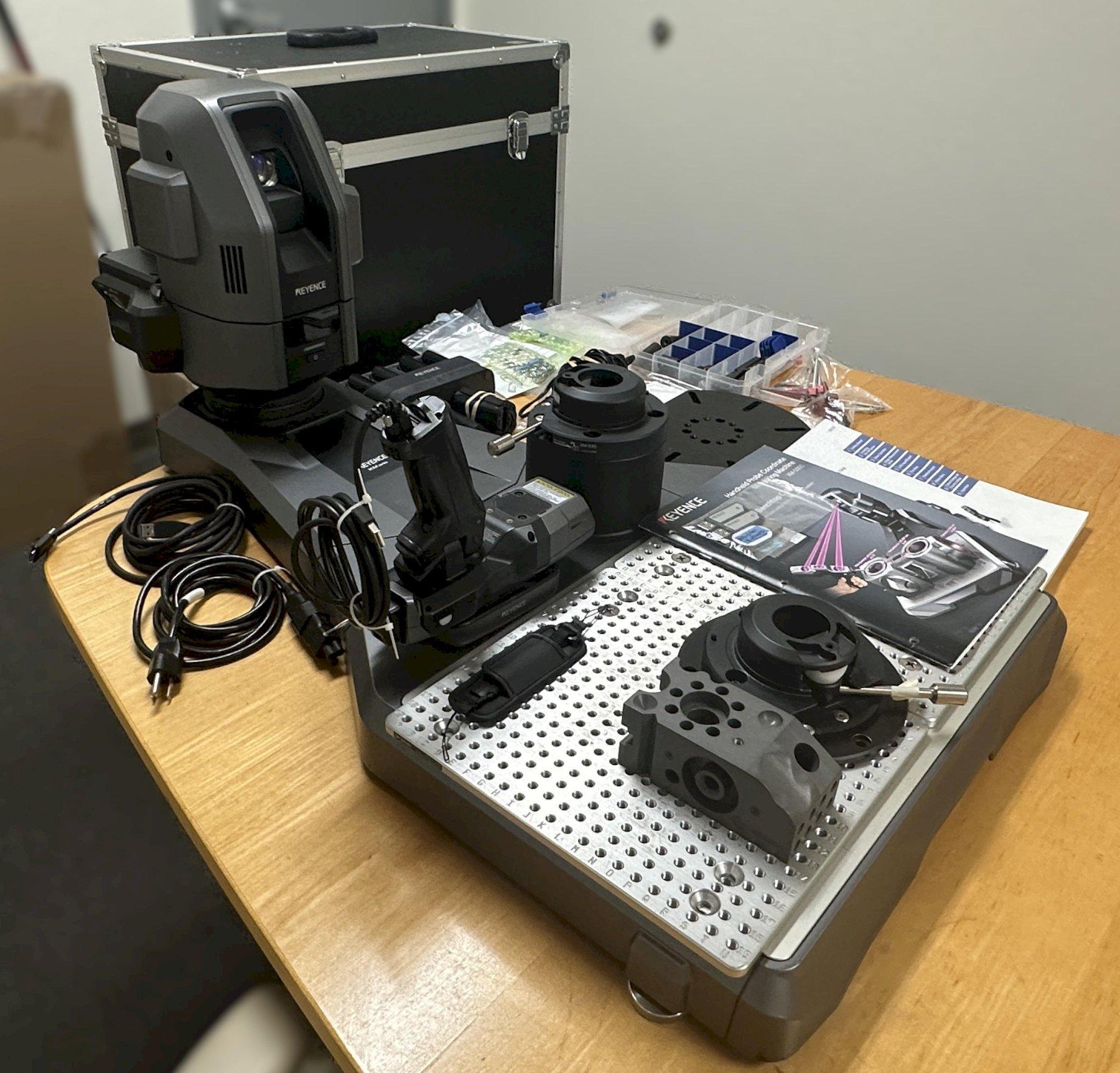

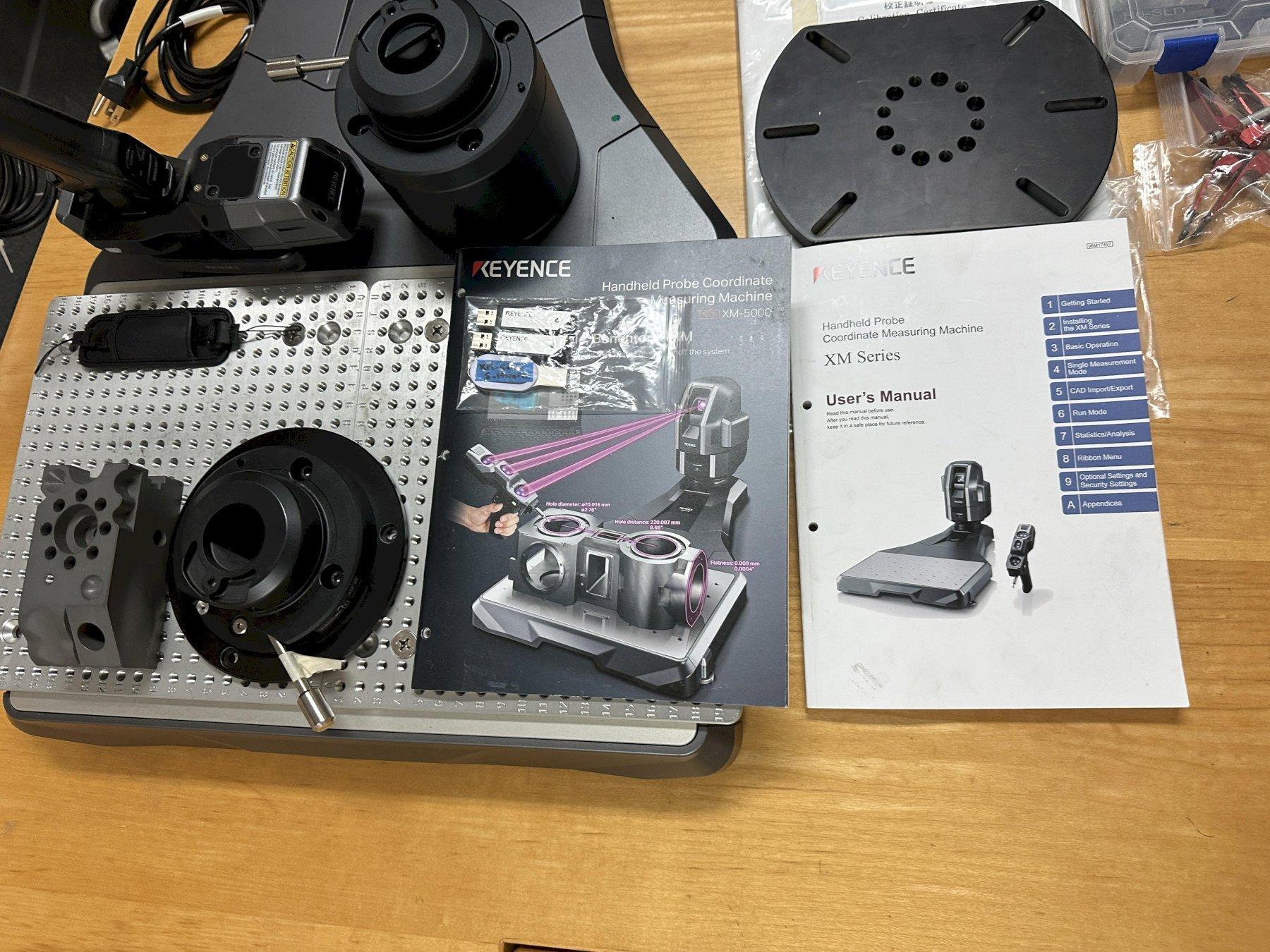

KEYENCE XM-5000 Coordinate Measuring System
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
ACT Machinery 2424 Cypress Way, Fullerton, Ca 92831
Financing Available / Se Habla Español
Before buying, let us know if you need shipping quotes
