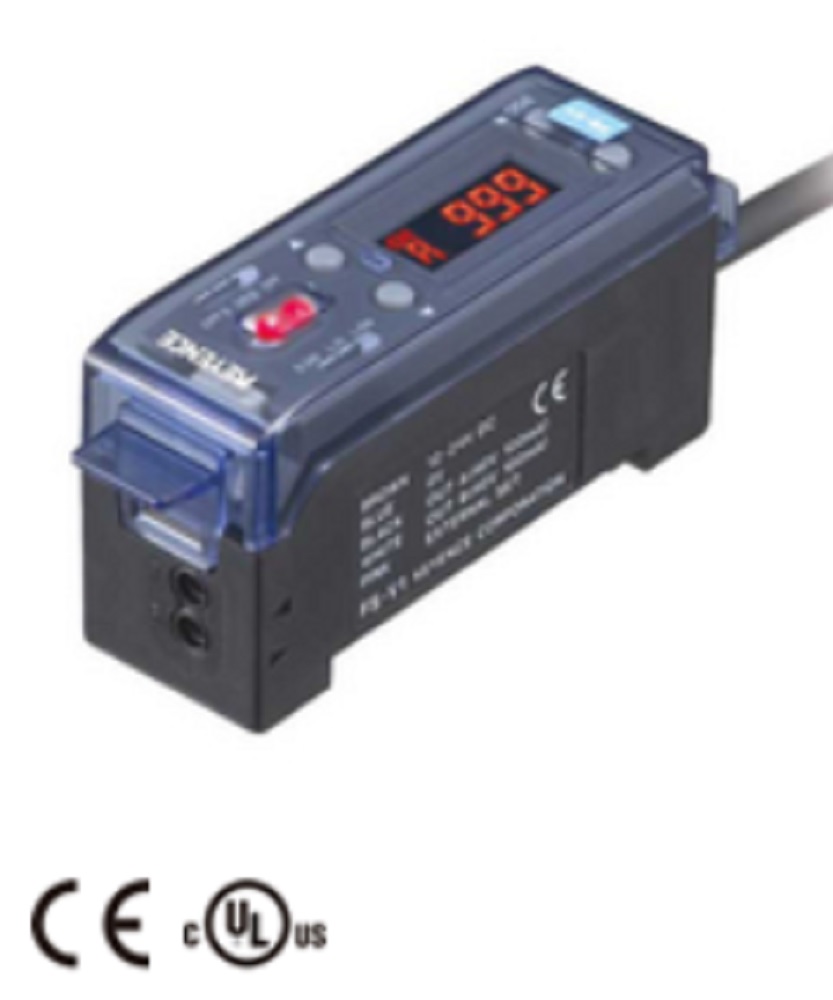

Keyence FS-V1P Fiber Optic Amplifier, Cable Type, Main Unit, PNP, FS-V Series

Keyence FS-V1P Fiber Optic Amplifier, Cable Type, Main Unit, PNP, FS-V Series - Keyence FS-V1P Fiber Optic Amplifier, Cable Type, Main Unit, PNP, FS-V Series - SPECIFICATIONS: Model: FS-V1P. Type: Main unit. Output: PNP. Light source: Red LED. Response time: 250 s. Operation mode: LIGHT-ON/DARK-ON (switch-selectable). Display indicator (Two): Red LED. Received light display: LCD. (Two color display: Red and green). Calibration indicator: Orange LED. Timer function: ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable). Control output: PNP open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max. The FS-V1P is equipped with two outputs.. Protection circuit: Reversed polarity protection, over-current protection, surge absorber. Unit expansion: Up to 16 expansion units can be connected (a total of 17 units) . Mutual interference suppression: 4. Power voltage: 12 to 24 VDC 10 %, Ripple (P-P) 10 % or less. Current consumption: 50 mA or less. Ambient light: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max. Ambient temperature: -10 to +55 C 14 to 131 F (No freezing). Relative humidity: 35 to 85 % RH (No condensation). Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions. Shock resistance: 500 m/s2, 3 times in each of the X, Y, and Z directions. Case material: Polycarbonate. Weight: Approx. 80 g. - Keyence - Keyence Corporation - FS-V1P - FS-V1P
