Description

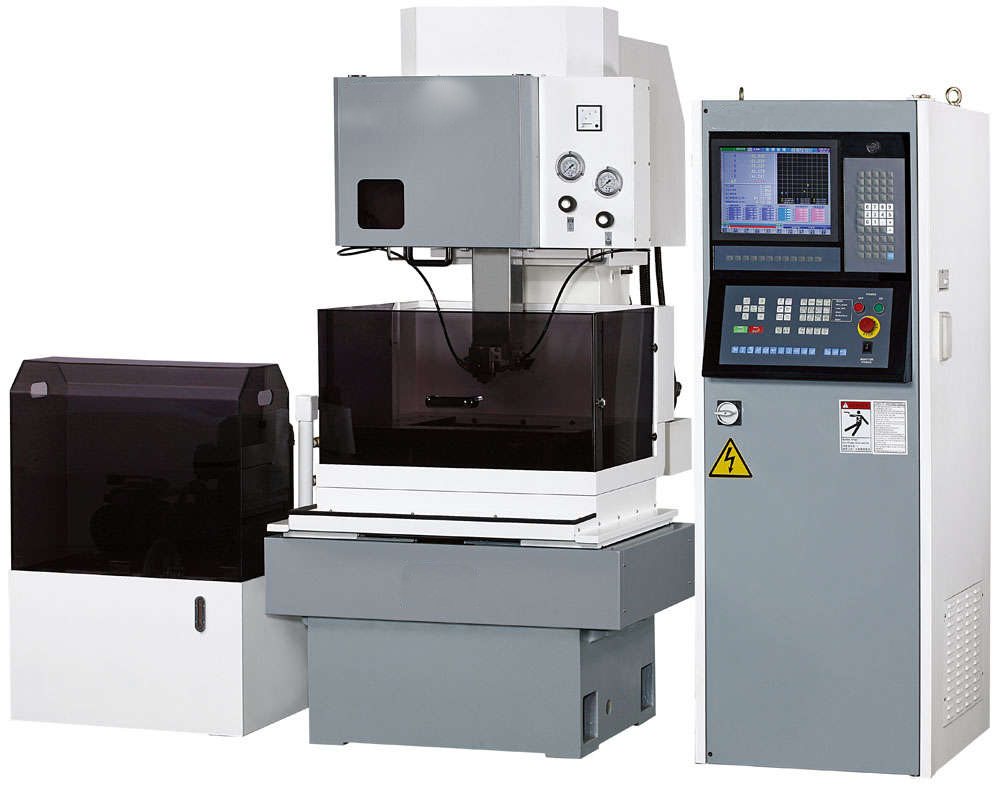

KENT USA WFI-30 CNC WIRE FLUSHING TYPE EDM - NEW
STANDARD ACCESSORIES
PRODUCT FEATURES
- Machine structure designed and analyzed by CAE system for high structural rigidity.
- U, V, Z axis strategically placed on upper column for enhanced spindle rigidity and precision.
- Panasonic AC Servo motor (AWT System) and magnet power clutch wire-receiving systems.
- Permanent generator control system for wire tension stability
- Accurate linear guide ways coupled with patented linear and block design
- Automatic vertical alignment jig
- Power feed contact
- Filter
- Clamping tool
- Wire guide (0.25 mm)
- Brass wire (0.25 mm)
- Ion exchange resin (5L)
- Tool box
OPTIONAL ACCESSORIES
- ATW auto threading wire system
- Diameter guide upper + lower (0.25 mm)
- CAD/CAM Software
- Water chiller
- Power regulator / 15 kva
- Parallel bar for setting the work piece
- Filter (2 pcs)
- Resin / 5L
- Brass Wire 0.25 mm / 3 kg
- Power feed contact (2 pcs)
- Water resistance meter
- Wire tension meter
- Wire speed meter
- Water nozzle (upper/lower)(2 pcs) / 1 set
- 22.5 degree water nozzle / set (upper/lower + diameter guide)
- Max Work Piece Size (L x W x H)
- Max Work Piece Weight
- Drive & Servo
- Simulation Axis
- X/Y-Axis Travel
- Z-Axis Travel
- U/V-Axis Travel
- Wire Diameter Range
- Max Taper Angle
- Max Axes Load
- Conductivity
- Water Tank Capacity
- Net Weight
- Dimension (W x D x H)
WFi-30
- 30" x 20.4" x 11.6"
- 1102 lbs
- 5 axes AC servo
- X / Y / U / V (4 axes)
- 15.7" / 7.87"
- 11.8"
- 3.93 / 3.93
- 0.1~0.3 mm
- 22.5 3.93
- 13.23 lbs
- Automatic
- 71.3 Gallons
- 4,299 lbs
- 90.6 x 86.6 x 84.6
Get Your Price from Blumberg Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
Hansvedt / Hardinge #DS-2, CNC wire Electrical Discharge Machine, 6.5" X, 10.5" Y, 6" Z, 2.75" diameter pinch roller, 1989, #161354
Category: Wire EDM Machine
Seller: Machinery Values Inc
Location: Indiana, IN
Mfr: Hansvedt
Model: DS-2
Year: 1989
Hansvedt/Hardinge Model #DS-2 CNC Wire EDM S/N: AJ09121… New:… 1989 :Max. Workpiece Dimension… 18" x 27" Travels:X:… 6.5"Y:… 10.5"Z:… 6" Max ThicknessPositioning Accuracy… +/-.0002" Max. Workpiece Weight… 300 Lbs.Wire Diameter ...more
Makino #Duo-43, CNC Wire Electrical Discharge Machine, 17.8" x 11.8" x 12.6" travels, 27.95" x 22.04" table, 2011
Category: Wire EDM Machine
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Makino
Model: DUO 43
Year: 2011
Make: Makino, Model: Duo 43, Year: 2011, Machine Location: Upon Request, X, Y & Z Axis Travel: 17.8″ x 11.8″ x 12.6″, U & V Axis Travel: ±3.97″, Table Size: 27.95″ x 22.04″, Maximum Load on Table: 1,764 Lbs., Distance Floor to Table Top: 39.37″, Ball Screw ...more
Fanuc #Robotcut A-C400ib, Electrical Discharge Machine, 15.75" X, 11.81" Y, 10.04" Z, Fanuc Series 31i-W B, 2019
Category: Wire EDM Machine
Seller: Arlington Machinery
Location: Lake Zurich, IL
Mfr: Fanuc
Model: ROBOTCUT A-C400IB
Year: 2019
Used Fanuc Robocut EDM, Model A-C400iB, New in 2019 Controller.Fanuc Series 31i-W Model B Max Work Piece Weight. 500kg XY Axis Table Travel.400mm x 300mm Z Axis Travel.255mm UX Axis Travel.120mm x 120mm Hours.3,000 Electrical 220/3/60 *CURRENTLY INSTALLED.
JUST ADDED!
Makino #DUO43, CNC Wire Electrical Discharge Machine, 17.8" X, 11.8" Y, 12.6" Z, Makino MGW S-6 CNC, 2010
Category: Wire EDM Machine
Seller: KD Machinery
Location: Scottsdale, AZ
Mfr: Makino
Model: DUO43
Year: 2010
Used Makino Duo43 (2010) CNC EDM for Sale. This pre-owned Makino CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Makino EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or ...more
JUST ADDED!

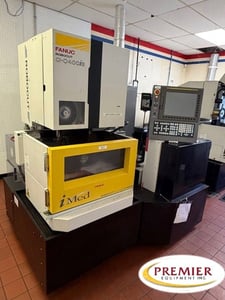

Fanuc #Robocut-C400iB, CNC wire cutting Electrical Discharge Machine, Fannuc 31iW model B Control, 2018
