Description

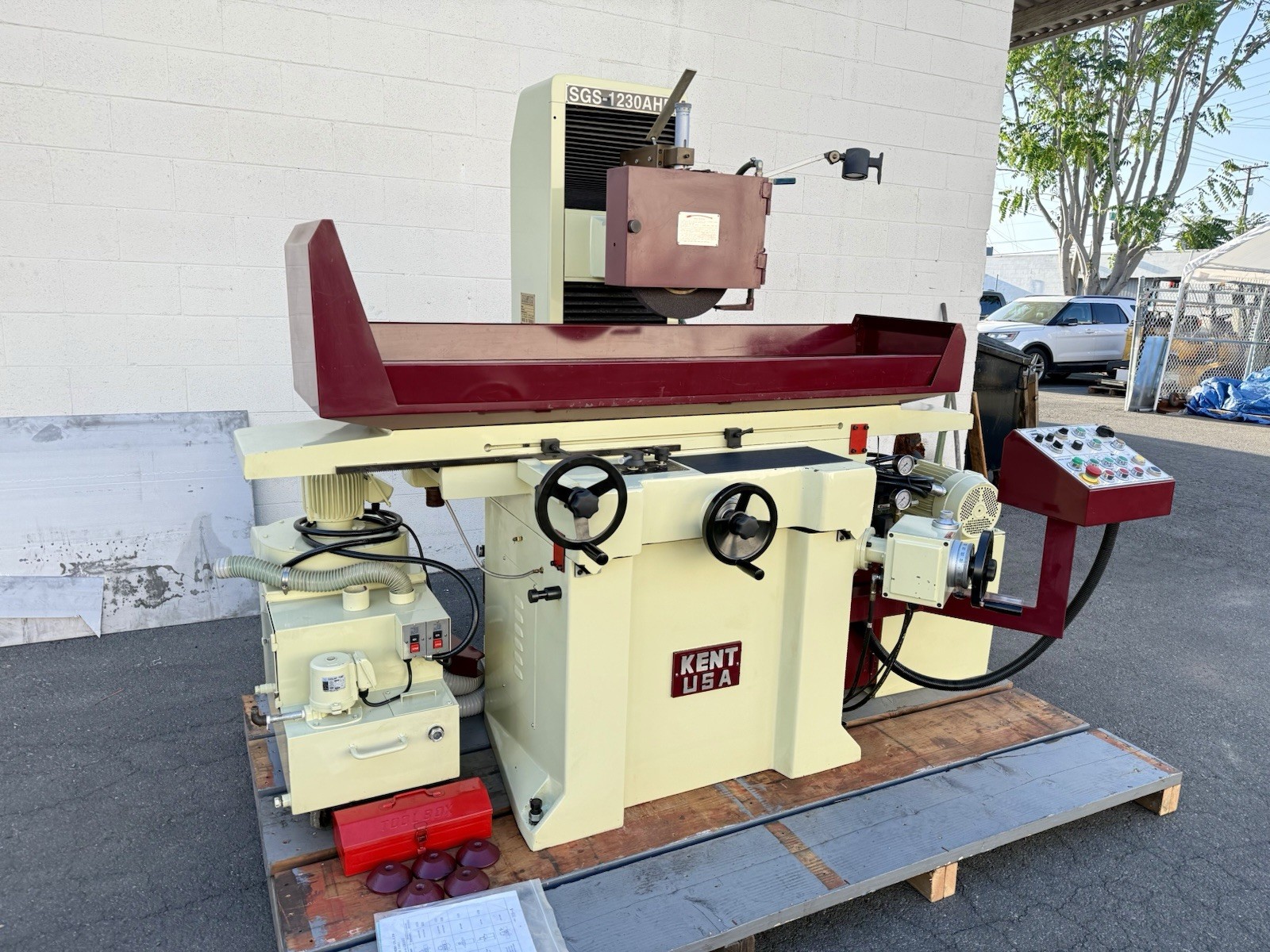

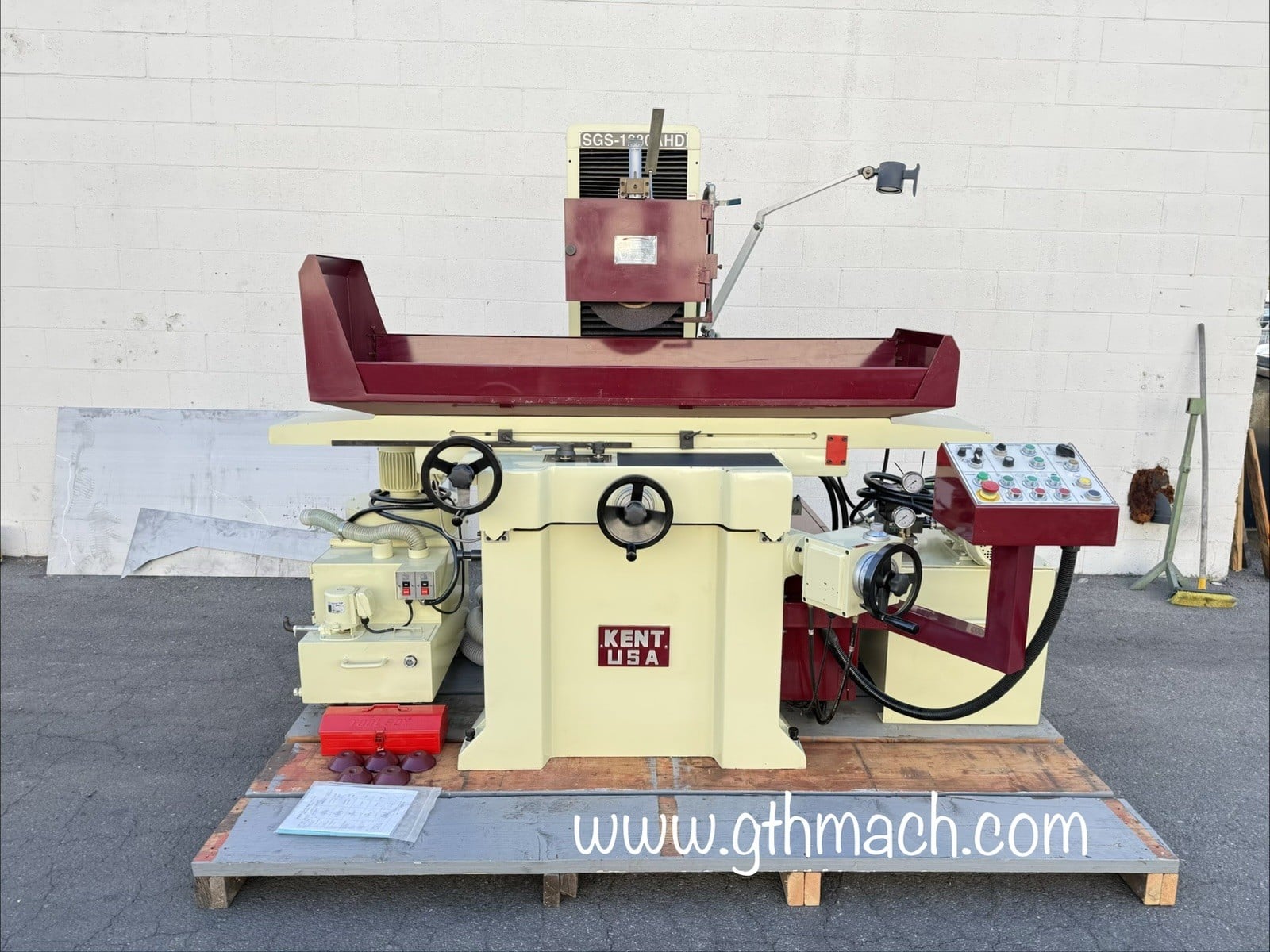

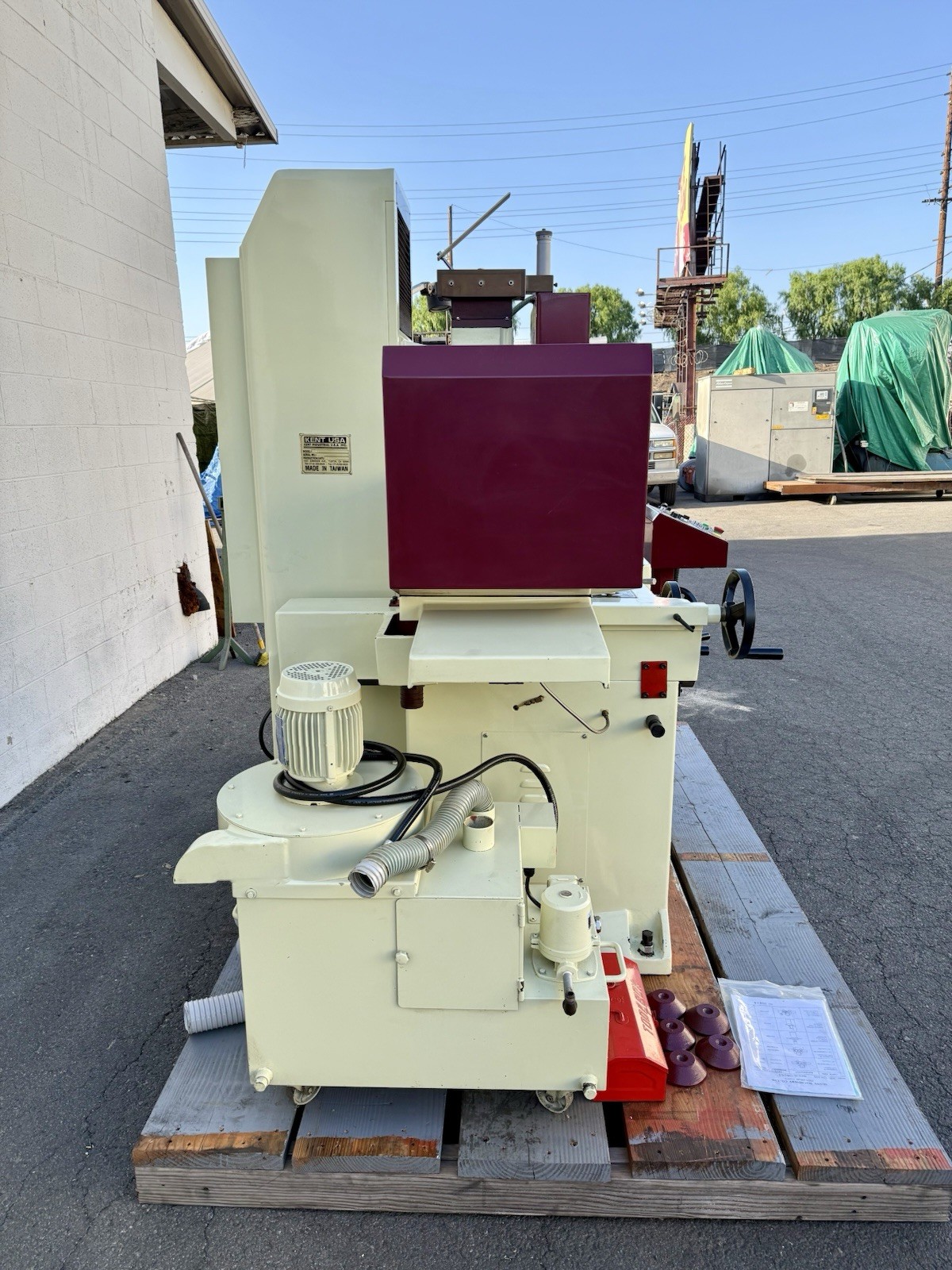

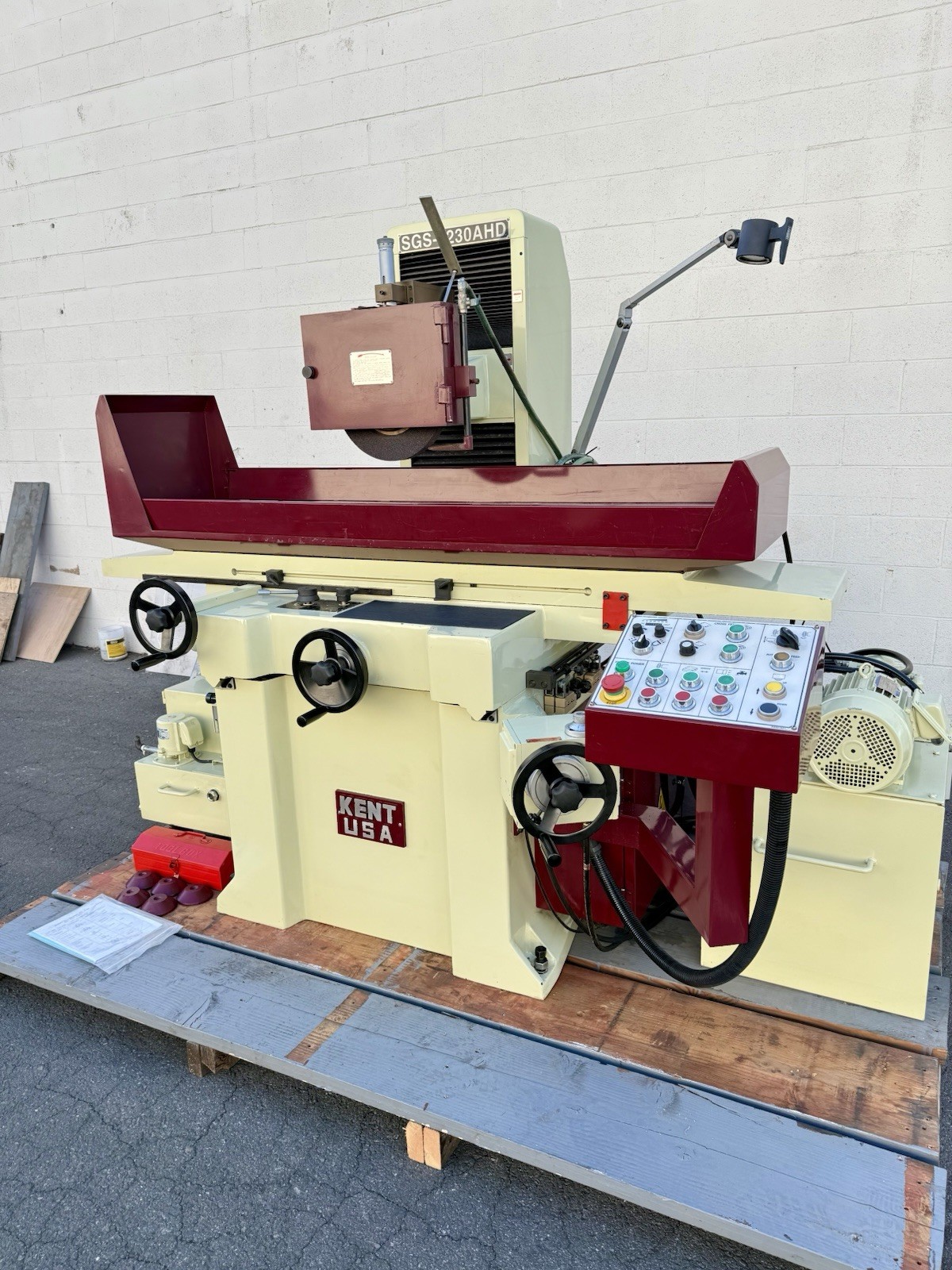

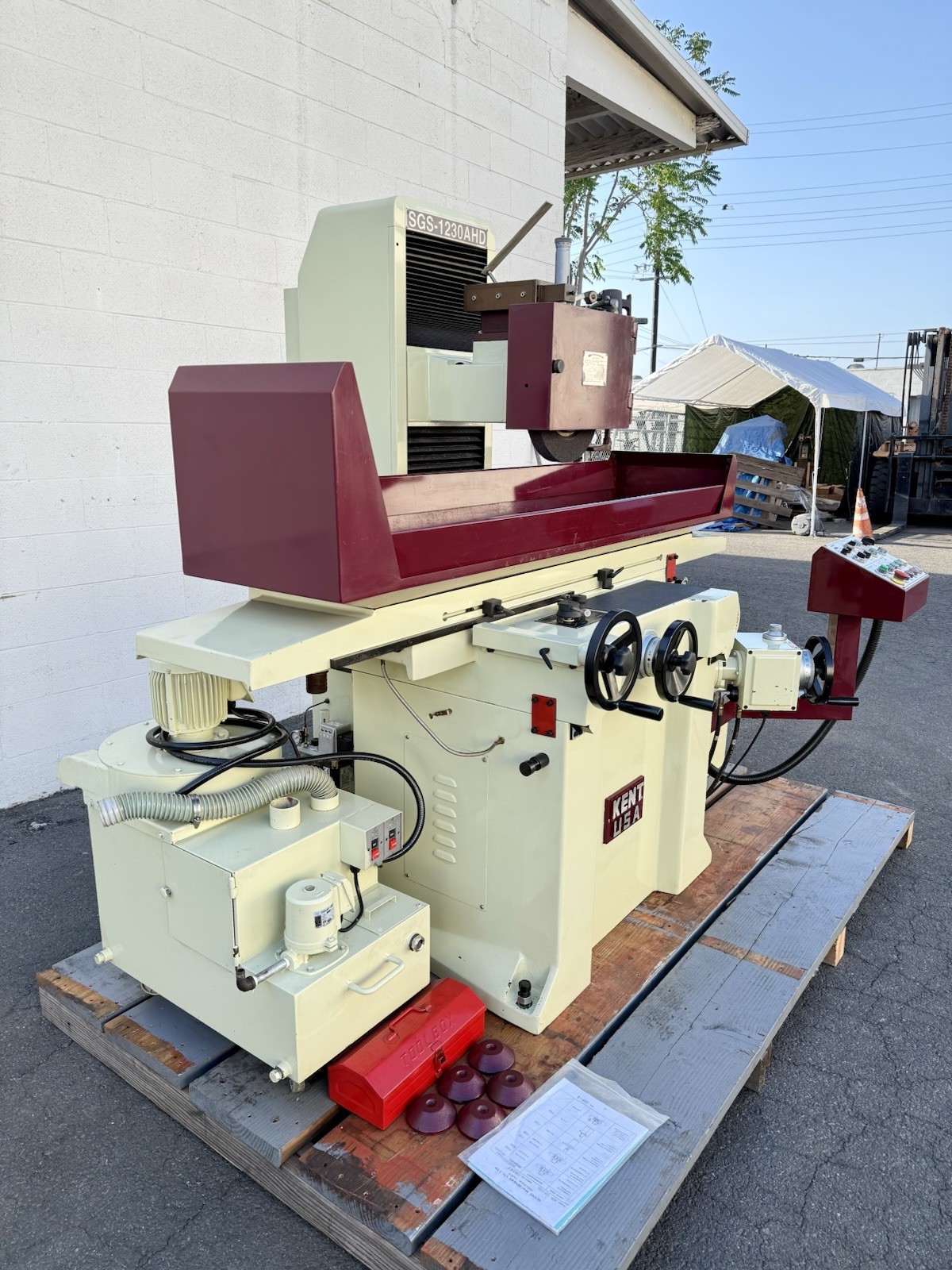

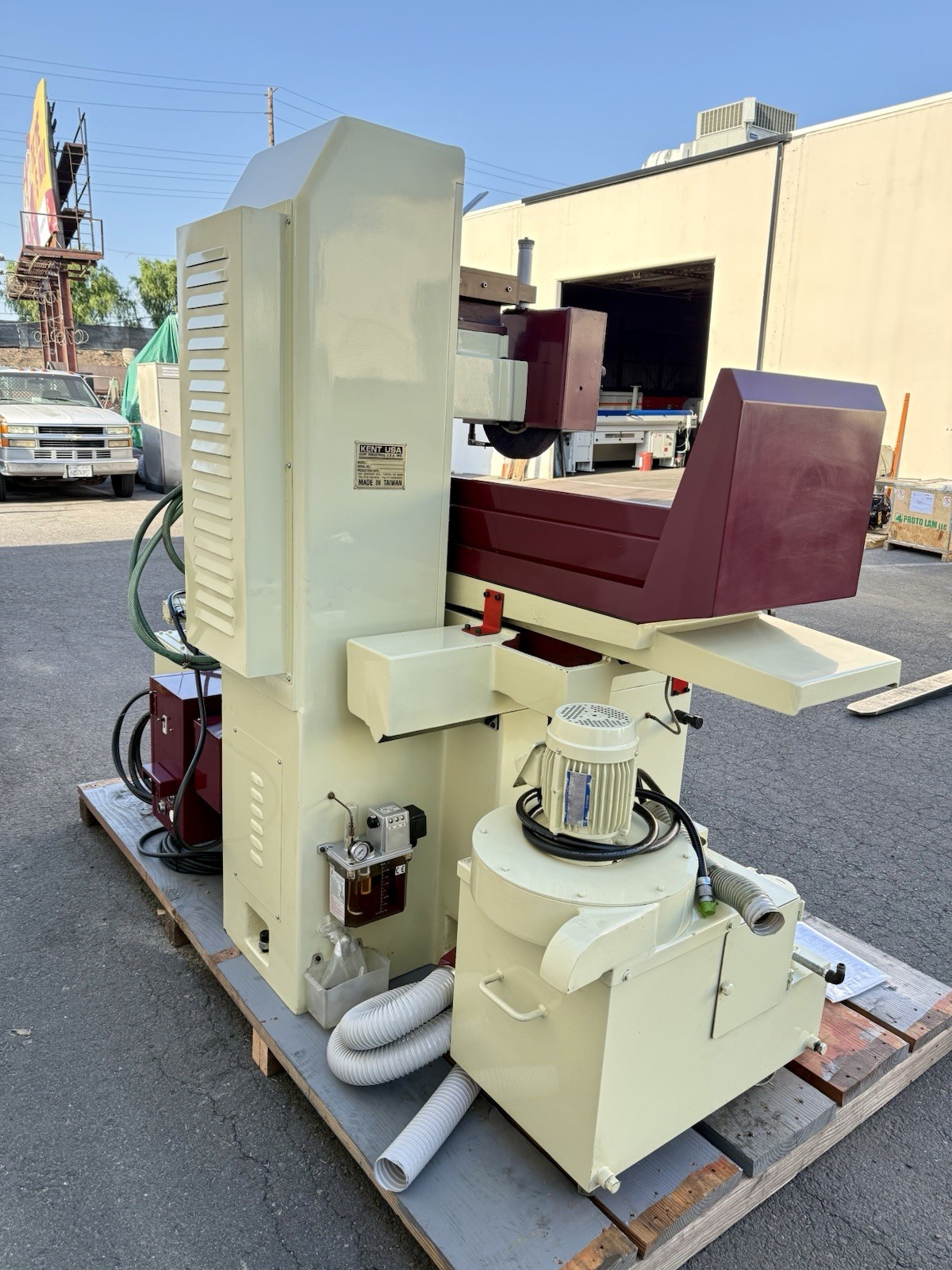

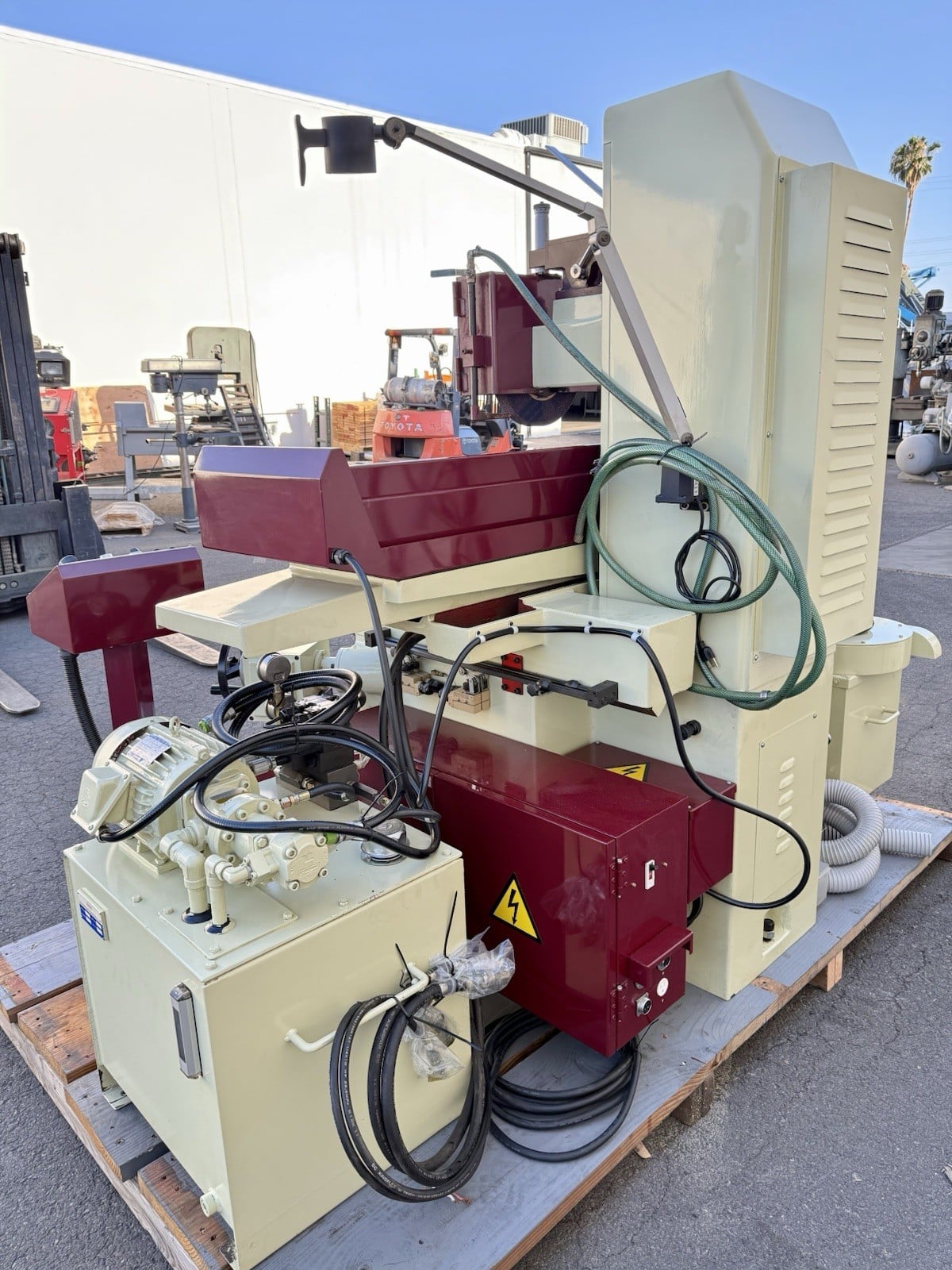

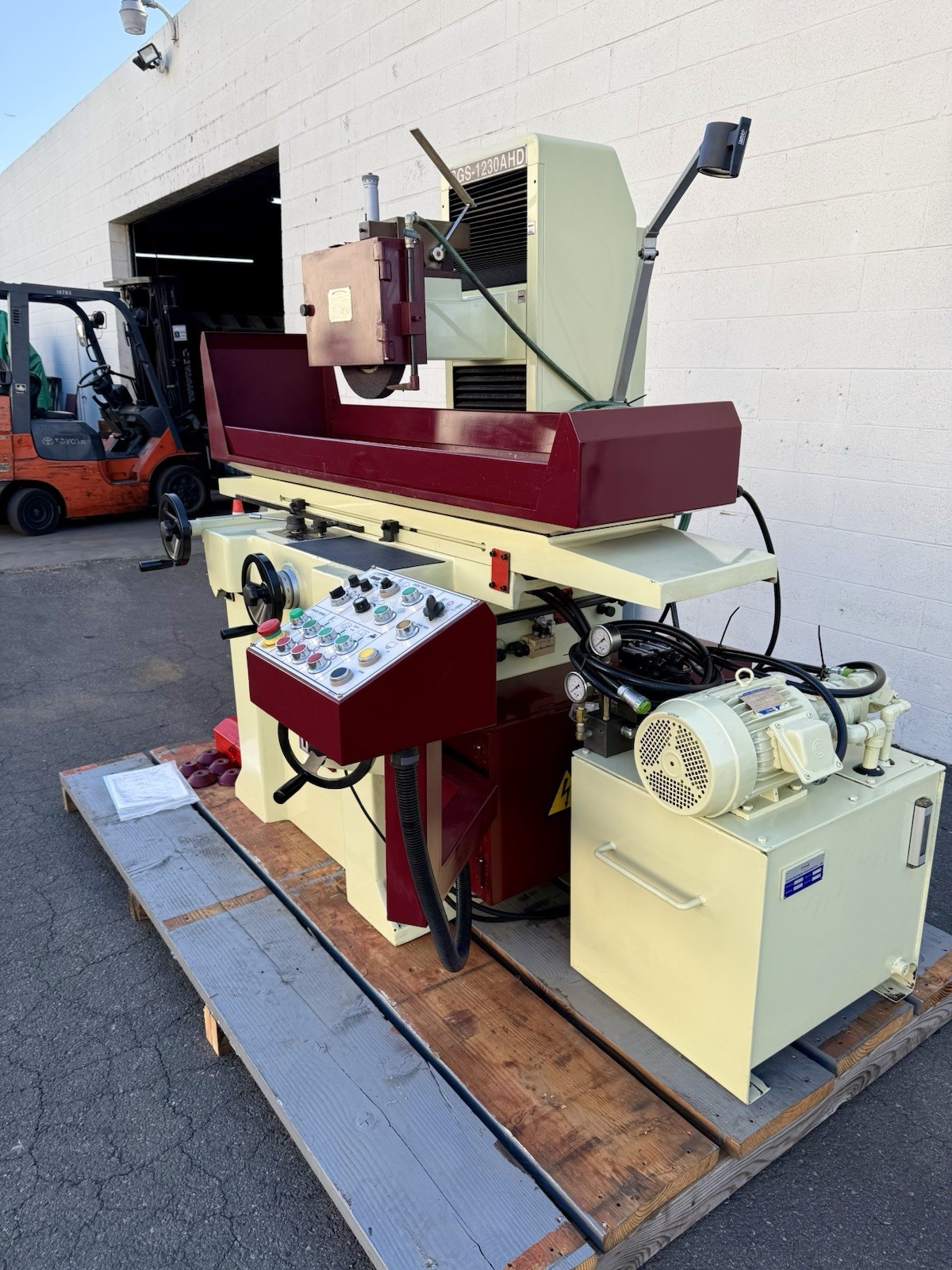

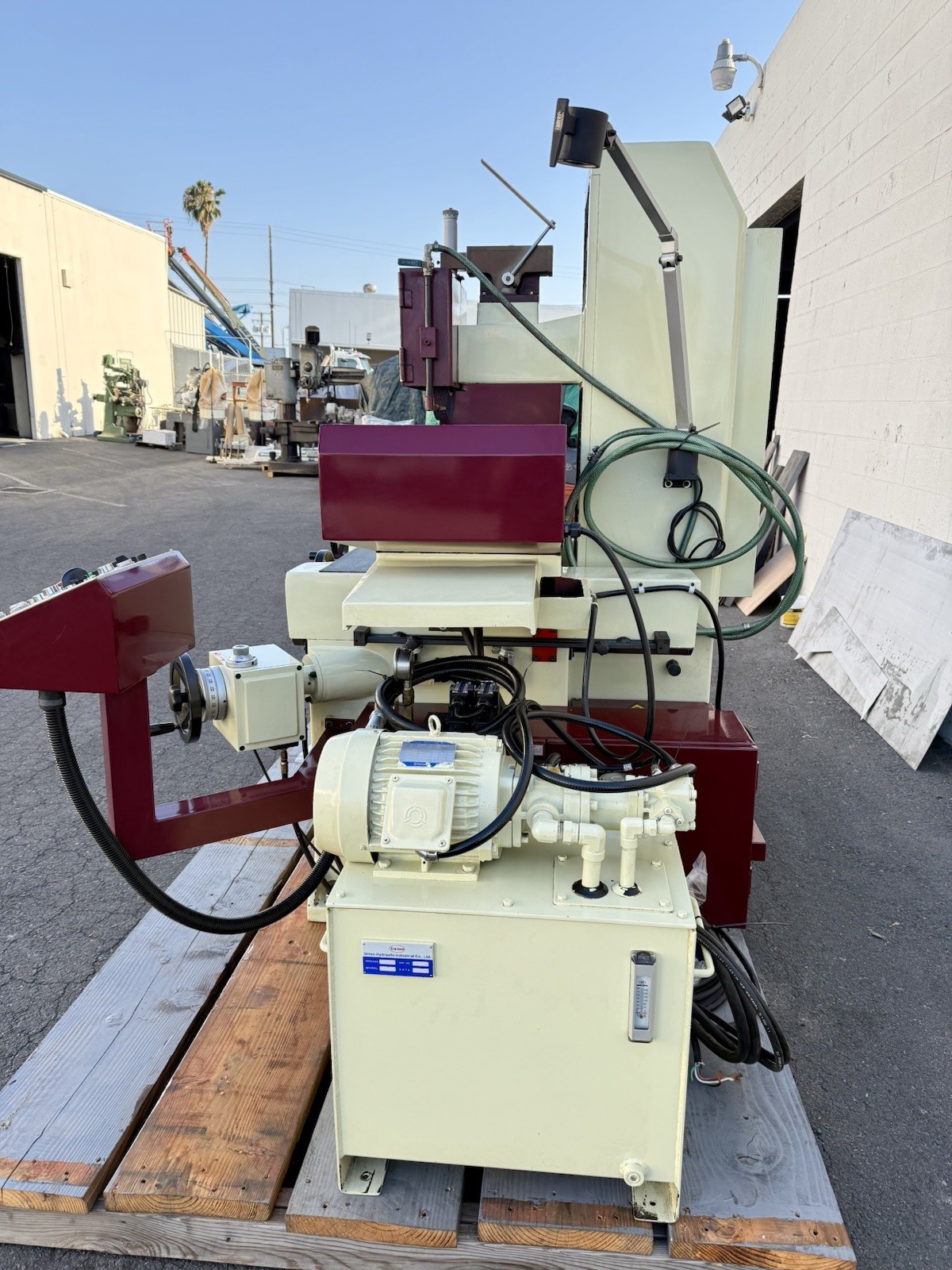

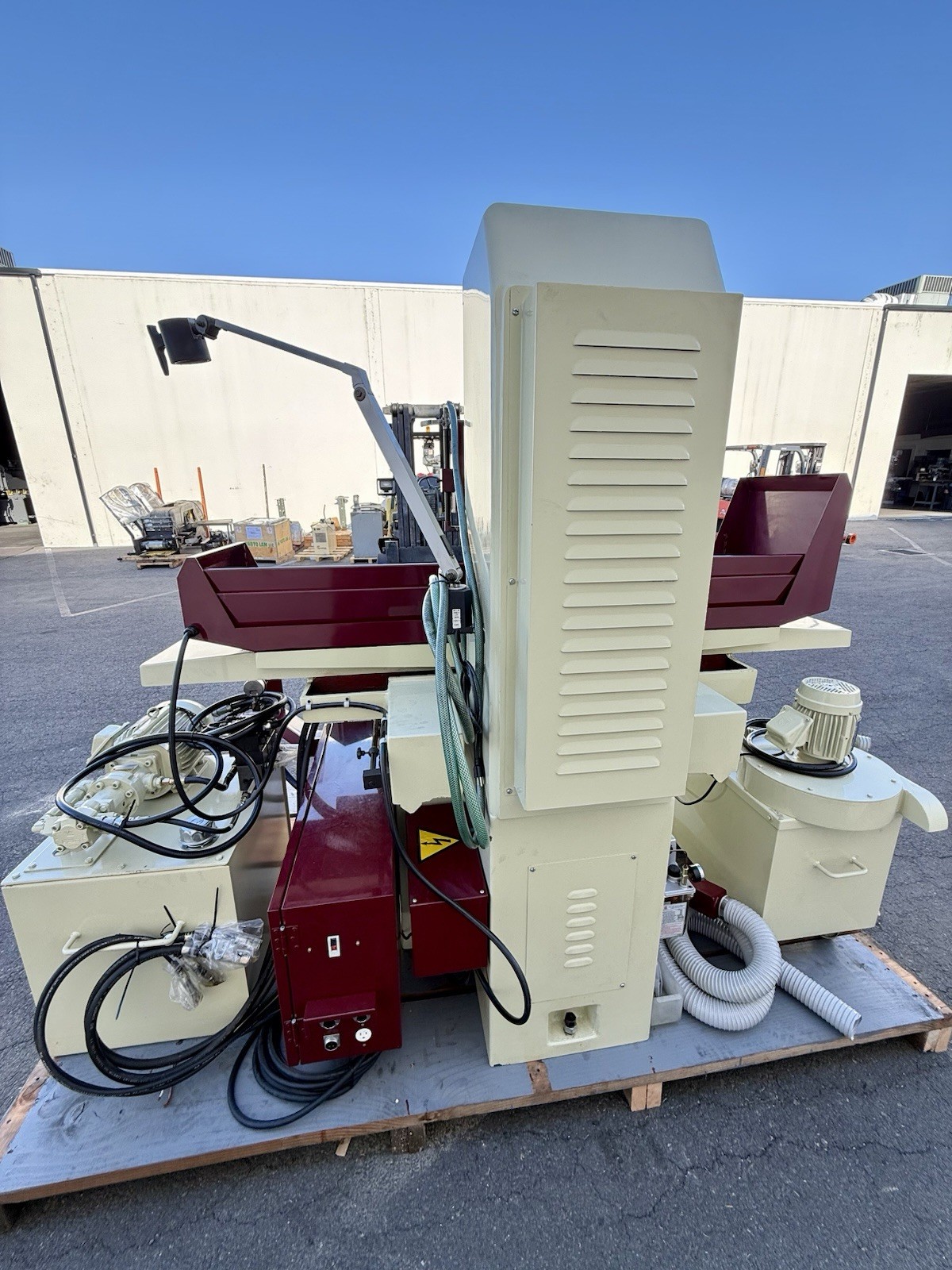

2019 Kent USA SGS-1230AHD Automatic Surface Grinder SPECIFICATIONS: Spindle motor: 5 HP, 230V/460V, 3-phase Maximum grinding capacity: 12" x 30" Table working surface: 10.2" x 29.5" Maximum longitudinal table travel: 33" Maximum cross saddle travel: 13.5" Maximum distance spindle center to table: 23.6" Grinding wheel size: 14" x 1-1/4" x 5" Spindle speed: 1750 RPM Hydraulic longitudinal feed rate: 16 to 80 FPM Automatic crossfeed range: 0 to 5/8" Automatic downfeed increments: 0.0001" to 0.001" (10 steps) Vertical handwheel graduation: 0.0005" Vertical handwheel revolution: 0.100" T-slot size: 1 x 9/16" Approximate machine net weight: 4,290 lbs. FEATURES: 3-axis fully automatic operation Precision hand-scraped Turcite-B table and saddle ways Dynamically balanced cartridge-type spindle High-column design for extra clearance under the wheel Rapid elevation motor for quick wheelhead positioning Centralized automatic lubrication system Direct-reading slip ring to set total material to grind Automatic spark-out cycle control Safe 24V operator control circuit power Standard Accessories Grinding wheel Wheel Flange Wheel balancing base Wheel balancing arbor Diamond table dresser base & tip Leveling bolts & pads Overhead parallel dresser Dust-suction coolant system Electromagnetic chuck with control Work light Toolbox with tools
Table Size 12" x 30", Longitudinal Travel 32", Cross Travel 14", Vertical Travel 21", Center Line Spindle to Table 27 1/2", Wheel Size 12" x 2" x 5", Motor Size 7 1/2 HP, Wired 220 Volt 3 Phase.
