Description

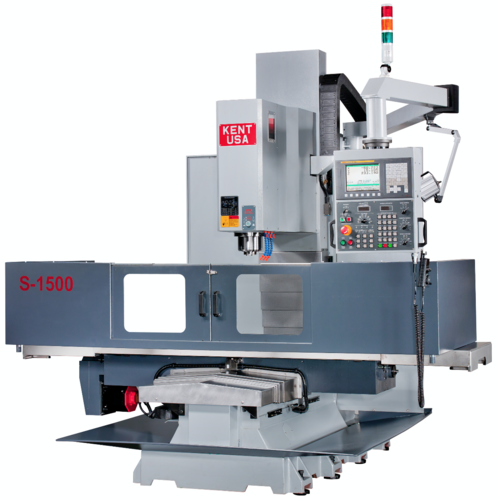

24" x 73" KENT USA S-1500 CNC VERTICAL BED MILL - NEW
PRODUCT FEATURES
STANDARD ACCESSORIES
PRODUCT FEATURES
- 10 HP AC Servo Spindle Motor
- Meehanite GB300 casting for superior rigidity
- Hardened and Ground Square Y and Z-axis ways
- Hardened and Ground table top and dovetail ways
- Precision Ground ballscrews on X, Y and Z-axis
- Ultra precision ground spindle, ABEC-7 bearings
- Hardened and Ground spindle spline and taper
- Auto Lube system with metered Check valves
- Metal telescoping way cover on Y-axis
- Built in Coolant system and Chip pan
- Halogen work light
STANDARD ACCESSORIES
- 20 Tools Carousel ATC
- Auto-Lubrication Unit
- Flood Coolant System
OPTIONAL ACCESSORIES
- MPG Handheld Jog Box
- Clamping Kit
- CAT 40 End Mill Adapters
- Rustlick G25 Coolant
- Angle-Lock Vise
- Rotary Table
- Full Enclosure
- Table Size
- Table Travel (X-Axis)
- Saddle Travel (Y-Axis)
- Knee Travel (Z-Axis)
- Spindle Center to Column
- Spindle to Table
- Quill Travel
- Quill Diameter
- T-Slots (number x width)
- Coolant Pump
- Spindle Motor
- Spindle Taper
- Speed Range
- Quill Power Feed (per rev)
- Drilling Capacity (Manual)
- Drilling Capacity (Power)
- Boring Capacity
- Milling Capacity
- Maximum Work Load
- Net Weight
- Gross Weight
- Packing Dimension
- Power Requirements
S-1500
- 24" x 73""
- 60
- 27
- 28
- 30.5"
- 3" to 31"
- NA
- NA
- 3 x 5/8"
- 0.25 HP
- 10 HP
- CAT40 or BT40
- 80-6000 RPM
- NA
- NA
- NA
- NA
- NA
- 3300 Lbs
- 9900 lbs
- 10890 lbs
- 122" x 92" x 110"
- 220 volts, 60 Hz, 3-phase, 70 Amps
Get Your Price from Blumberg Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

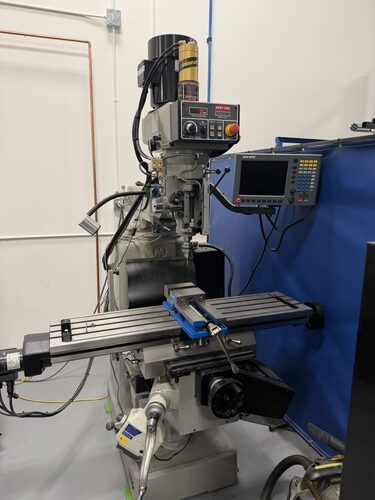

Kent #KTM-4VKF-E, CNC vertical bed mill, 12" x50" table, 30" X, 17" Y, 22" ram, 4" quill, 3 HP, 50-4500 RPM, R-8, Acu-Rite CNC, 2023
