Description

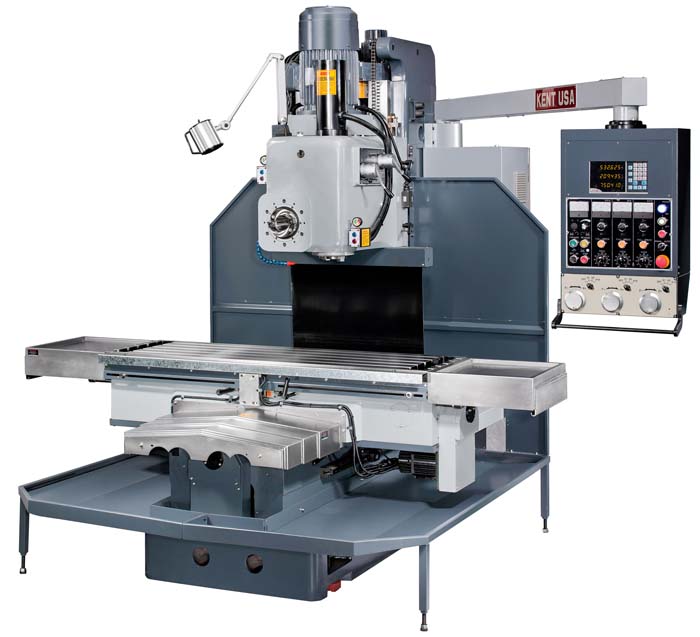

19.7 " x 75" KENT USA JY-VH650 COMBINATION HORIZONTAL & VERTICAL SPINDLE MILL - NEW
OPTIONAL ACCESSORIES
PRODUCT FEATURES
- 10 HP spindle motor infinitely variable speed, #50 taper spindle, 24 x 87 hardened and ground table top
- Saddle and base with hardened and ground square (box) ways
- Precision ACME screws in X, Y, & Z axes
- X, Y, & Z axes driven by AC motor
- Precision bored and ground milling head, with super precision ABEC-7 bearings
- Meehanite casting, with built in coolant reservoir in machine base
- Coolant system and chip tray
- Centralized automatic lubrication, with metered check-valves
- Precise angular contact bearings spindle
- Precision manufactured from SCM21 alloy steel, heat treated and precision ground spindle
- Hardened and precision ground for quiet running gears
- High torque servo motor X-axis feed
- Choice of Fanuc or Mitsubishi CNC controller
- Hardened, precision ground, and Turcite-B coated sideways for maximum wear resistance
- Convertible into CNC controlled system
OPTIONAL ACCESSORIES
- Dro System
- Air Power Drawbar (Per Spindle)
- Angle-Lock Vice
- Rotary Table (Vertical and Horizontal)
- Clamping Kit
- Chuck System
- Rustlick Coolant (1 Gal, Mixes 1:30)
- Table Size
- Table Travel (X-Axis)
- Saddle Travel (Y-Axis)
- Knee Travel (Z-Axis)
- T-Slot
- X, Y, Z Feedrate
- X, Y, Z Rapid Feedrate
- Spindle Motor
- Vertical Spindle Speed
- Vertical Spindle Taper
- Spindle Nose to Table
- Spindle Center to Column
- Horizontal Spindle Speed
- Horizontal Spindle Taper
- Spindle Center to Table
- Spindle Nose to Rear
- Maximum Work Load
- Machine Net Weight
- Shipping Weight
- Dimensions
JY-VH650
- 24" x 87"
- 67"
- 41.3"
- 37.4"
- 0.98" x 0.2" x 4.92"
- 1.2"/min -110"/min
- 110"/min
- 10 HP
- 45 - 1500 RPM (variable)
- NT-50
- 0 - 30"
- 26"
- 45 - 1500 RPM (variable)
- NT-50
- -.39 - 31.88"
- 11.6"
- 4400 lbs
- 16500 lbs
- 18700 lbs
- 139" x 138" x 121
- "
Get Your Price from Blumberg Machinery Co!
