Click to zoom in
For Sale by Cleveland Machinery Sales Inc
Surplus Record Dealer Since 1984
Location: Cleveland, OH
Contact Frank Petitt
Phone Number: 216...> Show Phone Number 216-741-8900
Let the seller know you found their listing on Surplus Record!
Description

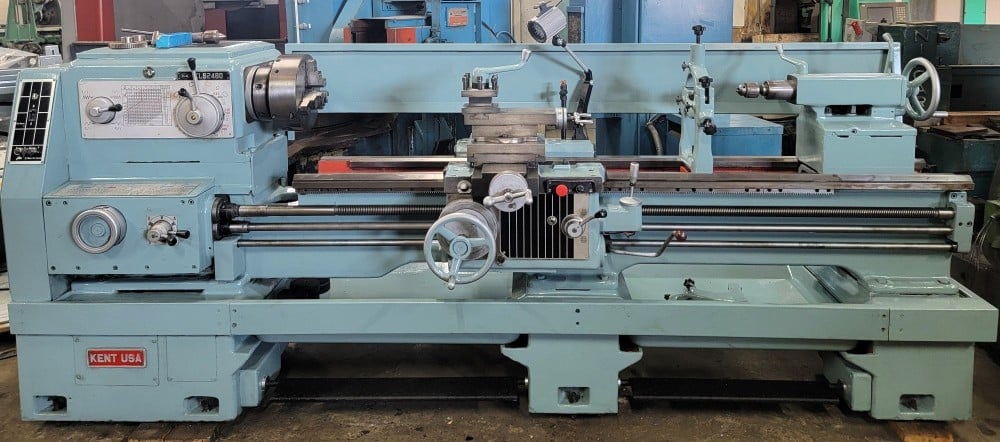

Swing Over Bed 24"
Width of Bed 15.75"
Distance Between Centers 80"
Swing Over Gap 32"
Effective Gap Length 11.5"
Spindle Bore 3.1"
Spindle Speeds 24 Steps
Spindle Speed Range 12-1680 RPM
Spindle Nose D1-8
Thread – Standard (Whit-worth) 34 (1-48 TPI)
Thread – Metric Pitch 42 (0.5 - 96 mm)
Thread Diametral 47 (1 - 192)
Thread Module 30 (.25 - 24)
Longitudinal Feeds
Cross Feeds
Leadscrew Diameter 1-9/16"
Leadscrew Thread Pitch 4
Quill Travel 6”
Quill Diameter 2.9"
Quill Bore Taper MT#5
Main Engine 10 HP
Coolant Pump Motor 1/8 HP
Packing Dimension 142" x 45” x 56”
Net Weight 8580 lbs
12" 3 Jaw Set True with D1-8 Mount
12" 4 Jaw Chuck with D1-8 Mount
19" Face Plate with D1-8 Mount
5-1/8" Square Tool Post
Steady Rest 5" Capacity
Follow Rest
Thread Dial
LED Work Light
Drill Chuck
Live Center
Width of Bed 15.75"
Distance Between Centers 80"
Swing Over Gap 32"
Effective Gap Length 11.5"
Spindle Bore 3.1"
Spindle Speeds 24 Steps
Spindle Speed Range 12-1680 RPM
Spindle Nose D1-8
Thread – Standard (Whit-worth) 34 (1-48 TPI)
Thread – Metric Pitch 42 (0.5 - 96 mm)
Thread Diametral 47 (1 - 192)
Thread Module 30 (.25 - 24)
Longitudinal Feeds
Cross Feeds
Leadscrew Diameter 1-9/16"
Leadscrew Thread Pitch 4
Quill Travel 6”
Quill Diameter 2.9"
Quill Bore Taper MT#5
Main Engine 10 HP
Coolant Pump Motor 1/8 HP
Packing Dimension 142" x 45” x 56”
Net Weight 8580 lbs
12" 3 Jaw Set True with D1-8 Mount
12" 4 Jaw Chuck with D1-8 Mount
19" Face Plate with D1-8 Mount
5-1/8" Square Tool Post
Steady Rest 5" Capacity
Follow Rest
Thread Dial
LED Work Light
Drill Chuck
Live Center
Get Your Price from Cleveland Machinery Sales Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

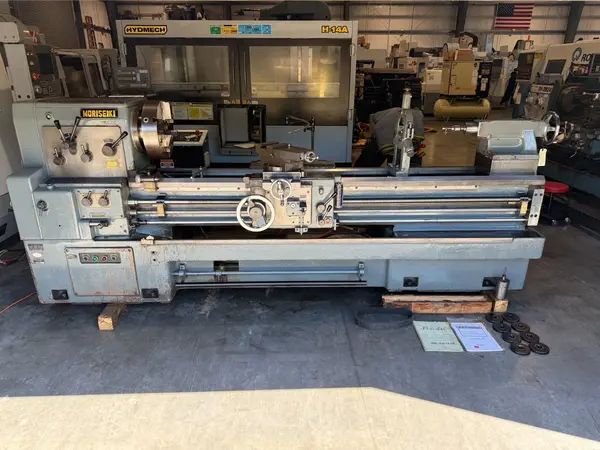

24" x 80" Mori Seiki #MH-2000, engine lathe, 16" swing over cross slide, 3-1/8" bore, A1-8, 27-1205 RPM, 10 HP, inch/metric, 15" 3-jaw chuck, digital read out
