Keltec Technolab #KL190-041, oil filter element, 4.49" outside dimension x 9.13" H

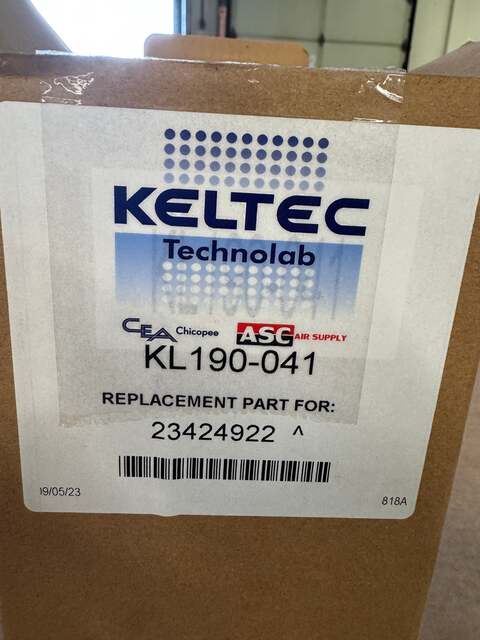

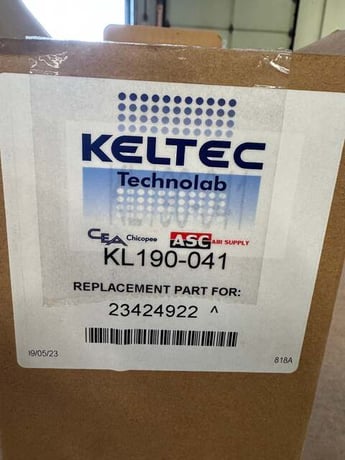

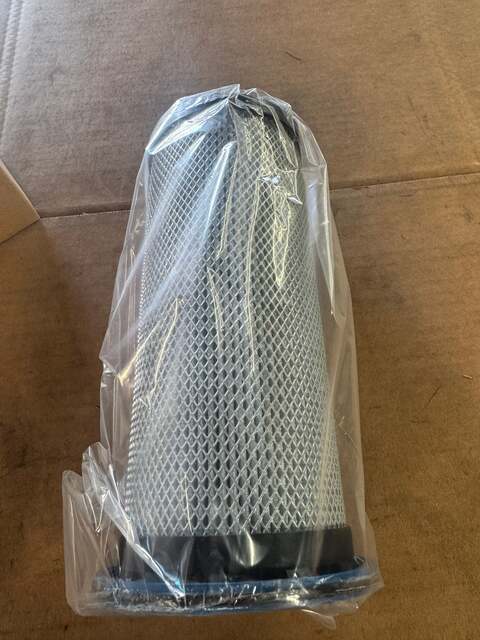

The Keltec Technolab KL190-041 is an oil filter element designed for use in rotary screw air compressor systems. This part number is a direct replacement for Ingersoll Rand OEM part number 23424922 and is compatible with Ingersoll Rand R Series rotary screw compressors, including R45IE, R55I, R110I, R110IE, R110N, R132I, R132IE, R132N, R150I, R160I, R160IE, R160N, and R160NA models across the 60 HP to 225 HP range. Manufacturer published dimensions are an outer diameter of 4.49 in. (114 mm), inner diameter of 3.81 in. (96.8 mm), and overall height of 9.13 in. (232 mm). Construction features a pleated filter media supported by an expanded metal outer cage for structural rigidity under operating pressure and flow. End caps are sealed using plastisol and epoxy encapsulation per the manufacturer's published specifications. The unit is supplied in original Keltec packaging with retail label showing part number KL190-041 and OEM cross reference 23424922. Keltec Technolab is a manufacturer of aftermarket compressed air and gas filtration components, with products engineered to meet or exceed original equipment specifications. Applications include compressor oil filtration in industrial air systems, plant maintenance, and MRO replacement inventories supporting Ingersoll Rand rotary screw air compressor fleets.

Stock # 0526-02409
