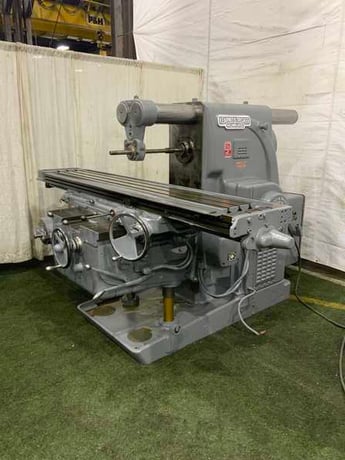

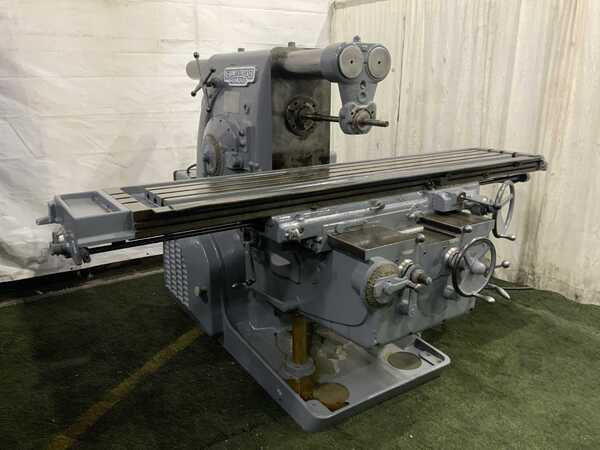

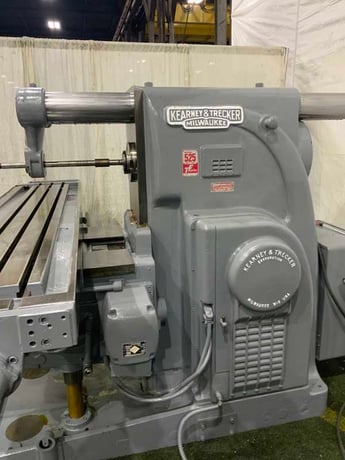

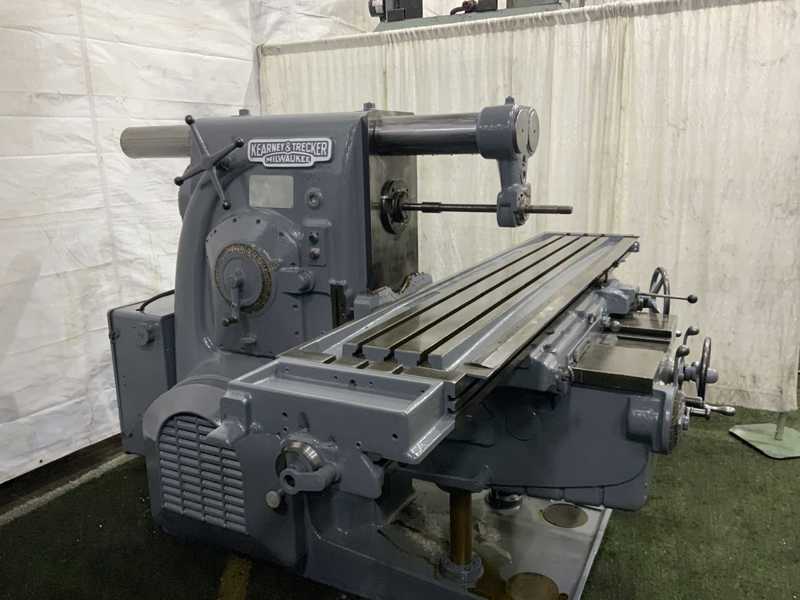

Kearney & Trecker #525TF, horizontal mill, 18" x106" table, 25 HP, 4 position vertical turret stop

SERIAL ............................. 8-8114

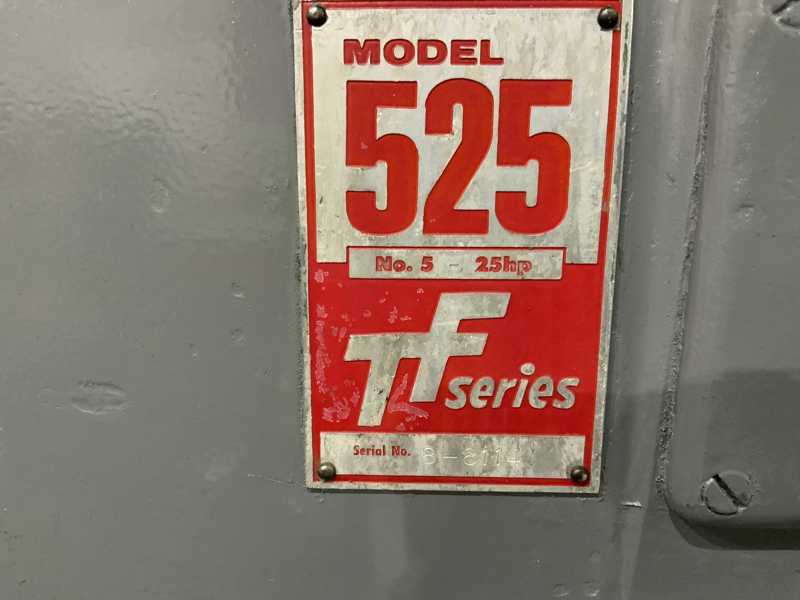

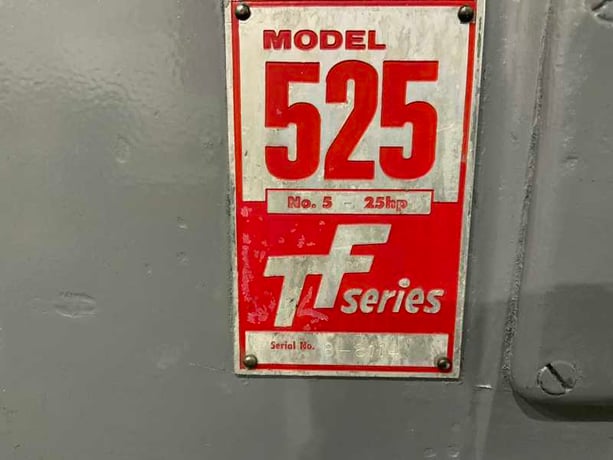

MODEL .............................. 525TF-25

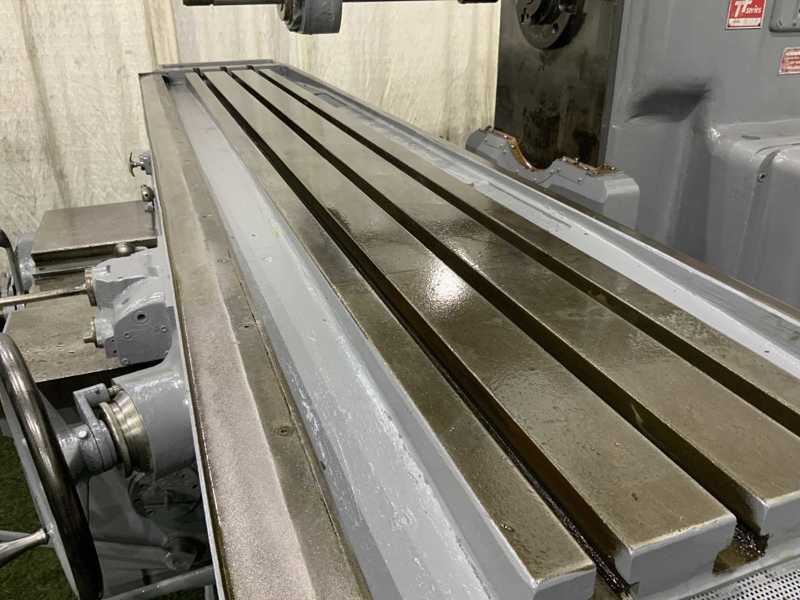

AREA OF TABLE (T-SLOTTED) .......... 106" X 18"

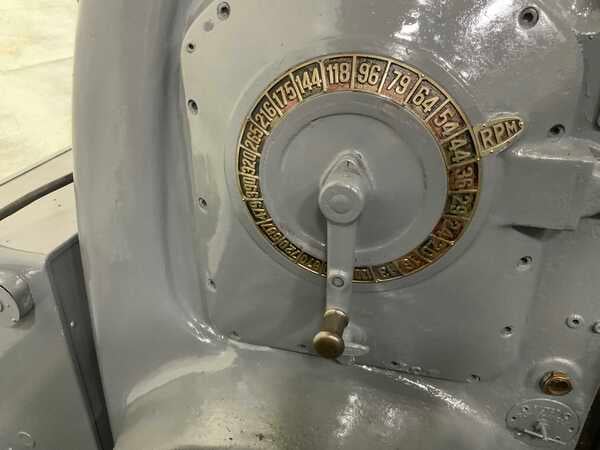

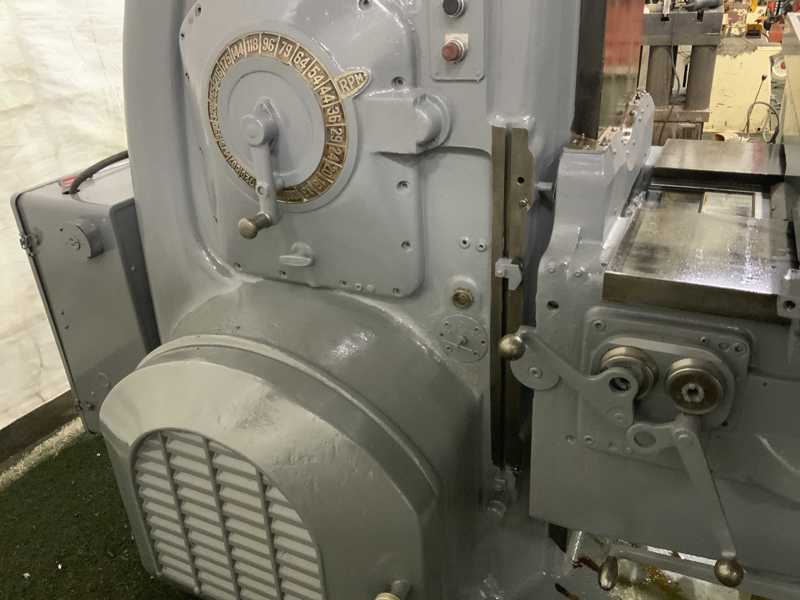

SPINDLE SPEEDS ..................... (24) 13 TO 1300 RPM

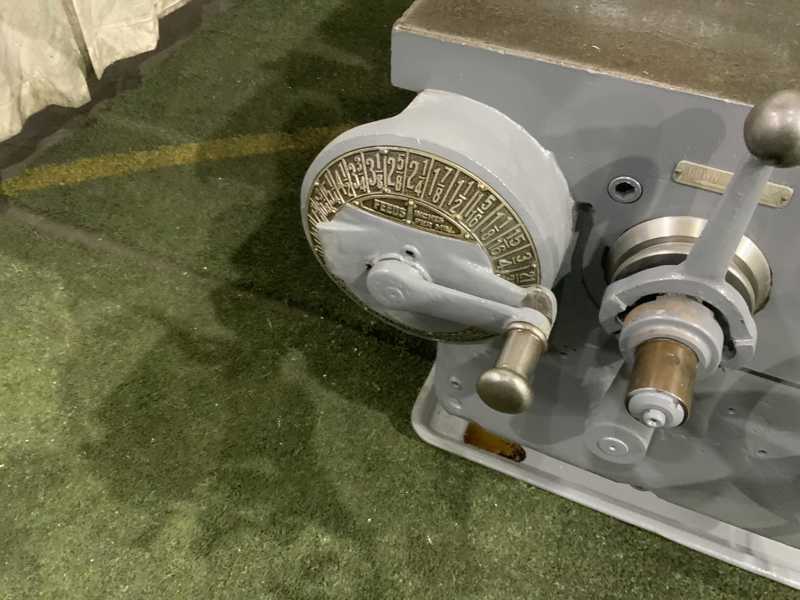

LONGITUDINAL & CROSS FEEDS ......... (32) 3/8" TO 90 IPM

VERTICAL TABLE FEEDS ............... (32) 1/8 TO 30 IPM

VERTICAL HEAD FEEDS ................ (32) 3/16 TO 45 IPM

LONGITUDINAL TABLE TRAVEL .......... 50"

CROSS TABLE TRAVEL ................. 18"

VERTICAL KNEE TRAVEL ............... 18"

VERTICAL HEAD TRAVEL ............... 8"

TAPER IN SPINDLE ................... #50 NS

RAPID TRAVERSE ..................... 150 IPM

DISTANCE SPINDLE TO TABLE .......... 0" TO 23" MAXIMUM

COOLANT ............................ YES

4-POSITION VERTICAL TURRET STOP .... YES

HORSEPOWER SPINDLE MOTOR ........... 25
